Description

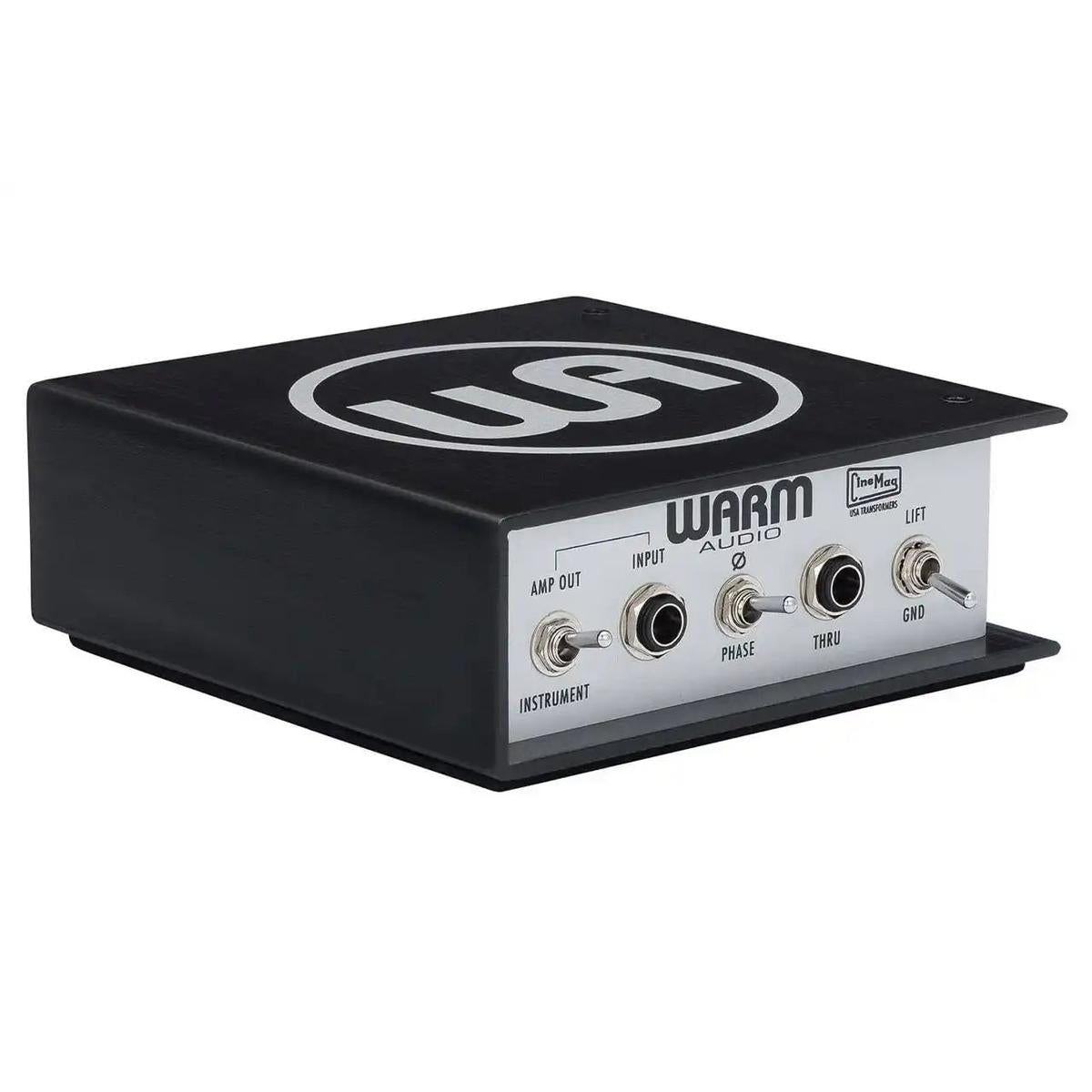

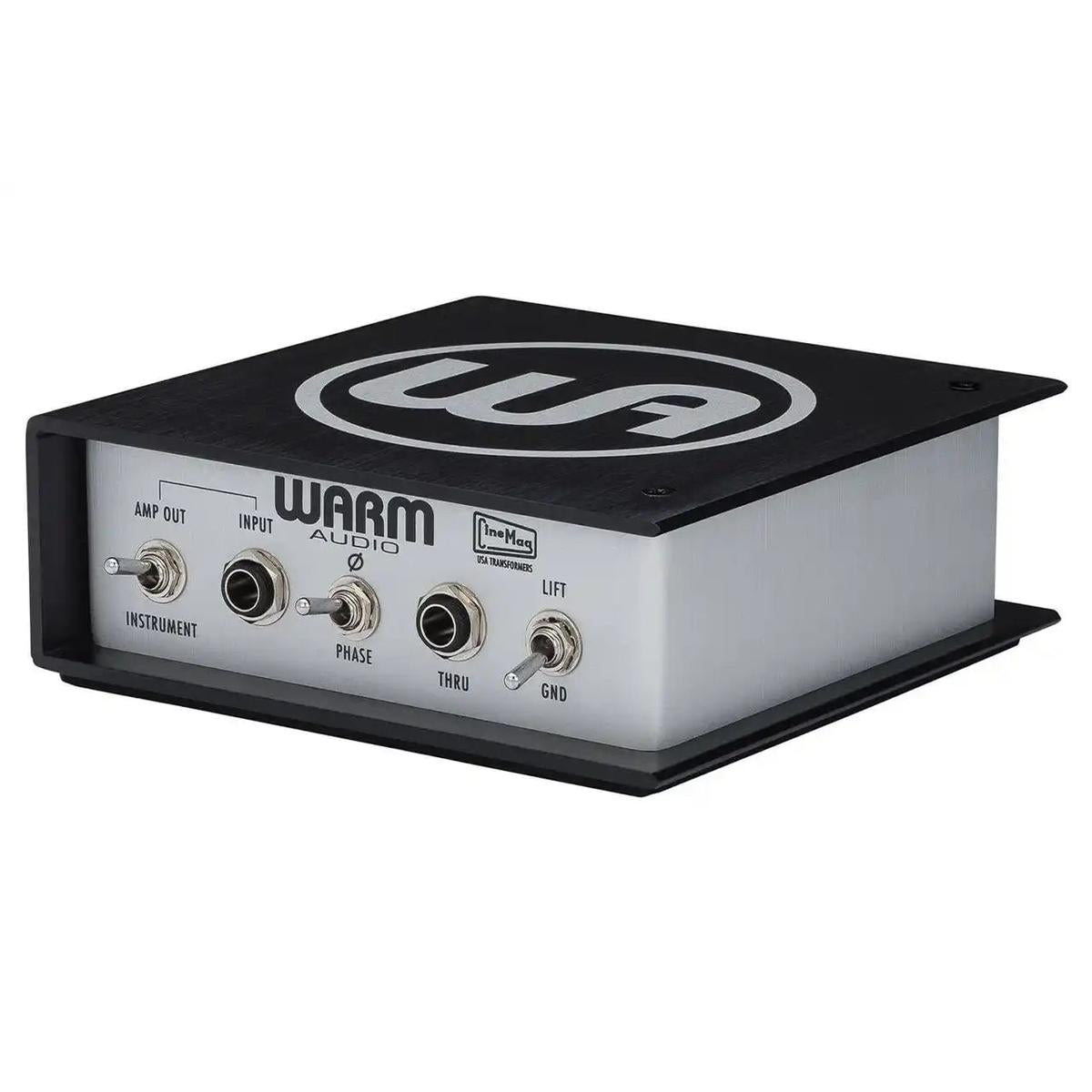

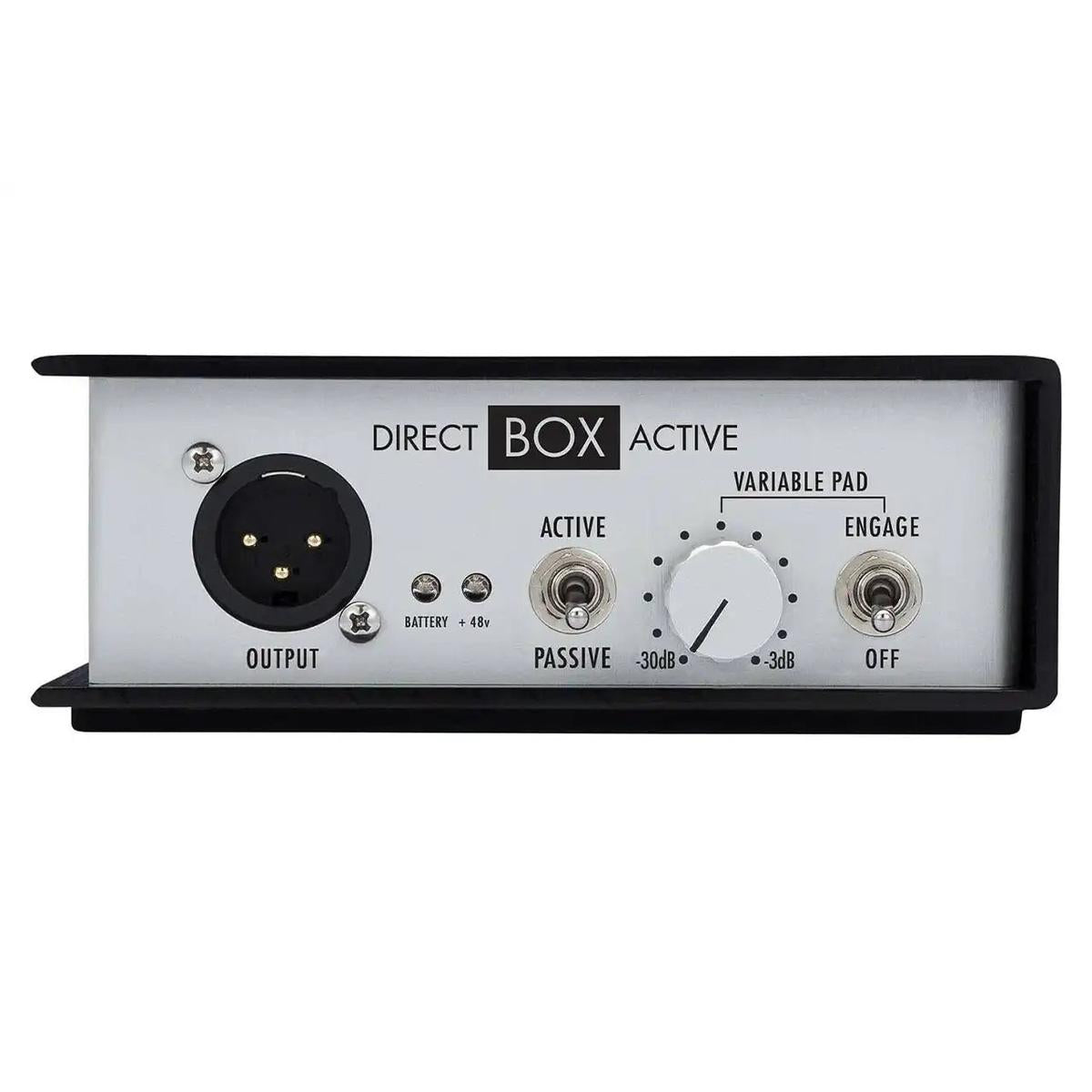

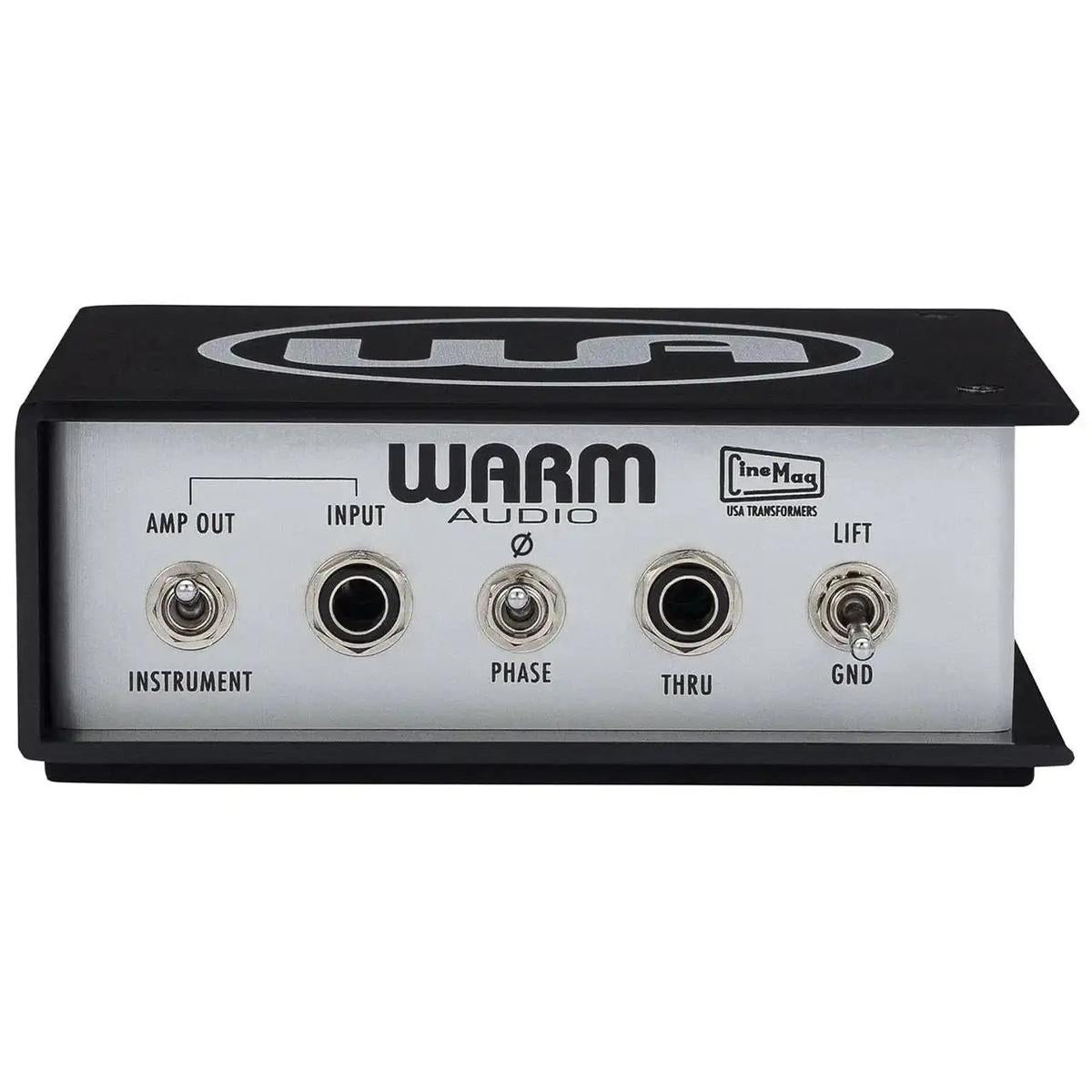

Warm Audio WA-DI-A Transformer-Balanced Active Direct Box is a transformer-balanced active direct box that converts instruments to mic-level signals for plugging straight into any mic pre. It has a custom-wound CineMag USA output transformer, a pad variable from -3 dB to -30 dB and an active/passive switch.
Specifications
| SKU | HL00328980 |
|---|---|
| Model | WA-DI-A |
| Type | Transformer-balanced active direct box |
| Function | Converts instruments to mic-level signals without signal degradation |
| Use | Plugging your instrument direct into any mic pre |
| Construction | Rugged aluminum construction |
| Pad | Variable from -3 dB to -30 dB |
| Active/passive switch | Selectable, to boost weaker signals |
| Output transformer | Custom-wound CineMag USA |
| Components | Top-quality Class-A components with gold-plated traces on circuit board |
| Power | +48V phantom or two 9V batteries; can also be used passively |
| Balanced output | 600 ohms, mic level |
| Input impedance | 1 meg ohms |
| Active THD | 0.01% from 20 Hz to 50 Hz; less than 0.003% from 50 Hz to 20 kHz |
| Active frequency response | 10 Hz to 90 kHz +/- 0.5 dB |
Common questions
How is the Warm Audio WA-DI-A powered?
The Warm Audio WA-DI-A runs on +48V phantom power or two 9V batteries, and can also be used passively.
What does the Warm Audio WA-DI-A do?
The Warm Audio WA-DI-A converts an instrument to a mic-level balanced signal so you can plug the instrument direct into any mic pre.
Does the Warm Audio WA-DI-A have a pad?
Yes. The Warm Audio WA-DI-A has a pad variable from -3 dB to -30 dB.
What transformer is in the Warm Audio WA-DI-A?
The Warm Audio WA-DI-A uses a custom-wound CineMag USA output transformer with a 600 ohm, mic-level balanced output.
What is the frequency response of the Warm Audio WA-DI-A?
In active mode the Warm Audio WA-DI-A has a frequency response of 10 Hz to 90 kHz +/- 0.5 dB and an input impedance of 1 meg ohms.
