Description

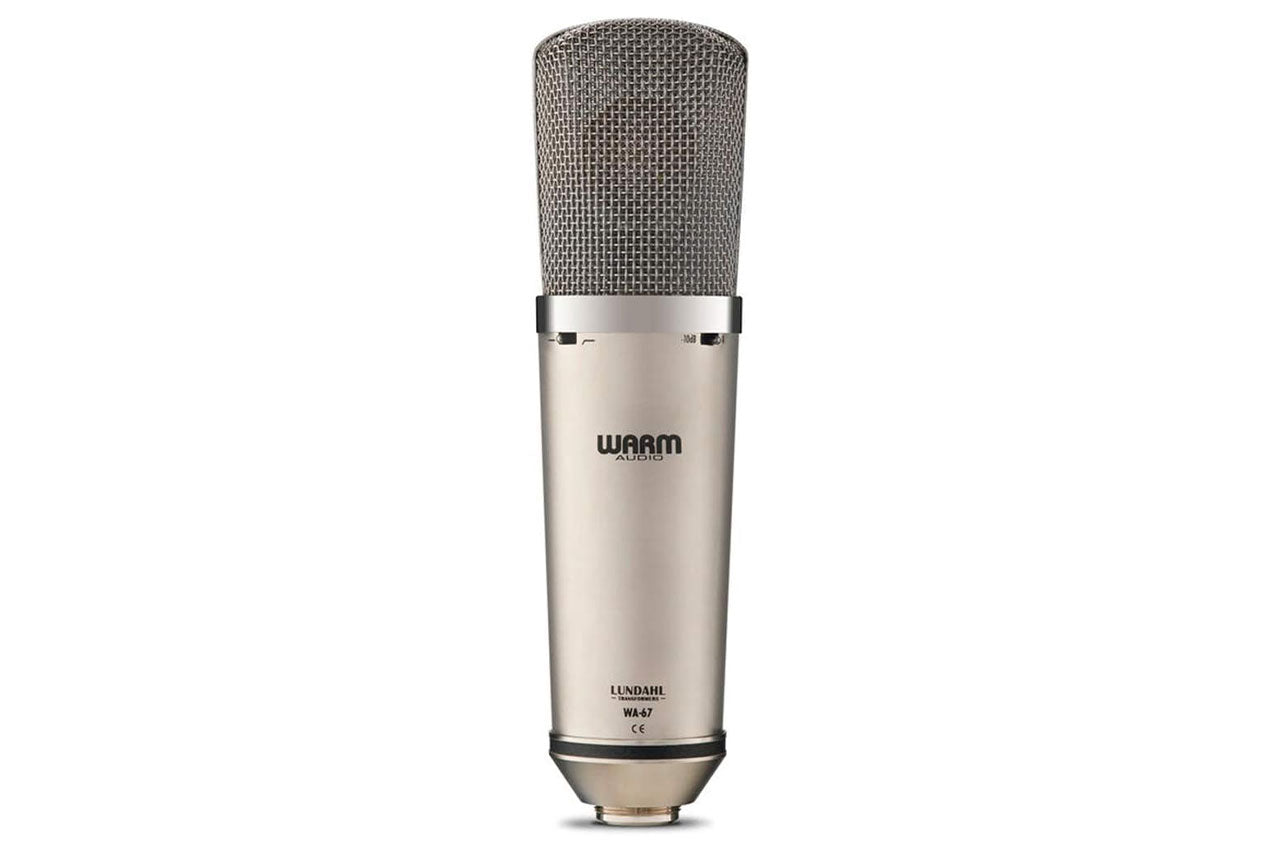

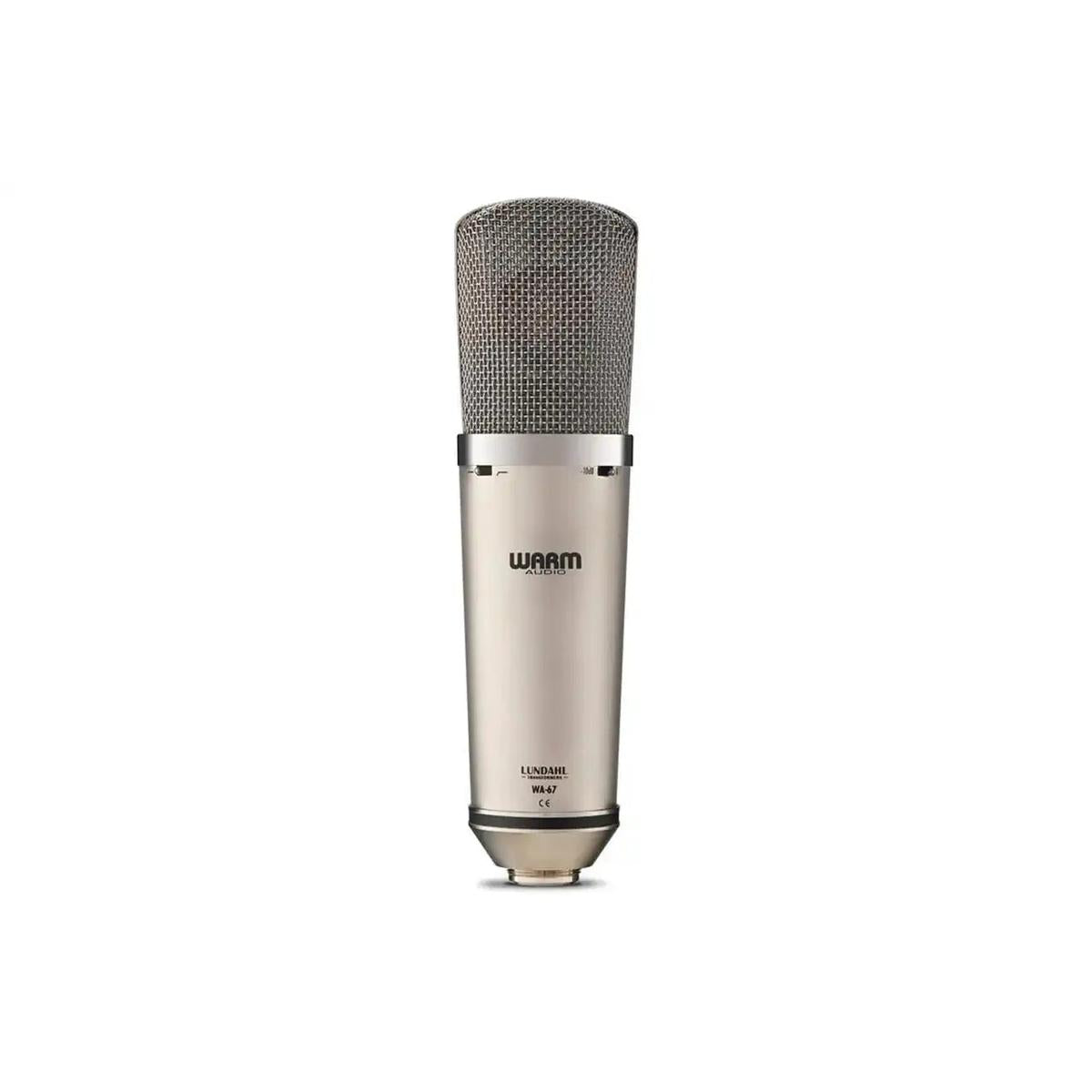

Warm Audio WA-67 Tube Condenser Microphone is a tube condenser microphone with an EF86 pentode tube, a custom all-brass K67-style capsule and a Lundahl Sweden transformer, with switchable cardioid, omni and figure-8 patterns.
Specifications
| SKU | HL00360085 |
|---|---|
| Model | WA-67 |
| Type | Tube condenser microphone |
| Body | Nickel-plated brass microphone body and headbasket for ultimate acoustic performance |
| Polar patterns | Cardioid, omni, figure-8 |
| Switches | Switchable high pass filter & 10 dB pad |
| Tube | EF86 pentode tube for creamy smooth clarity & brilliance |
| Transformer | Custom large-core transformer from Lundahl Sweden |
| Capsule | Custom all-brass large K67-style vintage capsule recreation |
| Diaphragm | Gold-sputtered Mylar diaphragm, 6 microns thick |
| Capacitors | High-bandwidth polystyrene capacitors; boutique film capacitors from Wima and Solen |
| Cable | Premium 7-pin tube cable from Gotham Switzerland |
| Frequency response | 20 Hz - 20 kHz |
| Rated impedance | 200 ohms |
| Rated load impedance | 1k ohms |
| Equivalent noise level (A-weighted) | 17 dB-A |
| Maximum SPL for THD 0.5% | 138 dB |
| Signal to noise ratio (A-weighted) | 78 dB |

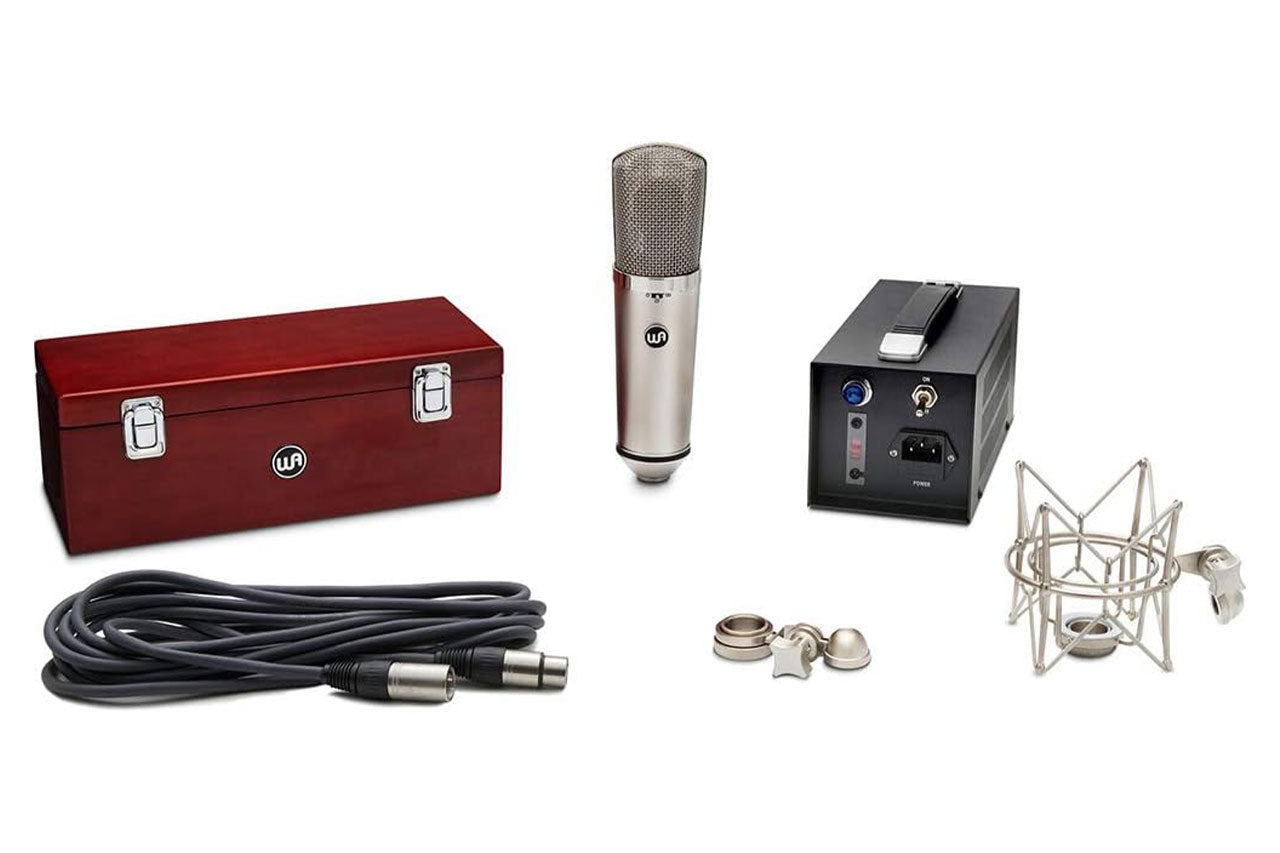

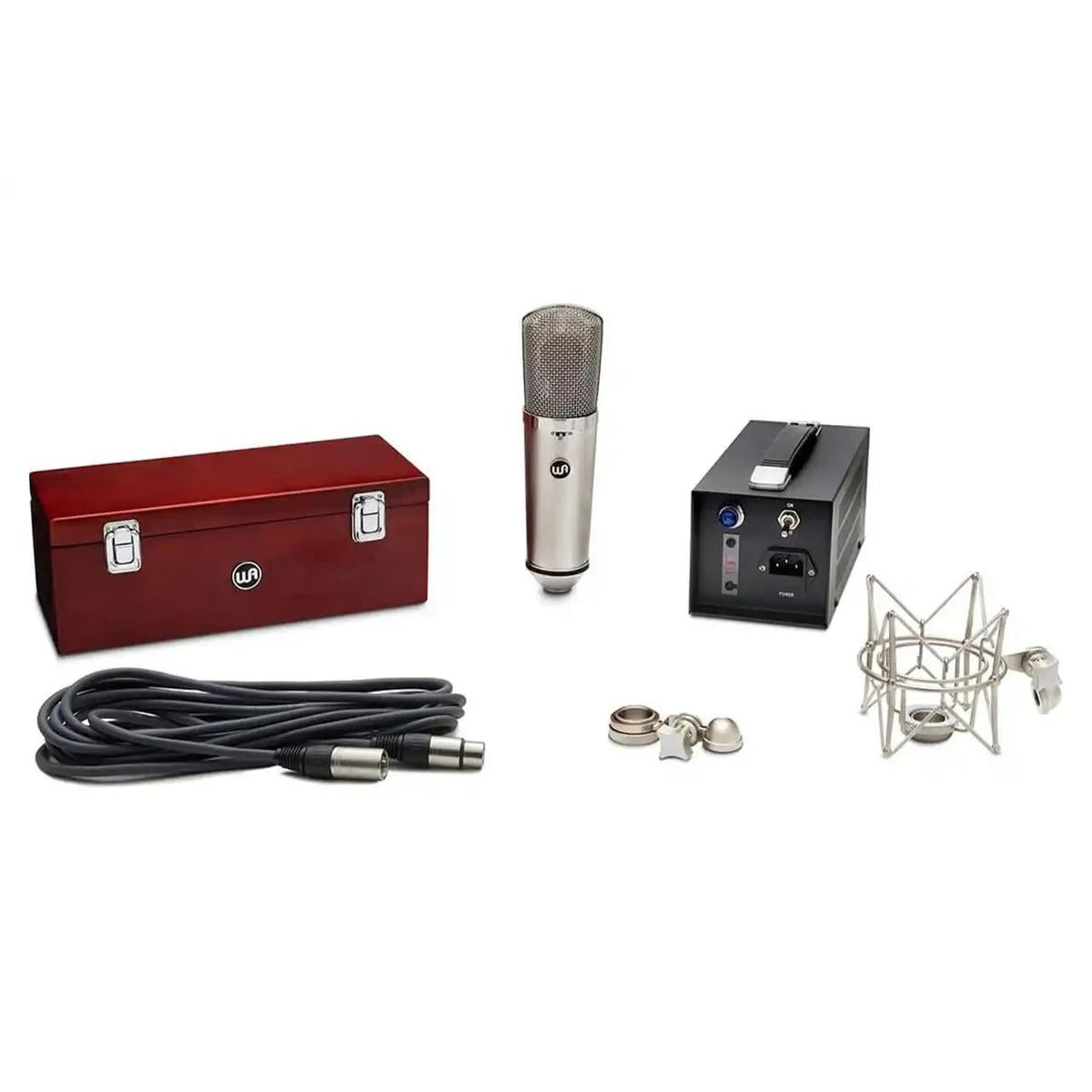

What is included
- Warm Audio WA-67 microphone
- Wood display box
- Shockmount
- Hardmount
- Power supply
- 7-pin mic cable (premium 7-pin tube cable from Gotham Switzerland)
Common questions
What polar patterns does the Warm Audio WA-67 have?
The Warm Audio WA-67 has switchable cardioid, omni and figure-8 polar patterns.
What tube is in the Warm Audio WA-67?
The Warm Audio WA-67 uses an EF86 pentode tube with a custom large-core transformer from Lundahl Sweden.
What comes with the Warm Audio WA-67?
The Warm Audio WA-67 comes with a wood display box, shockmount, hardmount, power supply and a 7-pin mic cable from Gotham Switzerland.
Does the Warm Audio WA-67 have a pad and high pass filter?
Yes. The Warm Audio WA-67 has a switchable high pass filter and a 10 dB pad.
What are the main specs of the Warm Audio WA-67?
The Warm Audio WA-67 has a 20 Hz - 20 kHz frequency response, 200 ohms rated impedance, 17 dB-A equivalent noise and a maximum SPL of 138 dB at 0.5% THD.
