Description

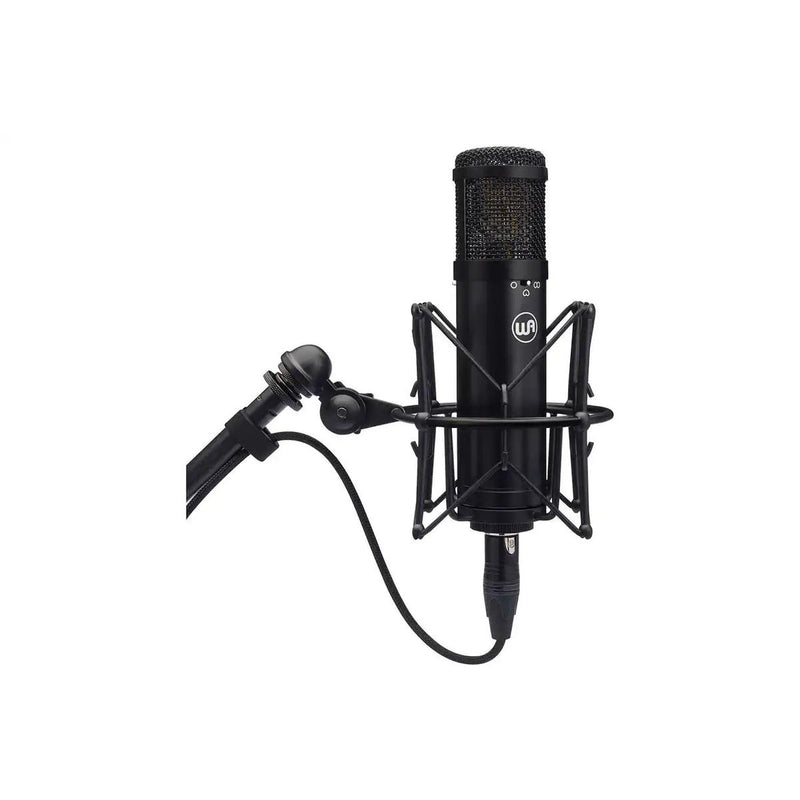

Warm Audio WA-47Jr Large-Diaphragm Condenser Microphone - Black is a large-diaphragm FET condenser microphone with a custom ’47-style K47 dual-diaphragm capsule and cardioid, figure-8 and omnidirectional polar patterns. It has a fully discrete, transformerless signal path, a 10 dB pad, a 70 Hz highpass filter and 9 dBA self-noise.
Specifications
| SKU | HL00362011 |
|---|---|
| Model | WA-47Jr |
| Type | Large-diaphragm condenser microphone |
| Color | Black |
| Signal path | Fully discrete, transformerless |
| Capsule | Custom ’47-style K47 34 mm gold-sputtered, dual-diaphragm, single-back plate, 6 micron Mylar capsule |
| Components | Toshiba FETs, Wima film capacitors, Panasonic electrolytic capacitors |
| Polar patterns | Cardioid, figure-8 and omnidirectional |
| Pad and filter | 10 dB pad; 70 Hz highpass filter |
| Self-noise | 9 dBA |
| Dynamic range | 138 dBA (IEC651) |
| Maximum SPL | 147/157 dB (at 1 kHz, 1 Kohm, 0.5% THD, 0/-10 dB) |
| Frequency range | 20 Hz - 20 kHz |
| Sensitivity | 10 mV/Pa or -40 dB |
| Output impedance | 100 ohms |
| Rated load impedance | ≥1 Kohm |
| Maximum output | 16 dBu at 1 kHz, 1 Kohm, 0.5% THD |
| S/N ratio | 85 dBA (IEC651) |
| Equivalent noise | 9 dBA (IEC651) |
| Power | 48-volt phantom powered |
| Connector | 3-pin gold-plated XLR |

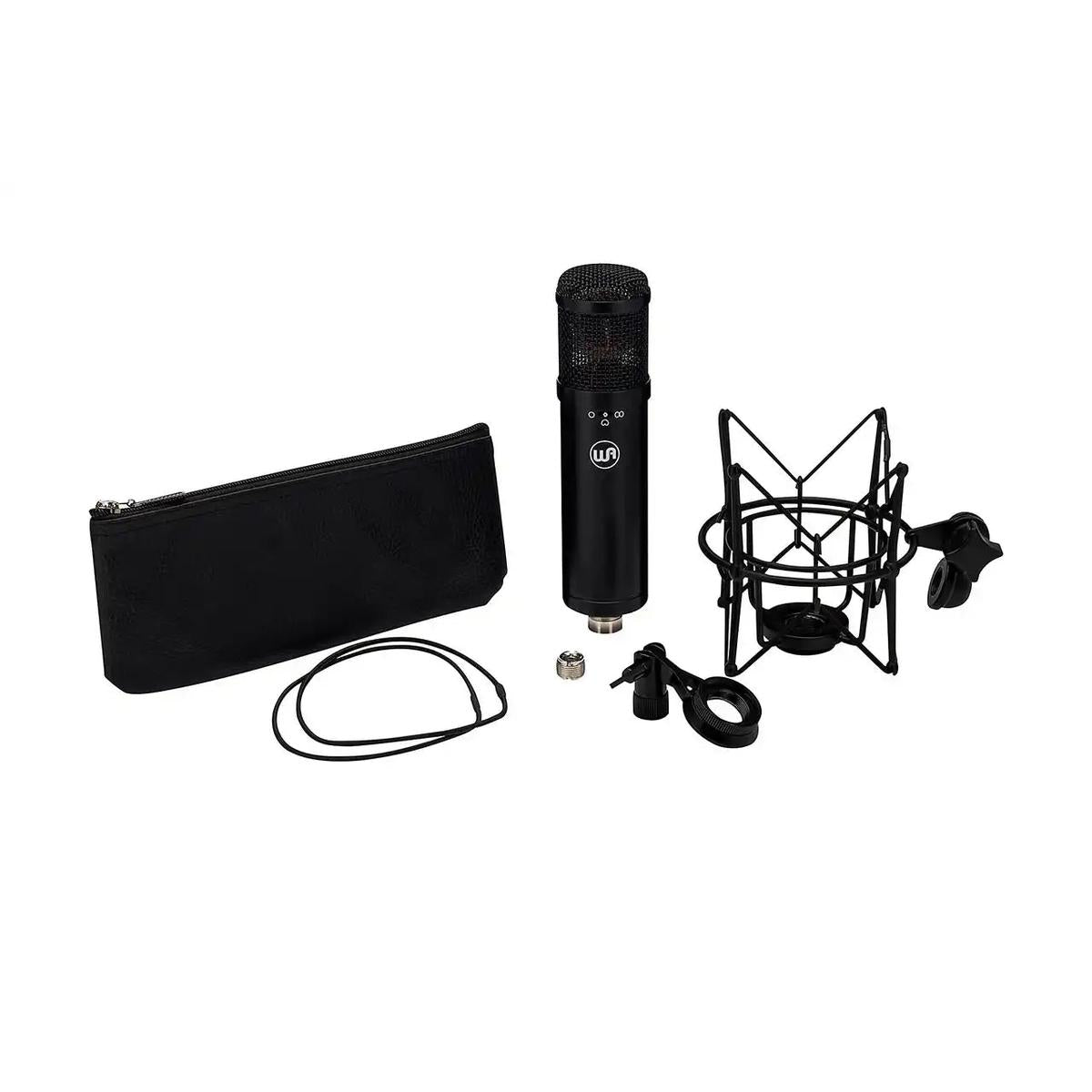

What is included
- Warm Audio WA-47Jr microphone
- Shockmount
- Hardmount
- Zipper storage pouch
Common questions
Does the Warm Audio WA-47Jr need phantom power?
Yes. The Warm Audio WA-47Jr is 48-volt phantom powered and connects with a 3-pin gold-plated XLR connector.
What polar patterns does the Warm Audio WA-47Jr have?
The Warm Audio WA-47Jr has cardioid, figure-8 and omnidirectional polar patterns.
What capsule is in the Warm Audio WA-47Jr?
The Warm Audio WA-47Jr uses a custom ’47-style K47 34 mm gold-sputtered, dual-diaphragm, single-back plate, 6 micron Mylar capsule.
Does the Warm Audio WA-47Jr have a pad and highpass filter?
Yes. The Warm Audio WA-47Jr has a 10 dB pad and a 70 Hz highpass filter, and handles 147 dB SPL, or 157 dB with the pad.
What comes with the Warm Audio WA-47Jr?
The Warm Audio WA-47Jr comes with a shockmount, a hardmount and a zipper storage pouch.
