Description

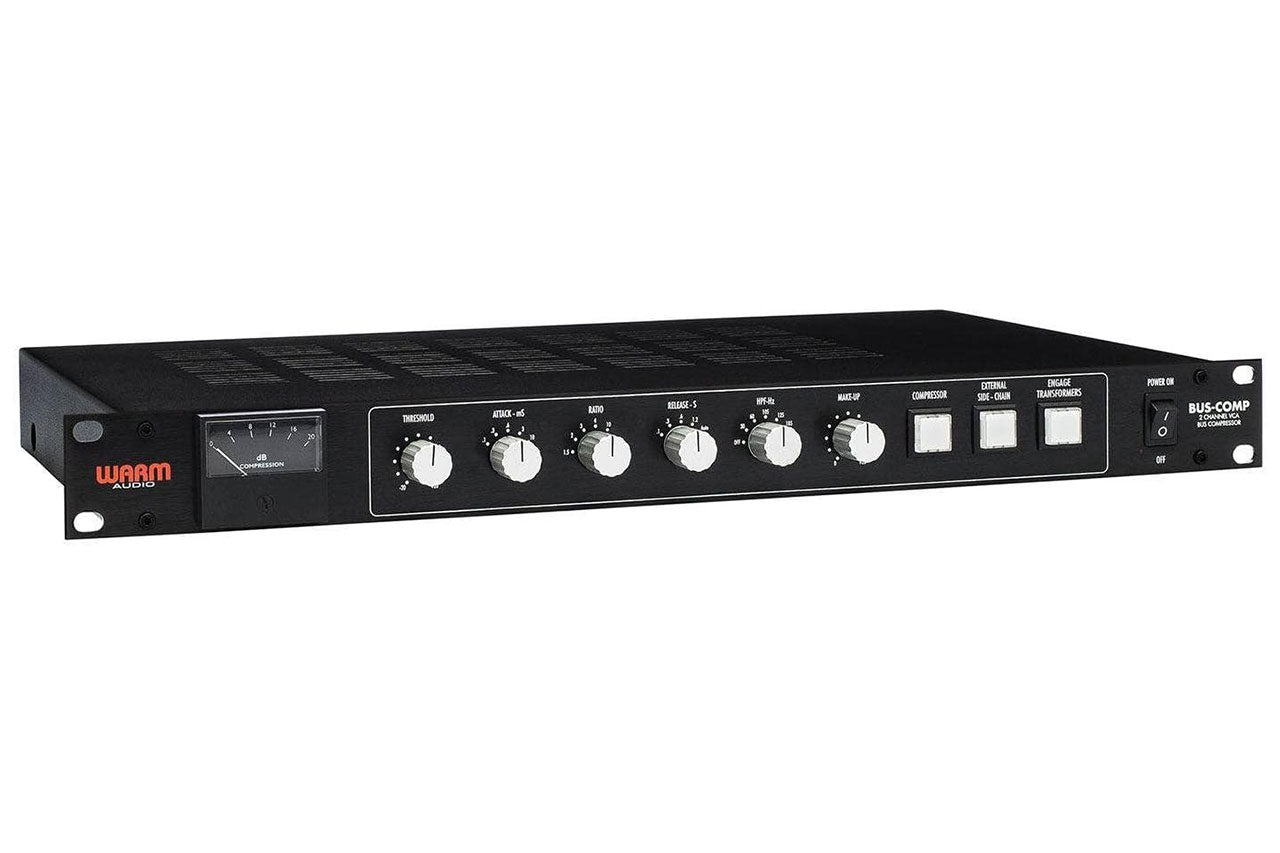

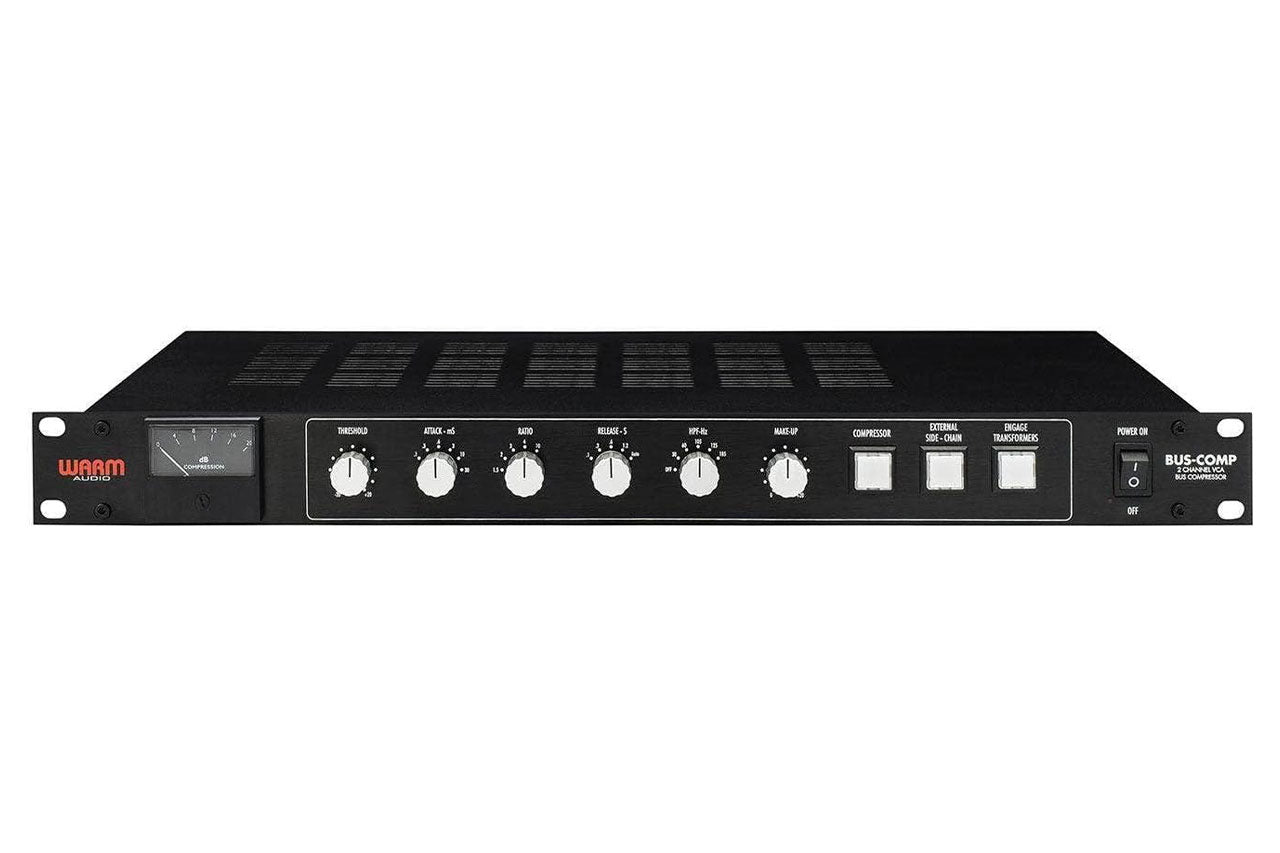

Warm Audio BUS-COMP 2-Channel VCA Bus Compressor is a 2-channel VCA bus compressor for stereo and mono sources, with THAT 2180 VCAs, CineMag USA transformers and a selectable discrete op-amp stage. It has XLR and TRS connections and a selectable hi-pass filter.
Specifications
| SKU | HL00329660 |
|---|---|
| Model | BUS-COMP |
| Type | 2-channel VCA bus compressor |
| Op-amp stage | Selectable discrete op-amp stage |
| Hi-pass filter | Selectable: 30, 60, 105, 125, 185 Hz |
| Compressor engage switch | Easy A/B 'compression' vs. 'no-compression' comparison |
| Sources | Usable on both stereo and mono sources |

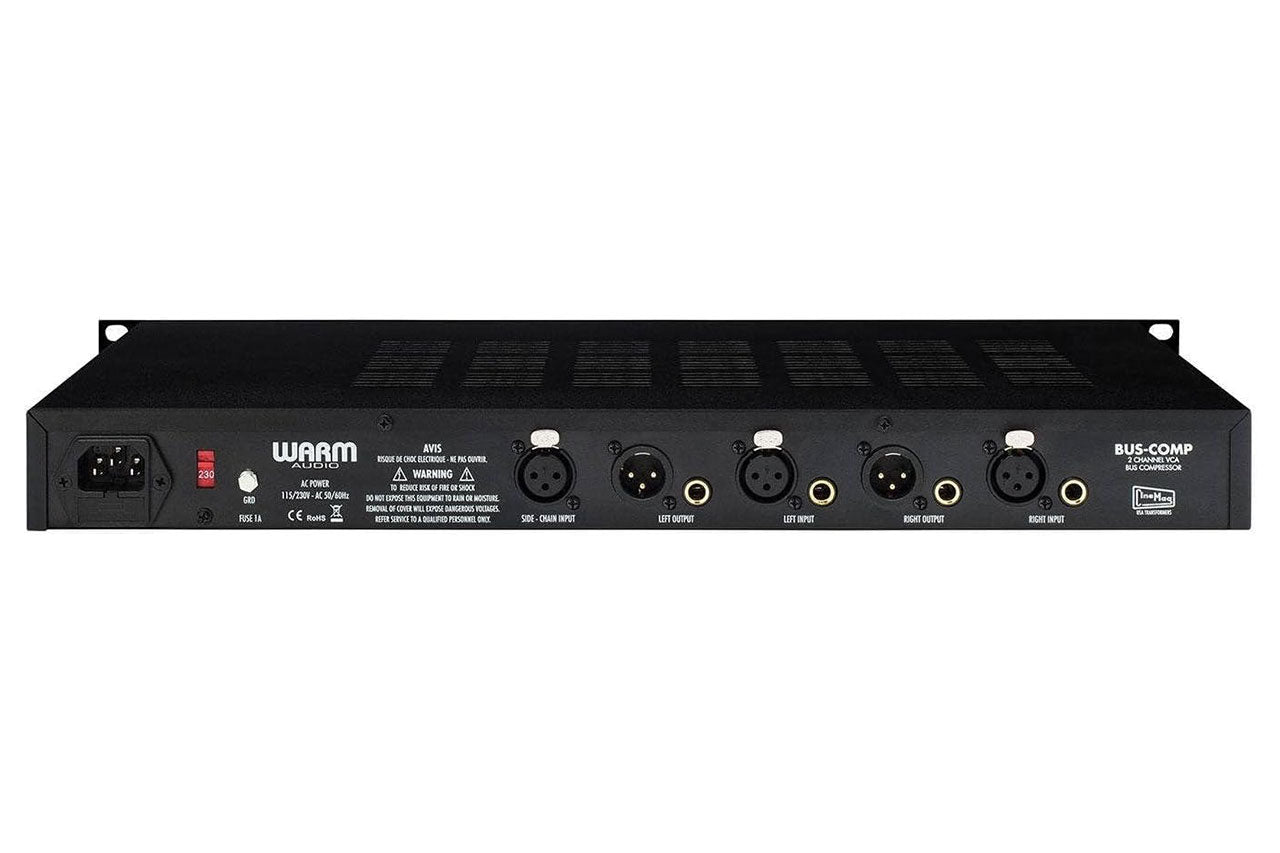

| Connectors | XLR and TRS |
| VCAs | THAT 2180 VCAs |
| Transformers | CineMag USA transformers |
| Op-amps | Discrete 100% analog op-amps |
| Noise | < -90 dBu |
| Headroom | > +29 dBu, 20 Hz - 20 kHz |
| Dynamic range | > 120 dB |
| Frequency response | 18 Hz - 22 kHz |
| THD + noise | < 0.05% (20 Hz - 20 kHz, +20 dBu input) |
| Input impedance | 10k ohms |
| Output impedance | 50 ohms |
Common questions
Can the Warm Audio BUS-COMP be used on mono sources?
Yes. The Warm Audio BUS-COMP is usable on both stereo and mono sources.
What connectors does the Warm Audio BUS-COMP have?
The Warm Audio BUS-COMP has XLR and TRS connectivity, with an input impedance of 10k ohms and an output impedance of 50 ohms.
What hi-pass filter settings does the Warm Audio BUS-COMP have?
The Warm Audio BUS-COMP has a selectable hi-pass filter at 30, 60, 105, 125 or 185 Hz.
What VCAs and transformers are in the Warm Audio BUS-COMP?
The Warm Audio BUS-COMP uses THAT 2180 VCAs, CineMag USA transformers and discrete 100% analog op-amps.
What are the noise and dynamic range specs of the Warm Audio BUS-COMP?
The Warm Audio BUS-COMP has noise below -90 dBu, headroom above +29 dBu, dynamic range above 120 dB and a frequency response of 18 Hz to 22 kHz.
