Description

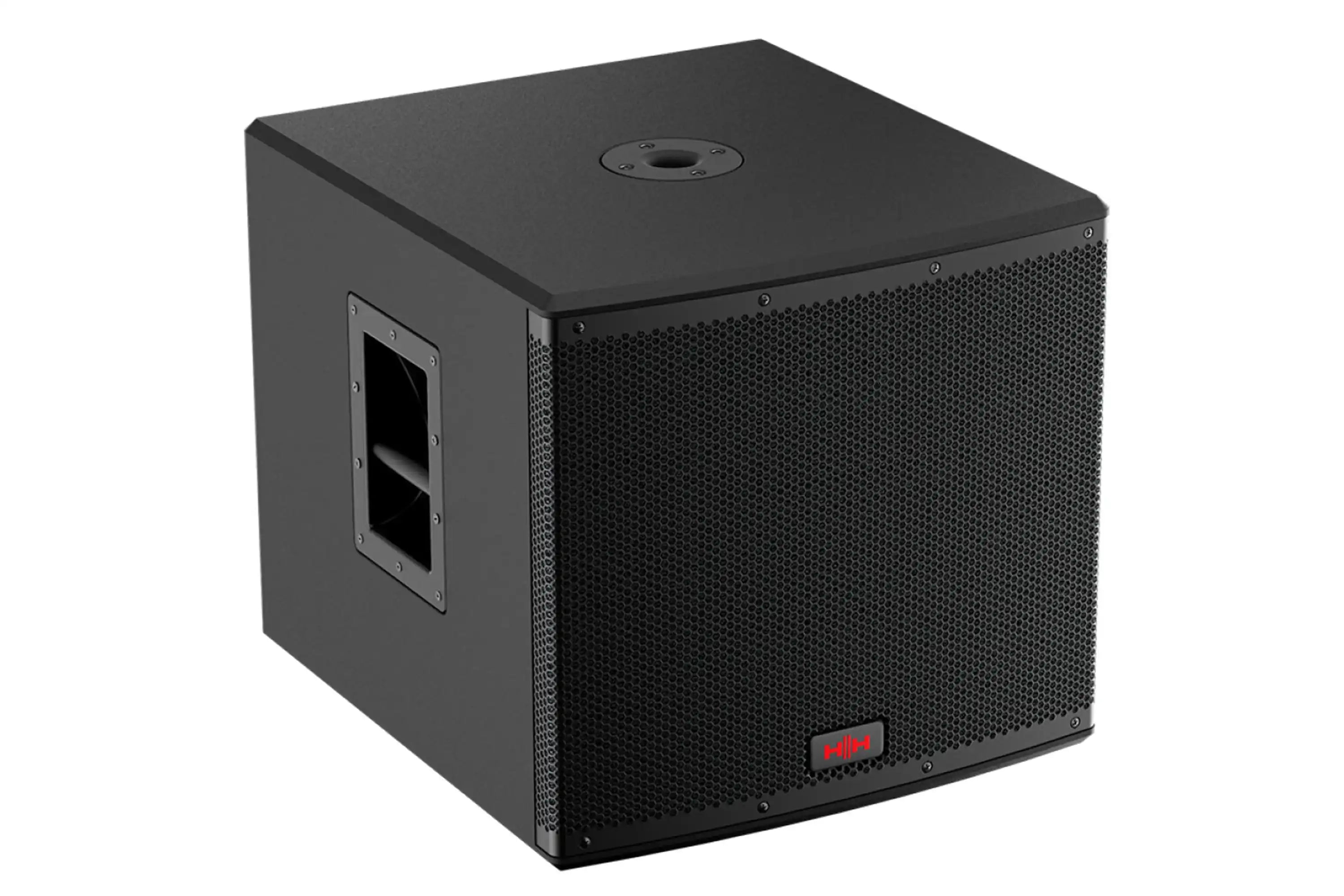

HH Electronics Active 15” Subwoofer is the Tensor TRS-1500, an active subwoofer with a high-grade class D amplifier and a custom 15-inch long-throw woofer, rated at 1400W peak. Stereo inputs and high-pass outputs give crossover separation between the full-range speakers and the sub.
Specifications
| SKU | 26464 |
|---|---|
| Model | TRS-1500 |
| Series | Tensor |
| Amplifier | High-grade class D |
| Power | 1400W peak |
| Frequency response (-10) | 37Hz - 250Hz (variable 60Hz - 200Hz) |
| Max SPL (1M) (Peak) | 128 dB |
| LF driver | 15 inch HH designed professional bass driver (long-throw) |

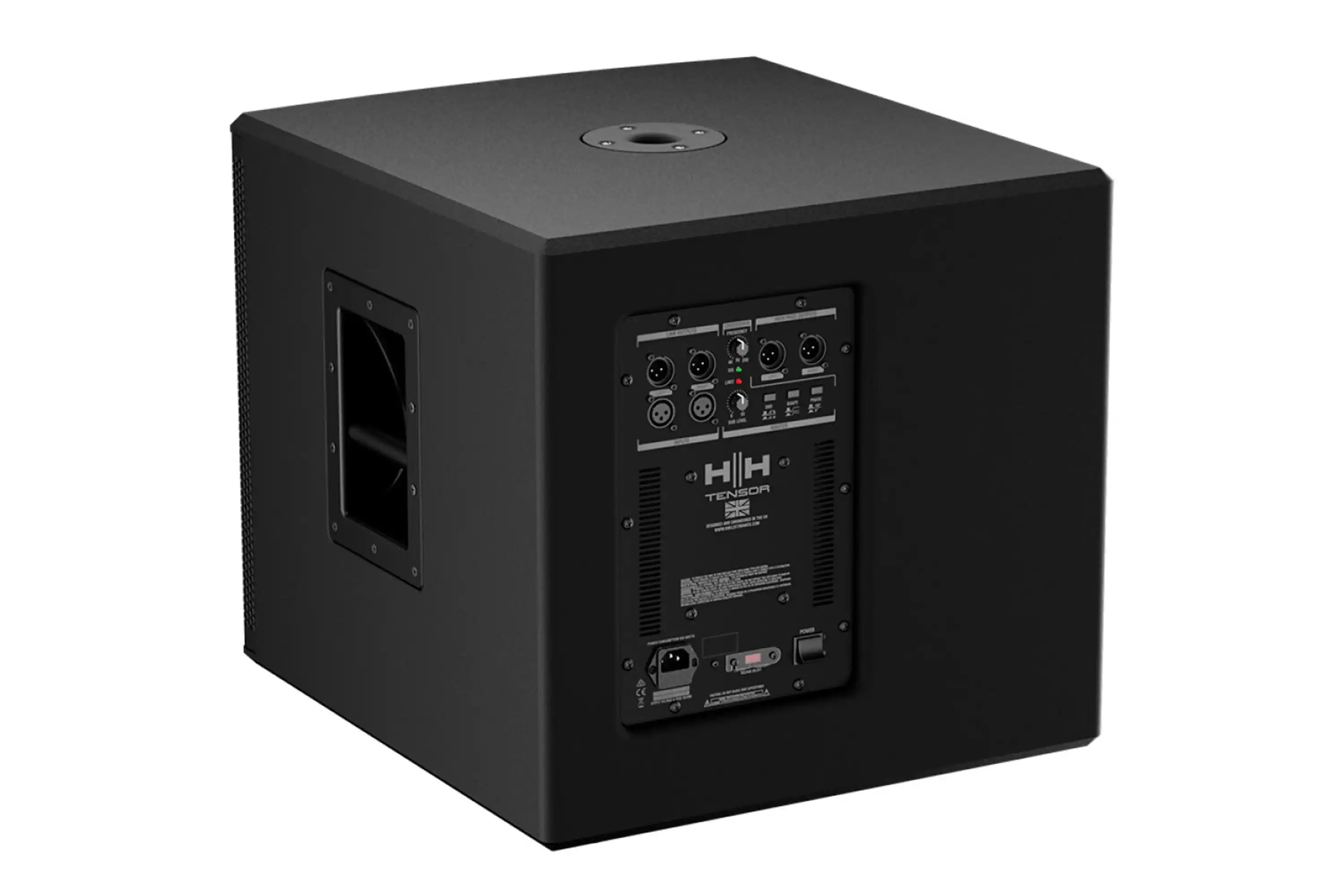

| Inputs | 2 x balanced left/right XLR |
| Outputs | 2 x balanced left/right XLR link outputs, 2 x balanced left/right XLR high-pass outputs |
| Controls | Volume, variable frequency crossover |
| EQ | 2 audio modes - flat and shape (shape preset boosts sub harmonic frequencies) |
| Protection | Comprehensive protection and no-clip limiting & clip indicator |
| Other controls | Phase reverse switch, ground lift switch |
| Indicators | Power, clip indicator, front illuminated logo (with on/off switch) |
| Cabinet | 15mm plywood with 18mm MDF baffle |
| Finish | Rugged black spatter paint finish |
| Grille | Black heavy gauge powder-coated steel with acoustic foam backing |
| Pole mount | 35mm distance pole socket |
Measurements
| Dimensions (H x W x D) | 465 x 500 x 556 mm (18.3” x 19.7” x 21.9”) |
|---|---|
| Weight | 28 kg (61.7 lb) |
Common questions
How much power does the HH Electronics Tensor TRS-1500 have?
The HH Electronics Tensor TRS-1500 has a class D amplifier rated at 1400W peak and a max SPL of 128 dB (1M, peak).
What is the frequency response of the HH Electronics TRS-1500?
The HH Electronics TRS-1500 covers 37Hz - 250Hz (-10), with a variable crossover from 60Hz to 200Hz.
What inputs and outputs does the HH Electronics TRS-1500 have?
The HH Electronics TRS-1500 has 2 balanced left/right XLR inputs, 2 balanced XLR link outputs and 2 balanced XLR high-pass outputs.
What does the shape mode on the HH Electronics TRS-1500 do?
The shape preset on the HH Electronics TRS-1500 boosts sub harmonic frequencies for a deeper bass response, and the flat mode leaves the response flat.
Can I mount a speaker on top of the HH Electronics TRS-1500?
The HH Electronics TRS-1500 has a 35mm distance pole socket for a speaker pole.
How big and heavy is the HH Electronics TRS-1500?
The HH Electronics TRS-1500 measures 465 x 500 x 556 mm (18.3” x 19.7” x 21.9”) and weighs 28 kg (61.7 lb).
