Description

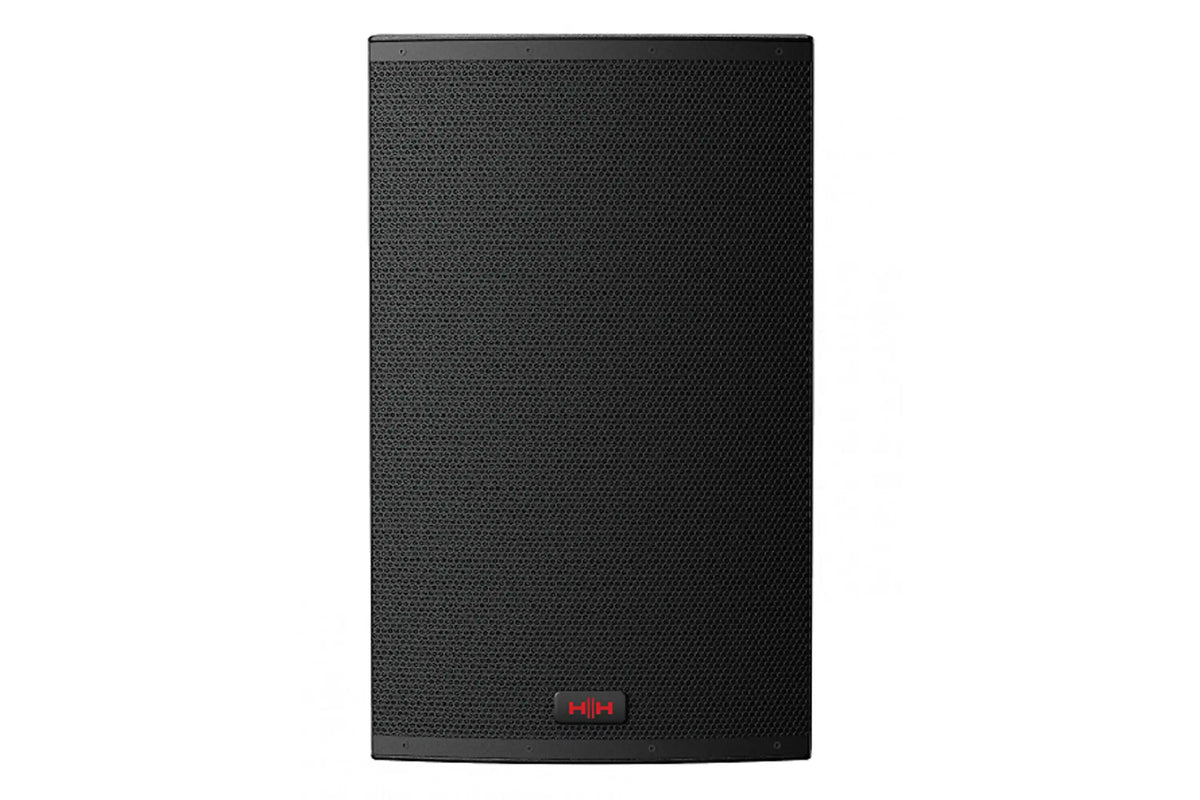

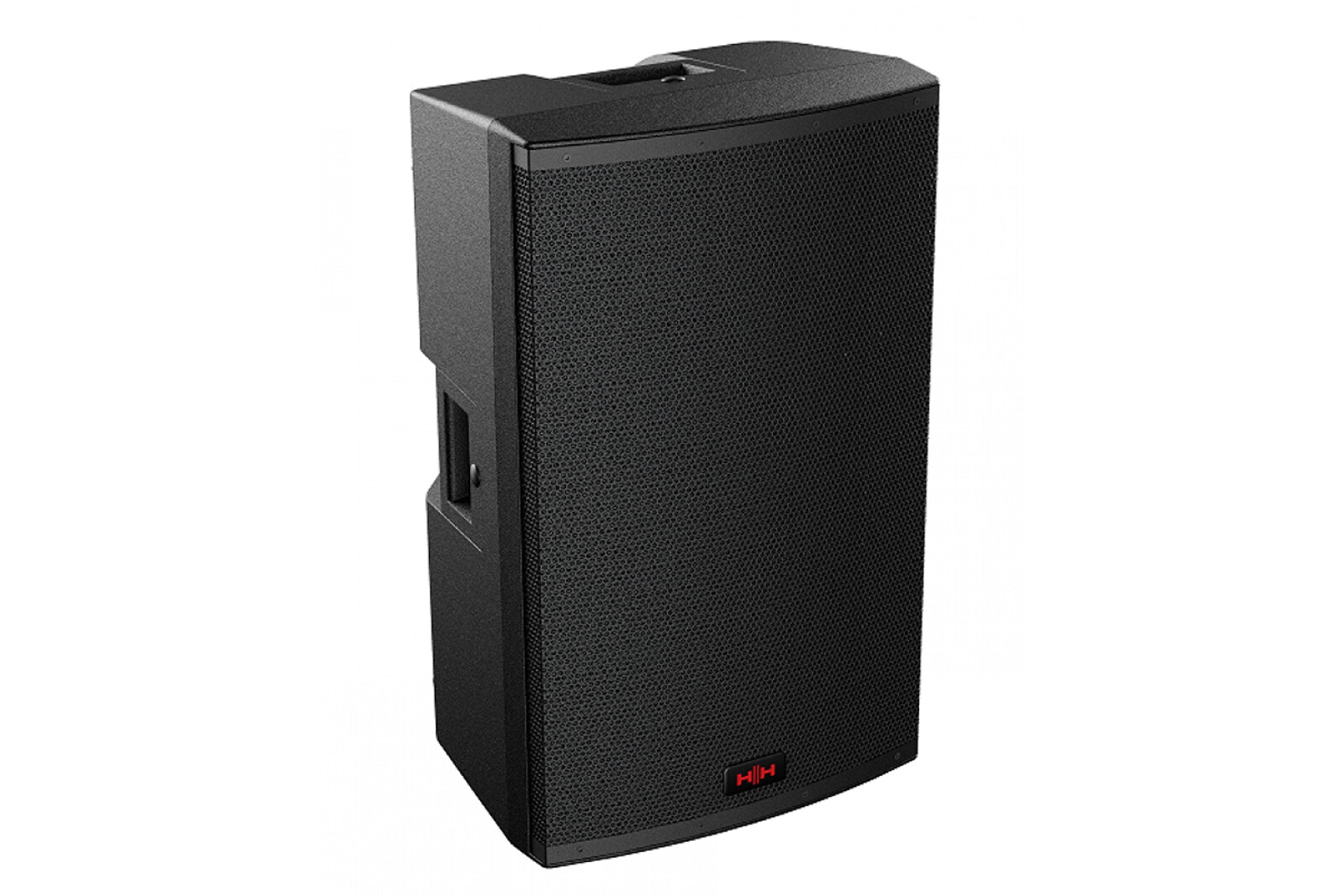

HH Electronics Tensor 15” Active Speaker Enclosure is the Tensor TRE-1501, a 15-inch powered speaker with a high-grade class D bi-amplifier rated at 1400W peak and on-board DSP. It has four preset audio modes (Music, Live, Monitor, Vocal), an integrated two-channel mixer and four M8 suspension points.
Specifications
| SKU | 26006 |
|---|---|
| Model | TRE-1501 |
| Series | Tensor |
| Amplifier | High-grade class D bi-amplifier |
| Power | 1400W peak |
| Frequency response | 41Hz - 20kHz |
| Max SPL (1M) (Peak) | 131 dB |
| LF driver | 15 inch HH designed professional low mid driver featuring imported glass reinforced cone |
| HF driver | 1.33 inch compression driver |
| Coverage | 90°H x 60°V |
| Crossover frequency | 2.5kHz |
| Inputs | 2 x balanced combi XLR/1/4” jack connectors |
| Outputs | 1 x balanced XLR mix output |
| Indicators | Power, clip indicator, EQ mode, front illuminated logo |
| EQ | User selectable performance presets for Music, Live, Monitor, Vocal |
| DSP | Crossover, EQ, dual band limiters, phase and time optimisation |
| Protection | Comprehensive protection and no-clip limiting + clip indicator |
| Controls | 2 x channel gain, master volume, logo on/off, ground lift, EQ mode |
| Cabinet | Robust polypropylene cabinet with three handles and 45° monitor angle |
| Finish | Black |
| Grille | Heavy gauge powder-coated steel, black with acoustic foam backing |
| Pole mount | 35mm distance pole socket |
| Flying points | 4 x M8 mounting points |
Measurements
| Dimensions (H x W x D) | 694 x 420 x 385mm (27.3” x 16.5” x 15.2”) |
|---|---|
| Weight | 18 kg (39.7 lb) |
Common questions
How powerful is the HH Electronics Tensor TRE-1501?
The HH Electronics Tensor TRE-1501 is rated at 1400W peak, with a max SPL of 131 dB (1M, peak).
What inputs and outputs does the HH Electronics TRE-1501 have?
The HH Electronics TRE-1501 has inputs of 2 x balanced combi XLR/1/4” jack connectors, and an output of 1 x balanced XLR mix output.
What EQ modes does the HH Electronics TRE-1501 have?
The HH Electronics TRE-1501 has user selectable presets for Music, Live, Monitor and Vocal, and its DSP handles crossover, EQ, dual band limiters and phase and time optimisation.
Can the HH Electronics TRE-1501 be used as a floor monitor or pole mounted?
Yes. The HH Electronics TRE-1501 has a multi-angle cabinet with a 45° monitor angle, a 35mm distance pole socket and 4 x M8 mounting points.
How big and heavy is the HH Electronics TRE-1501?
The HH Electronics TRE-1501 measures 694 x 420 x 385mm (27.3” x 16.5” x 15.2”) and weighs 18 kg (39.7 lb).
