Description

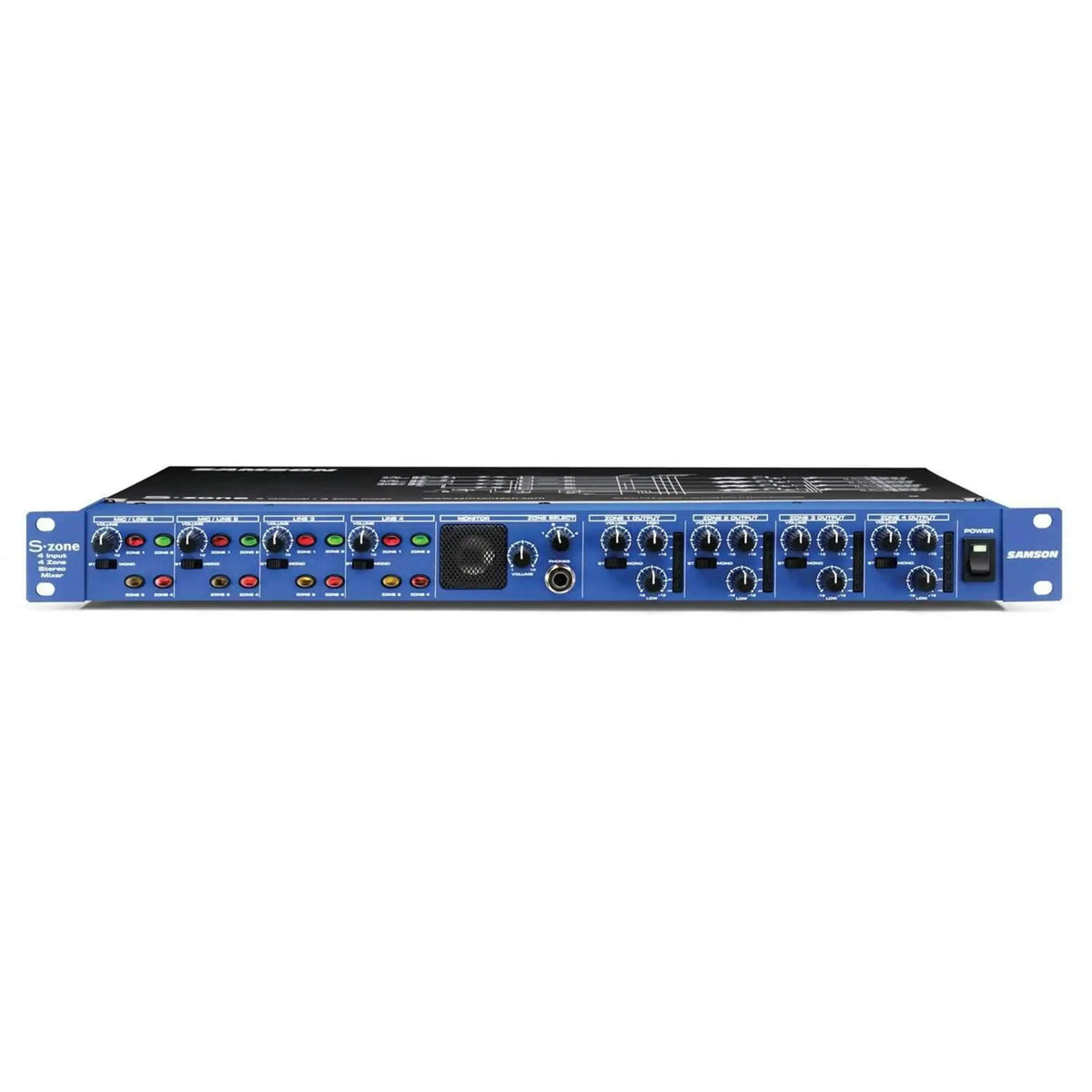

Samson S-ZONE 4 Zone Stereo Mixer is a 4 channel, 4 zone stereo mixer that fits in a single rack space, with 2 mic/stereo line inputs with ducking and 2 stereo CD/line inputs. Front panel push buttons assign inputs to any of the four zones, each with volume control and independent 2-band EQ, plus Euroblock outputs and remote volume control.
Specifications
| SKU | S-ZONE |
|---|---|
| Model | S-ZONE |
| Type | 4 Channel / 4 zone stereo mixer |
| Inputs | 2 Mic/Stereo Line inputs with ducking; 2 Stereo CD/Line inputs (2 balanced mic and 4 balanced aux/line inputs) |
| Zone assignment | Front panel push buttons assign inputs to any of the four zones |
| Zone controls | Volume control and independent 2-band equalization |

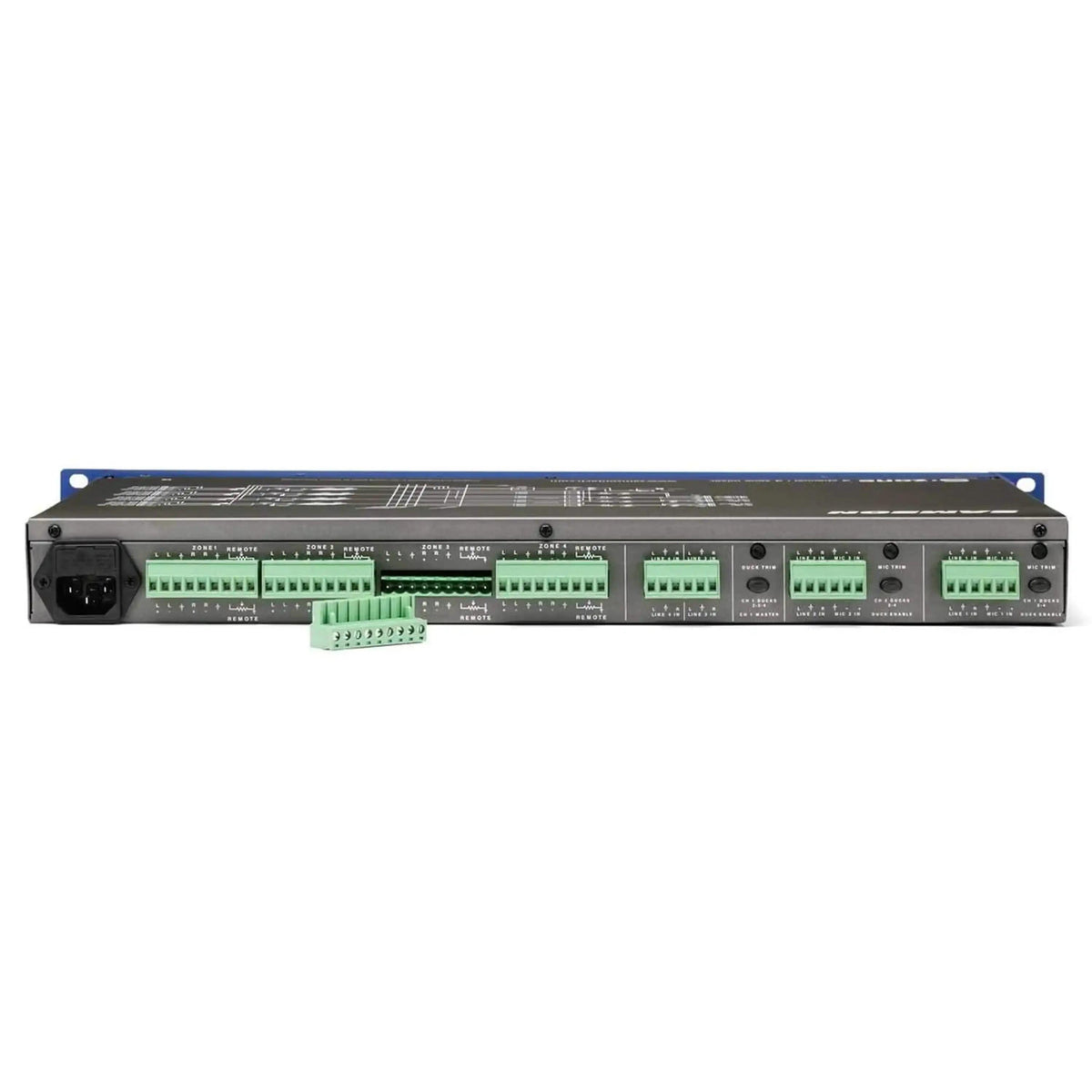

| Output connectors | Euroblock |
| Monitoring | On board Speaker and Headphone monitoring |
| Remote | Remote Volume Control |
| Input Impedance Mic | 600Ω XLR balanced |
| Input Impedance Line | 22K Ohms |
| Max Input Level Mic | -14 dBV balanced |
| Max Input Level Line | +24 dBV |
| Maximum Gain Mic | 60 dB |
| Maximum Gain Line | 26 dB |
| Output Level | +17 dBV max. |
| Output Impedance Balanced | 200 Ohms |
| Output Impedance Unbalanced | 100 Ohms |
| Max. S/N ratio | 96 dB |
| THD | <.02% |
| CMRR | >52 dB (Mic) |
| Phantom Power | +15 VDC |
| Tone Controls | LOW +/- 15 dB at 100 Hz / HIGH +/- 15 dB at 10 kHz |
| Inputs (connectors) | 6 PIN Euroblock |
| Outputs (connectors) | 9 PIN Euroblock |
| Power Consumption | 5 Watts |
Measurements
| Rack space | Single rack space |
|---|---|
| Dimensions | 19” x 7.5” x 1.75” / 482mm x 190mm x 44mm |
| Weight | 5.1lb / 2.31kg |
Common questions
How many zones does the Samson S-ZONE have?
The Samson S-ZONE controls up to four audio zones, with front panel push buttons that assign inputs to any zone.
What inputs does the Samson S-ZONE have?
The Samson S-ZONE has 2 mic/stereo line inputs with ducking and 2 stereo CD/line inputs.
Does the Samson S-ZONE have phantom power?
Yes. The Samson S-ZONE supplies +15 VDC phantom power.
What outputs does the Samson S-ZONE use?
The Samson S-ZONE uses 9 pin Euroblock output connectors, with 6 pin Euroblock inputs.
How big is the Samson S-ZONE?
The Samson S-ZONE fits a single rack space and measures 19 x 7.5 x 1.75 inches (482mm x 190mm x 44mm), weighing 5.1lb (2.31kg).
Does the Samson S-ZONE have EQ?
Yes. The Samson S-ZONE has independent 2-band EQ, LOW +/- 15 dB at 100 Hz and HIGH +/- 15 dB at 10 kHz.
