Description

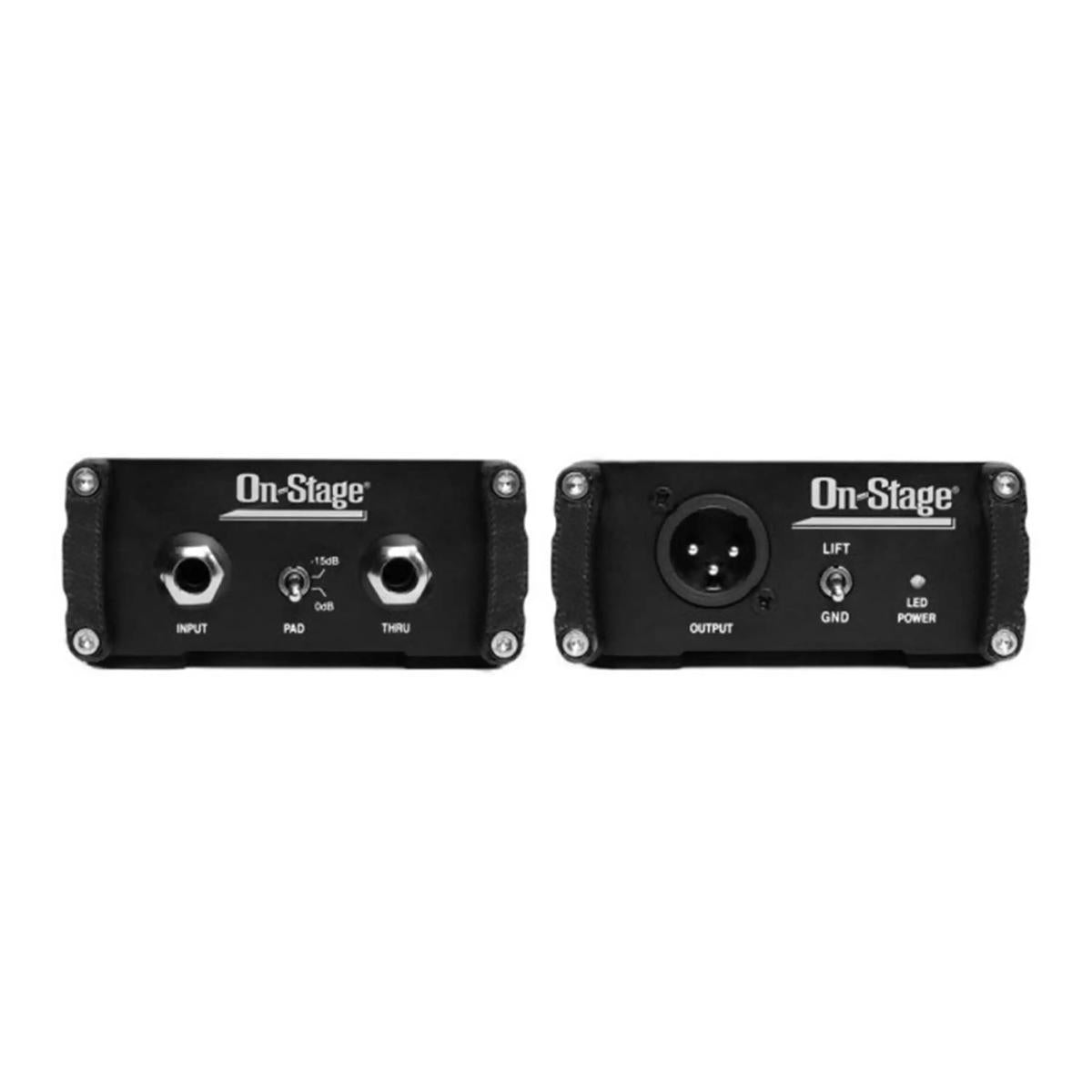

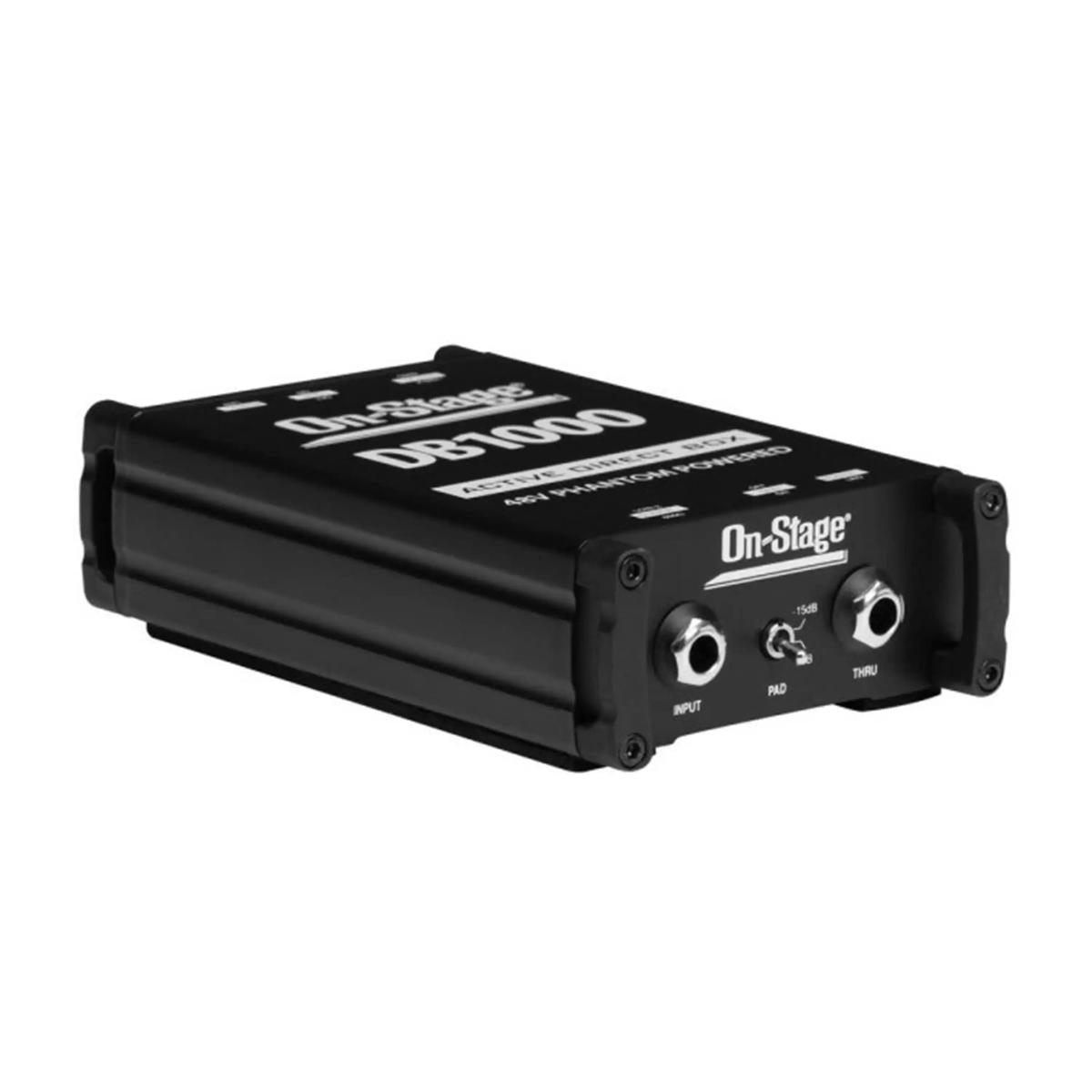

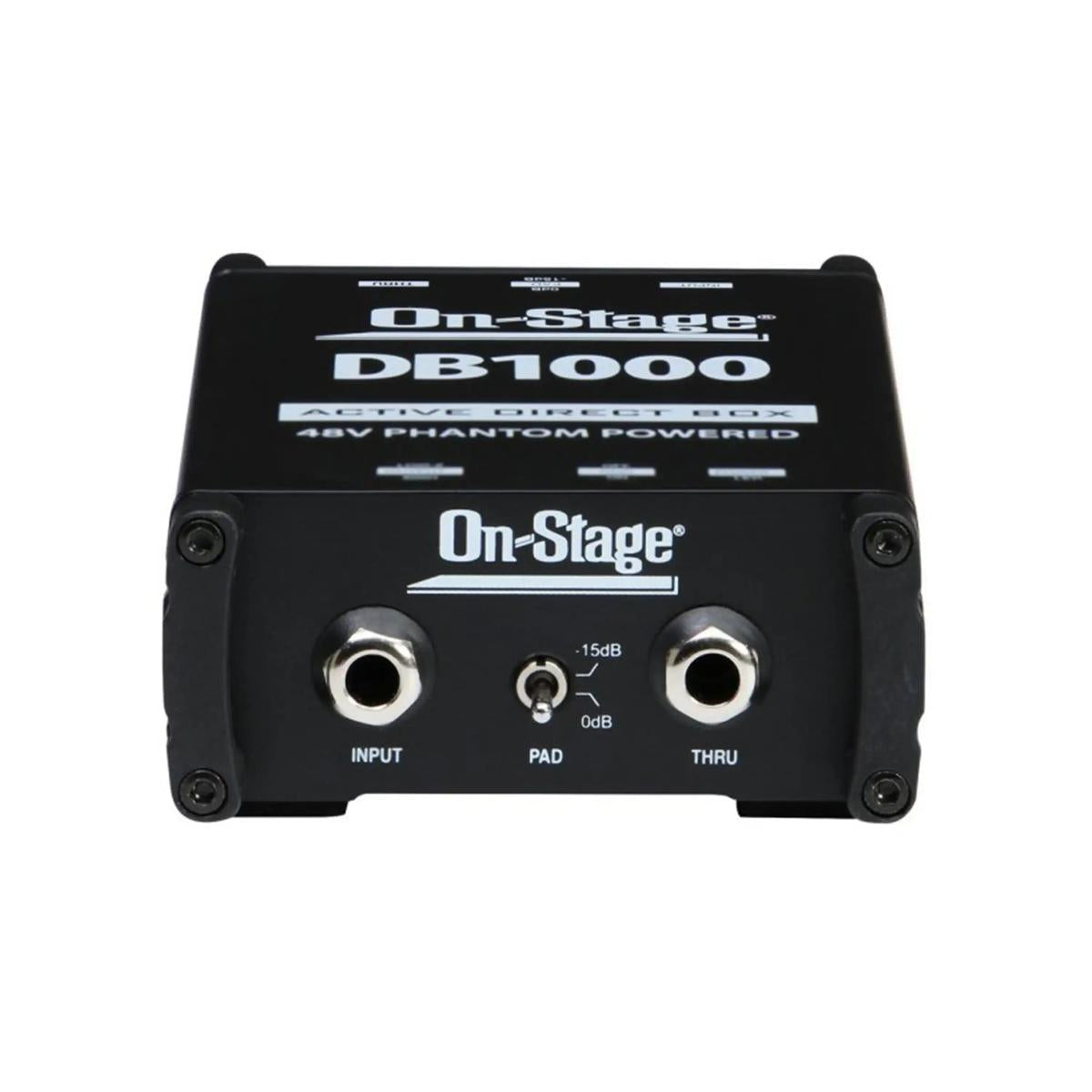

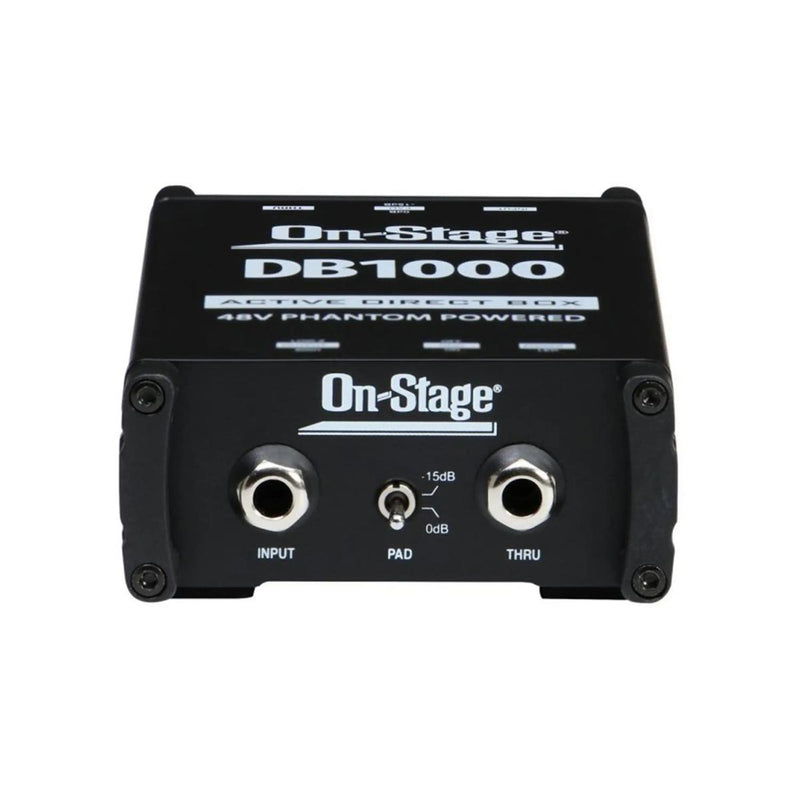

On-Stage DB1000 Active DI Box is an active DI box that converts a high-impedance 1/4” source to a balanced, low-impedance XLR output. It has a -15 dB pad, a ground-lift switch and a throughput connector for a stage amp.
Specifications
| SKU | DB1000 |
|---|---|
| Model | DB1000 |
| Type | Active DI box |
| Application | Acoustic guitars, bass guitars, keyboards and more |
| Inputs | 1/4” |
| Output | XLR |
| Throughput | Throughput connector passes the unaltered signal to a stage amp |
| Frequency response | 10Hz - 40kHz |
| Input resistance | 220K Ohms |
| Pad | 15dB (-15 dB pad switch prevents clipping) |
| Ground lift | Yes |
| Power | Phantom |
| Construction | Metal with nylon bumpers |
| Features | Active circuit with a high-quality transformer for low distortion and an isolated signal path; converts a high-impedance (1/4”) input to a balanced, low-impedance (XLR) output; output signal can be sent via a long cable to a mixer or PA system without frequency loss |
Measurements
| Dimensions | 6” x 3.5” x 1.5” |
|---|---|
| Weight | 0.70 lbs. |
Common questions
Does the On-Stage DB1000 need phantom power?
Yes. The On-Stage DB1000 is an active DI box powered by phantom power.
What inputs and outputs does the On-Stage DB1000 have?
The On-Stage DB1000 has a 1/4” input, an XLR output and a throughput connector for a stage amp.
Does the On-Stage DB1000 have a pad and ground lift?
Yes. The On-Stage DB1000 has a -15 dB pad switch to prevent clipping and a ground-lift switch to cut ground-loop hum.
What instruments can I use with the On-Stage DB1000?
The On-Stage DB1000 is made for acoustic guitars, bass guitars, keyboards and more.
How big is the On-Stage DB1000?
The On-Stage DB1000 measures 6” x 3.5” x 1.5” and weighs 0.70 lbs.
