Description

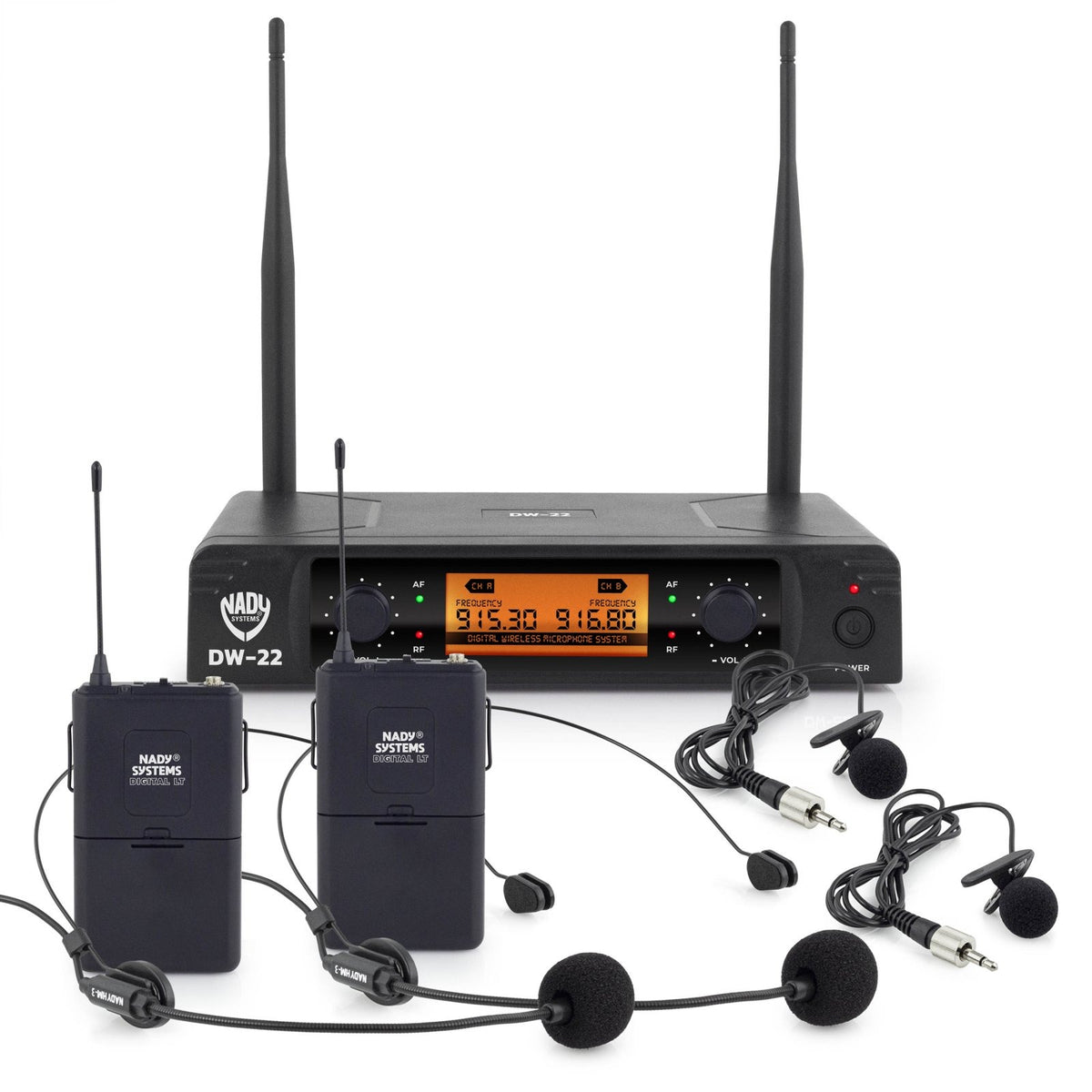

Nady DW-22 LT-HM Dual Digital Wireless System with 2 Lapel and 2 Headset Microphones is a dual digital wireless microphone system with one receiver, two Digital LT bodypack transmitters, two lapel microphones and two headset microphones. It operates on selected frequencies between 902 and 951MHz with digital QPSK modulation and 3 msec latency.
Specifications
| SKU | 24618 |
|---|---|
| Model | DW-22 LT-HM |
| Frequency response | 20Hz - 20kHz ± 3dB |
| Dynamic range | 120dB (A-weighted) |
| Total harmonic distortion | <0.1% |
| Latency | 3 msec (48kHz sample rate) |
| RF carrier frequency range | Selected frequencies between 902 and 951MHz |
| Frequency stability | ± 20PPM, PLL controlled |
| Modulation | Digital QPSK |
| Operating range | Up to 300 ft. line-of-sight |
| Receiver reception | External 7.25” (18.5cm) dual-attached antennas |
| Receiver sensitivity | -94dBm |

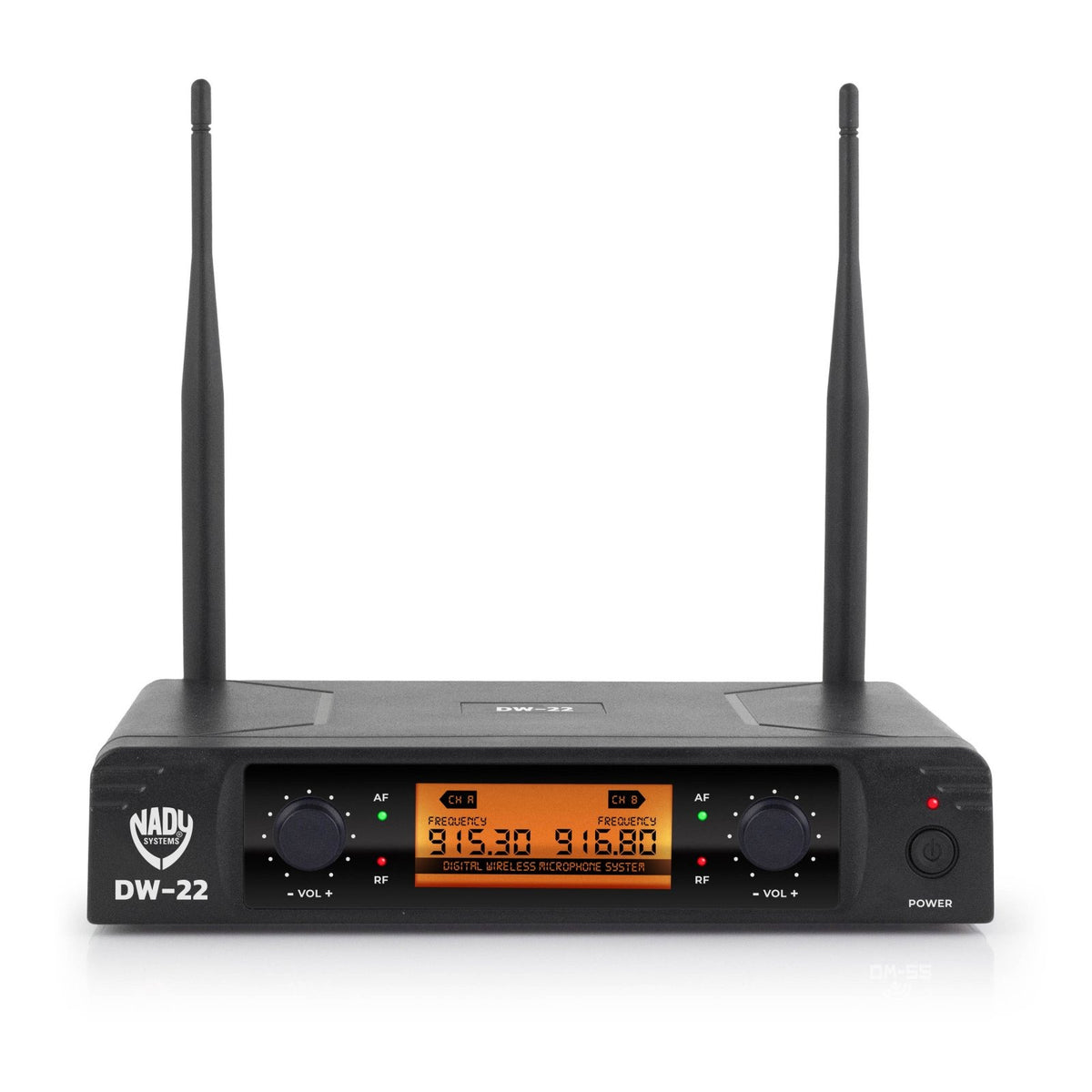

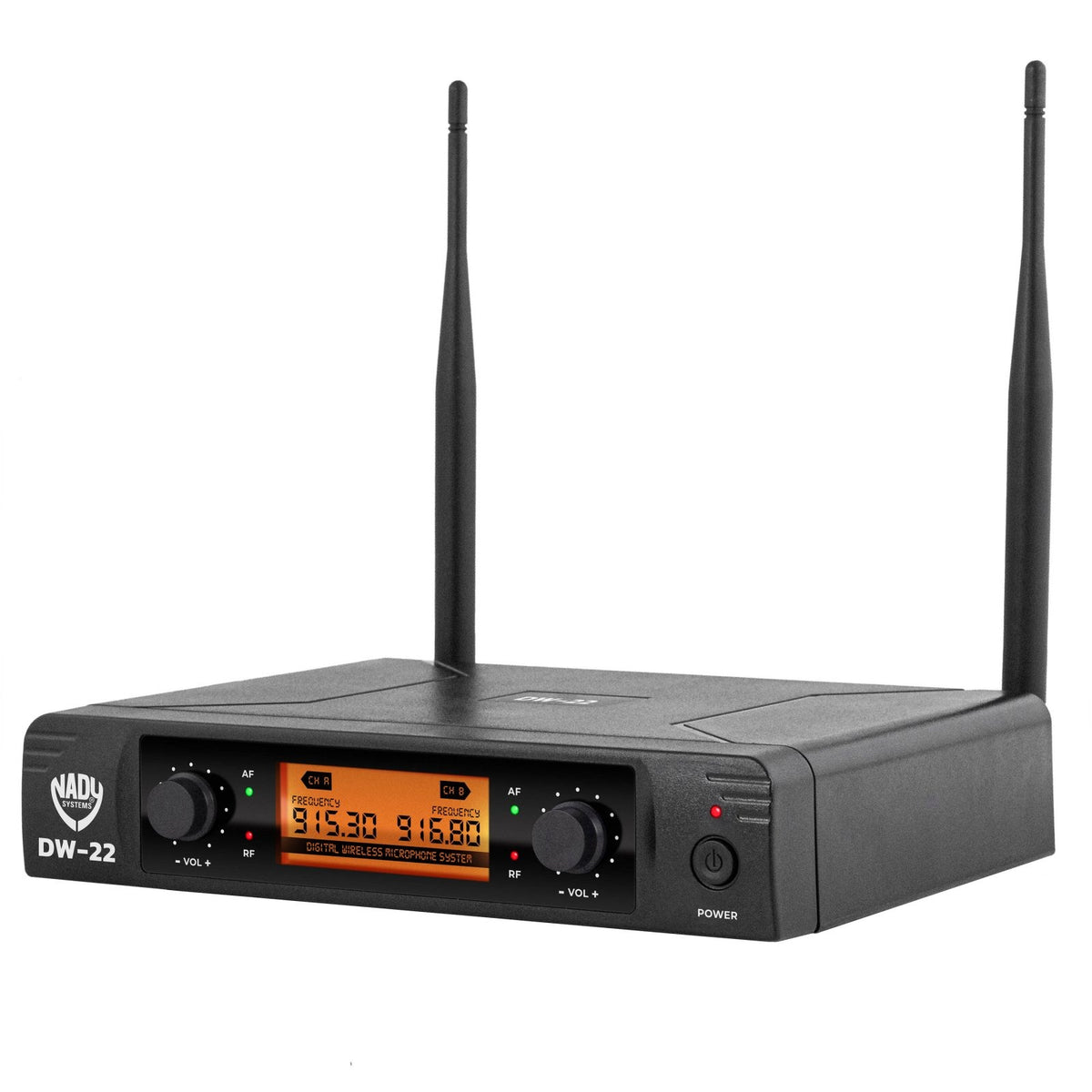

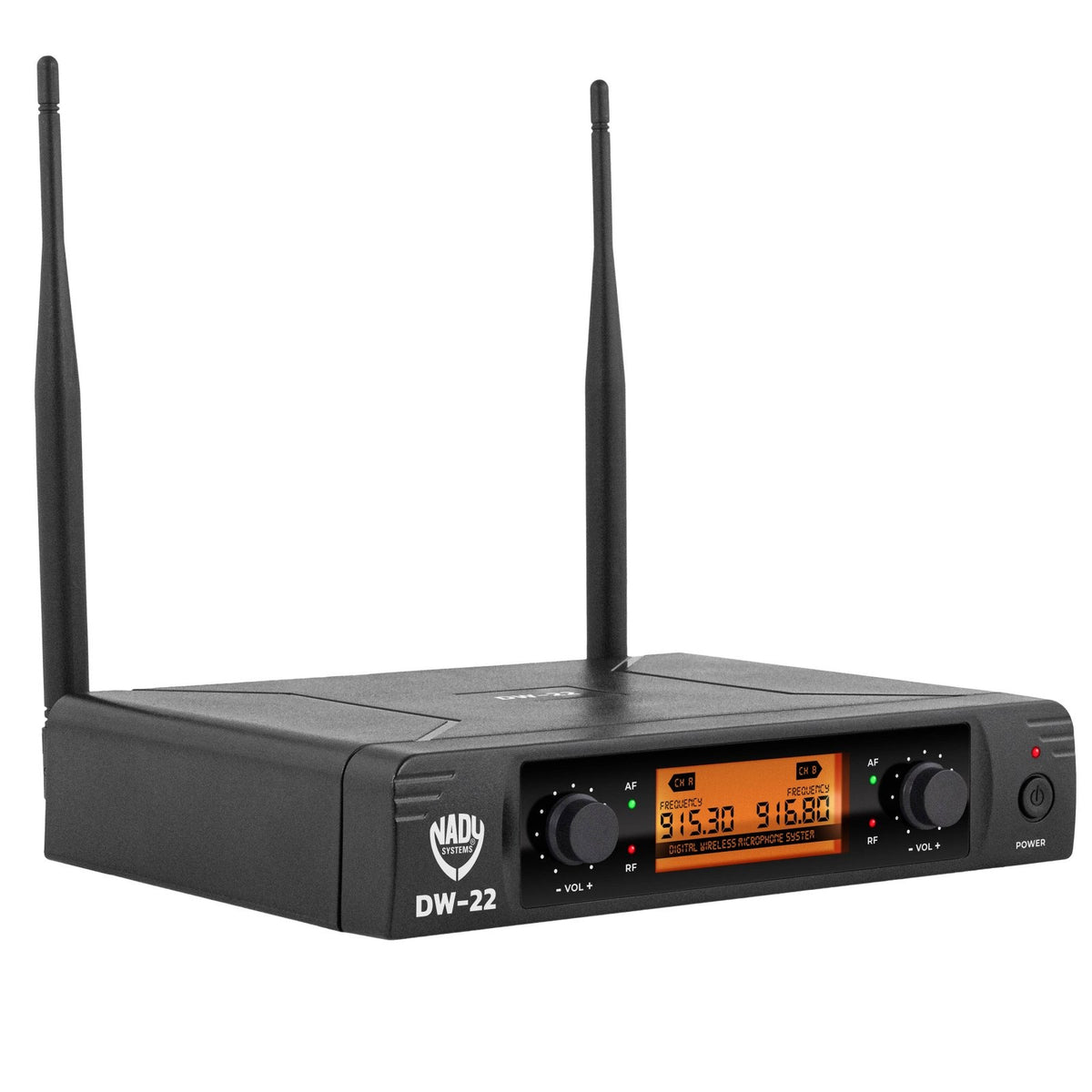

| Receiver controls | Power ON/OFF, volume control |

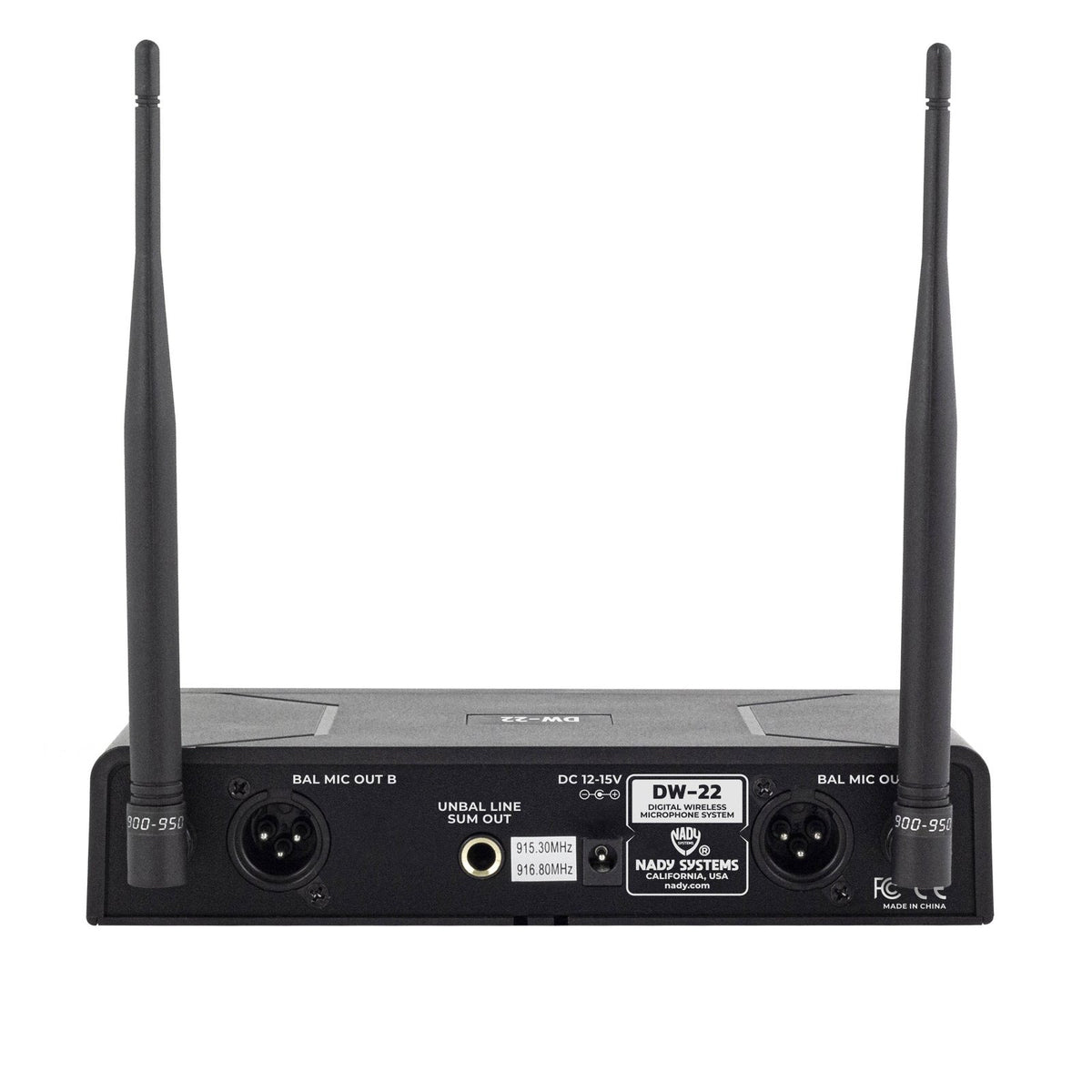

| Receiver connectors | 1/4” (6.35 mm) unbalanced phone jack; dual XLR balanced outputs |
| Unwanted signal rejection | 60dB image and spurious |
| Receiver power requirements | DC 13.5V regulated @ 400mA |
| Receiver DC input | 2.1mm jack |
| Transmitter | Digital LT bodypack |
| Transmitter RF power out | +13dBm (50mW maximum allowed by FCC) |
| Transmitter RF spurious emissions | < -50 dB |
| Transmitter audio inputs | 1/8” (3.5mm) locking mini-jack, for headworn or lavalier microphone |
| Transmitter controls | Power switch, audio mute |
| Transmitter LED indicator | Unit on (single flash), low battery alert (red) |
| Transmitter battery type | 2 AA alkaline |
| Transmitter battery life | Up to 11 hours |
| Optional accessory | RMT-1KUD rack tray for rack-mounting either one or two DW-11/DW-22 receivers (not included) |
Measurements
| Receiver weight | 0.8lbs (363g) |
|---|---|
| Receiver dimensions | 8” x 6” x 1.75” (203 x 152 x 44mm) |
| Transmitter weight | 0.15lbs (68g) |
| Transmitter dimensions | 2.5” x 4.25” x 0.5” (64 x 108 x 13mm) |
What is included
- Nady DW-22 dual digital wireless receiver
- Two Digital LT bodypack transmitters
- Two lapel microphones
- Two headset microphones
Common questions
Does the Nady DW-22 LT-HM include both lapel and headset microphones?
Yes. The Nady DW-22 LT-HM includes two lapel microphones and two headset microphones, with two Digital LT bodypack transmitters.
What batteries does the Nady DW-22 LT-HM transmitter use?
Each Nady DW-22 LT-HM transmitter uses 2 AA alkaline batteries and runs up to 11 hours.
What outputs does the Nady DW-22 LT-HM receiver have?
The Nady DW-22 LT-HM receiver has dual XLR balanced outputs and a 1/4” (6.35 mm) unbalanced phone jack output.
How far does the Nady DW-22 LT-HM work?
The Nady DW-22 LT-HM has an operating range of up to 300 ft. line-of-sight.
Can the Nady DW-22 LT-HM be rack mounted?
Yes, with the optional RMT-1KUD rack tray, which mounts one or two DW-11 or DW-22 receivers. The tray is not included.
What is the latency of the Nady DW-22 LT-HM?
The Nady DW-22 LT-HM has 3 msec latency at a 48kHz sample rate, with a 20Hz - 20kHz frequency response and 120dB dynamic range.
