Description
Nady DW-11 LT-HM Digital Wireless Lapel and Headset Microphone System is a single-channel digital wireless system with a receiver and a Digital LT bodypack transmitter, supplied with lapel and headset microphones. It operates on selected frequencies between 902 and 951 MHz with 3 msec latency and a working distance of up to 300 feet line-of-sight.
Specifications
| SKU | 24625 |
|---|---|
| Model | DW-11 LT-HM |
| Brand | Nady |
| Type | Digital wireless lapel and headset microphone system |
| Frequency response | 20 Hz - 20 kHz +/- 3 dB |
| Dynamic range | 120 dB (A-weighted) |
| Total harmonic distortion | <0.1% |
| Latency | 3 msec (48 kHz sample rate) |
| RF carrier frequency range | Selected frequencies between 902 and 951 MHz |
| Frequency stability | +/- 20 PPM, PLL controlled |
| Modulation | Digital QPSK |
| Working distance | Up to 300 feet line-of-sight |
| Receiver audio output | Balanced XLR mic level and adjustable 1/4” line level |
| Receiver reception | External 7.25” (18.5 cm) attached antenna |
| Receiver sensitivity | -94 dBm |
| Unwanted signal rejection | 60 dB image and spurious |
| Transmitter | Digital LT bodypack |
| Transmitter RF power out | +13 dBm (50 mW maximum allowed by FCC) |
| Transmitter RF spurious emissions | < -50 dB |
| Transmitter battery | 2 x AA, up to 11 hours |
| Transmitter input sensitivity | 2.1 mV / Pa |
| Transmitter power consumption | 100 mA at 3 V |
| Transmitter audio input | 1/8” (3.5 mm) locking mini-jack |
| Transmitter controls | Power switch, audio mute |
| Transmitter LED indicator | Unit on (single flash), low battery alert (red) |
| Optional accessory | RMT-1KUD rack tray for mounting one or two receivers (not included) |
Measurements
| Receiver weight | 340 g (0.75 lbs) |
|---|---|
| Receiver dimensions | 203 x 152 x 44 mm (8” x 6” x 1.75”) |
| Transmitter weight | 68 g (0.15 lbs) |
| Transmitter dimensions | 64 x 108 x 13 mm (2.5” x 4.25” x 0.5”) |
What is included

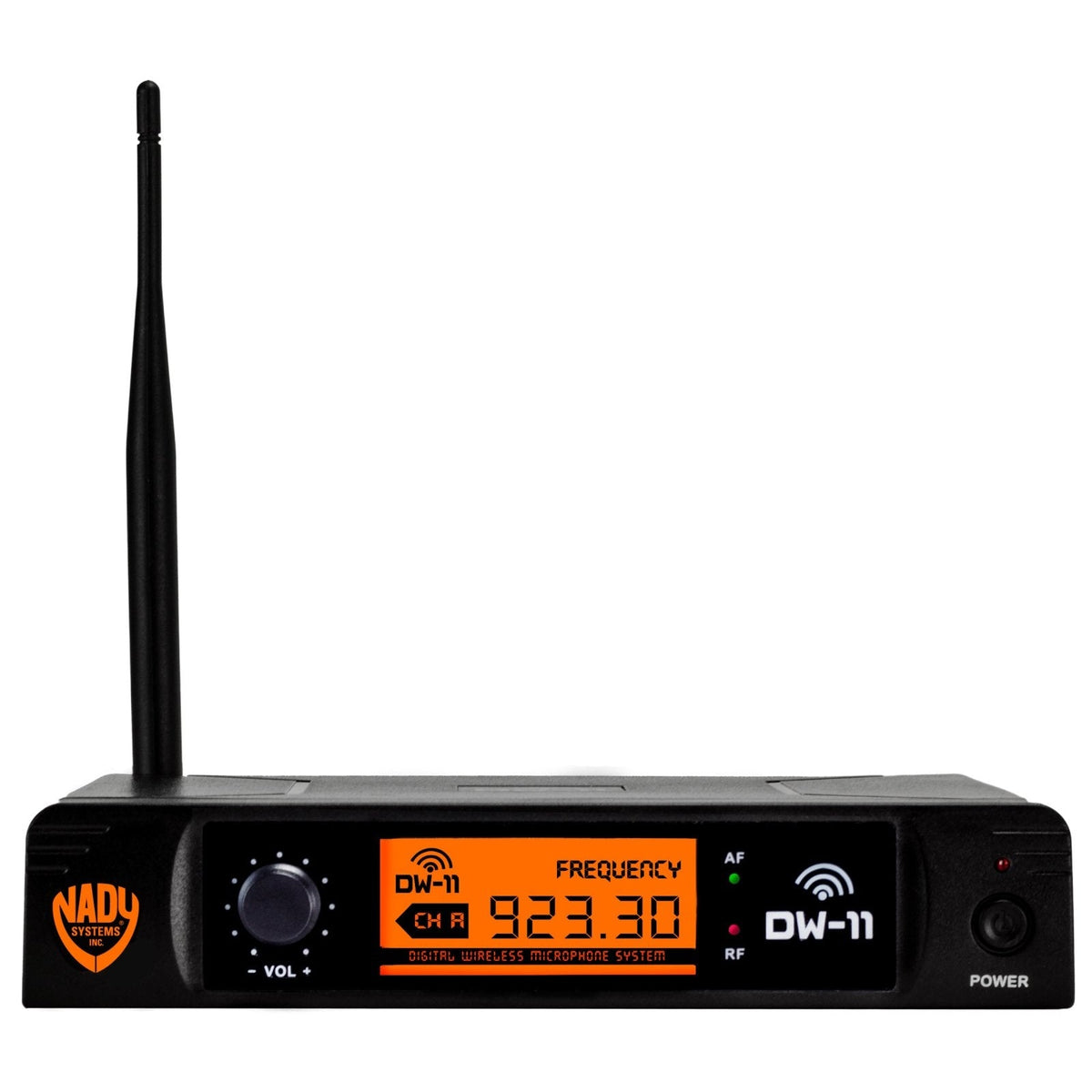

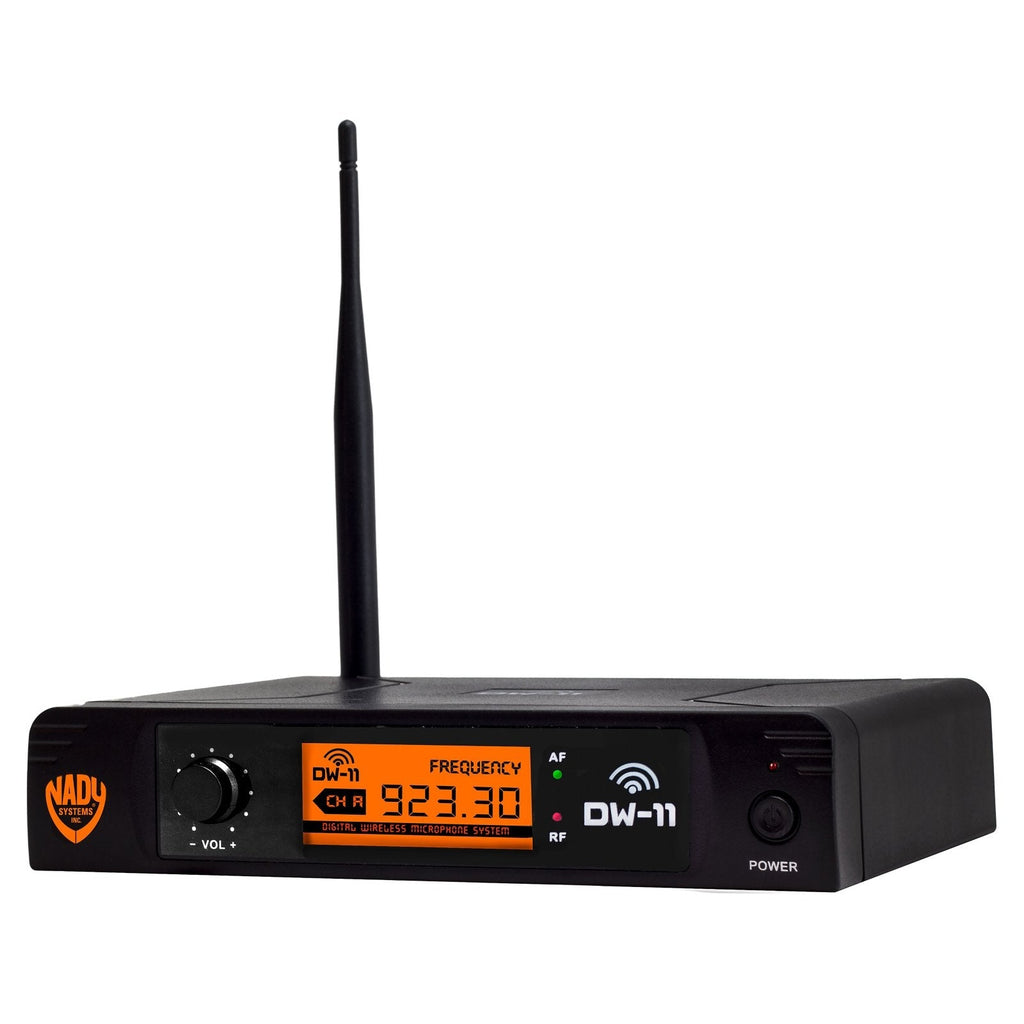

- Nady DW-11 digital receiver
- Digital LT bodypack transmitter

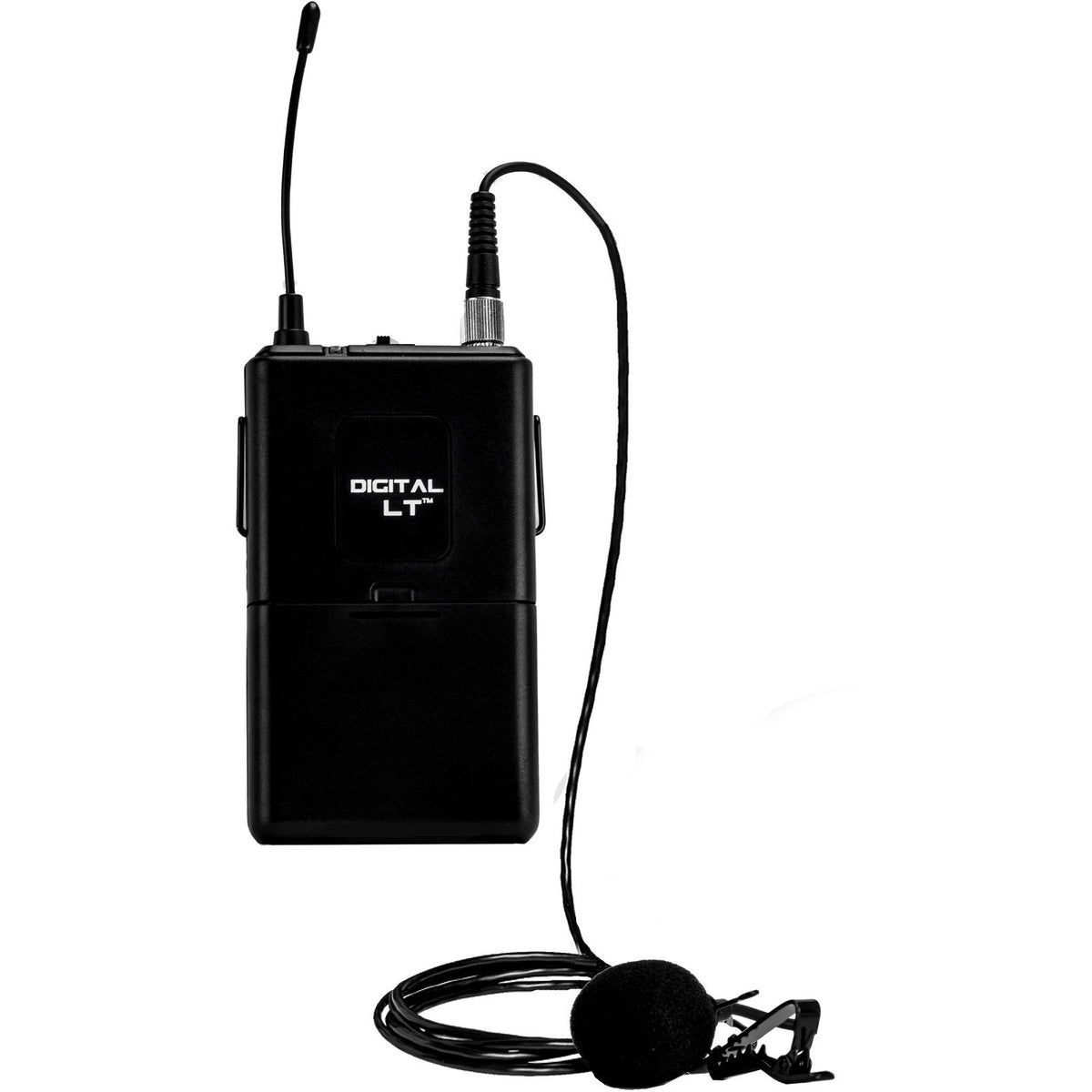

- Lapel microphone

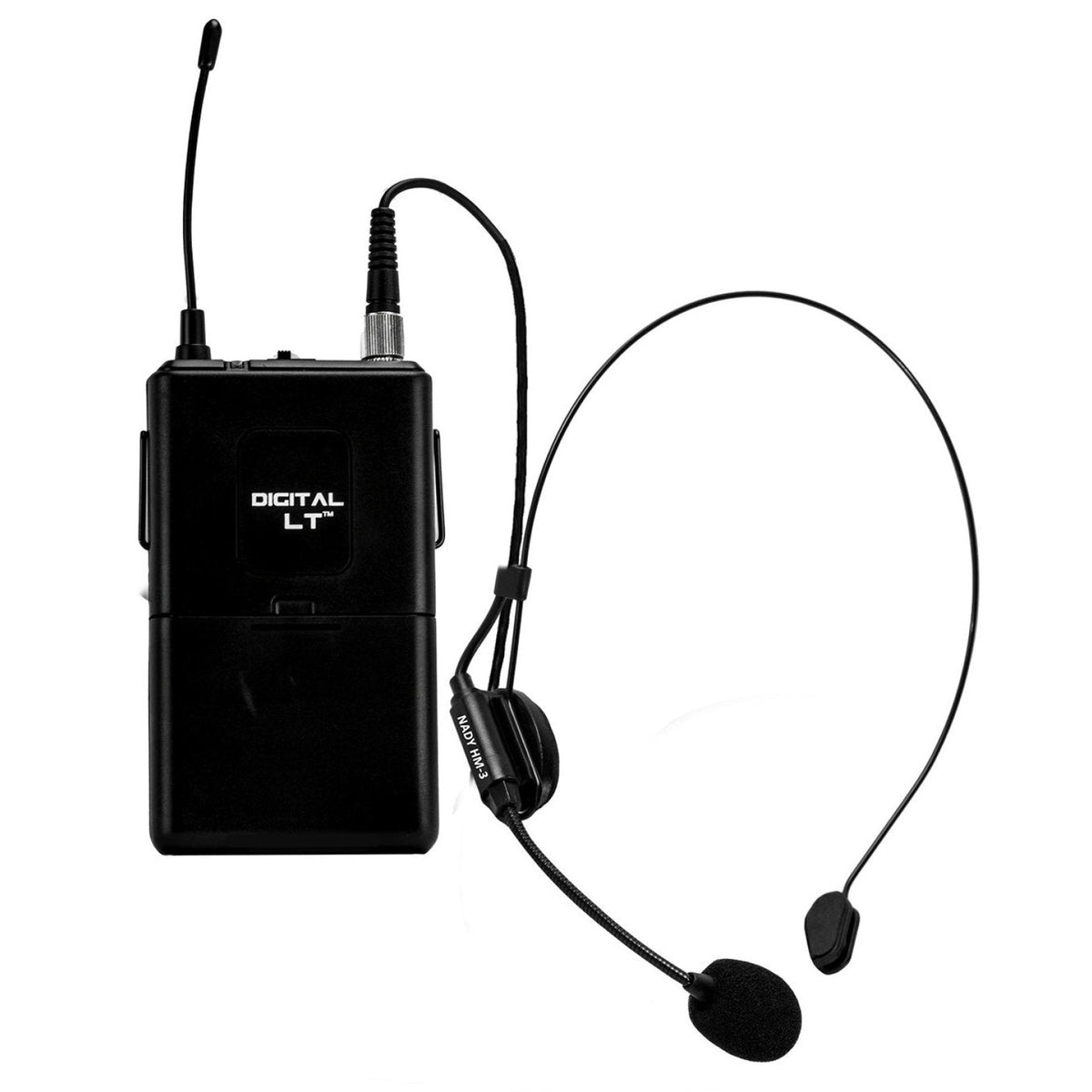

- Headset microphone
Common questions
What frequency does the Nady DW-11 LT-HM use?
The Nady DW-11 LT-HM uses selected frequencies between 902 and 951 MHz with digital QPSK modulation.
How far does the Nady DW-11 LT-HM reach?
The Nady DW-11 LT-HM has a working distance of up to 300 feet line-of-sight.
What batteries does the Nady DW-11 LT-HM bodypack use?
The Nady DW-11 LT-HM bodypack transmitter uses 2 x AA batteries and runs up to 11 hours.
What outputs does the Nady DW-11 LT-HM receiver have?
The Nady DW-11 LT-HM receiver has a balanced XLR mic-level output and an adjustable 1/4” line-level output.
Does the Nady DW-11 LT-HM come with both a lapel and a headset microphone?
Yes. The Nady DW-11 LT-HM includes a lapel microphone and a headset microphone, both used with the Digital LT bodypack through its 1/8” (3.5 mm) locking mini-jack.
Can the Nady DW-11 LT-HM be rack mounted?
Nady lists the optional RMT-1KUD rack tray for mounting one or two DW-11 receivers. The tray is not included.
