Description

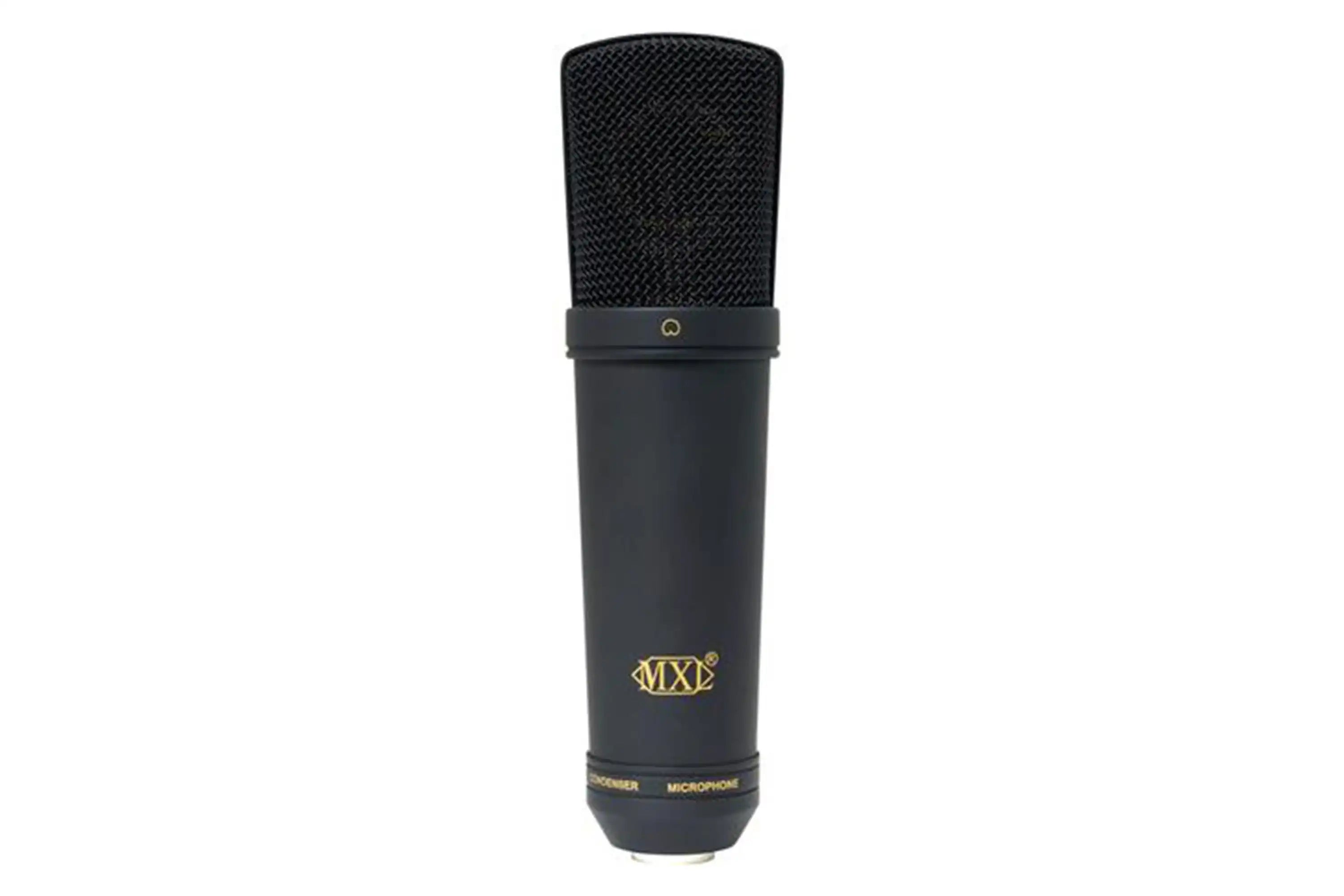

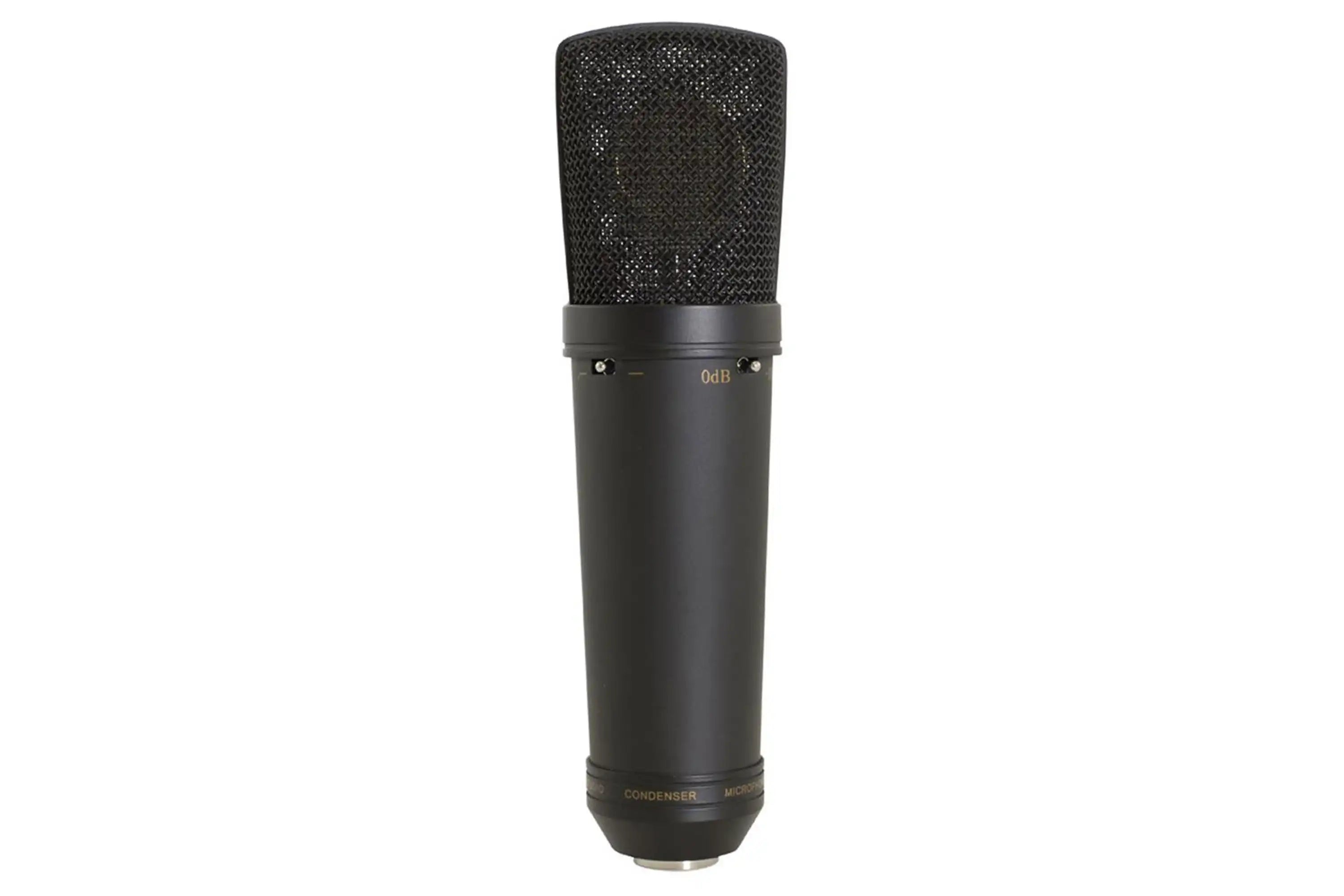

MXL 2003A Large Capsule Condenser Microphone is a large capsule pressure gradient condenser microphone with a 3 micron gold-sputtered diaphragm and a cardioid polar pattern. It has a 20 Hz to 20 kHz frequency response and runs on 48V phantom power.
Specifications
| SKU | HL00147383 |
|---|---|
| Model | 2003A |
| Type | Pressure gradient condenser mic |
| Diaphragm | 3 micron gold-sputtered |
| Frequency response | 20Hz-20kHz |
| Polar pattern | Cardioid |
| Sensitivity | -42.9 dB re 1 V/Pa |
| Output impedance | 200 ohms |
| Equivalent noise | -11 dB (A-weighted IEC 651) |
| S/N ratio | 83 dB |
| Max SPL for 0.5% THD | 152 dB SPL |
| Power requirements | 48V phantom power (+/- 4V) |
| Current consumption | 6.6mA |
| Metal finish | Black with black grill |
Measurements
| Size | 50mm x 190mm / 1.97” x 7.48” |
|---|---|
| Weight | 453.59g / 1 lb |
Common questions
What type of microphone is the MXL 2003A?
The MXL 2003A is a large capsule pressure gradient condenser microphone with a cardioid polar pattern.
Does the MXL 2003A need phantom power?
Yes. The MXL 2003A requires 48V phantom power (+/- 4V) and draws 6.6mA.
What diaphragm does the MXL 2003A have?
The MXL 2003A has a 3 micron gold-sputtered diaphragm.
What are the main specs of the MXL 2003A?
The MXL 2003A has a 20Hz-20kHz frequency response, 200 ohms output impedance, an 83 dB S/N ratio and a max SPL of 152 dB SPL at 0.5% THD.
How big is the MXL 2003A?
The MXL 2003A measures 50mm x 190mm (1.97” x 7.48”) and weighs 453.59g (1 lb).
