Description

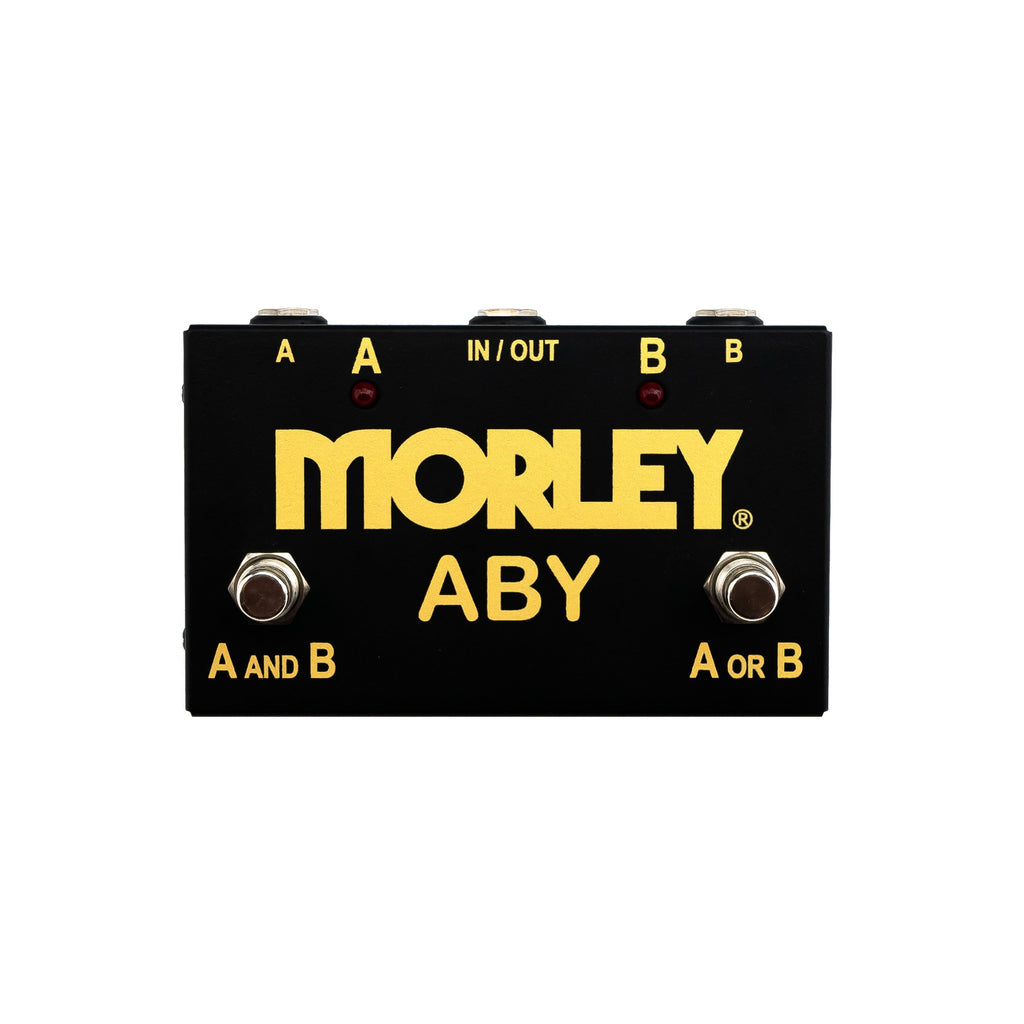

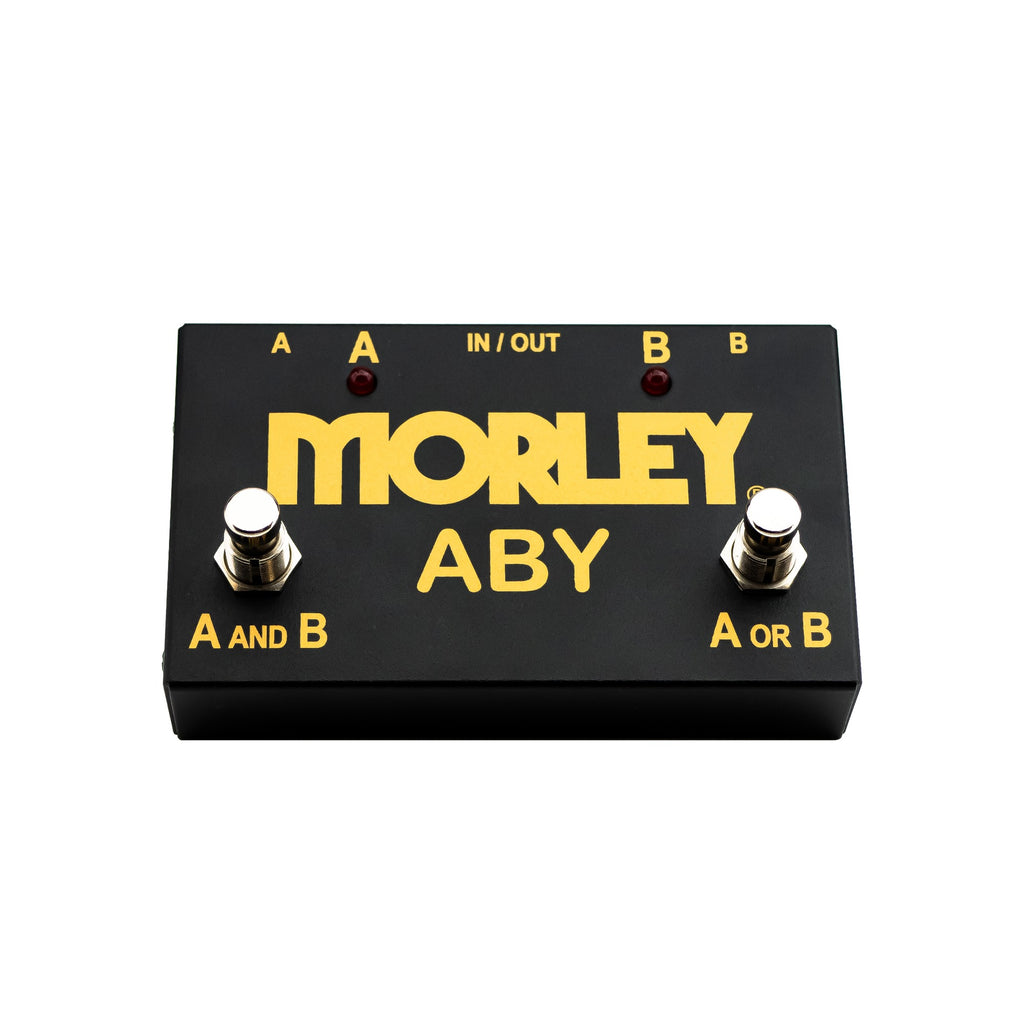

Morley Gold Series ABY Selector Combiner Pedal is a passive, true bypass switcher that routes one input to two outputs or two inputs to one output. Choose A, B or A and B together, with LEDs showing which side is active. It suits players switching between two guitars or two amps on stage.
Specifications
| SKU | HL00369707 |
|---|---|
| Manufacturer Part Number | ABY-G |
| Routing | One input to two outputs, or two inputs to one output |
| Selection | A, B, or A and B combined |
| Bypass | True bypass |
| Circuit | Passive; works without power (power is needed only for the LEDs) |
| Power | Standard 9V power supply or 9V battery |
| Current Draw | 2 mA |
| Indicators | LEDs show which channel is active |
| Housing | Cold-rolled steel |
| Note | Not intended for use on powered speaker lines |
Measurements
| Length | 5.25″ |
|---|---|
| Width | 3.25″ |
| Height | 2″ |
WARRANTY - Morley One-Year Warranty (please keep your purchase receipt)
Common questions
Does the Morley Gold Series ABY need a battery?
No. The Morley Gold Series ABY is passive and true bypass, so it passes signal without power. A 9V supply or 9V battery only lights the LEDs.

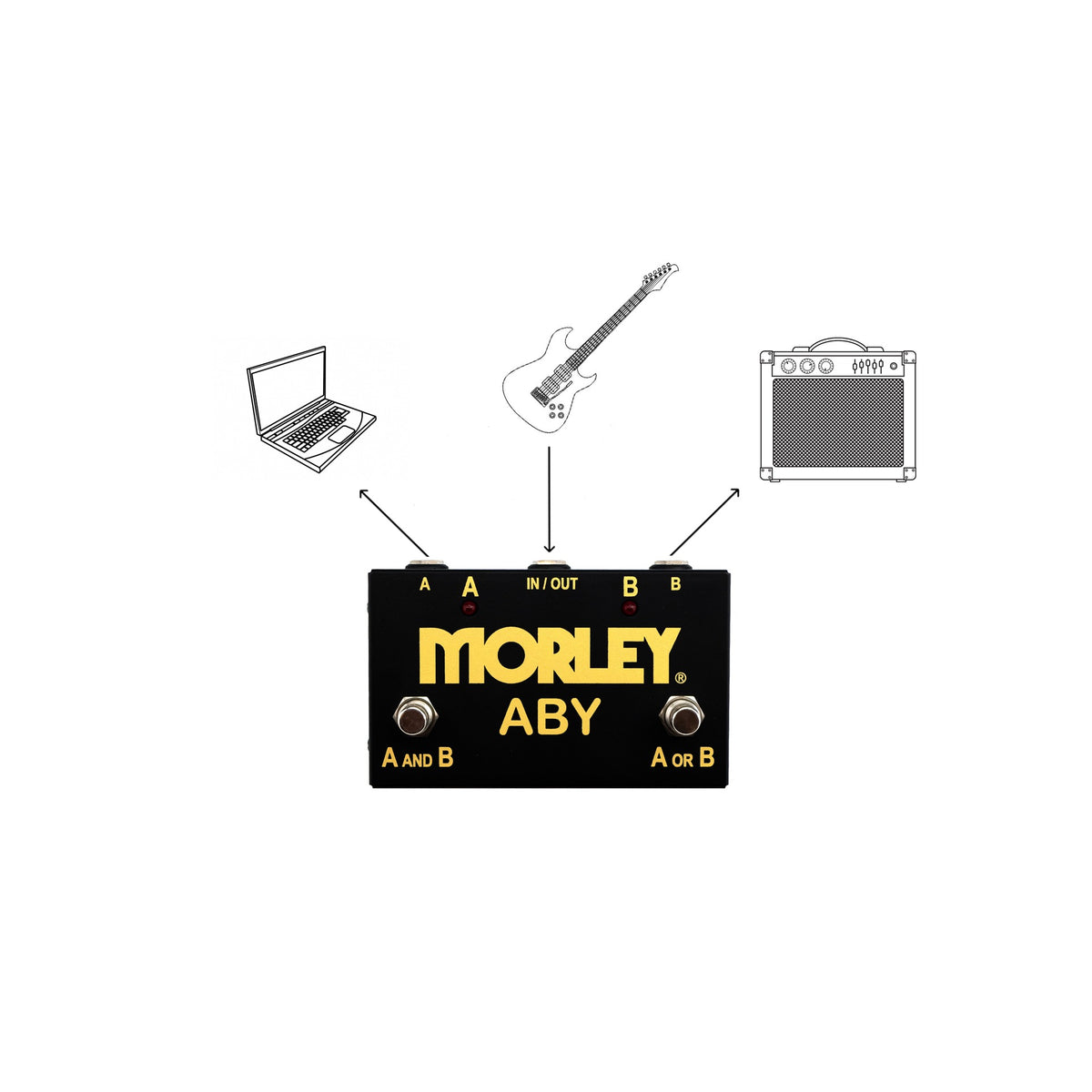

Can I switch between two amps with the Morley Gold Series ABY?
Yes. The Morley Gold Series ABY routes one guitar to two amps, and you can choose A, B or both.

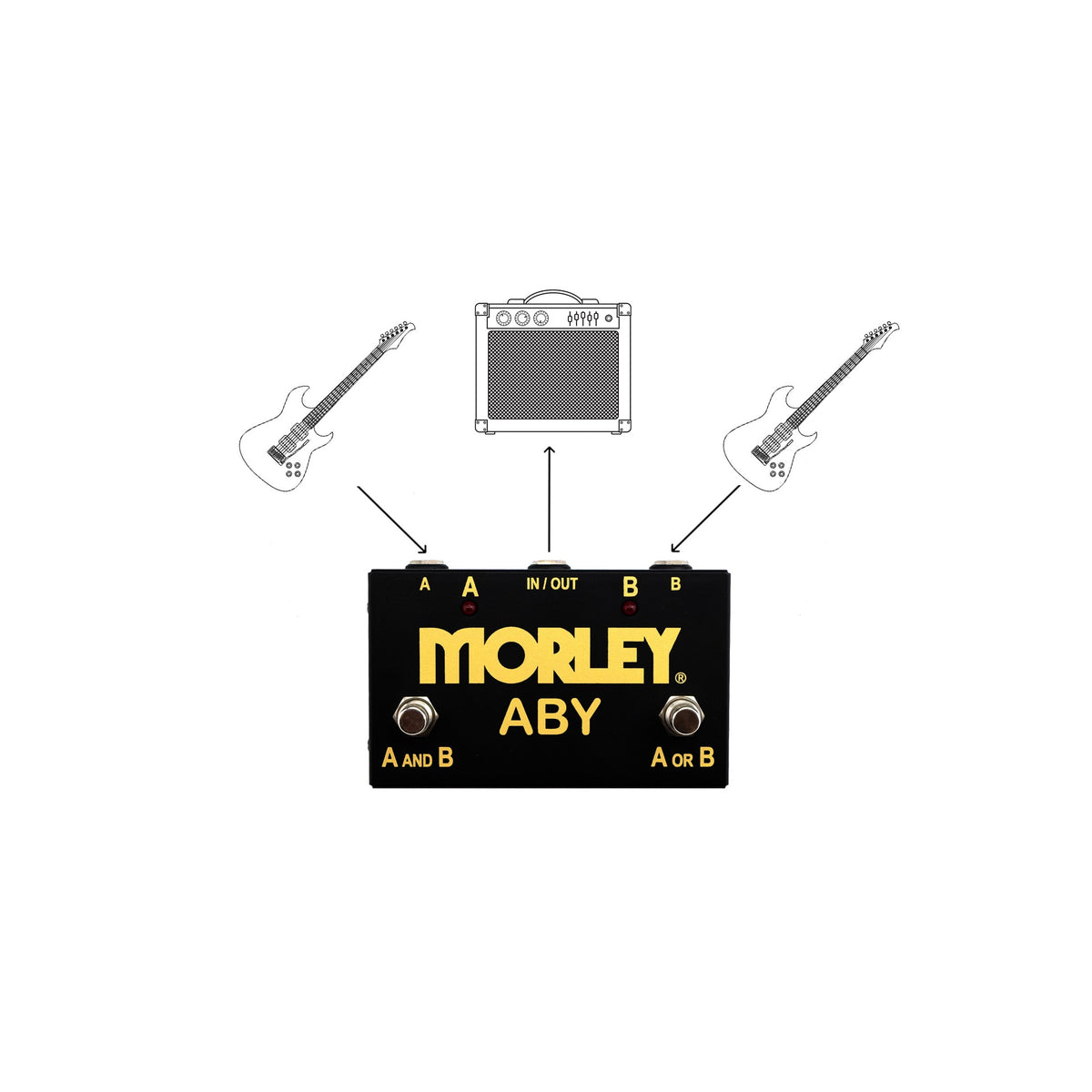

Can I switch between two guitars with the Morley Gold Series ABY?
Yes. Reverse the Morley Gold Series ABY to route two instruments into one amp.
Should I use the Morley Gold Series ABY to split a signal for recording?
Morley recommends the Morley ABY MIX or ABY Pro for splitting a signal, since those are better suited to it than the Morley Gold Series ABY.
