Description
Morley Gold Series ABY MIX Pedal is a two-channel mixer in a pedal enclosure that routes two inputs to two outputs. Each input has its own level control with 15 dB of range, each output has a bypass footswitch, and a premium buffer circuit protects your tone over long cable runs. It suits multi-instrumentalists, teachers sharing one amp with a student, and anyone splitting a signal to an amp and an interface.
Specifications
| SKU | HL00369708 |
|---|---|
| Manufacturer Part Number | ABY-MIX-G |
| Routing | Both inputs routed to each output; bypass footswitch for each output |
| Level Controls | Independent level for each input, 15 dB of range (unity at 10 o'clock) |
| Circuit | Active, with premium buffer circuit |
| Power | Standard 9V power supply or 9V battery |
| Current Draw | 2 mA |
| Indicators | LEDs show which output is active |
| Housing | Cold-rolled steel |
| Note | Not intended for use on powered speaker lines |
Measurements
| Length | 6.63″ |
|---|---|
| Width | 4.38″ |
| Height | 2″ |
WARRANTY - Morley One-Year Warranty (please keep your purchase receipt)
Common questions

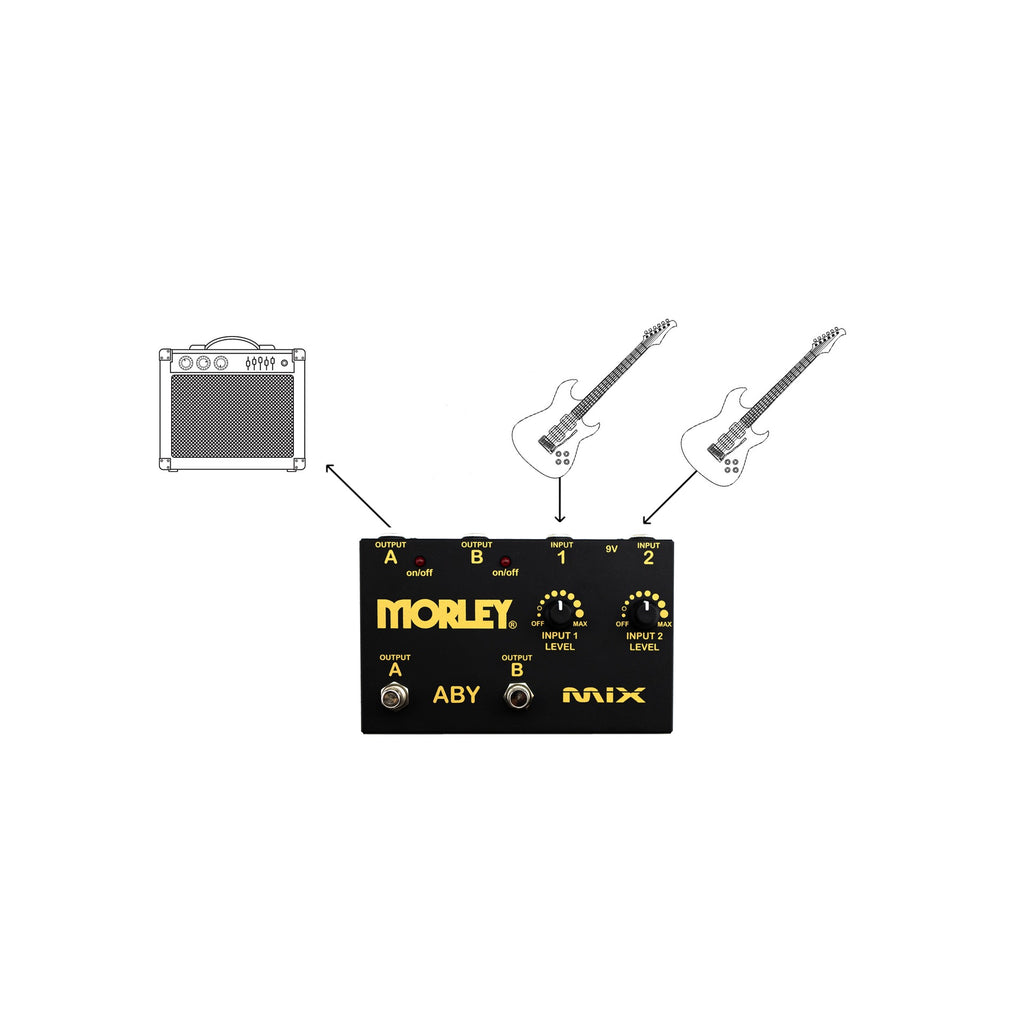

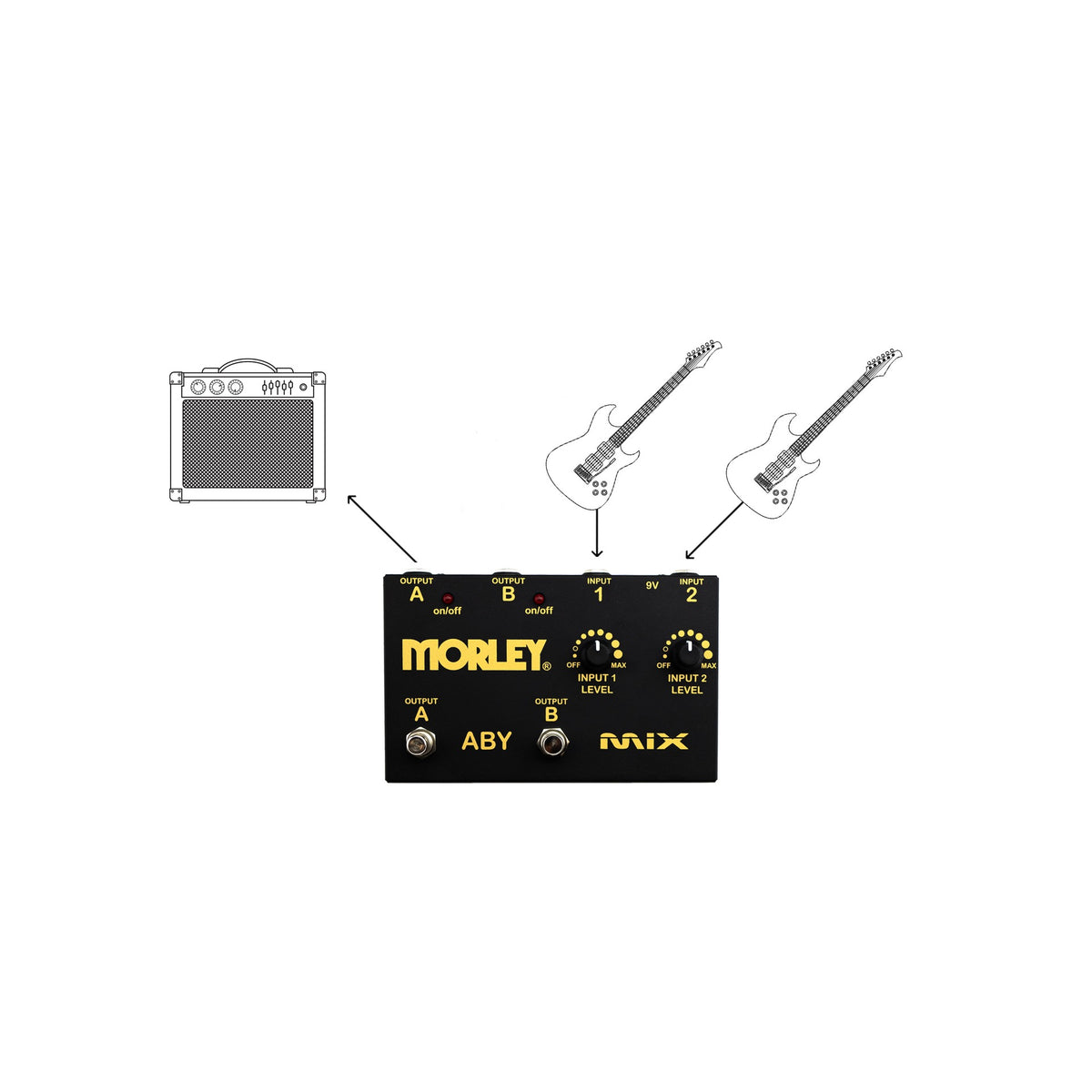

Can two guitars play through one amp with the Morley ABY MIX?
Yes. The Morley Gold Series ABY MIX mixes two inputs, each with its own level control, so two players can share one or two amps.
Does the Morley ABY MIX need power?
Yes. The Morley Gold Series ABY MIX is active and buffered, so it needs a standard 9V power supply or a 9V battery. It draws 2 mA.

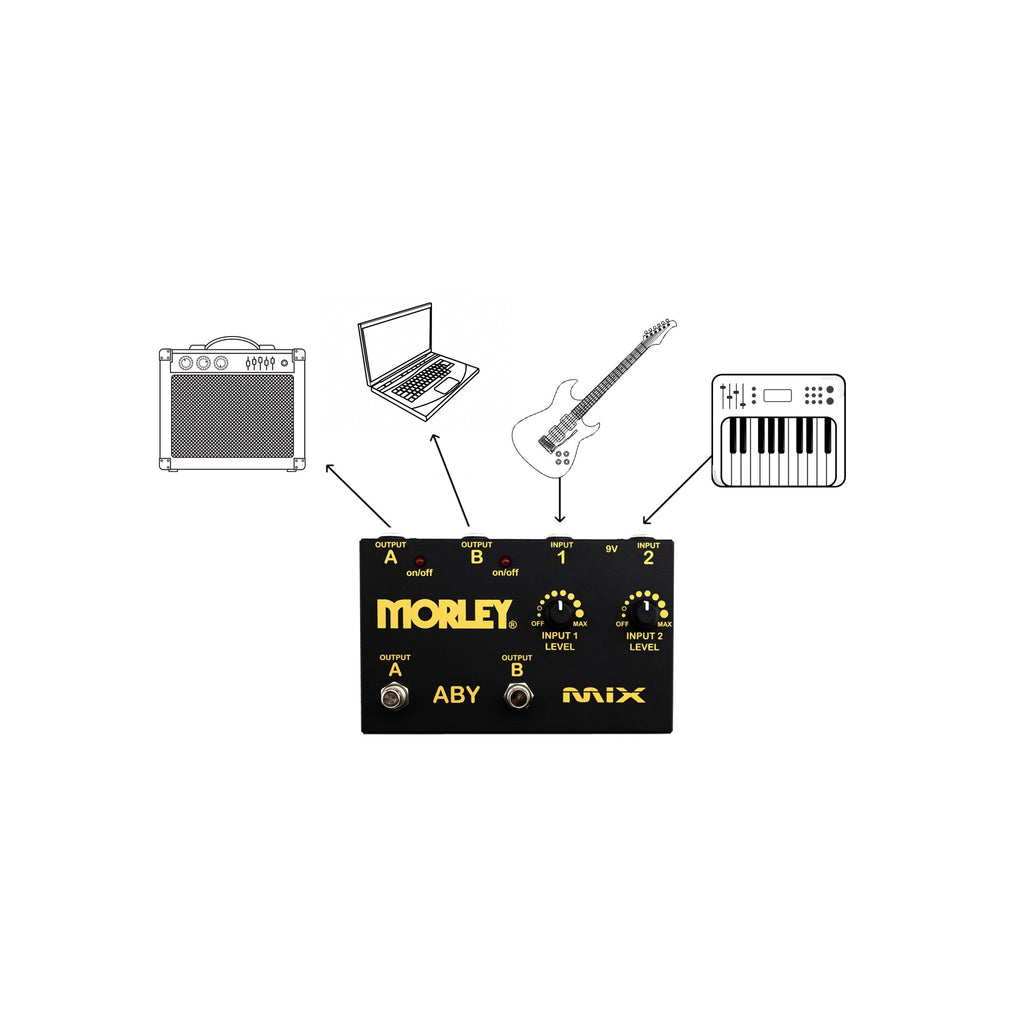

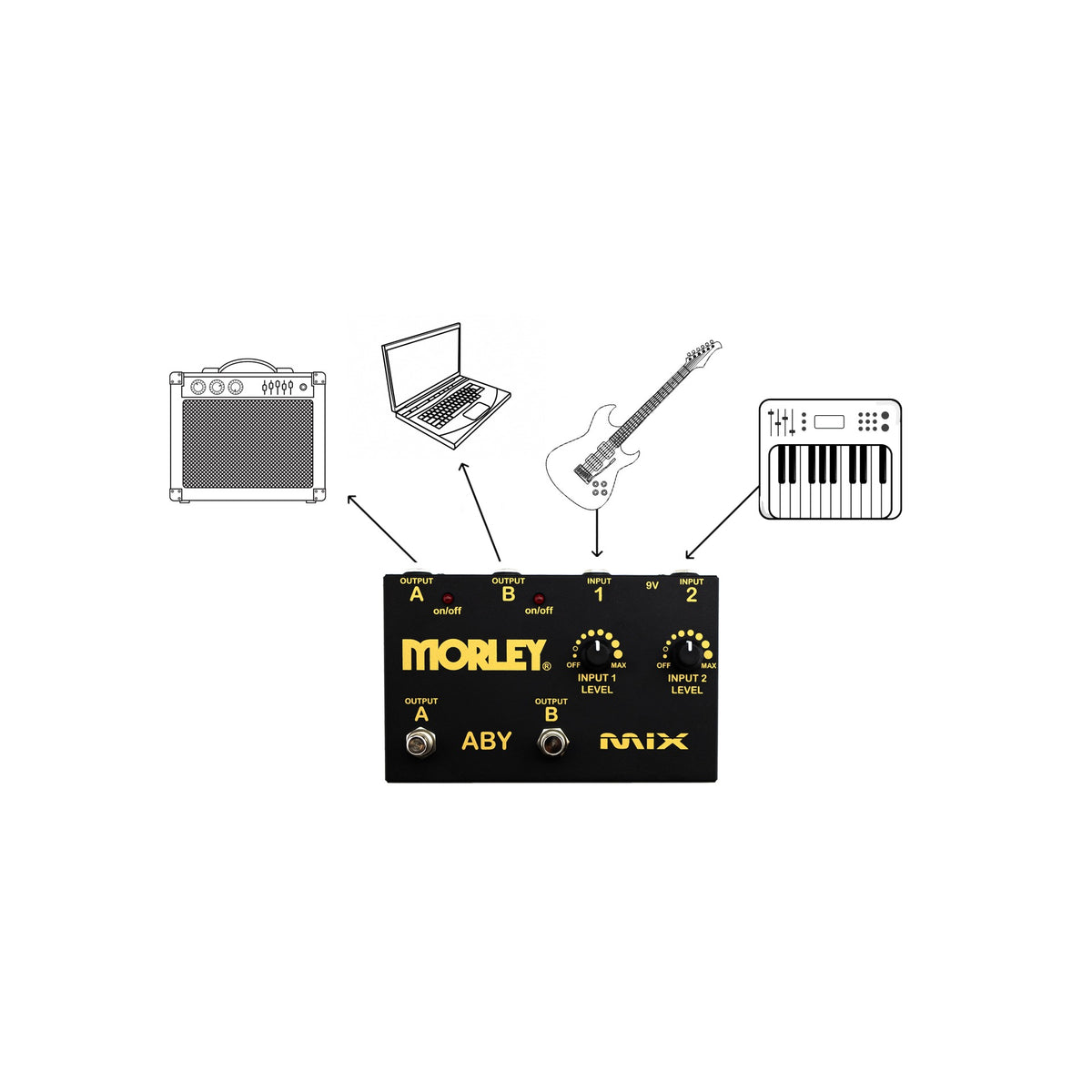

Can I send my guitar to an amp and an audio interface with the Morley ABY MIX?
Yes. Morley shows the Gold Series ABY MIX sending one instrument to an amp and a computer interface at the same time, for capturing the amp tone plus a clean signal for re-amping.
What is the difference between the Morley ABY MIX and the Morley ABY?
The Morley Gold Series ABY is passive and true bypass with A/B selection. The Morley Gold Series ABY MIX is buffered, needs power, and adds a level control for each input so two signals can be mixed.
