Description

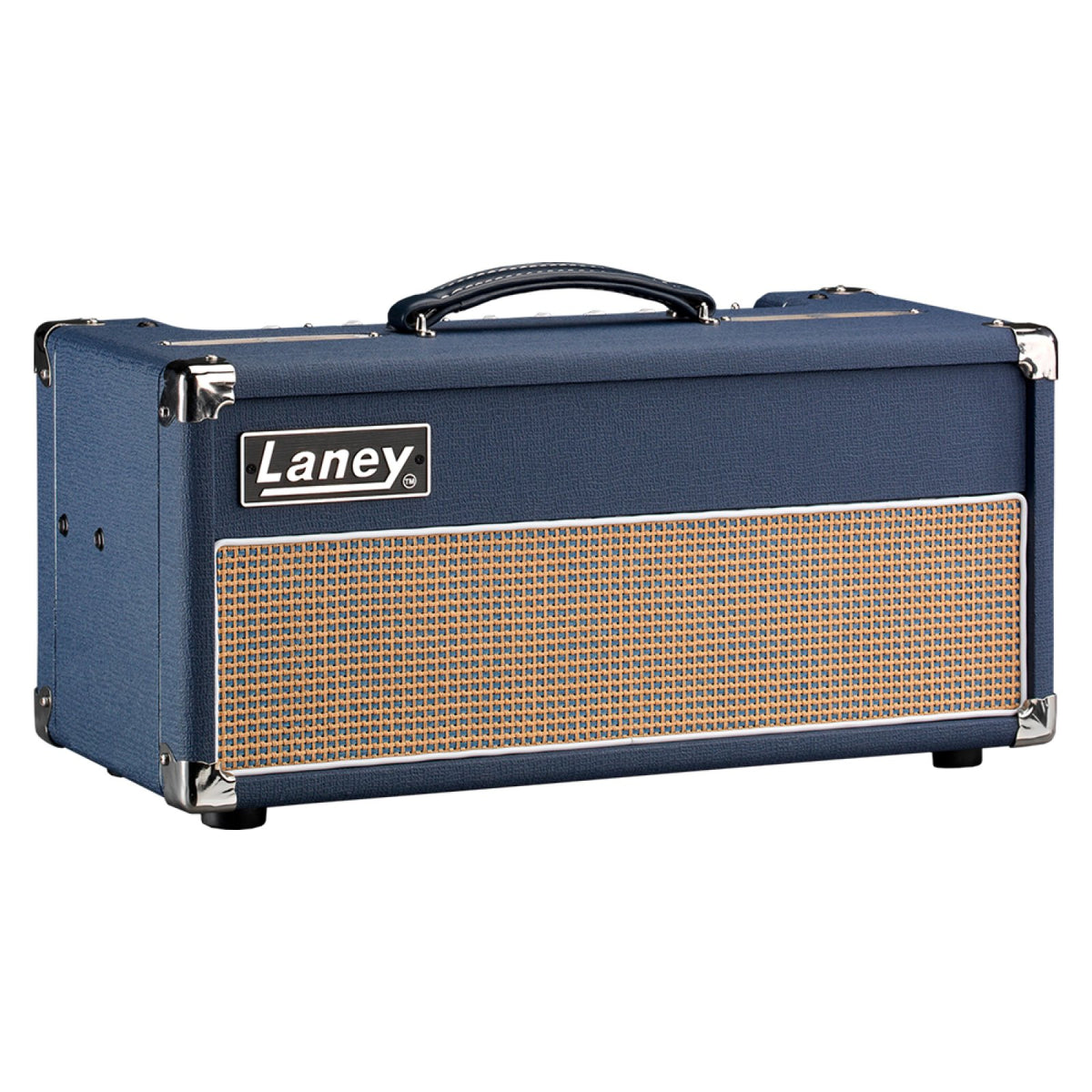

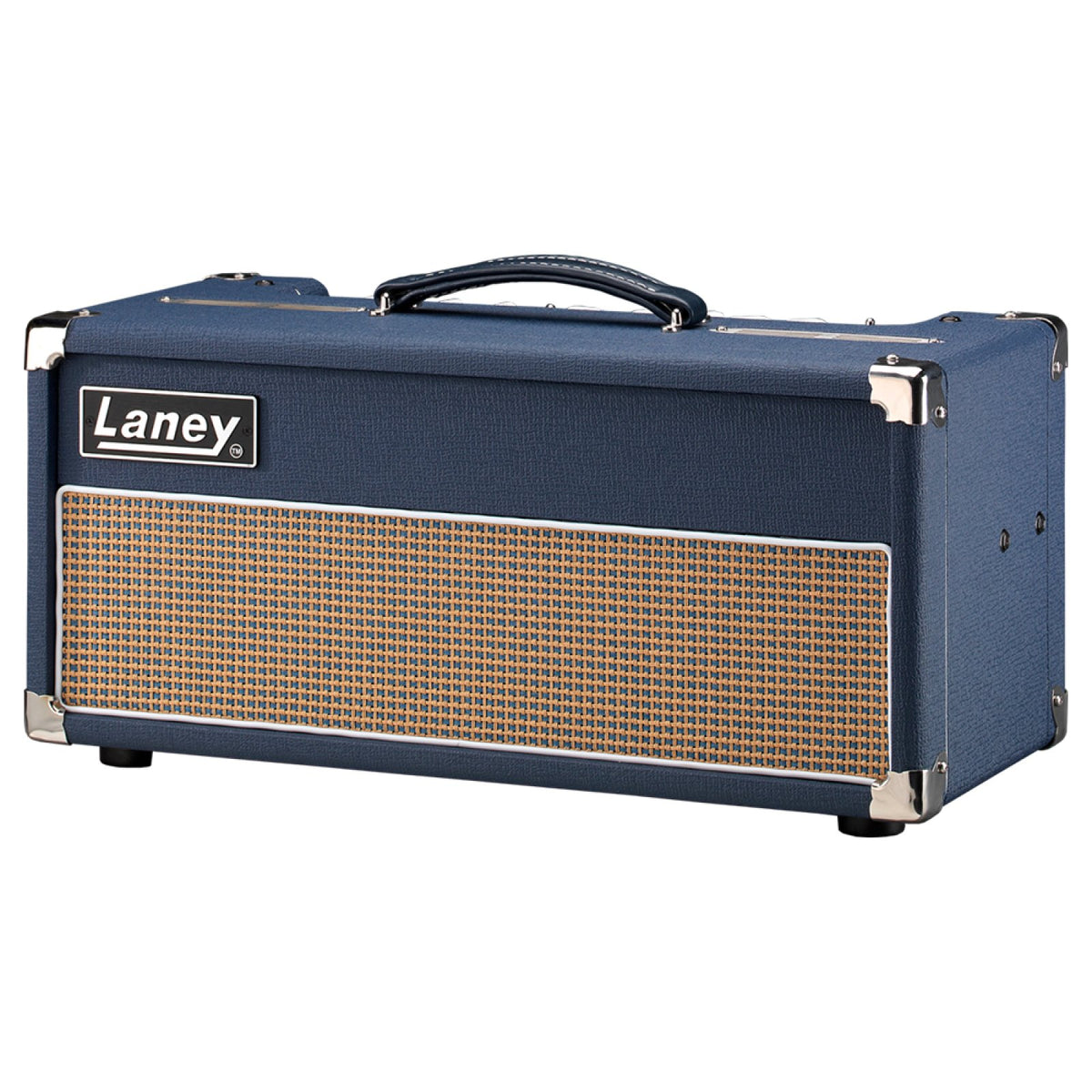

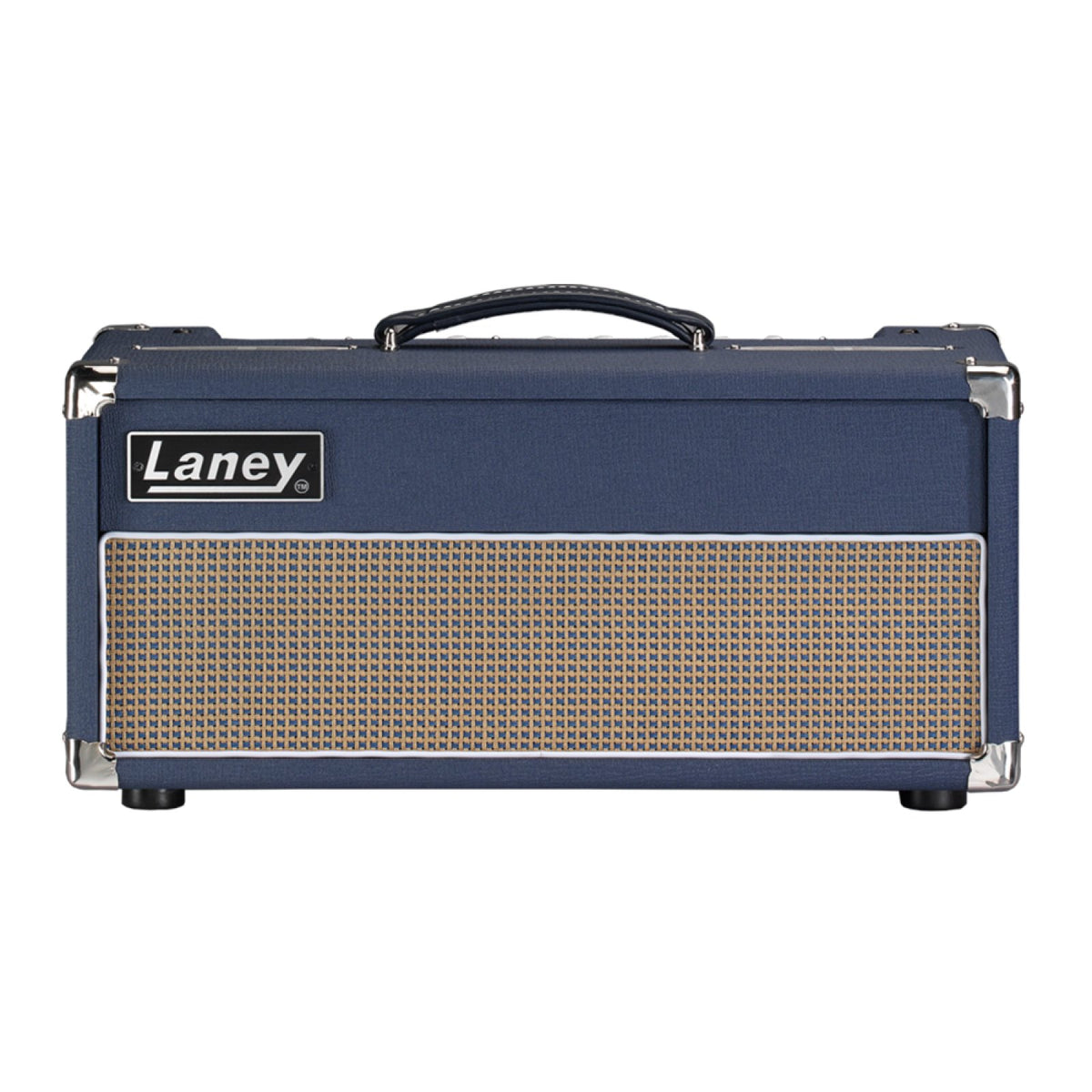

Laney Lionheart L20H 20W All-Tube Guitar Head Amp is a 20 W twin-channel all-tube guitar head from Laney's Lionheart series. It uses 3 x 12AX7 preamp tubes and 4 x EL84 power tubes in a parallel single-ended Class A design, with digital reverb and an FS2-mini footswitch included.
What is the L20H best for?
The Laney Lionheart L20H is for players who want a Class A, EL84-driven tube head with two channels and boutique British tone. Laney recommends pairing it with the LT212 or LT112 cabinets (sold separately).
What is the L20H's power and tube lineup?
The Laney Lionheart L20H delivers 20 W RMS from 4 x EL84 tubes in a parallel single-ended Class A design, with 3 x 12AX7 tubes in the preamp. It has three 1/4-inch speaker outputs.
How does the Laney L20H compare with the L5-STUDIO?
The Laney Lionheart L20H is a 20 W head with 4 x EL84 tubes, while the Laney Lionheart L5-STUDIO is a 5 W head with a single EL84 and a selectable 0.5 W setting. Both are twin-channel Class A tube heads with digital reverb and a bundled FS2-mini footswitch.
Specifications
- Model/SKU: L20H (24494)
- Brand: Laney
- Series: Lionheart
- Type: All-tube guitar head amp
- Power: 20 W RMS
- Channels: 2
- Preamp: 3 x 12AX7 tubes
- Power amplifier: 4 x EL84, parallel single-ended Class A

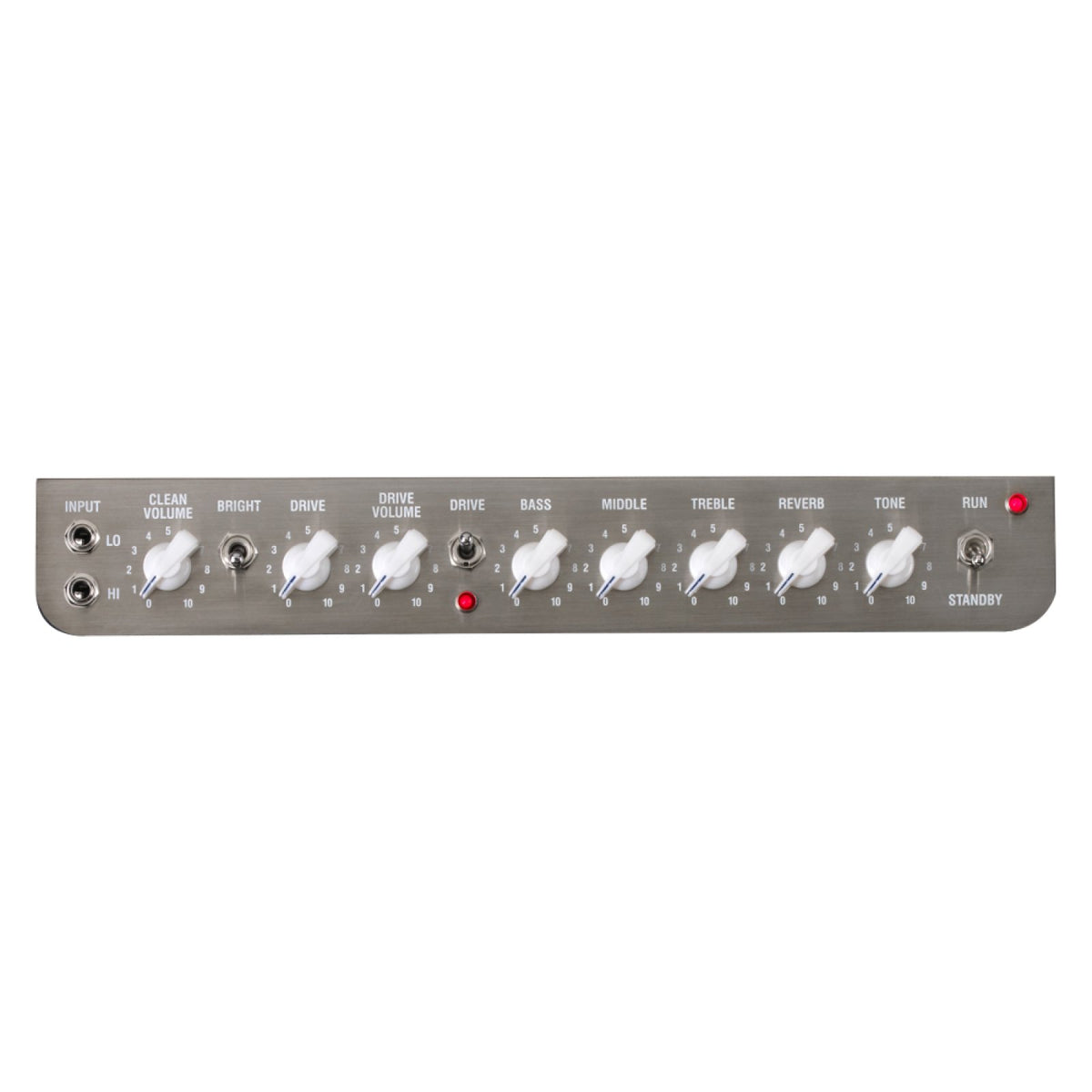

- Controls: Clean volume, drive, drive volume, bass, middle, treble, reverb, tone
- Reverb: Digital reverb
- Inputs: 2 x 1/4-inch jack (low, high), 1/4-inch jack FX return

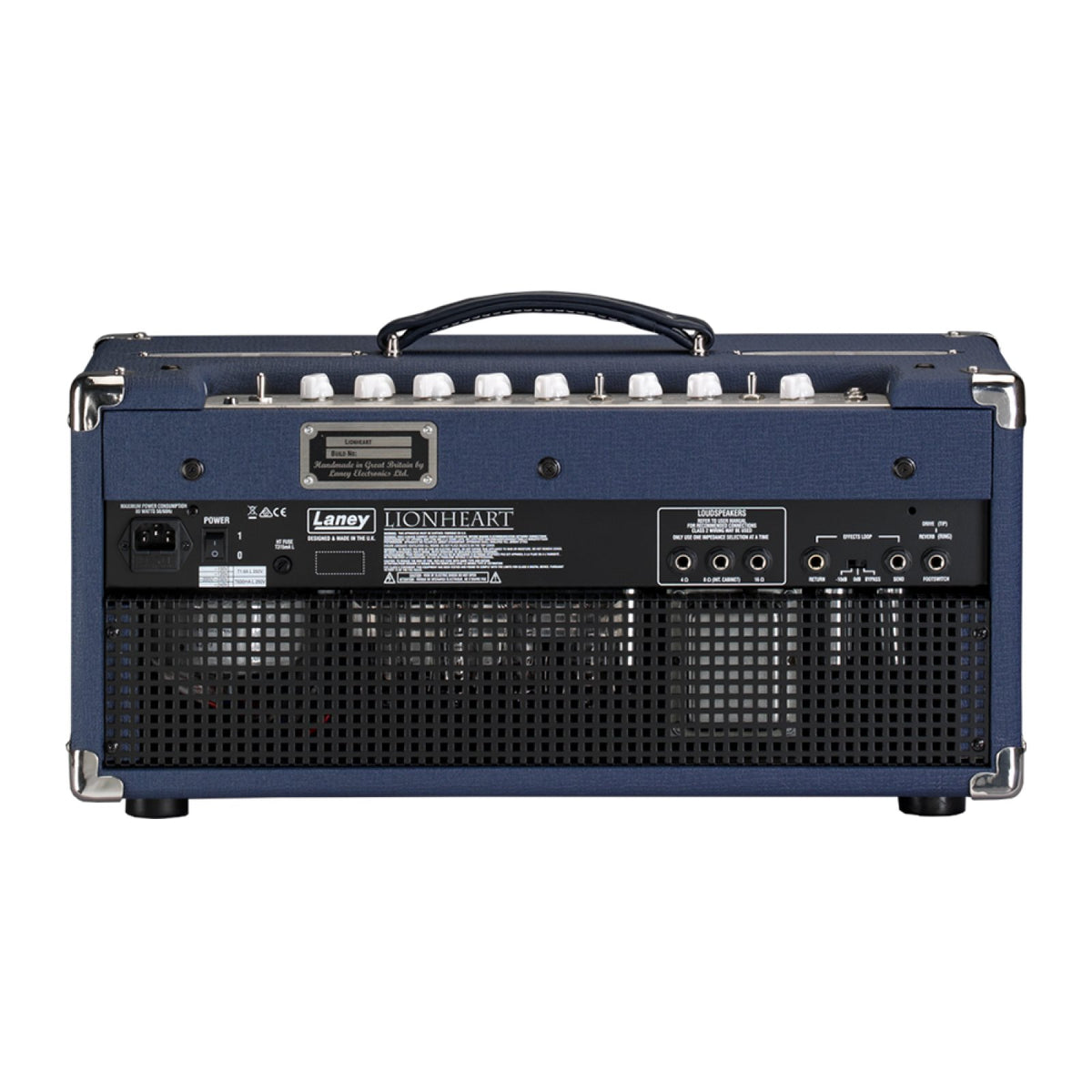

- Outputs: 3 x 1/4-inch jack speaker out, 1/4-inch jack FX send
- Dimensions (H x W x D): 260 x 570 x 260 mm
- Weight: 16.1 kg
What is included
- Laney Lionheart L20H head amp
- FS2-mini footswitch
- Custom-embroidered slip cover, as listed in the Laney catalog
- A speaker cabinet is not included
Common questions
Is the Laney L20H an all-tube amp?
Yes. The Laney Lionheart L20H is all-tube, with 3 x 12AX7 preamp tubes and 4 x EL84 power tubes in a Class A design.
How many channels does the Laney L20H have?
The Laney Lionheart L20H has two channels, controlled by clean volume, drive and drive volume knobs, with shared bass, middle, treble, reverb and tone controls.
Does the Laney L20H come with a footswitch?
Yes. The Laney Lionheart L20H is supplied with an FS2-mini footswitch.
Which cabinets pair with the Laney L20H?
Laney recommends its LT212 and LT112 Lionheart cabinets, sold separately, for the Lionheart L20H.
How big and heavy is the Laney L20H?
The Laney Lionheart L20H measures 260 x 570 x 260 mm and weighs 16.1 kg.
Does the Laney L20H ship free?
Free insured shipping in the continental US applies to the Laney Lionheart L20H.
