Description

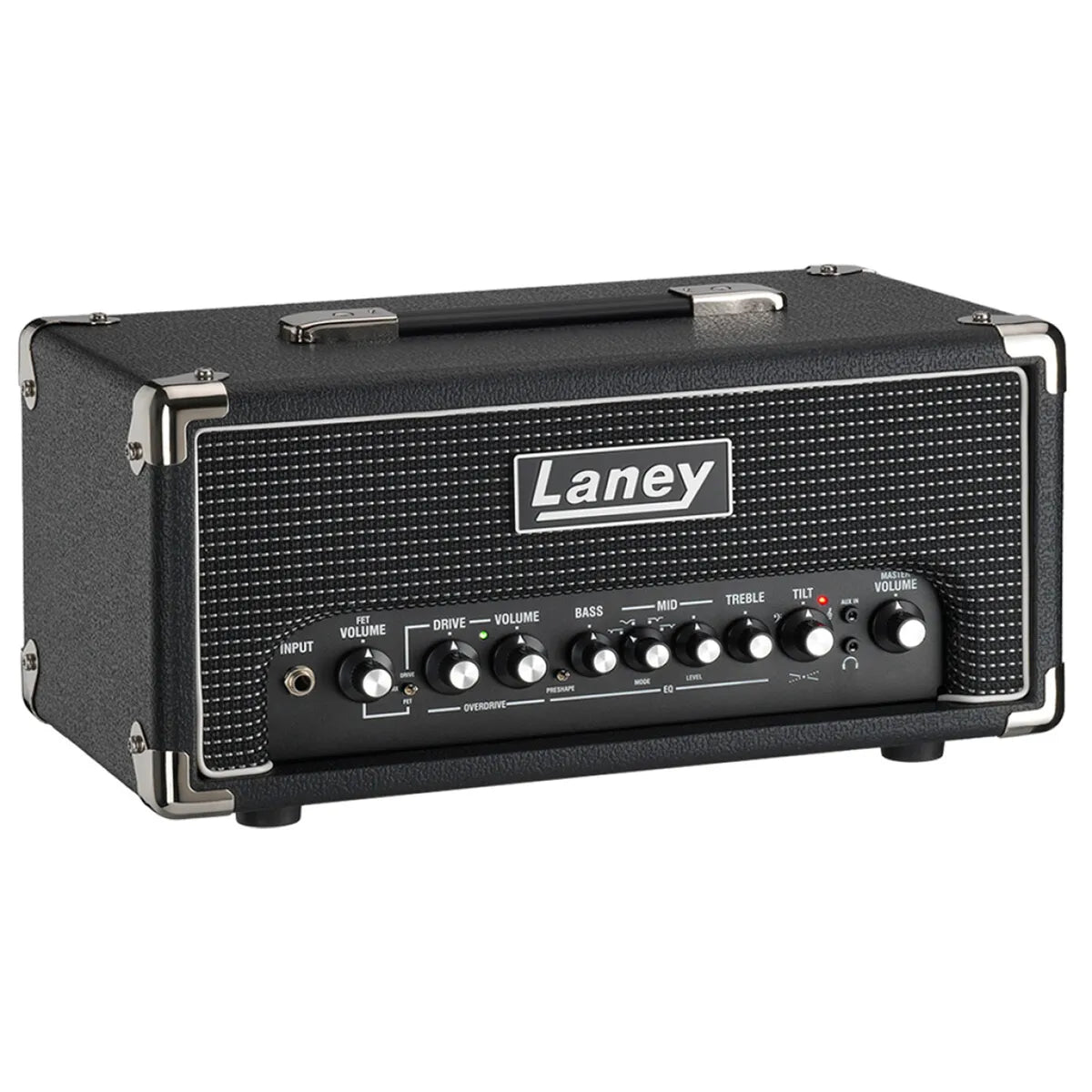

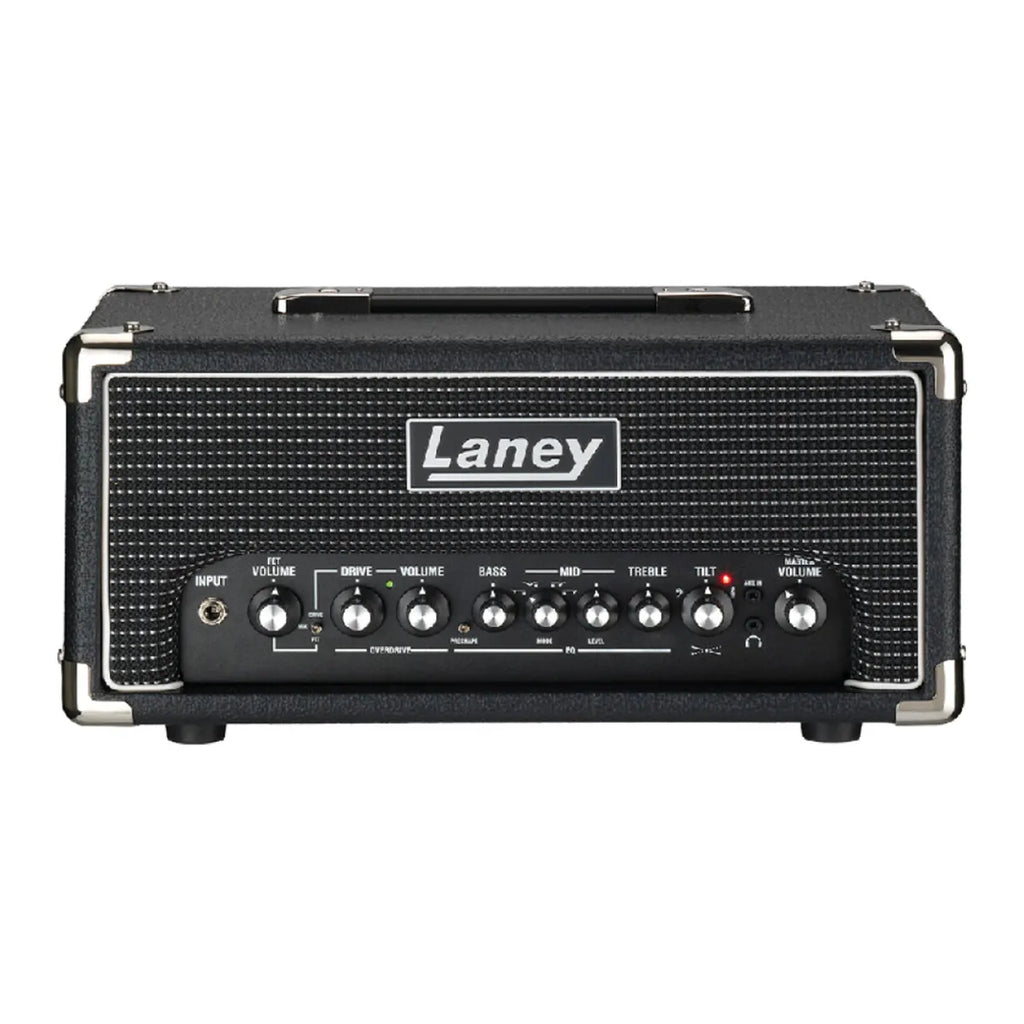

Laney DBF200H Digbeth Series Bass Head Amplifier - 200W RMS is a 200 watt RMS (400 W continuous) Class D bass head with fully passive convection cooling for silent operation. Its two channels, FET and Tube, can be blended with mix options, and it has a balanced XLR D.I. output and a Speakon compatible combi jack speaker output.
Specifications
| SKU | 28466 |
|---|---|
| Model | DBF200H |
| Series | Digbeth |
| Power rating | 200 watts RMS, 400 W continuous |
| Frequency response (-10) | 20 Hz > 20 kHz |
| Amplifier type | Class D, with fully passive convection cooling for silent operation |
| Channels | Two, FET and Tube with mix options. Footswitchable with optional FS1-Mini footswitch |
| Inputs | 6.3 mm (1/4”) jack instrument, 3.5 mm stereo aux in, 6.3 mm jack socket FX return |
| Input impedance | 1MΩ |

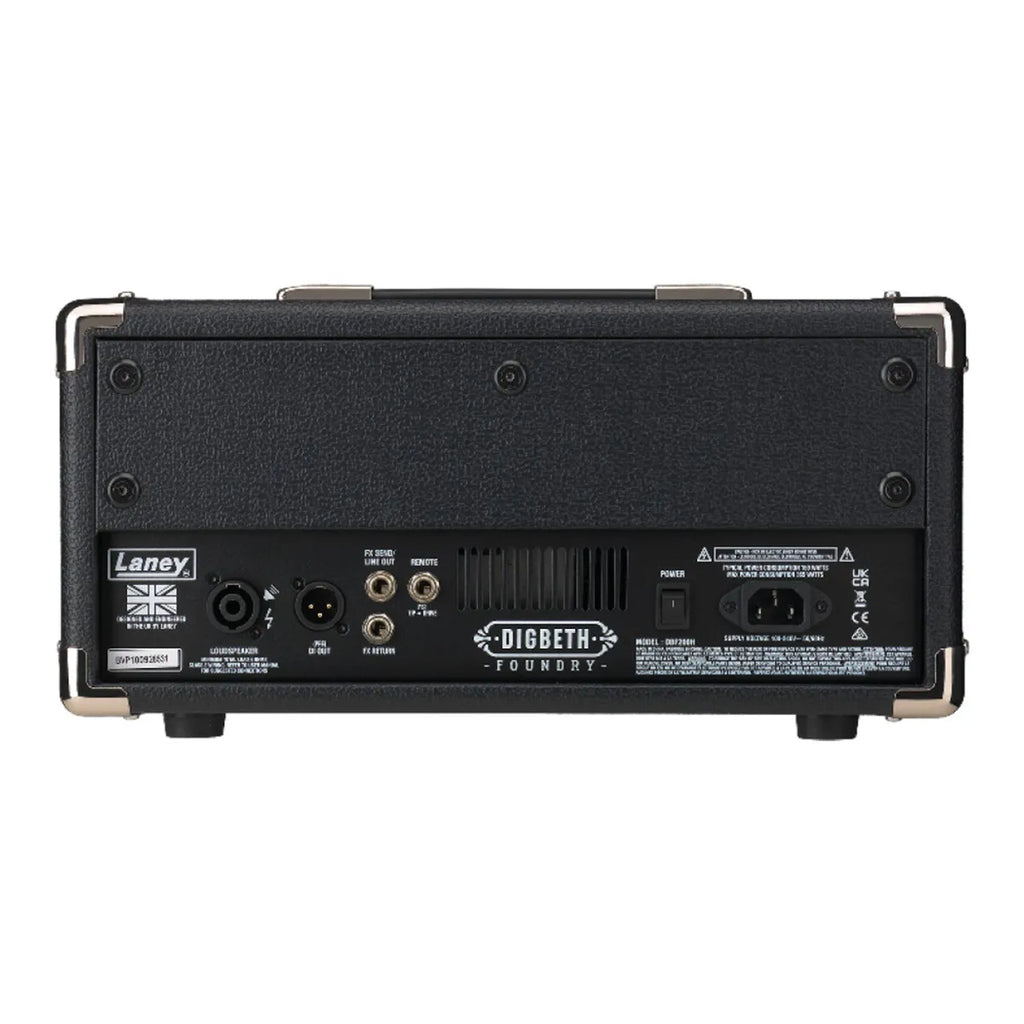

| Outputs | 3.5 mm (1/8”) stereo headphones jack, 6.3 mm jack socket FX send, balanced male XLR D.I output (pre EQ), SPEAKON compatible combi jack output socket |

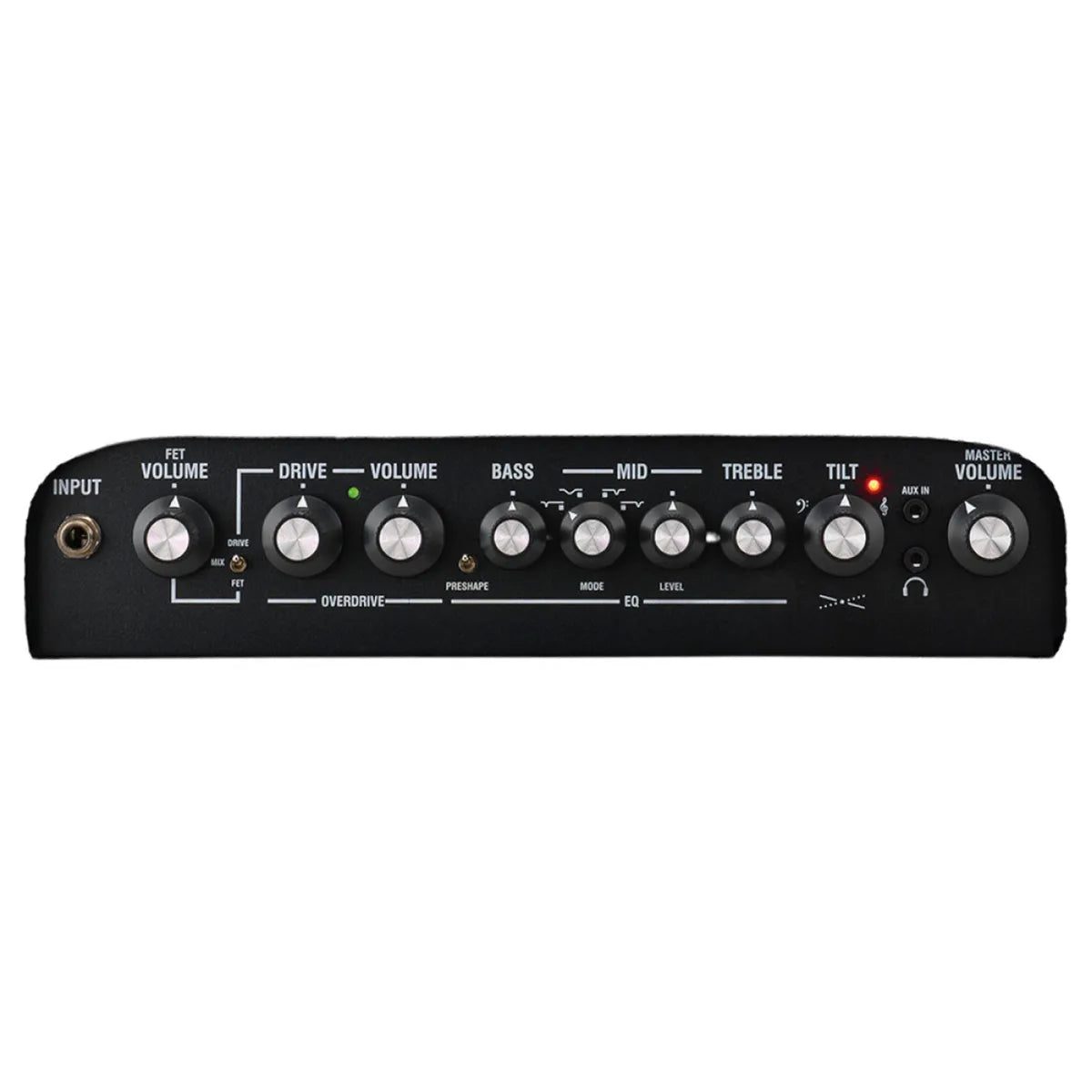

| Controls | FET Volume, preshape switch, drive switch FET, Drive and channel mix options, drive, Drive volume, bass, middle, middle voicing switch, treble, tilt control, master volume |
| EQ | Preshape, bass +/- 12dB, middle with four switchable voicing options +/- 12dB, treble +/- 12dB, tilt control |
| Indicator | Power LED |
| Enclosure | MDF 15mm cabinet |
| Handle | Top mounted steel reinforced strap handle |
| Finish | Hard wearing black vinyl, steel corners |
| Power supply | Internal universal 100-240 V - 50/60Hz, switched mode power supply |
| Power consumption | Typical power consumption 150W nominal, max power consumption 360 Watts |
Measurements
| Dimensions (H x W x D) | 194 x 397 x 218 mm (7.6” x 15.6” x 8.6”) |
|---|---|
| Weight | 5.8 kg (12.8 lbs) |
| Packed weight | 7.8 kg (17.2 lbs) |
Common questions
How many watts is the Laney DBF200H?
The Laney DBF200H Digbeth bass head is rated at 200 watts RMS and 400 W continuous from a Class D amplifier.
What speaker output does the Laney DBF200H have?
The Laney DBF200H has a SPEAKON compatible combi jack output socket for a bass cabinet.
Does the Laney DBF200H come with a footswitch?
No. The Laney DBF200H channels are footswitchable with the optional FS1-Mini footswitch, sold separately.
Does the Laney DBF200H have a headphone output?
Yes. The Laney DBF200H has a 3.5 mm (1/8”) stereo headphones jack and a 3.5 mm stereo aux in.
Can I connect the Laney DBF200H to a PA?
Yes. The Laney DBF200H has a balanced male XLR D.I output (pre EQ).
How much does the Laney DBF200H weigh?
The Laney DBF200H weighs 5.8 kg (12.8 lbs) and measures 194 x 397 x 218 mm (7.6” x 15.6” x 8.6”).
