Description
Laney BCC-LOUDPED-LTQ Tom Quayle Signature Loudpedal 2 Channel Lionheart Amplifier - 60 Watt is a 60 W RMS Tom Quayle signature amplifier in a floor-based pedal format, with two switchable channels (clean and drive), a footswitchable pre boost and a footswitchable digital Springline reverb. Its balanced XLR DI out uses LA·IR speaker emulation with 1x12 and 4x12 options, and USB-C streams audio at 48kHz and loads custom IRs.
Specifications
| SKU | 28246 |
|---|---|
| Model | BCC-LOUDPED-LTQ |
| Power rating | 60 W RMS |
| Input impedance | 1MΩ |
| Channels | Two, clean and drive (switchable) |
| Gain 1 | Channel with Bright, Flat, Dark EQ clipping option |
| Gain 2 | Channel with Bright, Flat and Dark voicing option |
| EQ | Bass, Middle, Treble (passive tone stack), Overall Tone control, plus Bright switch (clean channel) and Tone character switch (drive channel) |
| Effects | Digital Springline Reverb (footswitchable), External FX Loop |
| Pre boost | Built in footswitchable pre boost with level |

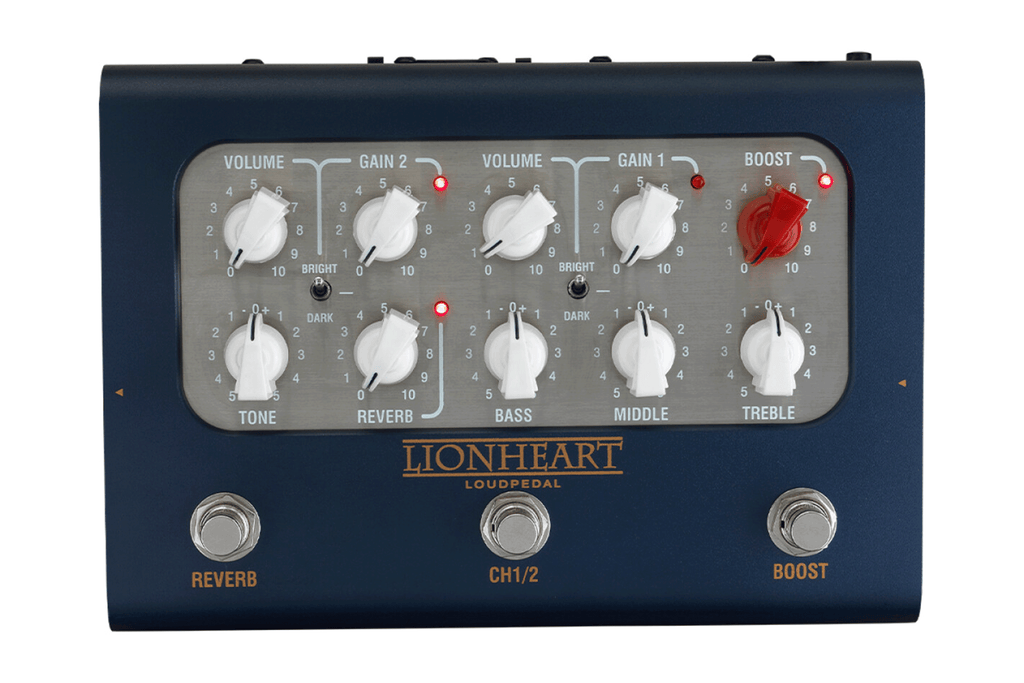

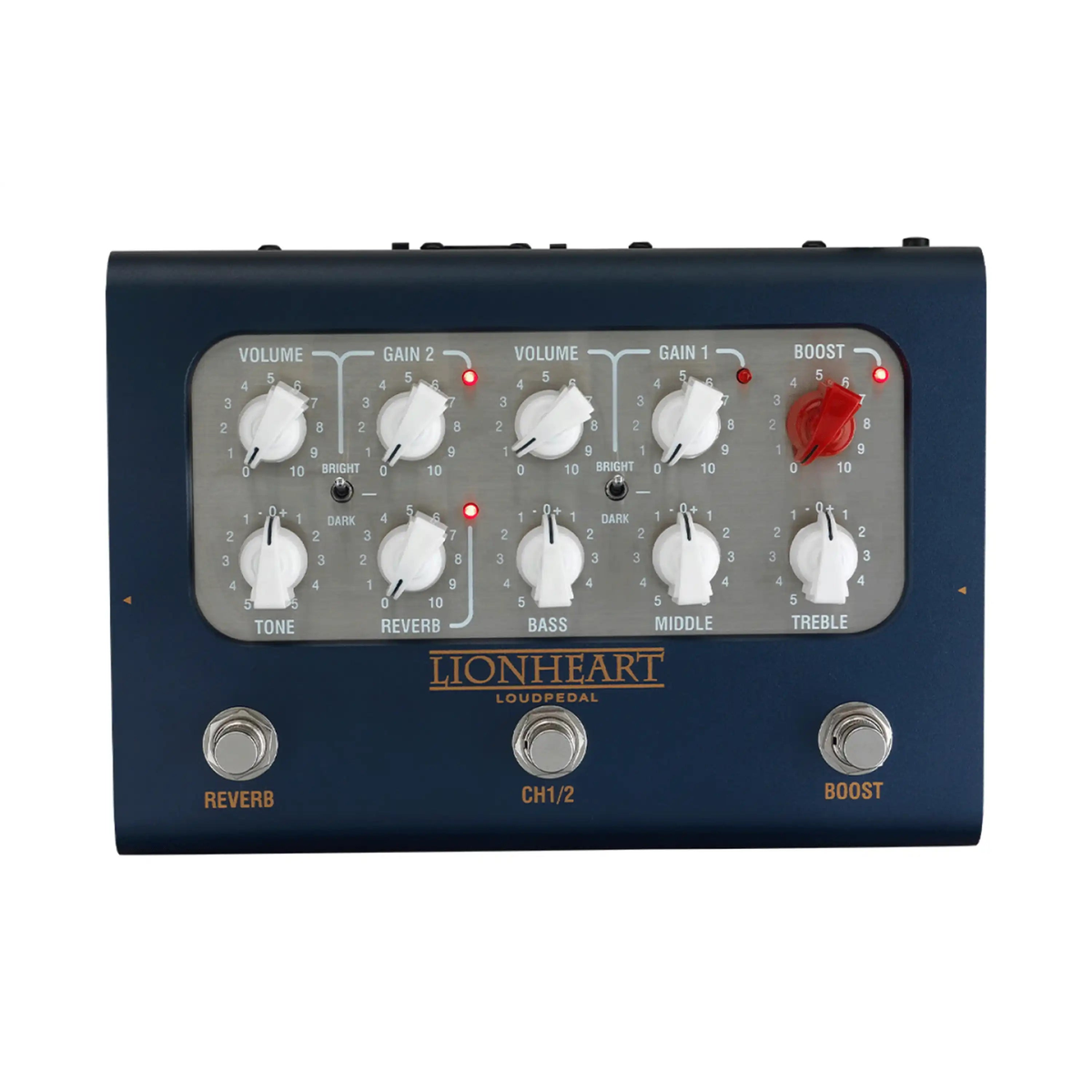

| Controls | Pre-Boost, Clean Volume, Clean Bright Switch, Channel Switch, Drive Gain, Drive Volume, Drive Tone Character (Normal, Bright, Dark), Bass, Middle, Treble, Reverb |
| Indicators | LEDs for Boost, Channel 1, Channel 2, and Reverb |
| Inputs | 6.3mm (1/4”) Mono Instrument Input Jack, 6.3mm FX Return jack, 3.5mm stereo aux in jack |

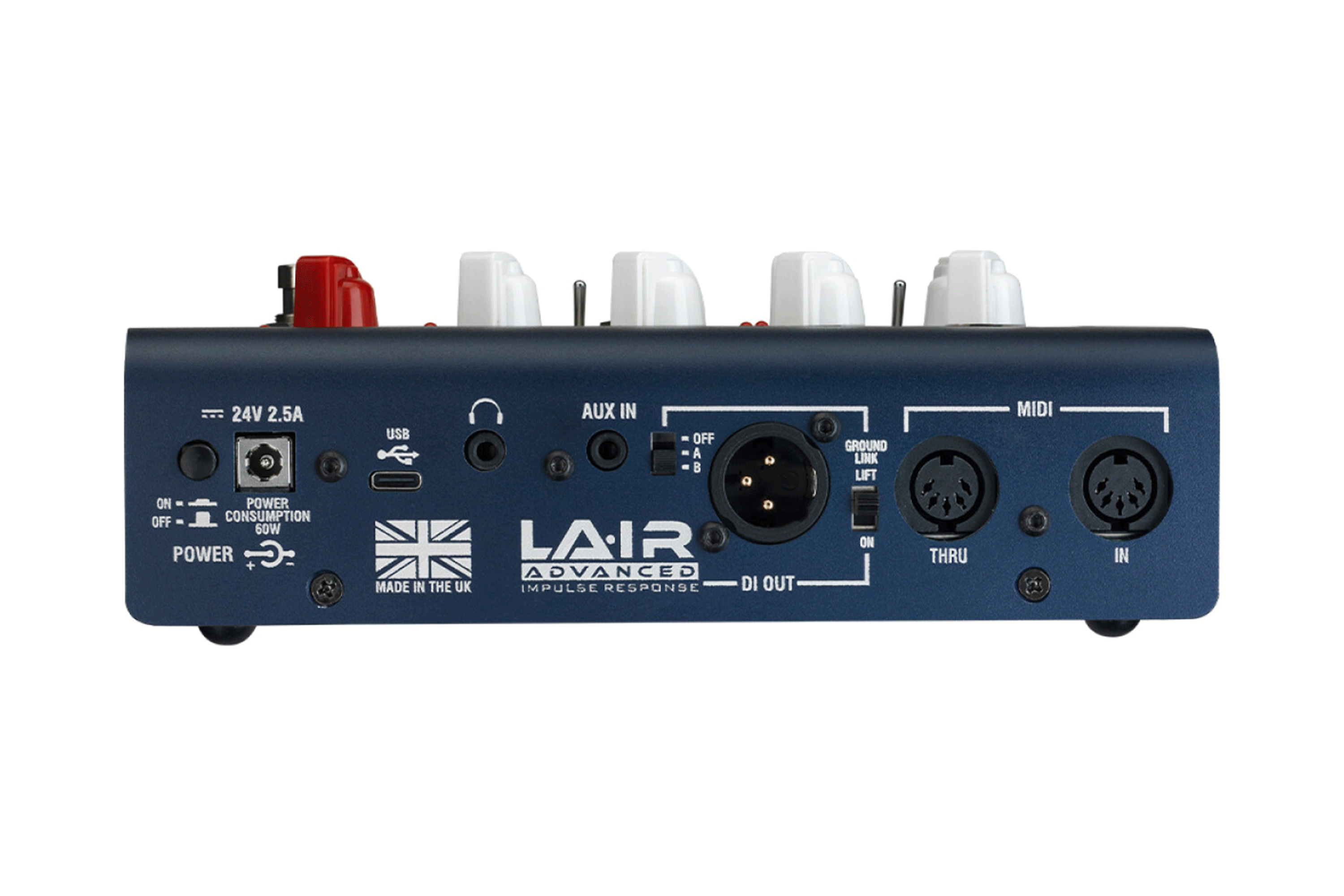

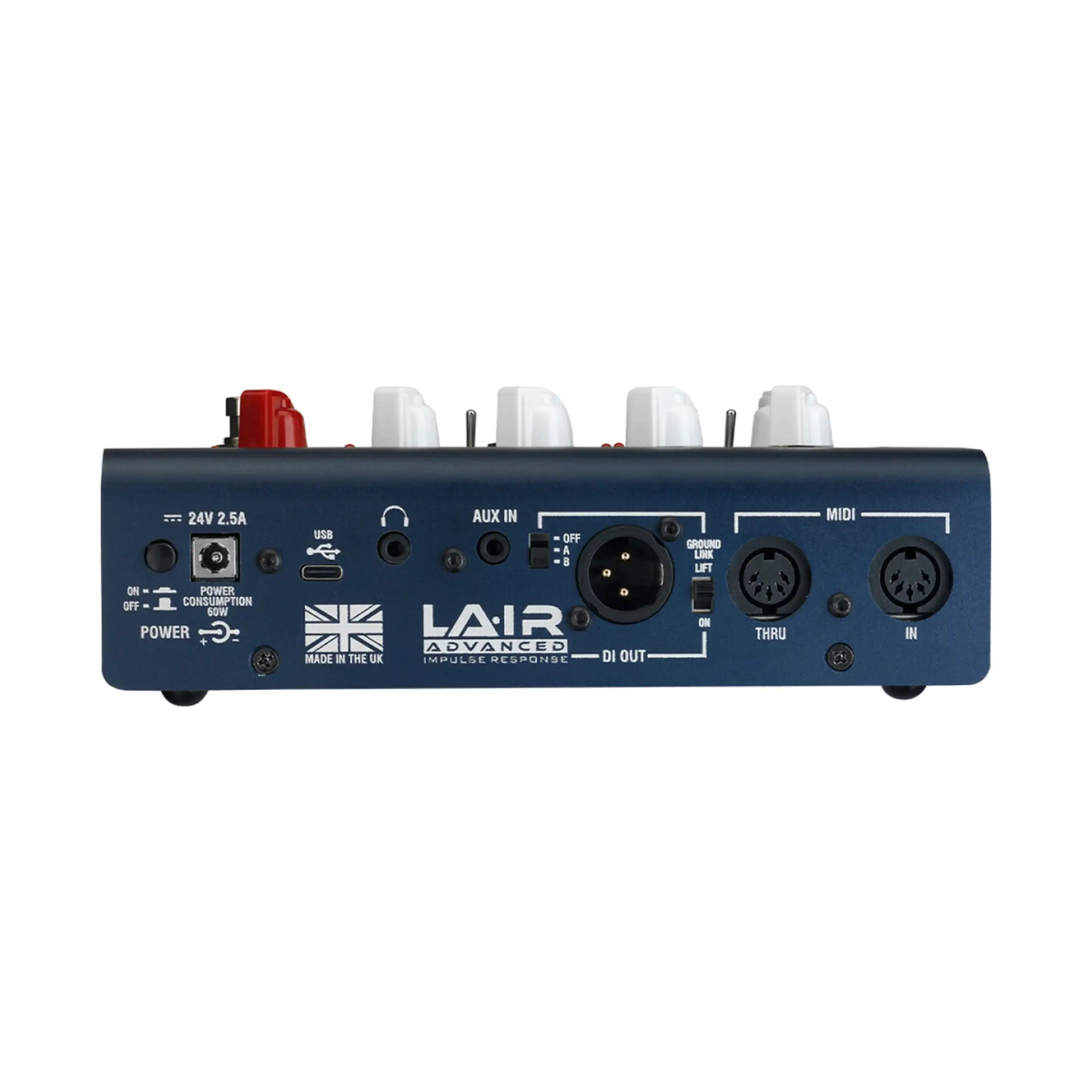

| Outputs | 6.3mm Transformer Isolated FX Send (doubles as Line Out), 3.5mm stereo headphone jack, Balanced Male XLR DI out with LA·IR Speaker Emulated |
| Impulse responses | Digital Impulse Response with high quality 1x12 and 4x12 options |
| USB | USB C for class compliant audio streaming @48kHz (emulated and unemulated main out) and loading of custom IRs |
Measurements
| Dimensions | 67 x 199 x 143mm (2.6” x 7.8” x 5.6”) |
|---|---|
| Weight | 1.7 kg (3.7 lbs) |
Common questions
How many watts is the Laney BCC-LOUDPED-LTQ?
The Laney BCC-LOUDPED-LTQ Tom Quayle signature Loudpedal is rated at 60 W RMS.
How many channels does the Laney BCC-LOUDPED-LTQ have?
The Laney BCC-LOUDPED-LTQ has two switchable channels, clean and drive, plus a footswitchable pre boost.
Can I record with the Laney BCC-LOUDPED-LTQ?
Yes. The Laney BCC-LOUDPED-LTQ has USB C for class compliant audio streaming at 48kHz, with emulated and unemulated main out, plus a balanced XLR DI out with LA·IR speaker emulation.
Can I load my own IRs into the Laney BCC-LOUDPED-LTQ?
Yes. The Laney BCC-LOUDPED-LTQ loads custom IRs over USB C, and has built-in 1x12 and 4x12 impulse response options.
Does the Laney BCC-LOUDPED-LTQ have a headphone output?
Yes. The Laney BCC-LOUDPED-LTQ has a 3.5mm stereo headphone jack.
How much does the Laney BCC-LOUDPED-LTQ weigh?
The Laney BCC-LOUDPED-LTQ weighs 1.7 kg (3.7 lbs) and measures 67 x 199 x 143mm (2.6” x 7.8” x 5.6”).
