Description
Laney AH60 60W 3-Channel Keyboard and Multi-Instrument Combo Amp is a 60 W (30 W RMS) 3-channel Class D combo amplifier from the Laney AudioHub range for keyboards and other instruments, with an 8-inch woofer, a tweeter, 16 built-in effects, Bluetooth 5.4 and a USB Type-C connector. Channel 1 takes a balanced XLR mic or a 1/4-inch instrument, so a microphone and instruments can run through the same amp.
Specifications
| SKU | 28784 |
|---|---|
| Model | AH60 |
| Brand | Laney |
| Series | AudioHub |
| Type | Keyboard and multi-instrument combo amp |
| Power rating | 30 W RMS, 60 W continuous |
| Speaker | 1 x 8-inch HH Blue professional woofer and 1 tweeter |
| Frequency response | 65 Hz to 18 kHz (-10 dB) |
| Max SPL | 112 dB SPL continuous, 115 dB SPL peak |
| Amplifier type | Class D |
| Channels | 3 independent channels |
| Effects | 16 studio effects |
| Bluetooth | V5.4 |

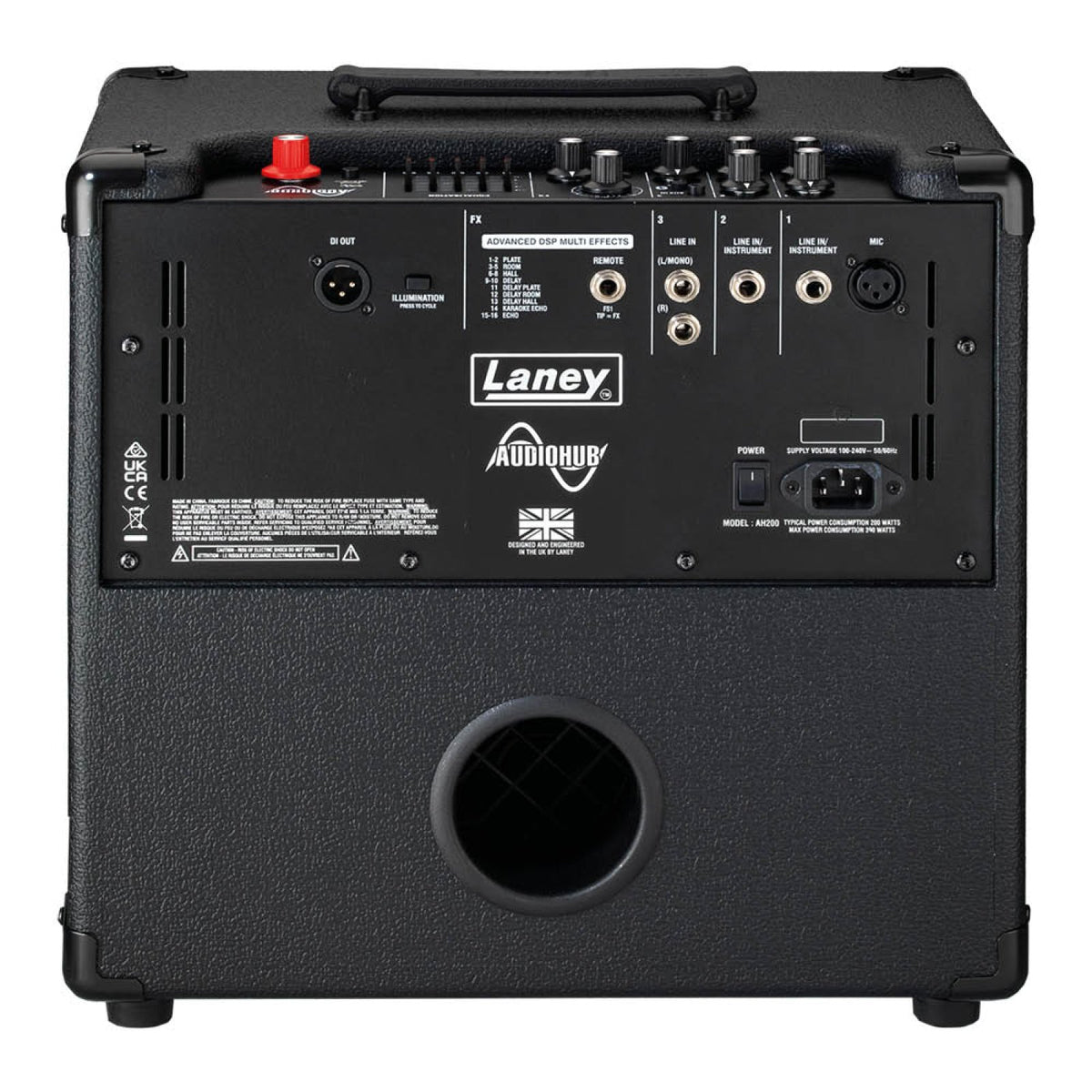

| Connectors - CH1 | Balanced female XLR mic input, 1/4-inch jack line/instrument input |
| Connectors - CH2 | 1/4-inch jack line/instrument input |
| Connectors - CH3 | 2 x 1/4-inch jack line input, 3.5 mm stereo jack aux input |
| Connectors - Effects | 1/4-inch jack remote |
| Connectors - Master | Balanced male XLR DI out, 3.5 mm stereo jack headphone output, USB Type-C |

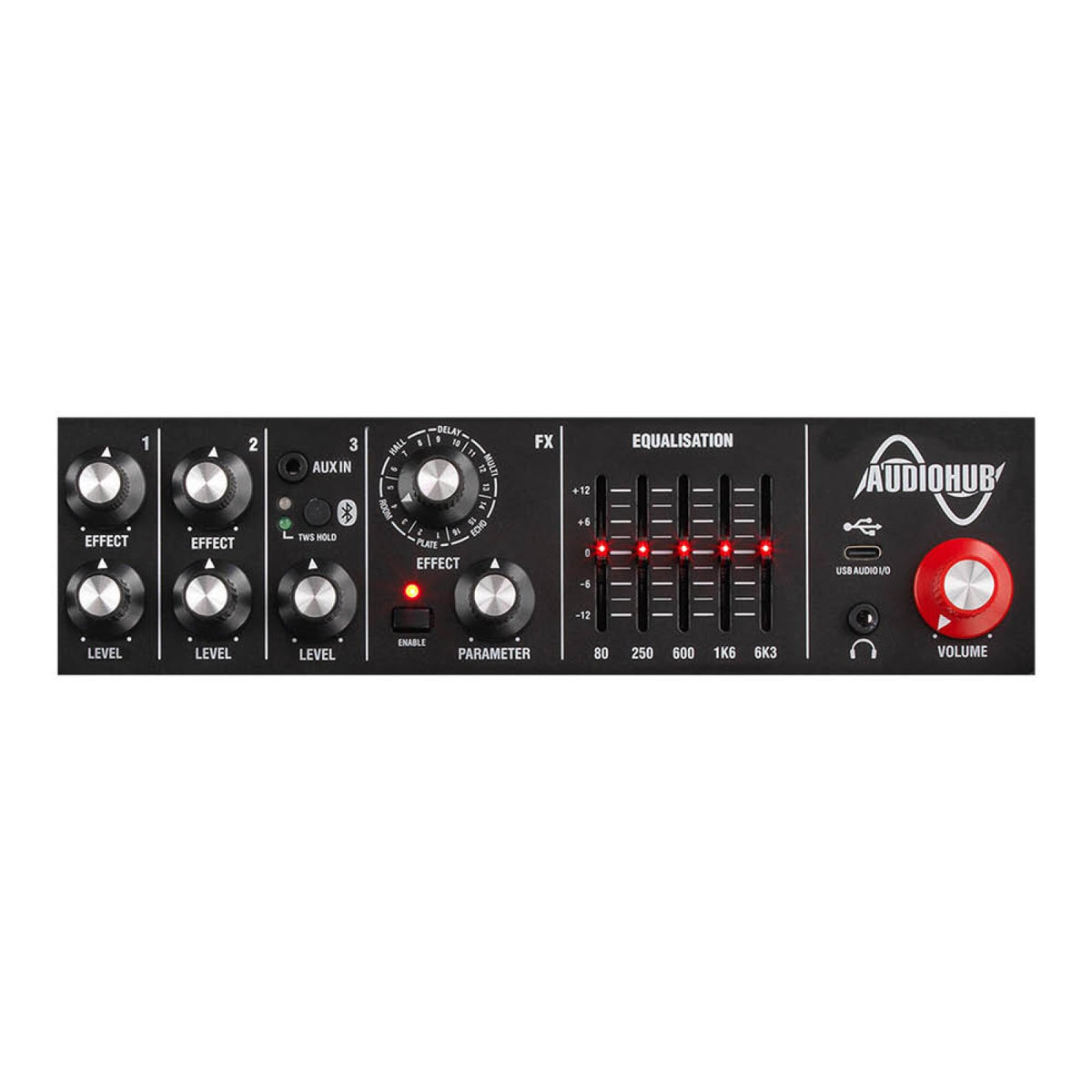

| Controls - CH1 and CH2 | Level knob, effect send knob |
| Controls - CH3 | Level knob, Bluetooth/TWS switch |

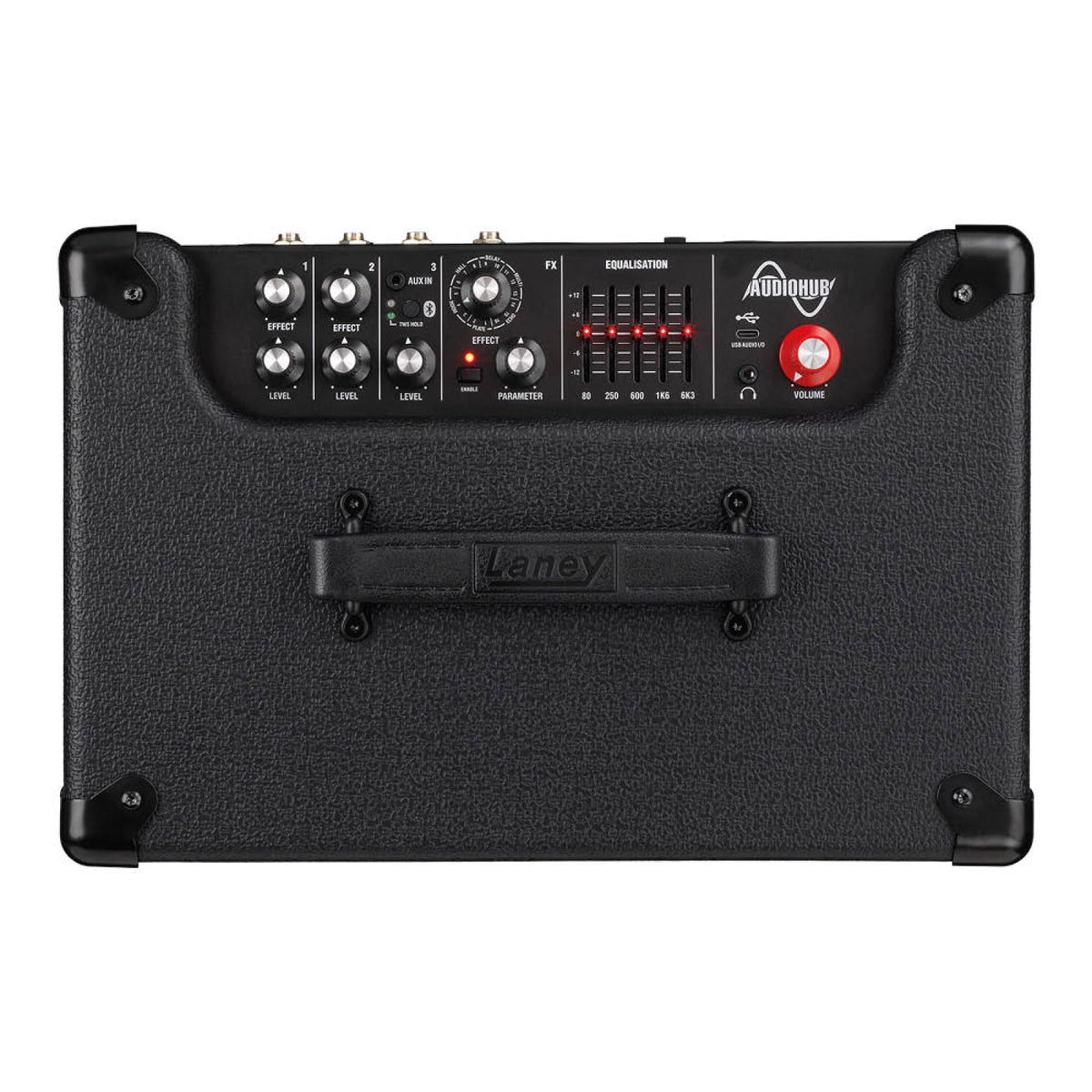

| Controls - Effects | 16-position selector, parameter knob, effects on/off switch |
| Controls - Equalization | Equalization section |
| Controls - Master | Master volume |
| Illumination | 4 color switch options, Bluetooth and TWS LEDs, effect on LED |
| Nominal levels - CH1 | Mic -42 dBu, instruments -26 dBu |
| Nominal levels - CH2 | Instruments -26 dBu |
| Nominal levels - CH3 | Line -26 dBu, aux -18 dBu |
| Nominal levels - Master DI out | 0 dBu |

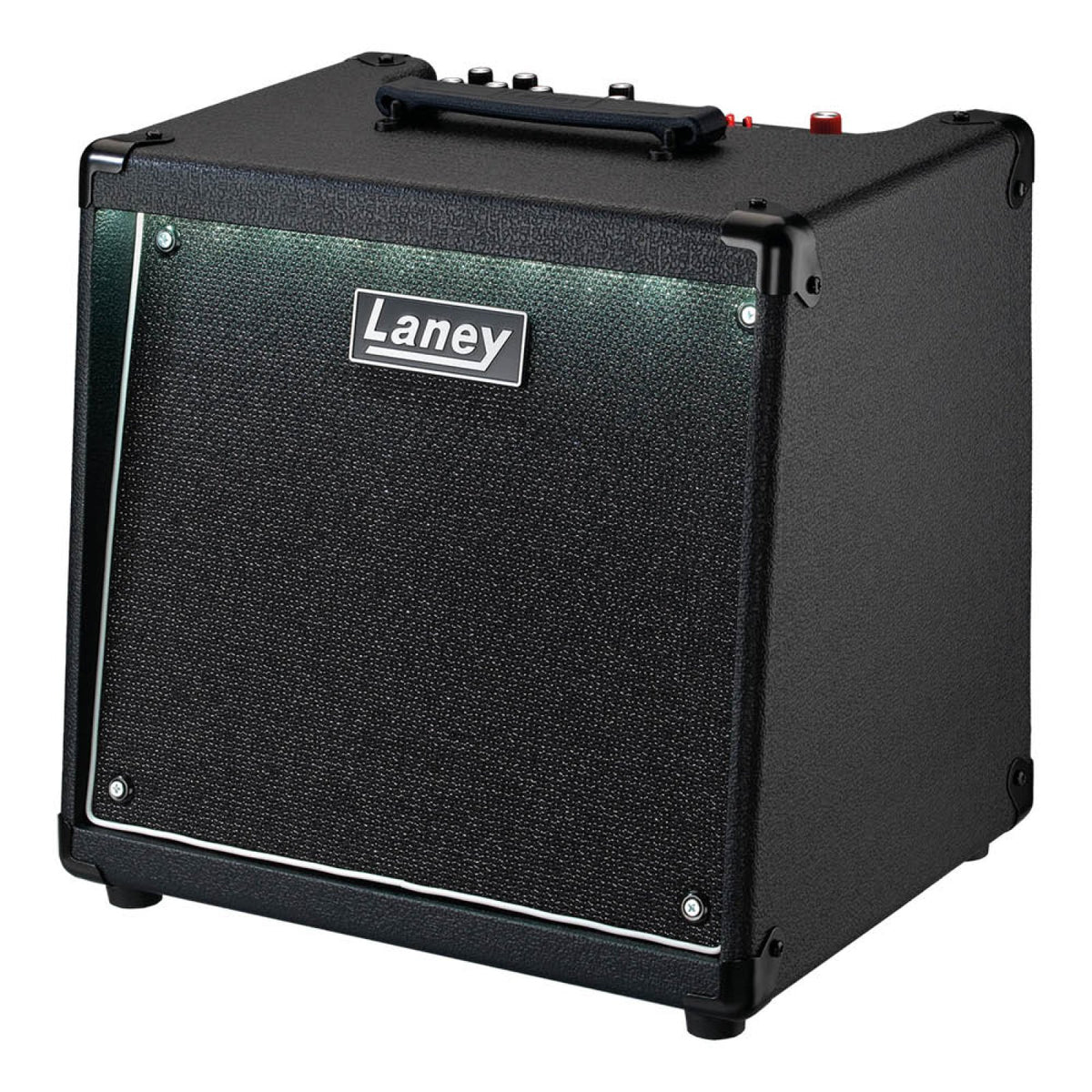

| Enclosure | 12 mm MDF cabinet |
| Handle | Top-mounted strap handle |

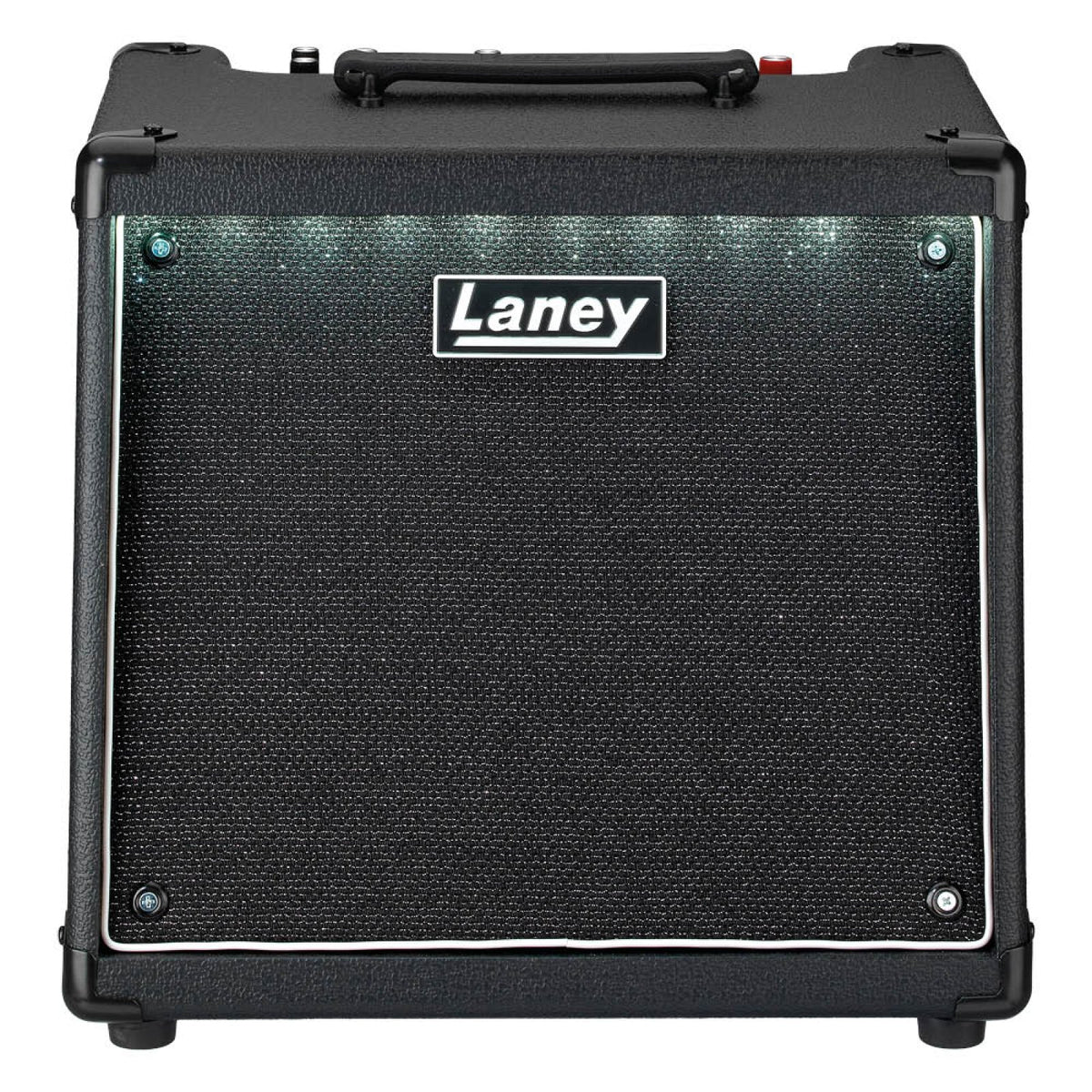

| Finish | Hard-wearing black vinyl, steel corners |
| Power supply | Internal universal 100-200 V, 50/60 Hz, switched mode power supply |
| Power consumption | Typical 45 W nominal, 90 W maximum |
Measurements
| Dimensions (H x W x D) | 384 x 381 x 297 mm (15.1 x 15 x 11.7 in) |
|---|---|
| Weight | 9 kg (19.8 lbs) |
Common questions
How many channels does the Laney AH60 have?
The Laney AH60 has 3 independent channels. Channel 1 takes a balanced XLR mic input or a 1/4-inch line/instrument input.
How many watts is the Laney AH60?
The Laney AH60 is rated at 30 W RMS and 60 W continuous from a Class D amplifier, driving an 8-inch HH Blue professional woofer and a tweeter.
Does the Laney AH60 have Bluetooth?
Yes. The Laney AH60 has Bluetooth V5.4 with a Bluetooth/TWS switch on CH3.
How many effects does the Laney AH60 have?
The Laney AH60 has 16 studio effects, chosen with a 16-position selector and adjusted with a parameter knob.
Does the Laney AH60 have a headphone output?
Yes. The Laney AH60 has a 3.5 mm stereo jack headphone output and a balanced male XLR DI out on the master section.
How big and heavy is the Laney AH60?
The Laney AH60 measures 384 x 381 x 297 mm (15.1 x 15 x 11.7 in) (H x W x D) and weighs 9 kg (19.8 lbs).
