Description
Laney AH200 200W 5-Channel Keyboard and Multi-Instrument Combo Amp is a 200 W (100 W RMS) 5-channel Class D combo amplifier from the Laney AudioHub range for keyboards and other instruments, with a 12-inch woofer, a Lavoce DF10 driver and horn, 16 built-in effects, Bluetooth 5.4 and a USB Type-C connector. Channels 1 and 2 each take a balanced XLR mic or a 1/4-inch instrument.
Specifications
| SKU | 28786 |
|---|---|
| Model | AH200 |
| Brand | Laney |
| Series | AudioHub |
| Type | Keyboard and multi-instrument combo amp |
| Power rating | 100 W RMS, 200 W continuous |
| Speaker | 1 x 12-inch HH Blue professional woofer and 1 Lavoce DF10 driver with horn |
| Frequency response | 46 Hz to 18 kHz |
| Max SPL | 119 dB SPL continuous, 122 dB SPL peak |
| Amplifier type | Class D |
| Channels | 5 independent channels |
| Effects | 16 studio effects |
| Bluetooth | V5.4 |

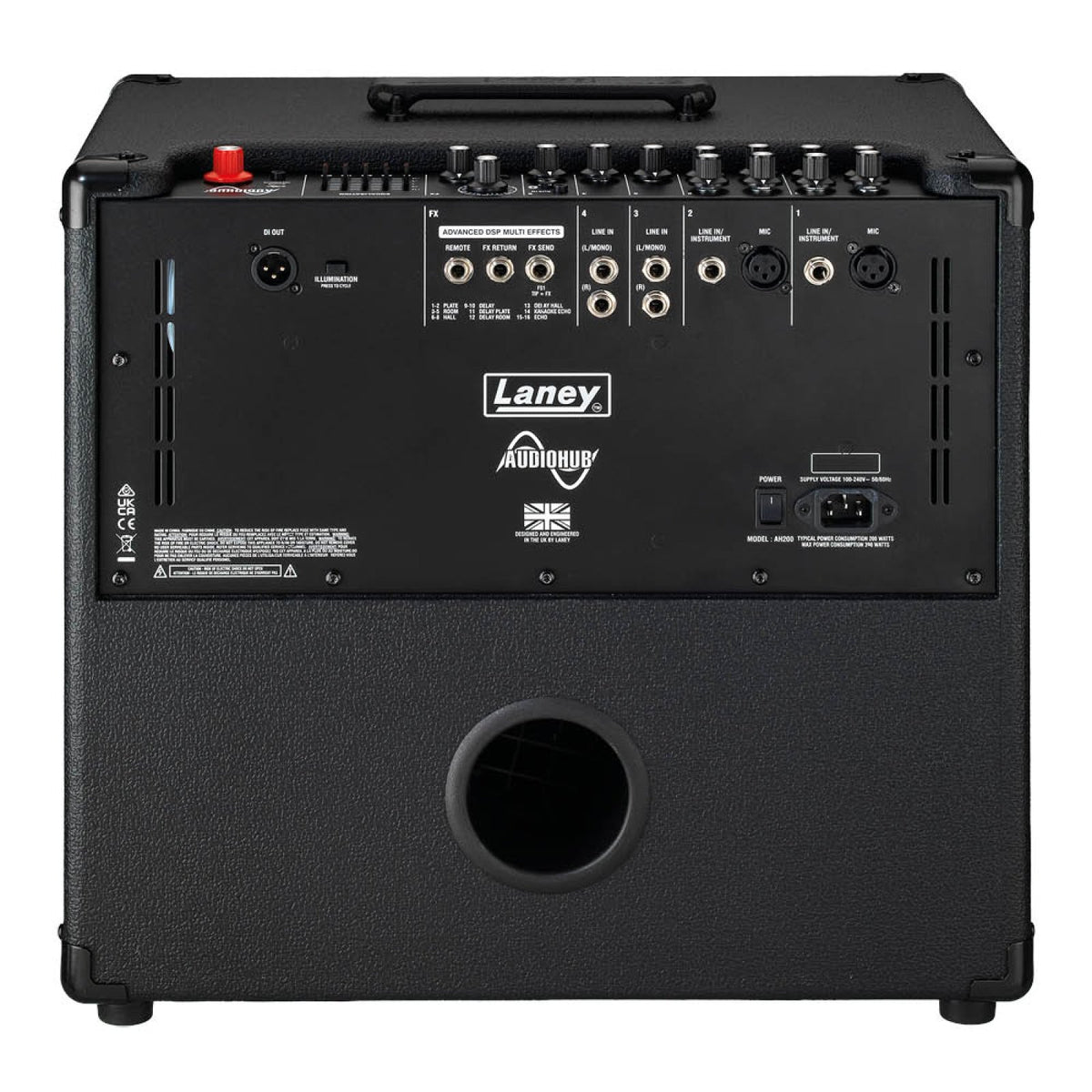

| Connectors - CH1 and CH2 | Balanced female XLR mic input, 1/4-inch jack line/instrument input |
| Connectors - CH3 and CH4 | 2 x 1/4-inch jack line input |
| Connectors - CH5 | 3.5 mm stereo jack aux input |
| Connectors - Effects | 1/4-inch jack remote, 1/4-inch jack return, 1/4-inch jack send |
| Connectors - Master | Balanced male XLR DI out, 3.5 mm stereo jack headphone output, USB Type-C |

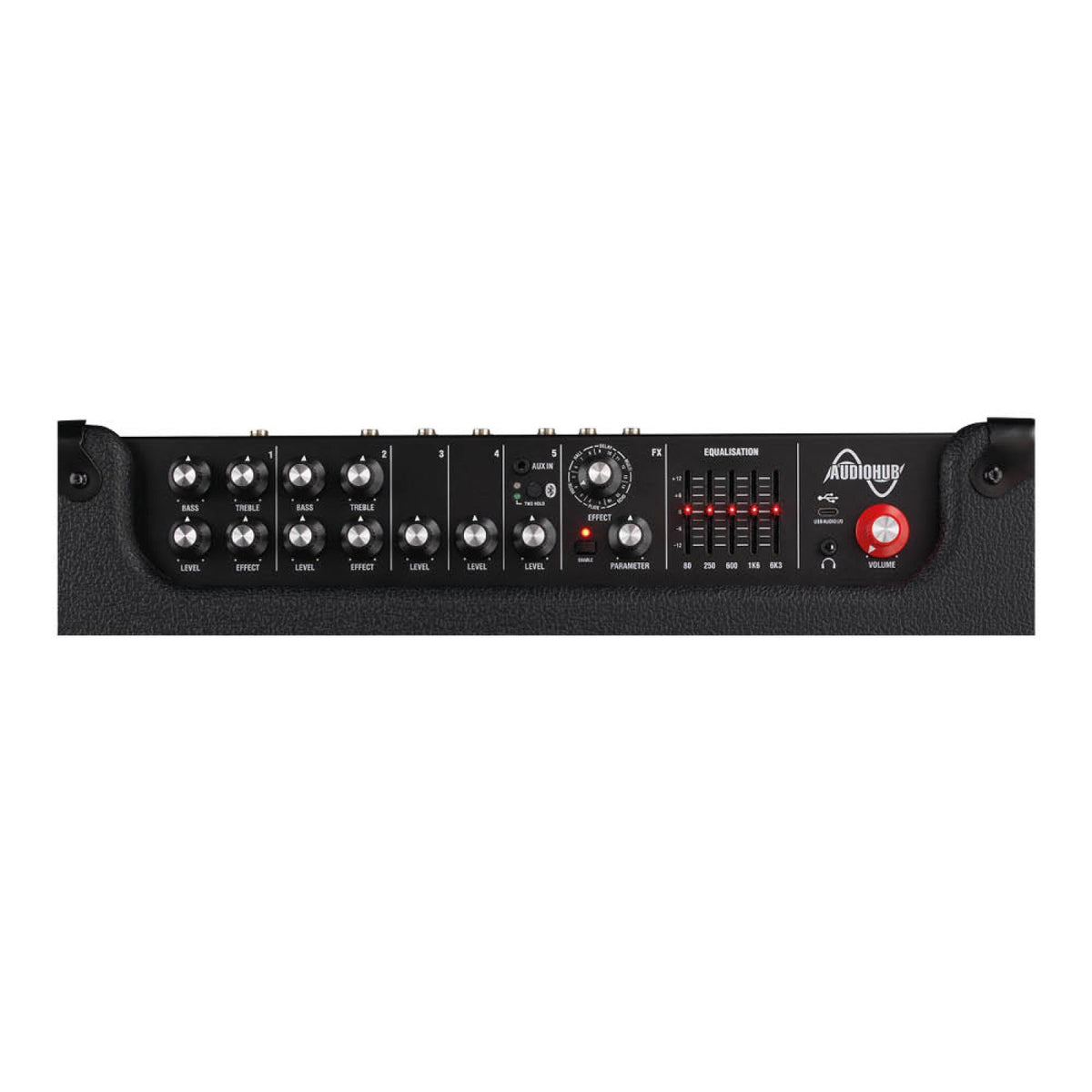

| Controls - CH1 and CH2 | Level knob, effect send knob, bass, treble |
| Controls - CH3 and CH4 | Level knob |
| Controls - CH5 | Level knob, Bluetooth/TWS switch |
| Controls - Effects | 16-position selector, parameter knob, effects on/off switch |
| Controls - Equalization | Equalization section |
| Controls - Master | Master volume |

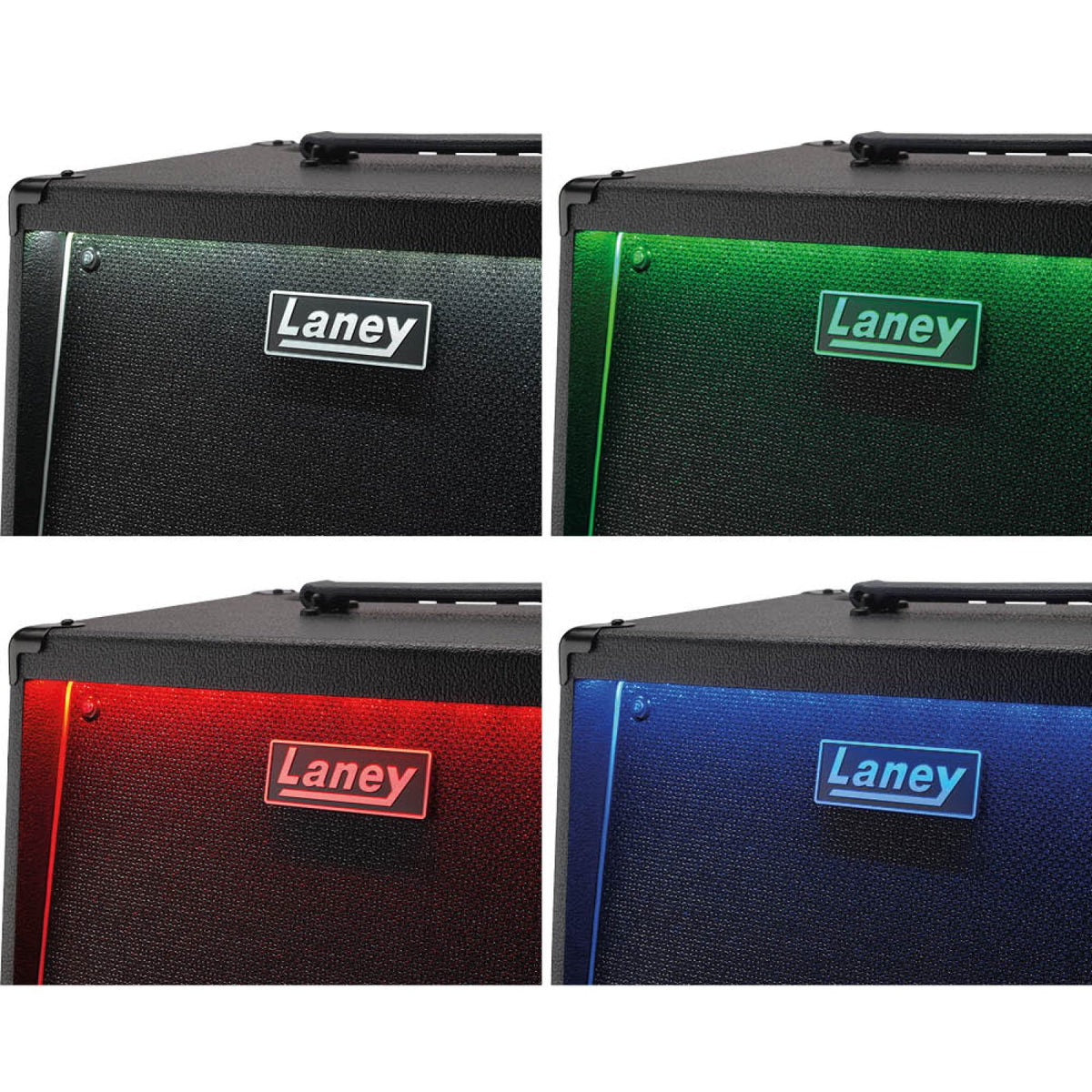

| Illumination | 4 color switch options, Bluetooth and TWS LEDs, effect on LED |
| Nominal levels - CH1 and CH2 | Mic -42 dBu, instruments -26 dBu |
| Nominal levels - CH3 and CH4 | Line -26 dBu |
| Nominal levels - CH5 | Aux -18 dBu |
| Nominal levels - Master DI out | 0 dBu |
| Enclosure | 15 mm MDF cabinet |

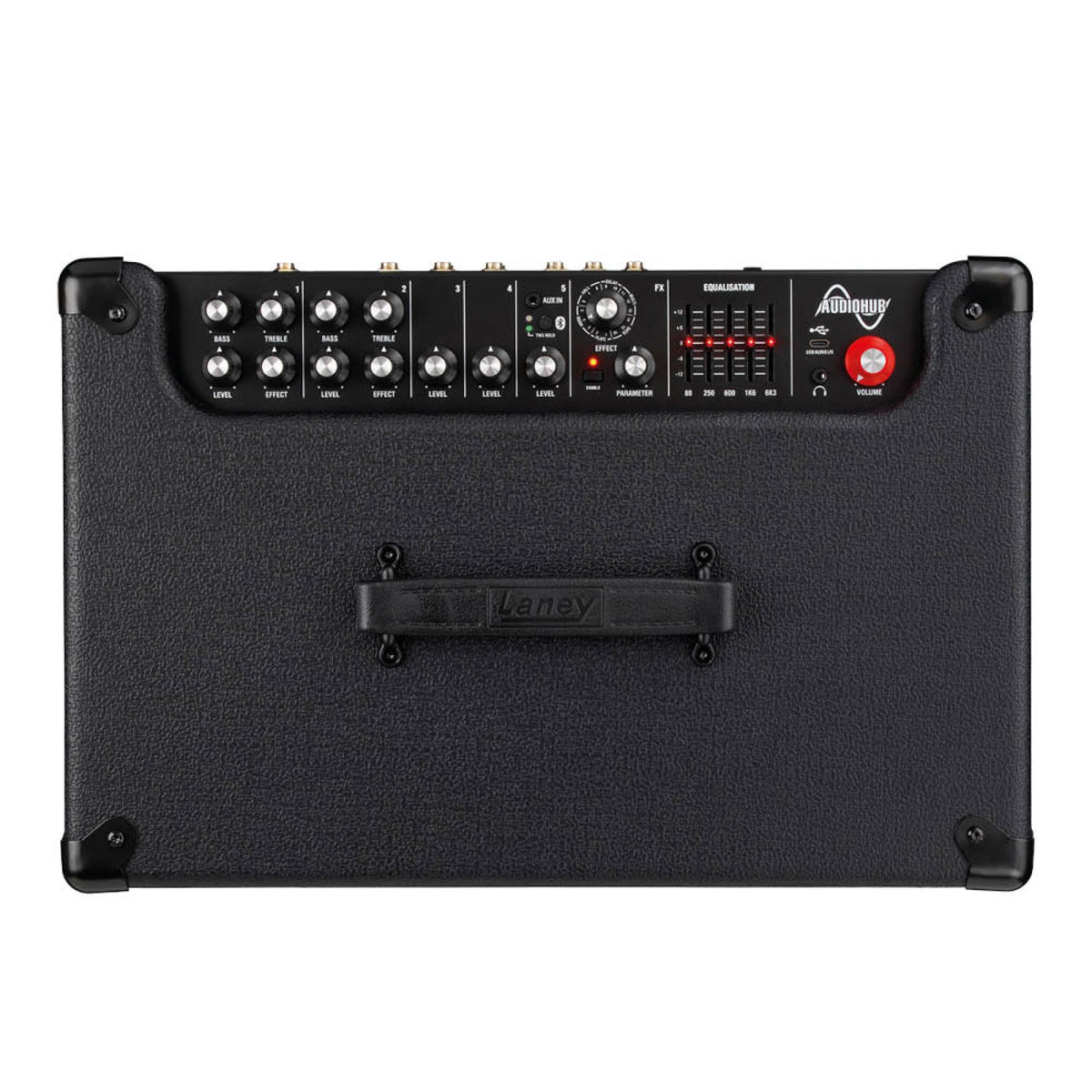

| Handle | Top-mounted strap handle |

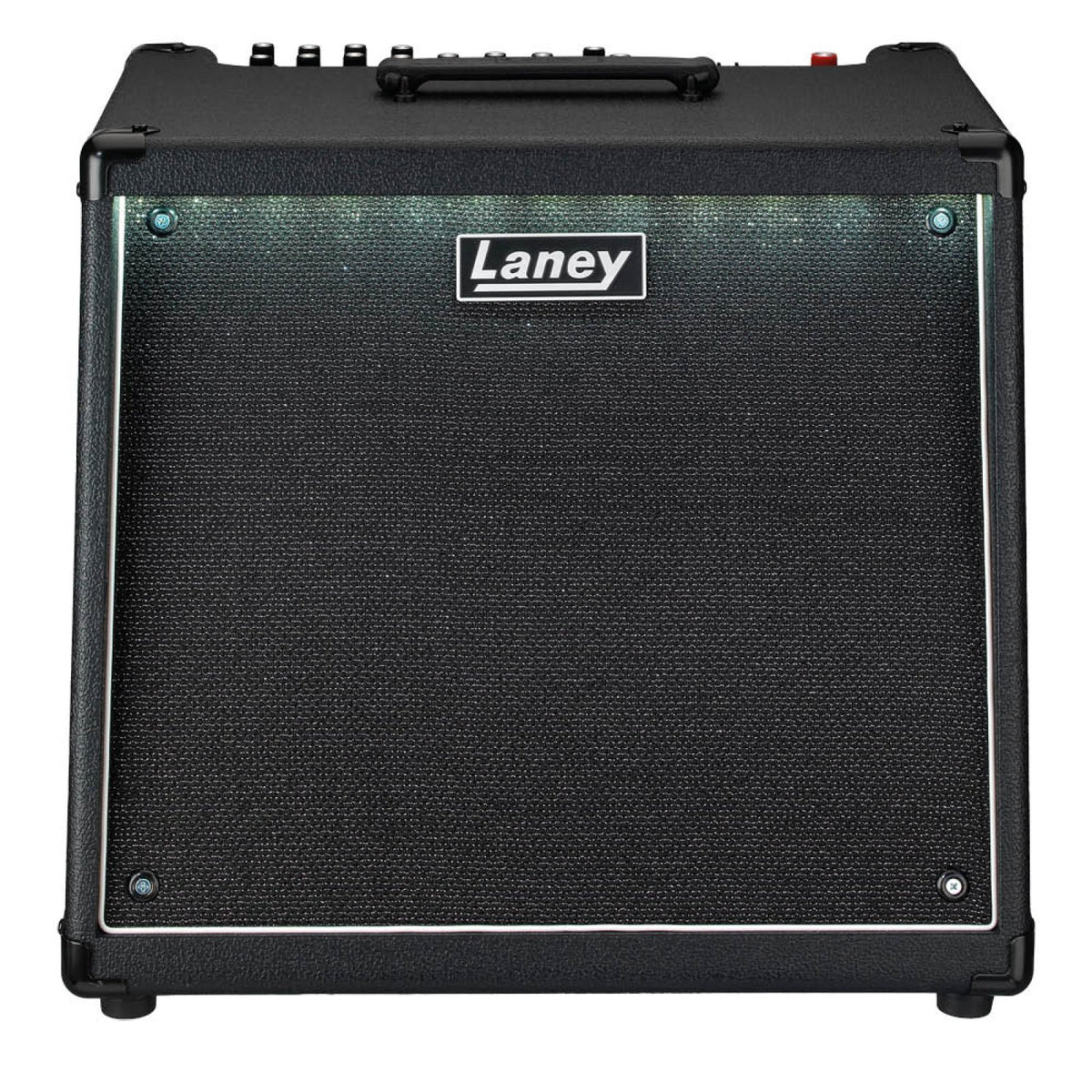

| Finish | Hard-wearing black vinyl, steel corners |
| Power supply | Internal universal 100-200 V, 50/60 Hz, switched mode power supply |
| Power consumption | Typical 200 W nominal, 390 W maximum |
Measurements
| Dimensions (H x W x D) | 454 x 466 x 364 mm (17.9 x 18.3 x 14.3 in) |
|---|---|
| Weight | 14.7 kg (32.4 lbs) |
Common questions
How many channels does the Laney AH200 have?
The Laney AH200 has 5 independent channels. Channels 1 and 2 take a balanced XLR mic input or a 1/4-inch line/instrument input.
How many watts is the Laney AH200?
The Laney AH200 is rated at 100 W RMS and 200 W continuous from a Class D amplifier, driving a 12-inch HH Blue professional woofer and a Lavoce DF10 driver with horn.
Does the Laney AH200 have Bluetooth?
Yes. The Laney AH200 has Bluetooth V5.4 with a Bluetooth/TWS switch on CH5.
How many effects does the Laney AH200 have?
The Laney AH200 has 16 studio effects, chosen with a 16-position selector and adjusted with a parameter knob.
Does the Laney AH200 have a headphone output?
Yes. The Laney AH200 has a 3.5 mm stereo jack headphone output and a balanced male XLR DI out on the master section.
How big and heavy is the Laney AH200?
The Laney AH200 measures 454 x 466 x 364 mm (17.9 x 18.3 x 14.3 in) (H x W x D) and weighs 14.7 kg (32.4 lbs).
