Description
HH Electronics Tensor 12” 1400W Active Monitor is a 12” active powered bass reflex stage monitor with a 12-inch HH driver, a 1-inch HH compression driver and a class D amplifier rated at 1400W peak. Its Monitor/FOH mode switch sets the voicing for stage monitoring or front of house use.
Specifications
| SKU | 27018 |
|---|---|
| Model | TRM-1201 |
| Series | Tensor |
| System type | 12” active powered stage monitor, bass reflex |
| Frequency response | 50Hz - 20kHz (-10dB) (FOH mode), 55Hz - 18kHz (-3dB) |
| LF driver | 12-inch HH driver |
| HF driver | 1 inch HH compression driver |
| Max SPL (1m) | 130 dB SPL |
| Coverage angle | 80° x 80° |
| Crossover frequency | 2.8kHz |
| Amplifier | Class D |
| Power rating | 350W RMS, 700W continuous, 1400W peak |
| Limiter | Dual band limiters |
| Input connector | Balanced female XLR/6.3mm jack combi socket |
| Output connector | Balanced male XLR with ground lift switch |
| Signal indicators | Power, signal present, clip indicator |
| Controls | Volume, Monitor/FOH mode |
| AC power | 100V-120V~/220-240V~ 50/60Hz user switchable |
| AC power consumption | 300W |
| AC power inlet | IEC C14 inlet |
| Cabinet | Acoustically optimised plywood cabinet with integrated carry handles |
| Finish | Painted black |
| Monitor angle | 35° |

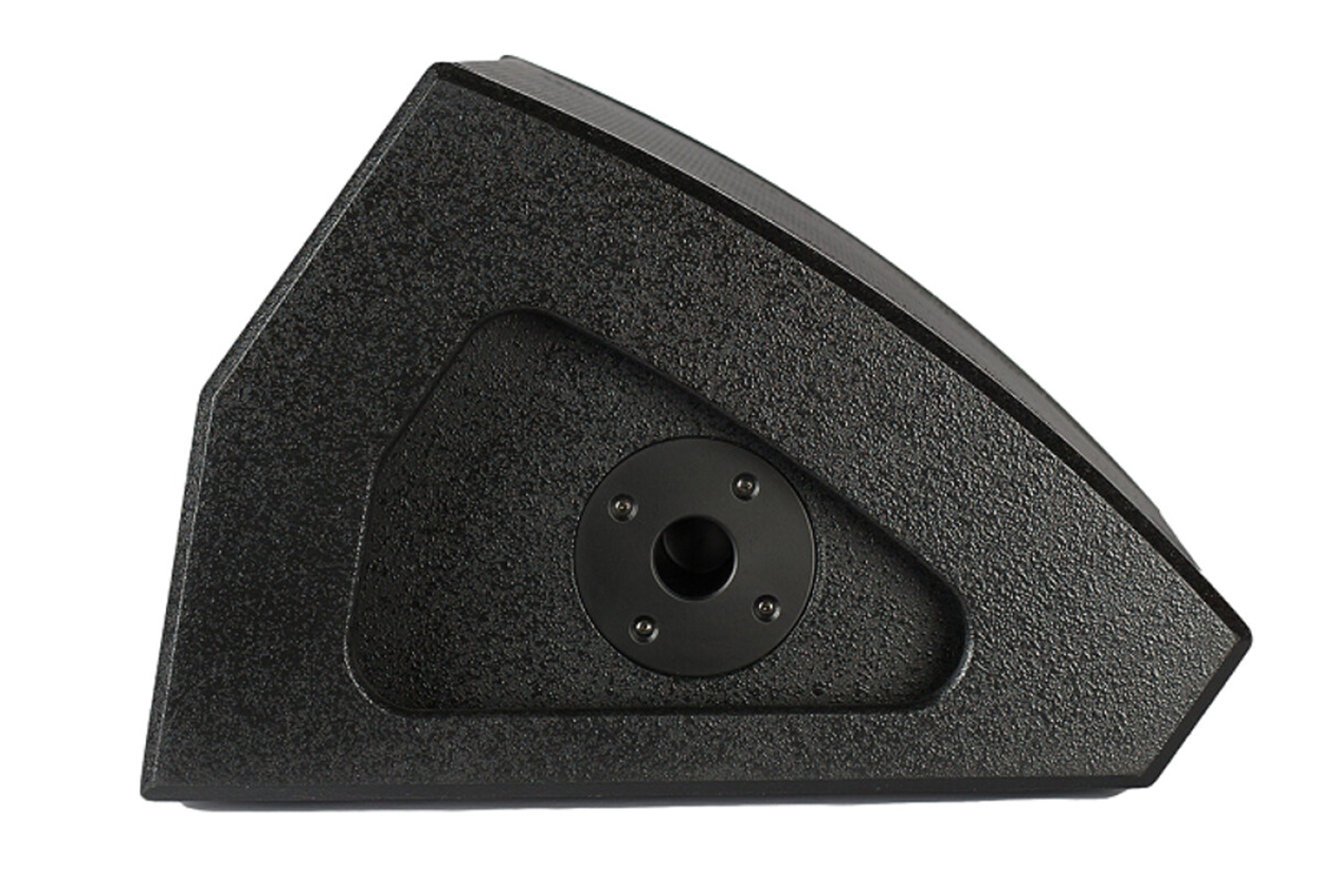

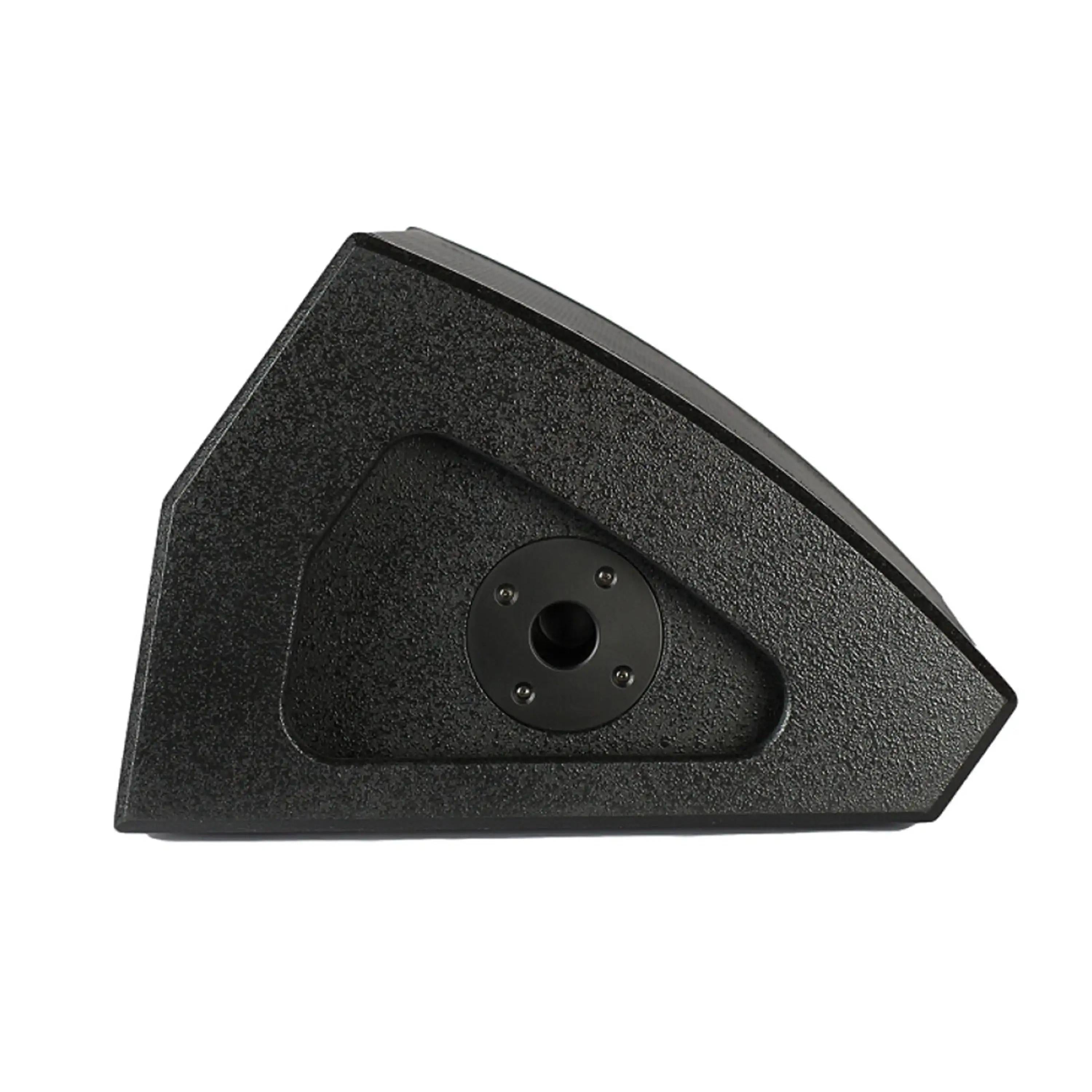

| Pole mount | 35mm pole mount socket |
| Grille | Rear reinforced heavy gauge steel grille with acoustic foam |
Measurements
| Dimensions (H x W x D) | 340 x 510 x 500mm (13.4” x 20.1” x 19.7”) |
|---|---|
| Weight | 17.7 kg (39 lb) |
Common questions
How powerful is the HH Electronics Tensor TRM-1201 monitor?
The HH Electronics Tensor TRM-1201 is rated at 350W RMS, 700W continuous and 1400W peak, with a max SPL of 130 dB SPL at 1m.
What drivers are in the HH Electronics TRM-1201?
The HH Electronics TRM-1201 has a 12-inch HH LF driver and a 1 inch HH compression driver, crossing over at 2.8kHz with 80° x 80° coverage.
Can the HH Electronics TRM-1201 be used as a main speaker?
Yes. The HH Electronics TRM-1201 has a Monitor/FOH mode switch and a 35mm pole mount socket, and is listed at 50Hz - 20kHz (-10dB) in FOH mode.
What connectors does the HH Electronics TRM-1201 have?
The HH Electronics TRM-1201 has a balanced female XLR/6.3mm jack combi input, a balanced male XLR output with ground lift switch, and an IEC C14 power inlet.
What voltage does the HH Electronics TRM-1201 run on?
The HH Electronics TRM-1201 is user switchable between 100V-120V and 220-240V at 50/60Hz and draws 300W.
How big and heavy is the HH Electronics TRM-1201?
The HH Electronics TRM-1201 measures 340 x 510 x 500mm (13.4” x 20.1” x 19.7”) and weighs 17.7 kg (39 lb).
