Description

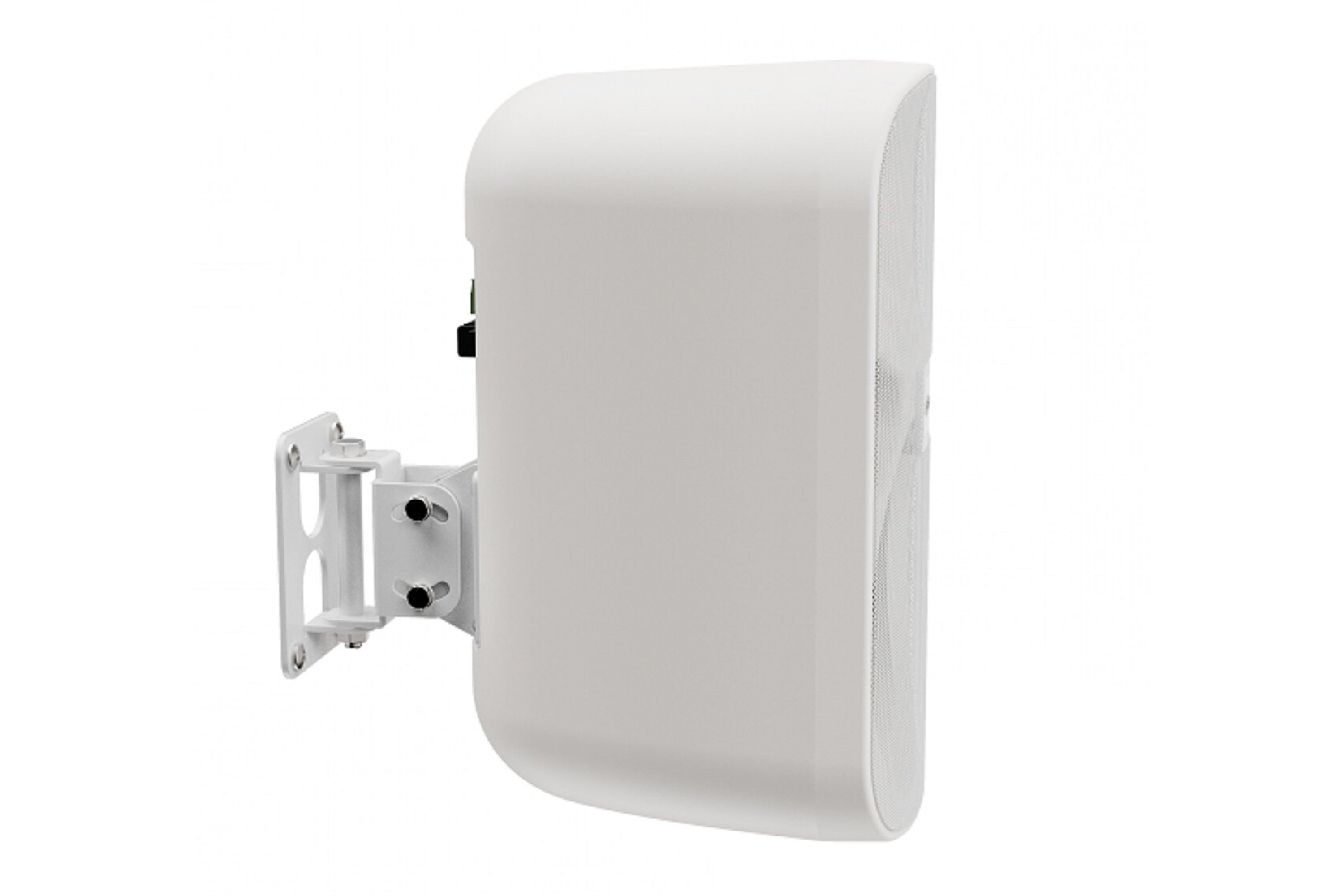

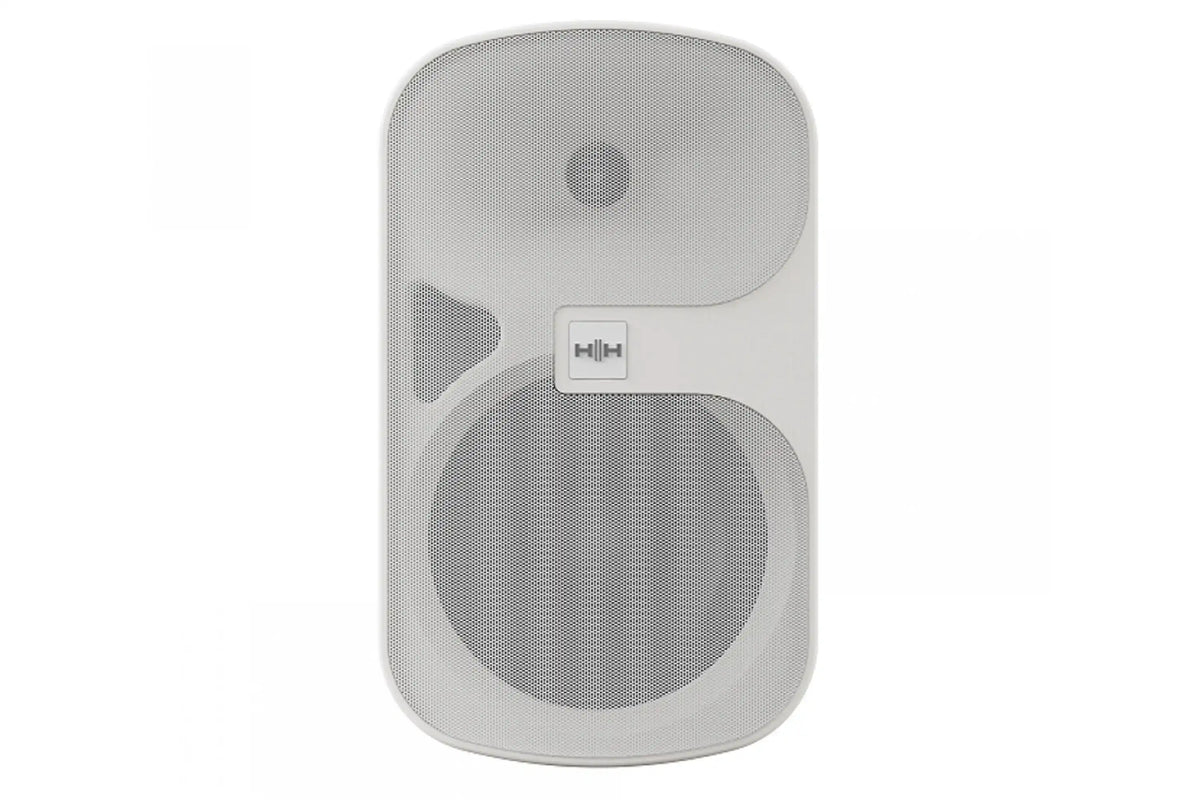

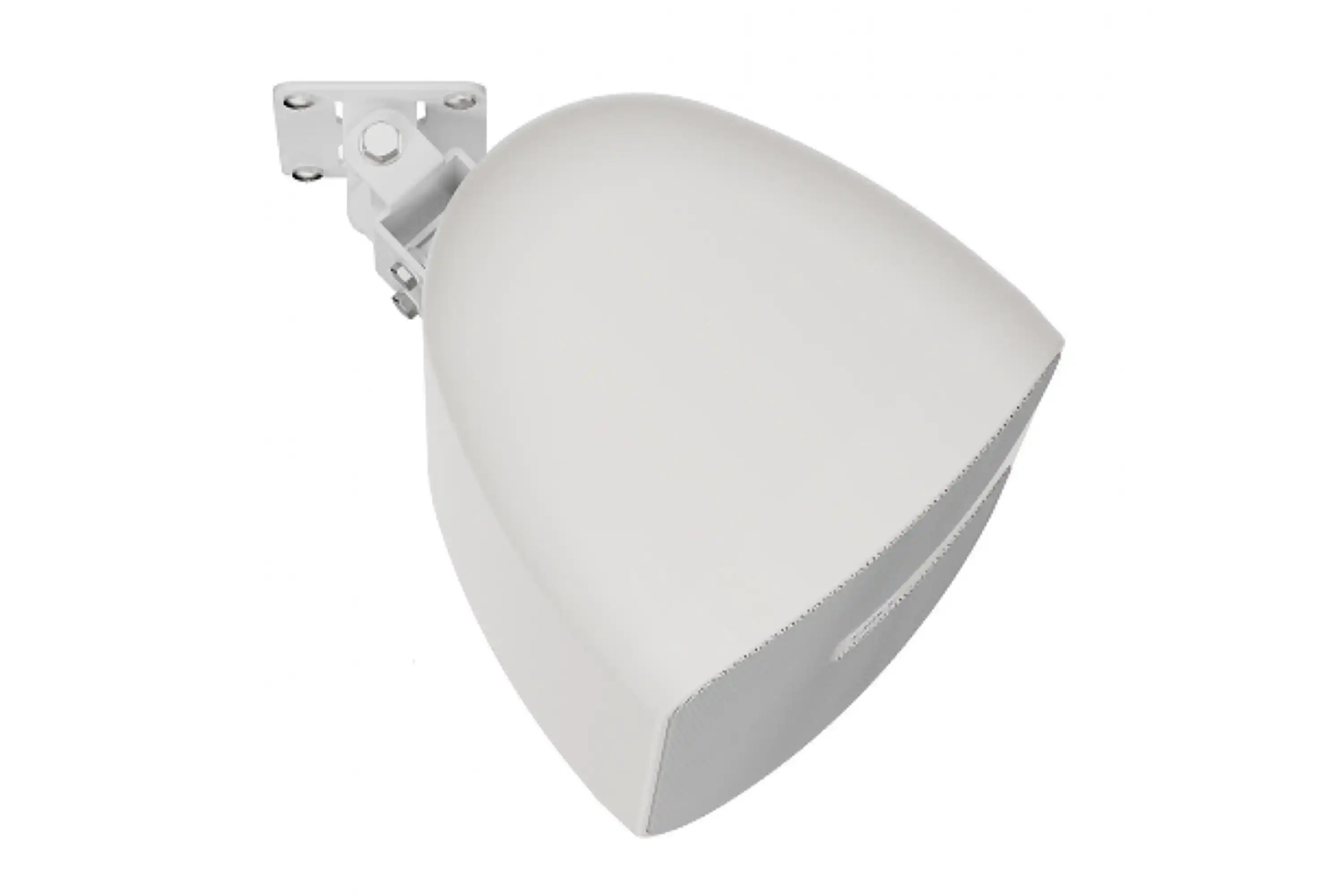

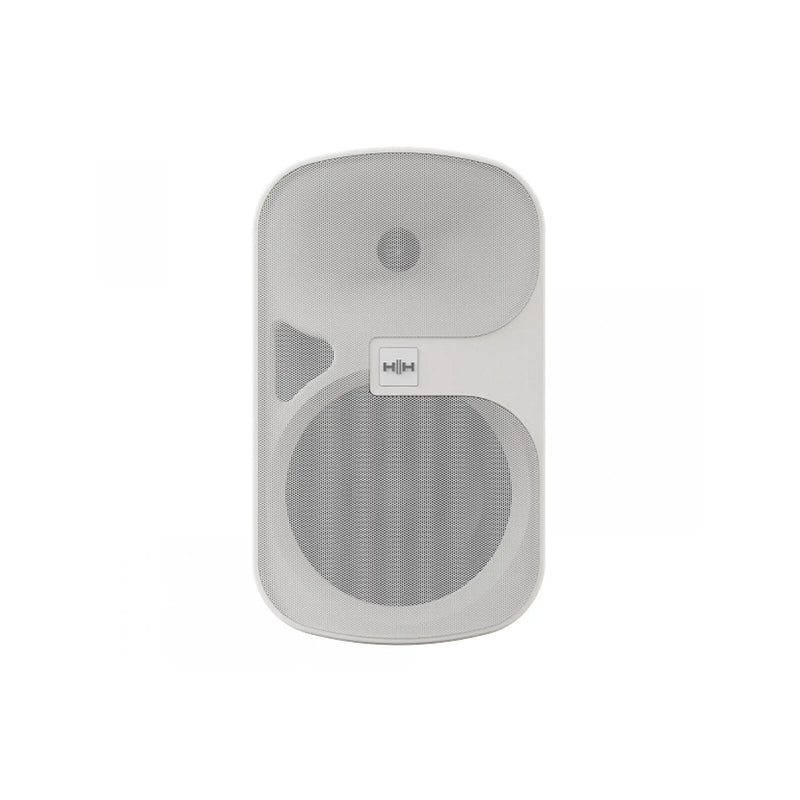

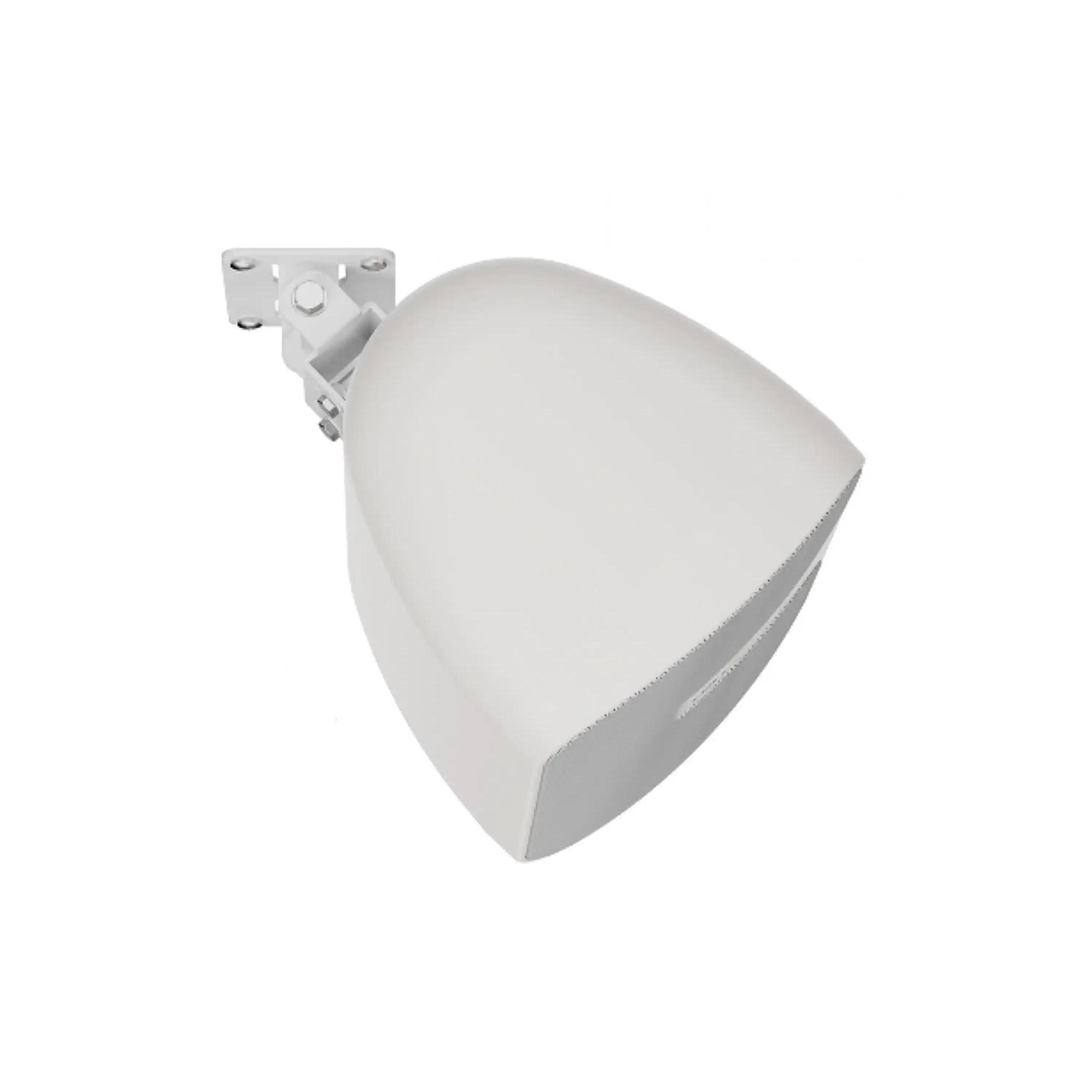

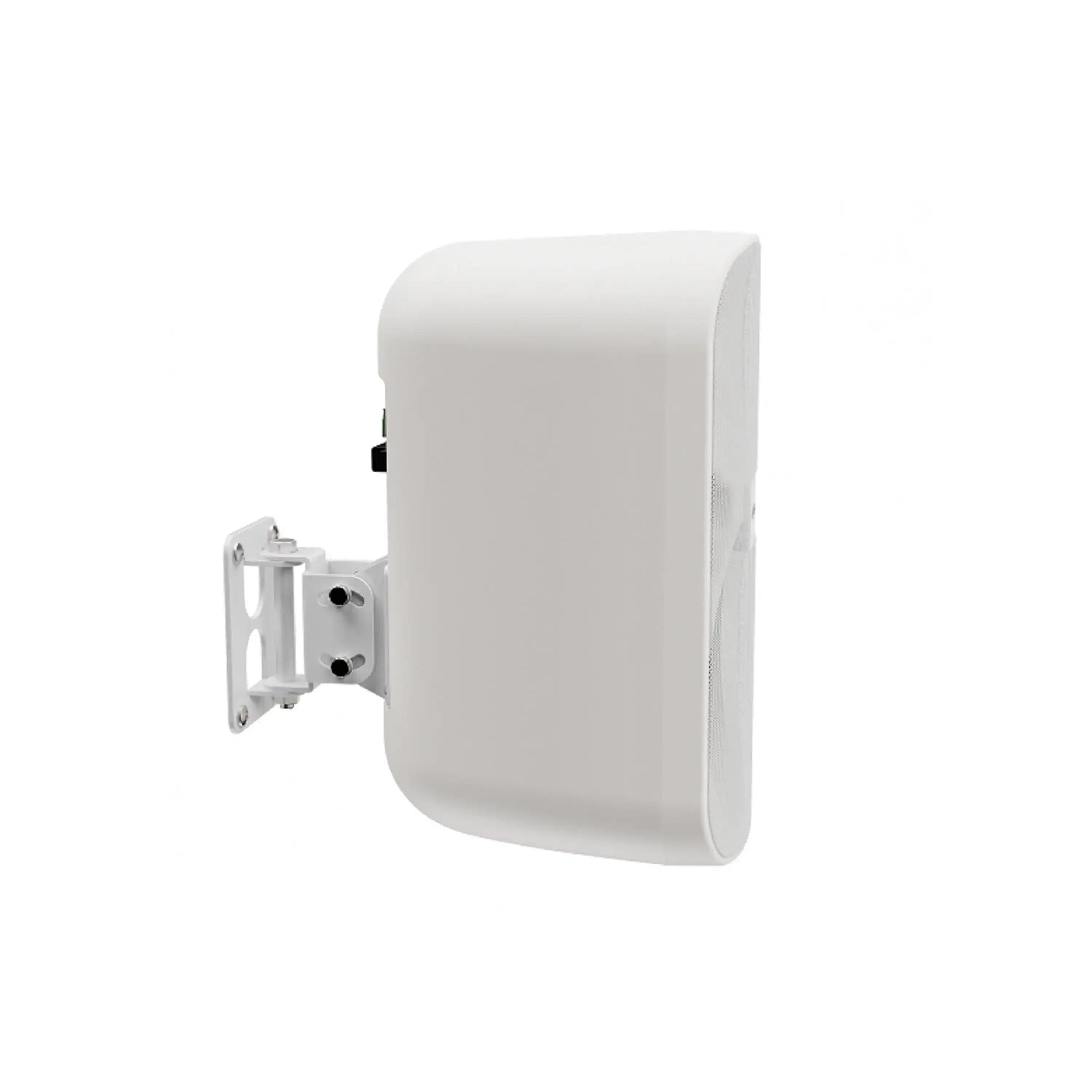

HH Electronics 200W Passive Wall Mount Installation Speaker - White is the TNi-W6-WH, a passive 2-way bass reflex wall mount speaker with a 6.5” woofer, rated at 55W AES and 220W peak. It connects to 70V/100V or 8 ohm lines through Euroblock and M4 terminals, with 4 power taps from 2.5W to 40W.
Specifications
| SKU | 27016 |
|---|---|
| Model | TNi-W6-WH |
| System type | Passive, 2-way, bass reflex |
| Woofer size | 6.5” |
| 100V power options | 40W, 20W, 10W, 5W |
| 70V power options | 20W, 10W, 5W, 2.5W |
| Low nominal system impedance | 8 ohm |
| Power rating | 55W AES, 220W peak |
| Recommended amplifier | 100-200W @ 8 ohms |
| Sensitivity (1W/1m) | 90 dB SPL |
| Max SPL (1m) | 113 dB SPL |
| Frequency response | 65Hz - 20kHz (-10dB), 80Hz - 18kHz (-3dB) |
| Input/link connector | Euroblock and M4 terminals |
| Horizontal dispersion angle | 90 degrees |
| Vertical dispersion angle | 80 degrees |
| Main construction material | ABS plastic |
| Grille | White, circular steel mesh |
| Finish | White |
| Mounting bracket | Adjustable steel bracket included |
Measurements
| Dimensions (H x W x D) | 330 x 196 x 281mm (13” x 7.7” x 11.1”) |
|---|---|
| Weight | 3.5 kg (7.7 lb) |
What is included
- Adjustable steel mounting bracket
Common questions
Does the HH Electronics TNi-W6-WH work on 70V and 100V systems?
Yes. The HH Electronics TNi-W6-WH has 100V taps of 40W, 20W, 10W and 5W, 70V taps of 20W, 10W, 5W and 2.5W, and also runs on an 8 ohm low impedance line.
What amplifier does the HH Electronics TNi-W6-WH need?
HH Electronics recommends a 100-200W amplifier at 8 ohms for the TNi-W6-WH, which is rated at 55W AES and 220W peak.
Does the HH Electronics TNi-W6-WH come with a bracket?
Yes. The HH Electronics TNi-W6-WH comes with an adjustable steel mounting bracket.
What is the frequency response of the HH Electronics TNi-W6-WH?
The HH Electronics TNi-W6-WH covers 65Hz - 20kHz (-10dB) and 80Hz - 18kHz (-3dB), with 90 degrees horizontal and 80 degrees vertical dispersion.
What is the difference between the HH Electronics TNi-W6-WH and the TNi-W6-BK?
The HH Electronics TNi-W6-WH has a white finish and white grille, and the TNi-W6-BK is the black version of the same speaker.
How big is the HH Electronics TNi-W6-WH?
The HH Electronics TNi-W6-WH measures 330 x 196 x 281mm (13” x 7.7” x 11.1”) and weighs 3.5 kg (7.7 lb).
