Description

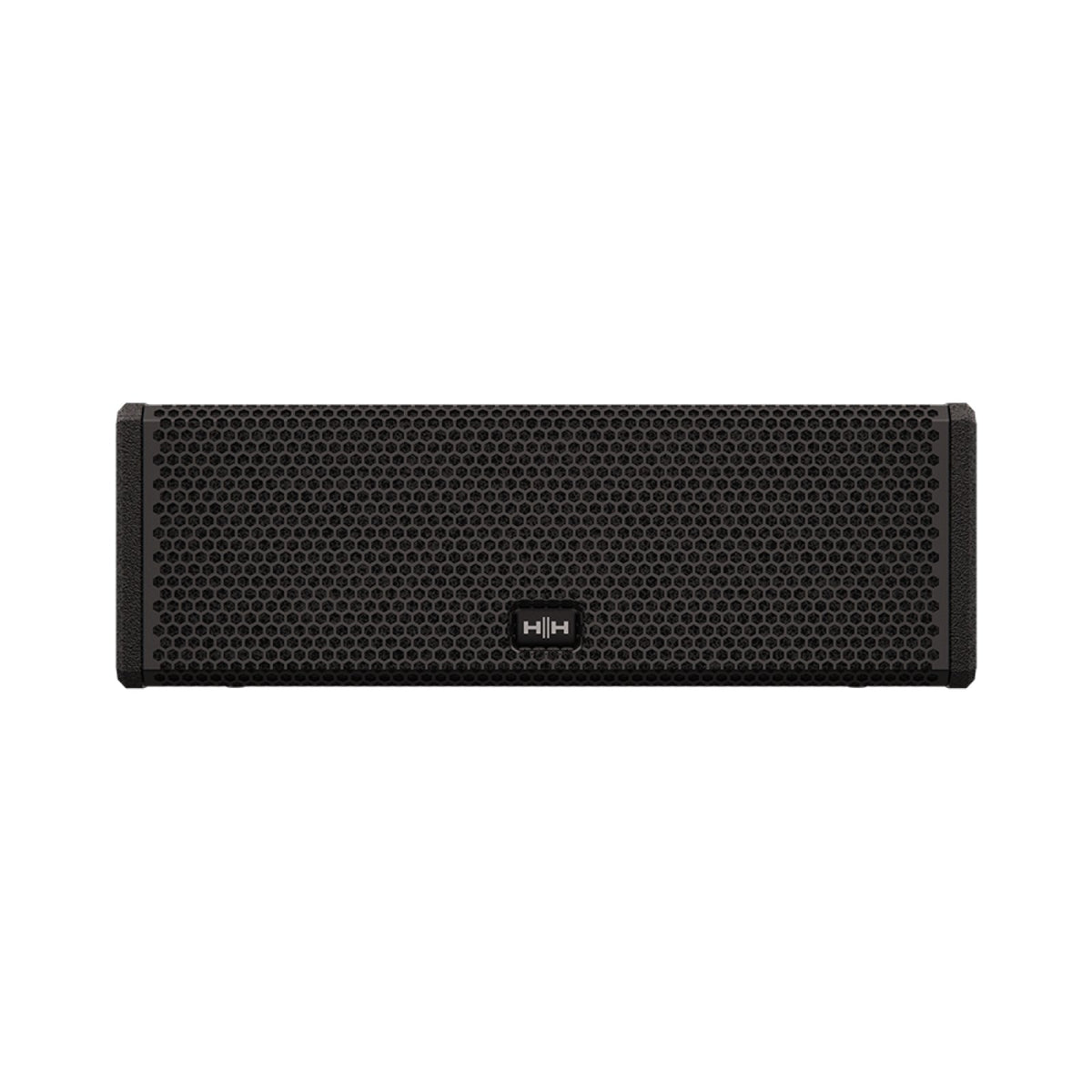

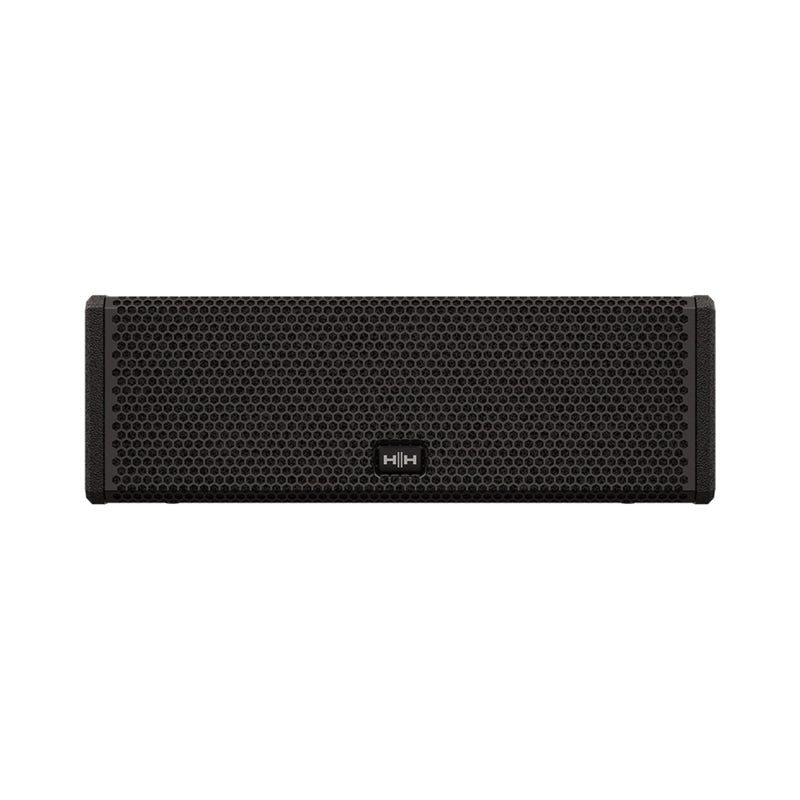

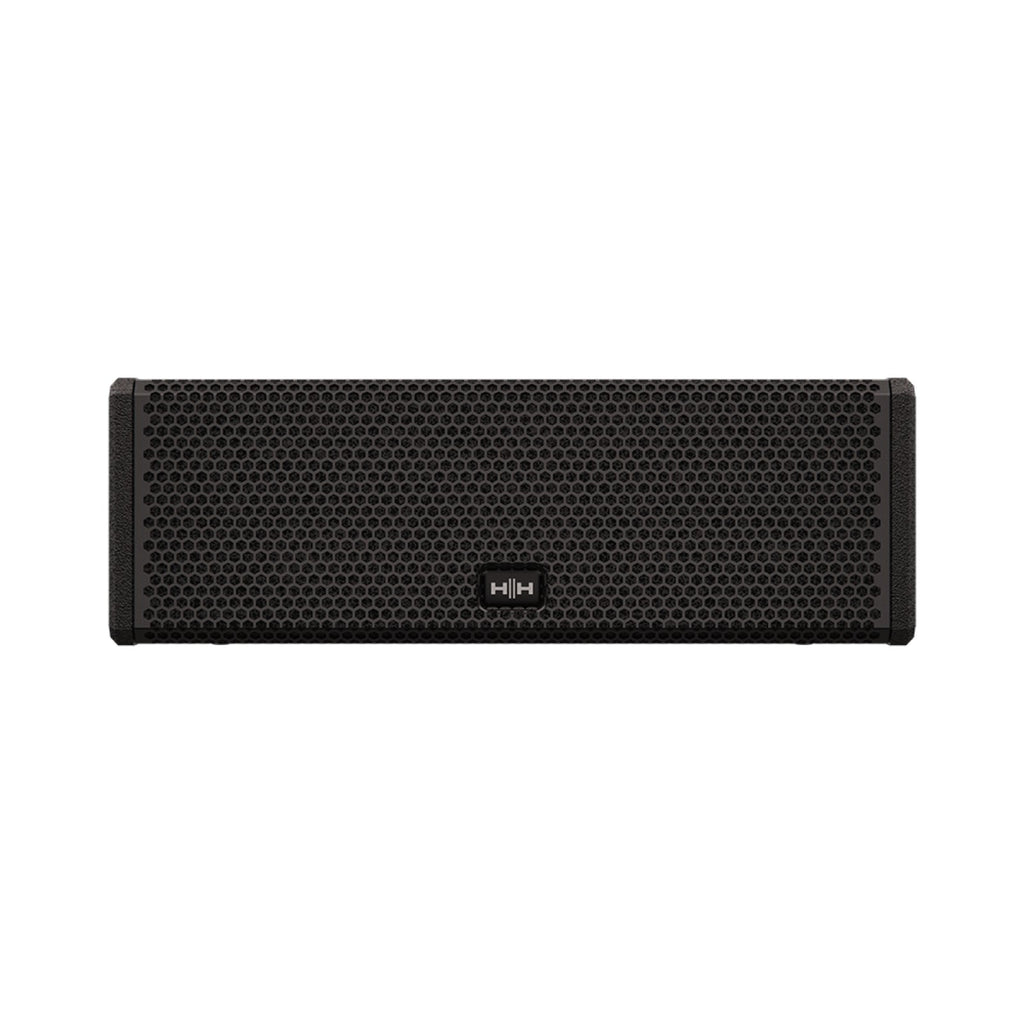

HH Audio TNA-2051-G3 2x5” Passive Line Array Speaker with Celestion Driver is a 2-way passive line array loudspeaker rated at 200W AES and 800W peak, with two 5-inch HH-designed drivers and a 1.33-inch Celestion compression driver. It has an integrated rigging system with 0°, 4° and 8° splay angles between enclosures.
Specifications
| SKU | 28781 |
|---|---|
| Model | TNA-2051-G3 |
| Brand | HH Audio |
| System type | 2-way line array loudspeaker |
| Frequency response (-10dB) | 65Hz - 20kHz |
| Frequency response (-3dB) | 100Hz - 18kHz |
| Power | 200W AES, 800W peak |
| Sensitivity (1W/1M) | 94 dB SPL |
| Max SPL | 123 dB SPL |
| Nominal system impedance | 16 ohms |
| Input connector | NL4 twist lock connector |
| Link connector | NL4 twist lock connector |
| HF driver | 1 x 1.33-inch Celestion compression driver, mounted to a Celestion-designed waveguide and horn |
| LF driver | 2 x 5-inch HH-designed driver |
| Crossover frequency | 2000Hz |
| Nominal dispersion | 120° x 8° single box |
| Recommended HPF frequency | 100Hz |
| Cabinet | 15mm plywood |
| Finish | Painted black |
| Mounting bracket | TNA-BRK1-G3 for suspended mounting |
| Mounting points | 6 x M8 mounting points for integrated rigging system |
| Linking bracket | 3-point rigging system with removable locking pin for linking and adjusting splay angle |
| Splay angle settings | 0°, 4° and 8° (between enclosures) |
| Grille | 1.5mm thickness steel, hexagonal mesh, acoustic foam lined |
Measurements
| Dimensions (H x W x D) | 163 x 496 x 288mm (6.42” x 19.53” x 11.34”) |
|---|---|
| Weight | 23.4 lb (10.6 kg) |
Common questions
Is the HH Audio TNA-2051-G3 powered or passive?
The HH Audio TNA-2051-G3 is a passive 2-way line array speaker, so it needs an external amplifier.
Can the HH Audio TNA-2051-G3 be powered by the TNA-2120SA-G3 subwoofer?
The HH Audio TNA-2120SA-G3 active subwoofer lists 2 locking speakon outputs for external TNA-2051 cabinets, driven by its two satellite amp channels, and the HH Audio TNA-2051-G3 is the passive cabinet those outputs are listed for.
What connectors does the HH Audio TNA-2051-G3 use?

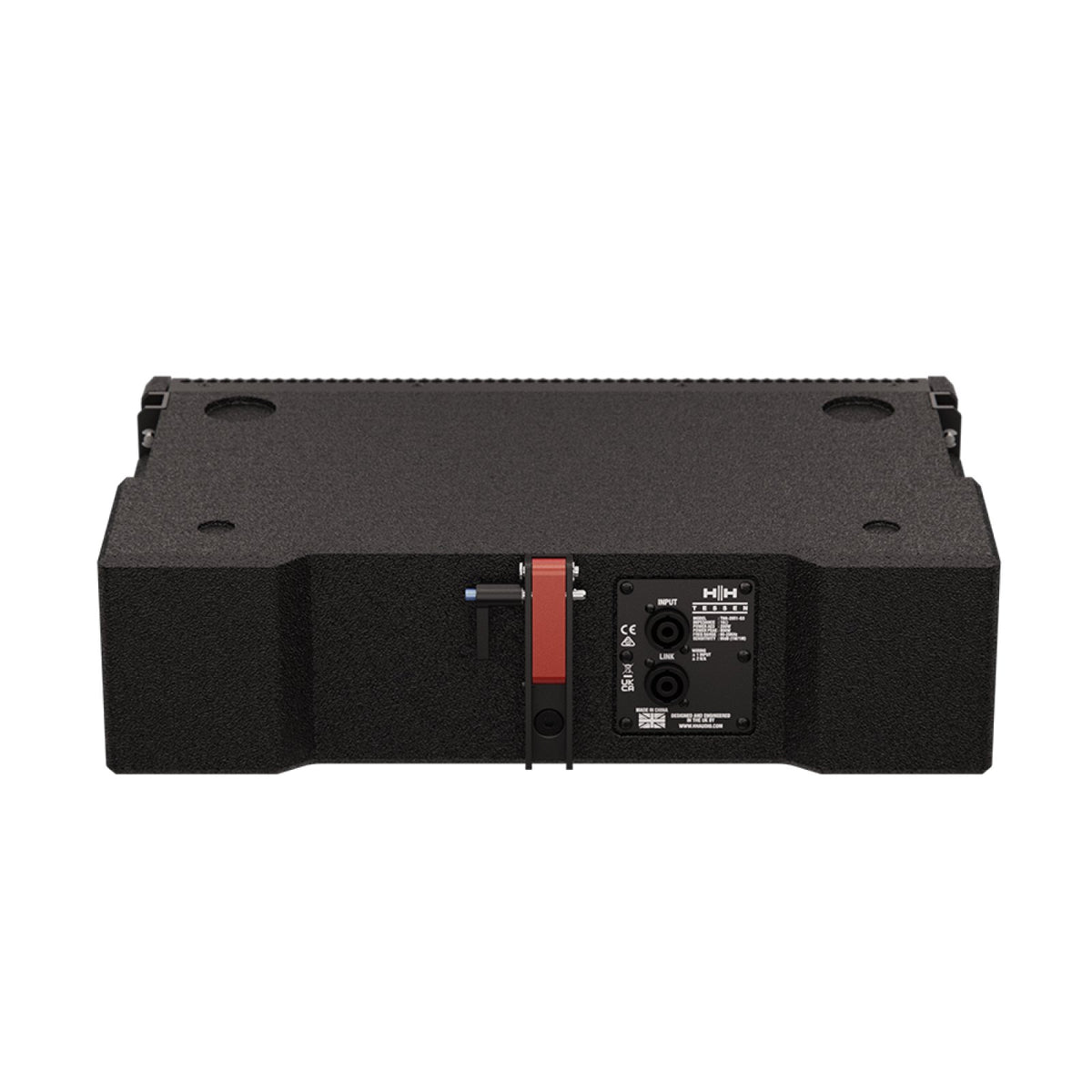

The HH Audio TNA-2051-G3 has an NL4 twist lock input connector and an NL4 twist lock link connector.
How is the HH Audio TNA-2051-G3 rigged?
The HH Audio TNA-2051-G3 has 6 x M8 mounting points, a 3-point linking bracket with a removable locking pin, splay angles of 0°, 4° and 8°, and uses the TNA-BRK1-G3 bracket for suspended mounting.
What is the dispersion and recommended high-pass filter for the HH Audio TNA-2051-G3?
The HH Audio TNA-2051-G3 has a nominal dispersion of 120° x 8° for a single box, and HH Audio recommends a 100Hz high-pass filter.
How big and heavy is the HH Audio TNA-2051-G3?
The HH Audio TNA-2051-G3 measures 163 x 496 x 288mm (6.42” x 19.53” x 11.34”) and weighs 23.4 lb (10.6 kg).
