Description

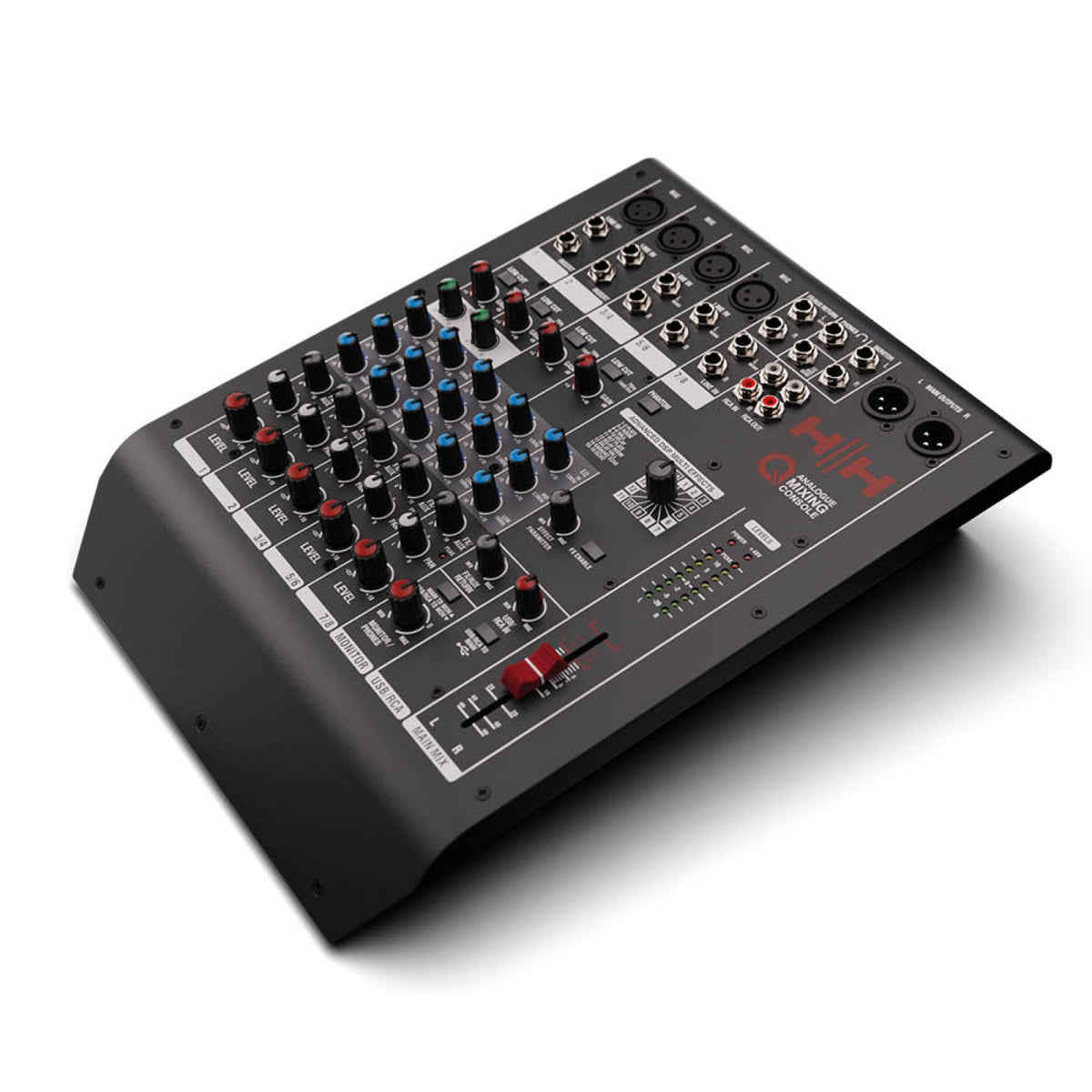

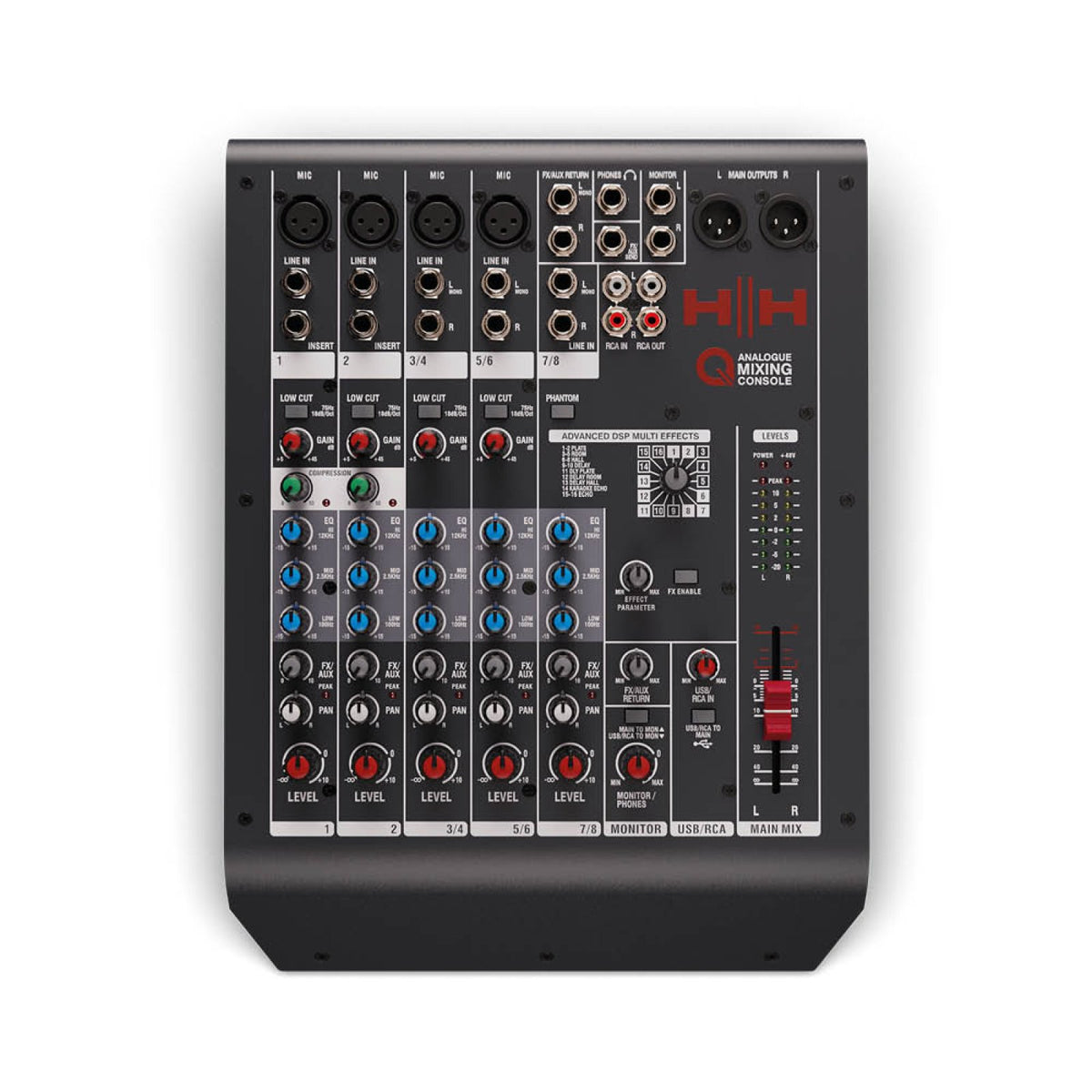

HH Audio Q8FX 8-Channel Analog Mixing Console with DSP and USB is an analog mixing console with 8 channels, 4 low-noise mic inputs, 3 stereo inputs and 3-band EQ on every channel. It adds 16 program DSP effects with parameter adjustment (reverb, delay, echo) and USB stereo audio in and out.
Specifications
| SKU | 28637 |
|---|---|
| Model | Q8FX |
| Brand | HH Audio |
| Channels | 8 |
| Low noise mic inputs | 4 |
| Compressors | 2 |
| Stereo inputs | 3 |
| EQ | 3-band EQ on all channels |
| Aux | 1 aux with stereo return |
| Pan | On each channel |
| DSP | 16 program DSP effects with parameter adjustment (reverb, delay, echo) |
| USB | Audio stereo in/out |
| RCA | Stereo RCA in/out |
| Monitor output | Stereo |
| Main output | Stereo balanced XLR |
| Monitoring | Comprehensive monitoring |
| Phantom power | Global |
| Indicators | Clip/peak lights per channel |
| Construction | Solid construction |

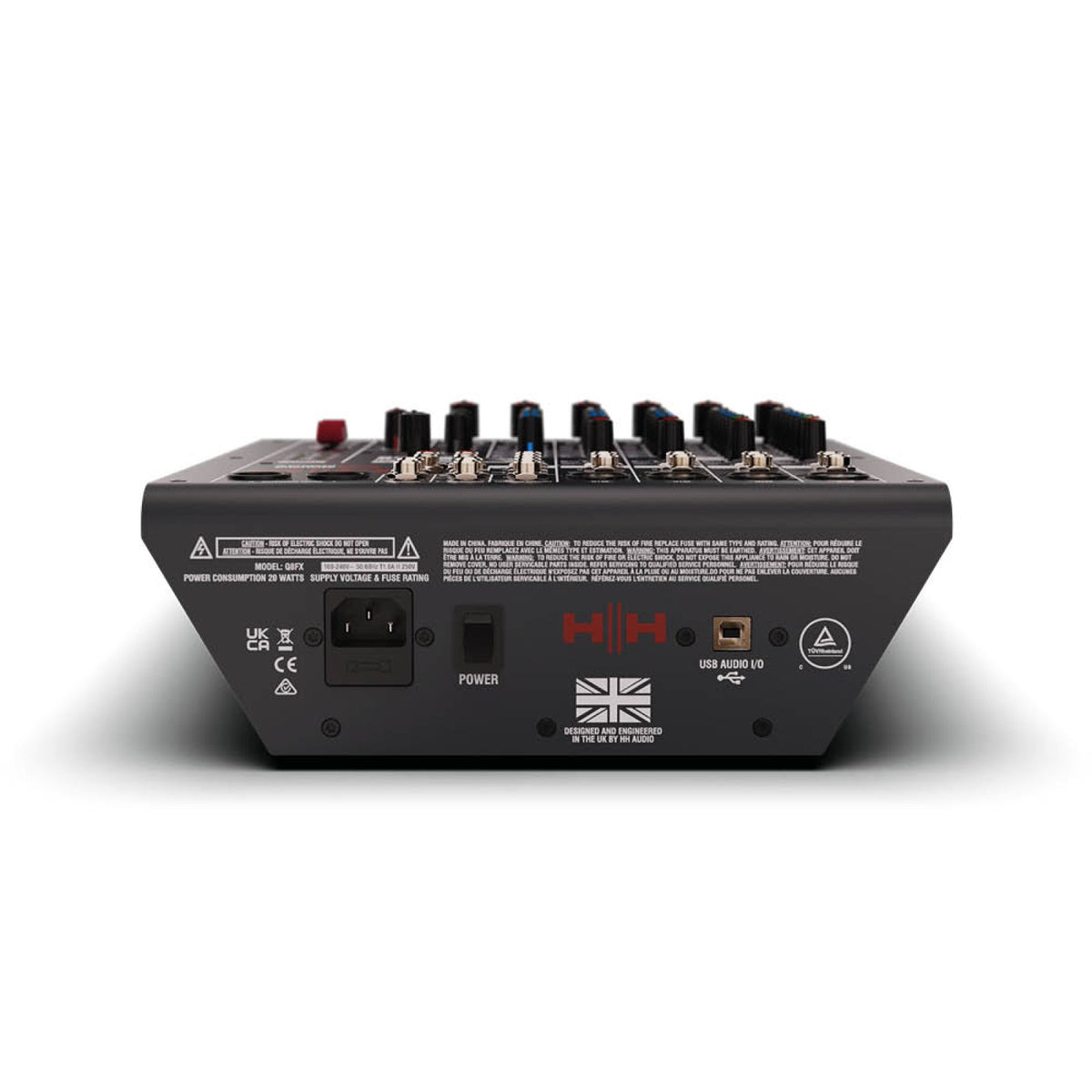

| Power supply | Internal universal 100-240V, for worldwide operation |
Measurements
| Weight | 12.5 lb (5.65 kg) |
|---|
Common questions
How many channels and inputs does the HH Audio Q8FX have?
The HH Audio Q8FX has 8 channels, 4 low-noise mic inputs, 3 stereo inputs, 1 aux with stereo return, and pan on each channel.
What EQ and effects does the HH Audio Q8FX have?
The HH Audio Q8FX has 3-band EQ on all channels, 2 compressors, and 16 program DSP effects with parameter adjustment (reverb, delay, echo).
Does the HH Audio Q8FX have a USB audio interface?
Yes. The HH Audio Q8FX has USB audio stereo in and out, plus stereo rca in/out.
What outputs does the HH Audio Q8FX have?
The HH Audio Q8FX has a stereo balanced XLR main output and a stereo monitor output.
Does the HH Audio Q8FX have phantom power?
Yes. The HH Audio Q8FX has global phantom power for condenser microphones.
What power supply does the HH Audio Q8FX use?
The HH Audio Q8FX has an internal universal 100-240V power supply for worldwide operation, and weighs 12.5 lb (5.65 kg).
