Description

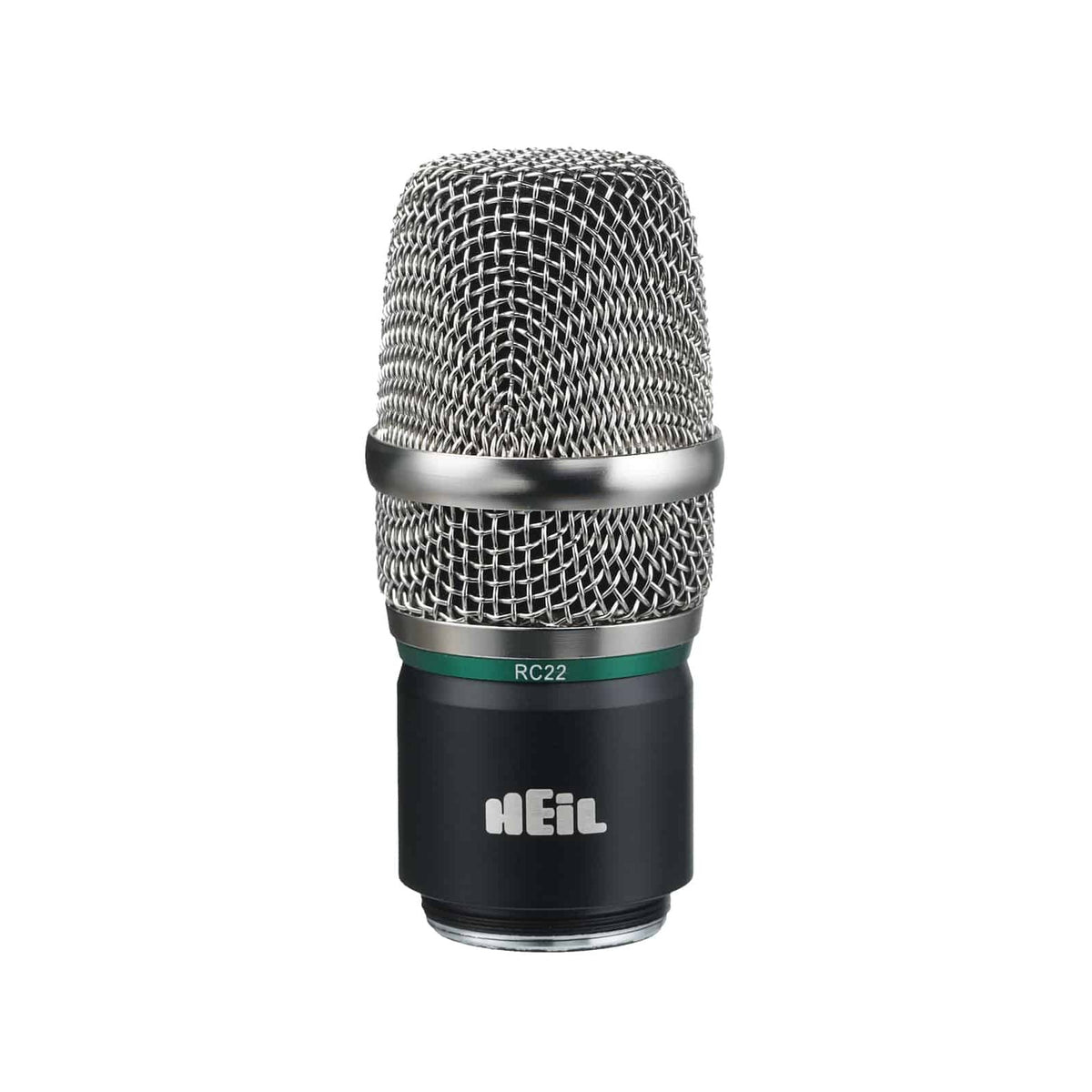

Heil Sound RC 22 Wireless Microphone Capsule is a replacement capsule that puts the Heil Sound PR 22 element on a handheld wireless transmitter with a removable capsule. It is cardioid with -30 dB of rear rejection, covers 50 Hz to 18 kHz and handles 145 dB SPL, with an internal shock mount to cut handling noise. It threads onto 31.3 mm / 1.0 pitch transmitter mounts.
Specifications
| SKU | Nickel: HL00365008, Chrome: HL00365009 |
|---|---|
| Manufacturer Part Number | Nickel: RC22, Chrome: RC22 CHROME |
| Element Type | Dynamic |

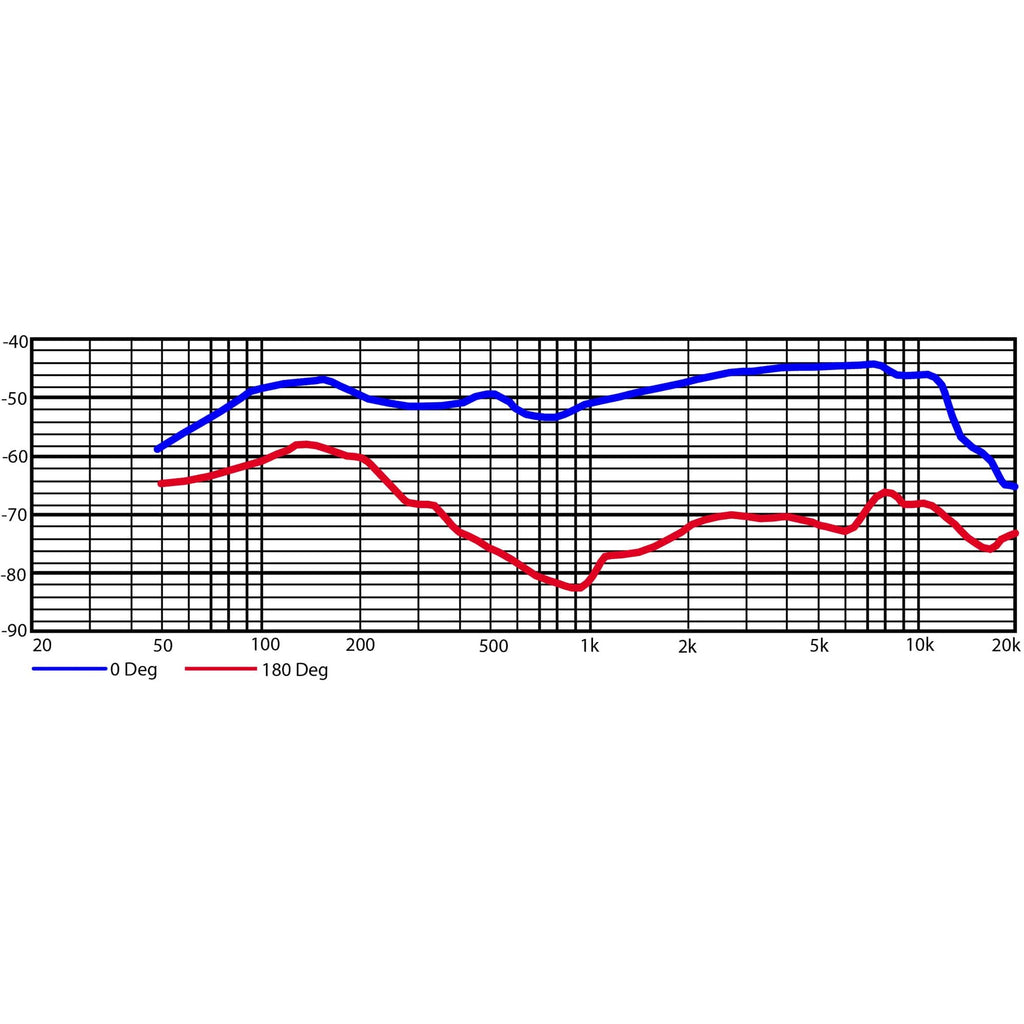

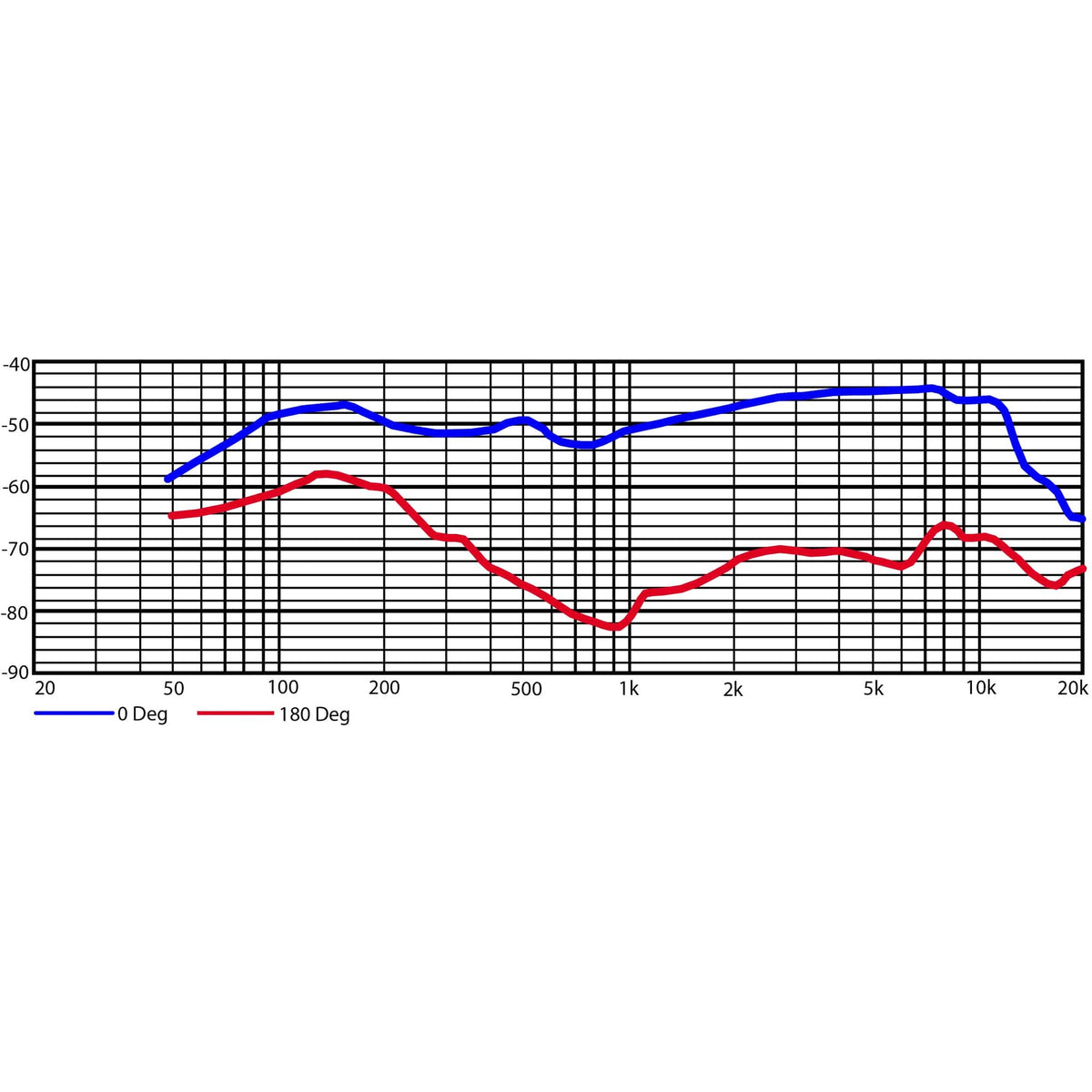

| Frequency Response | 50 Hz – 18 kHz |

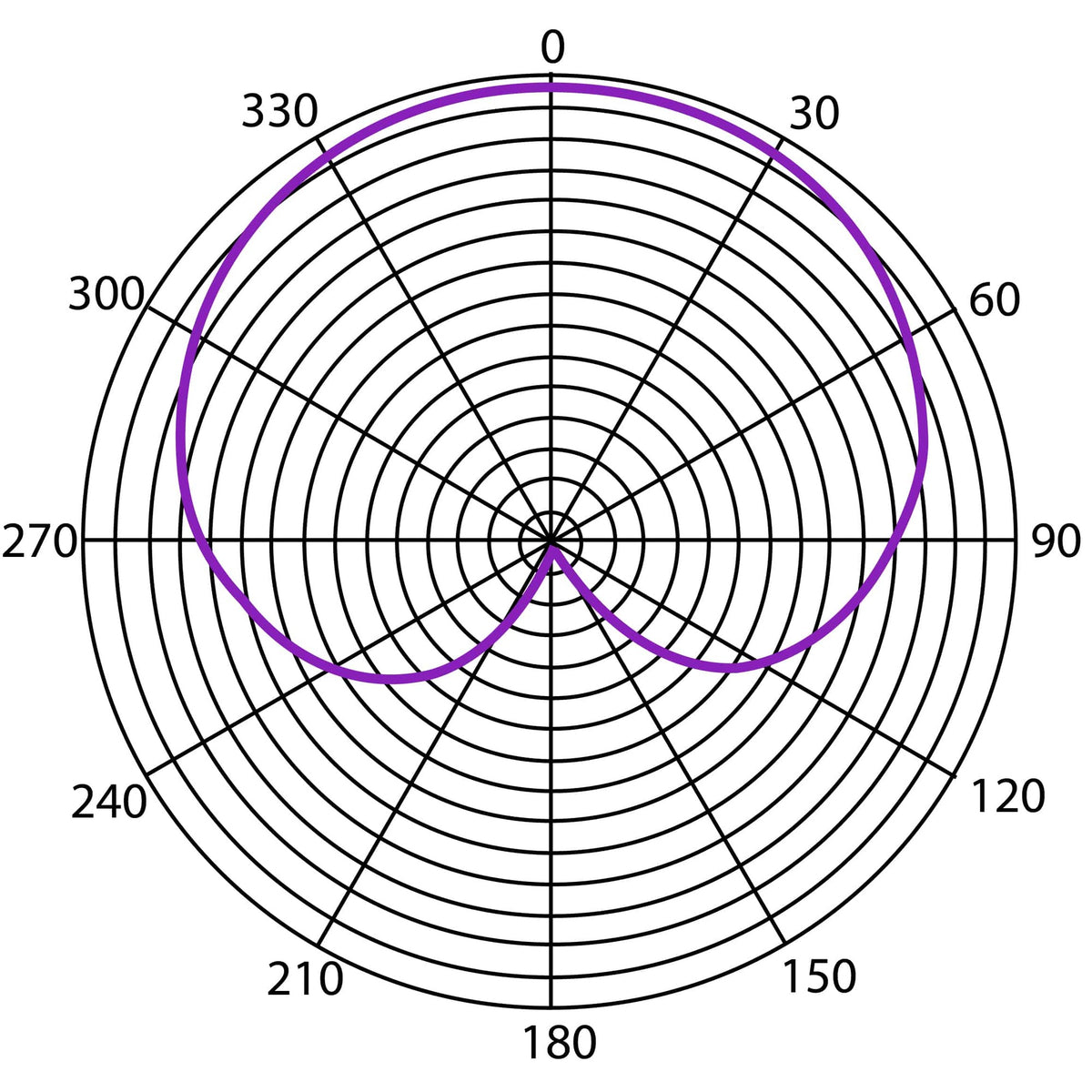

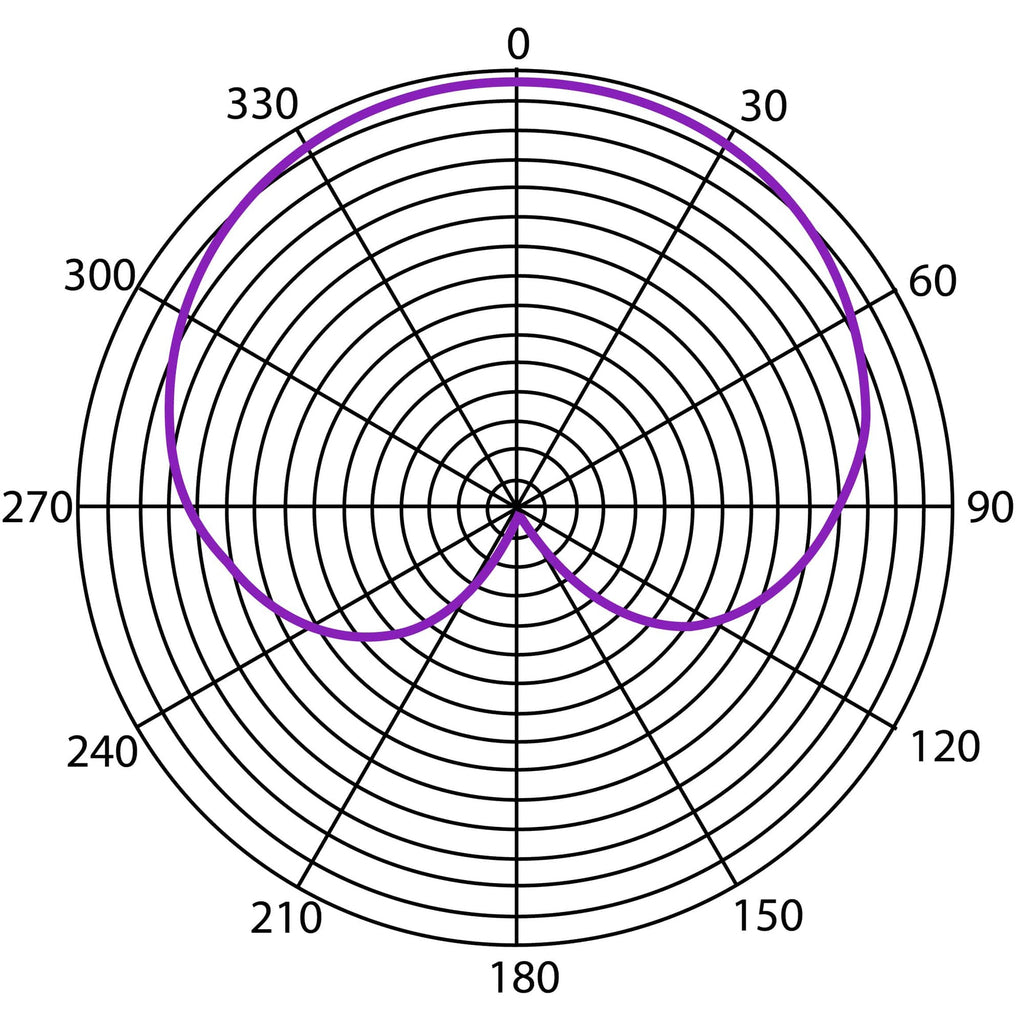

| Polar Pattern | Cardioid |
| Rear Rejection (180° off axis) | -30 dB |
| Max SPL | 145 dB |
| Thread | 31.3 mm diameter / 1.0 mm pitch |
| Compatibility | Lectrosonics and Line 6 transmitters with removable capsules; most Shure wireless with removable capsules (not ULX); Audix H60 with the included spacer ring |

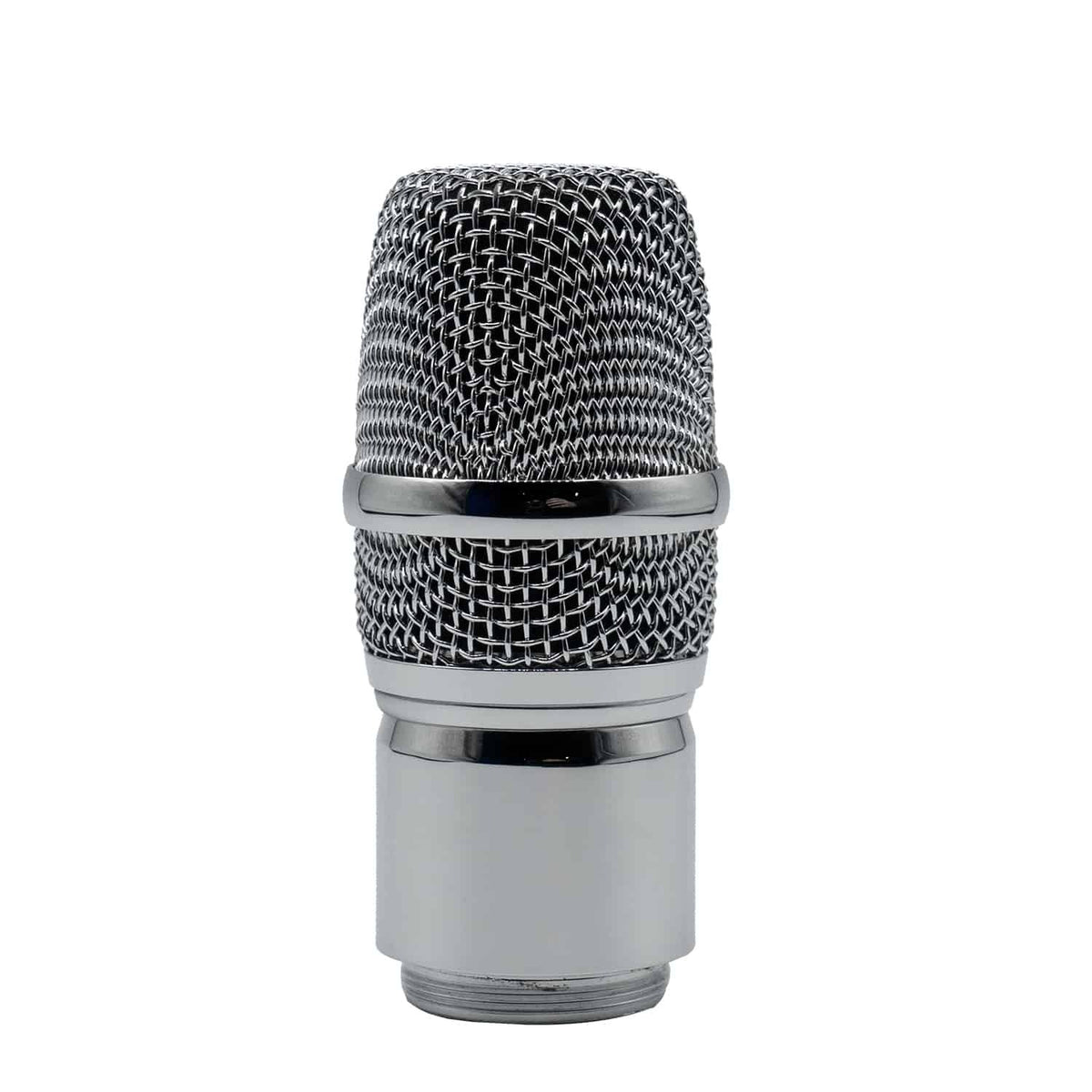

| Finishes | Nickel, Chrome |
Measurements
| Weight | 4.9 oz (138.9 g) |
|---|
What is included

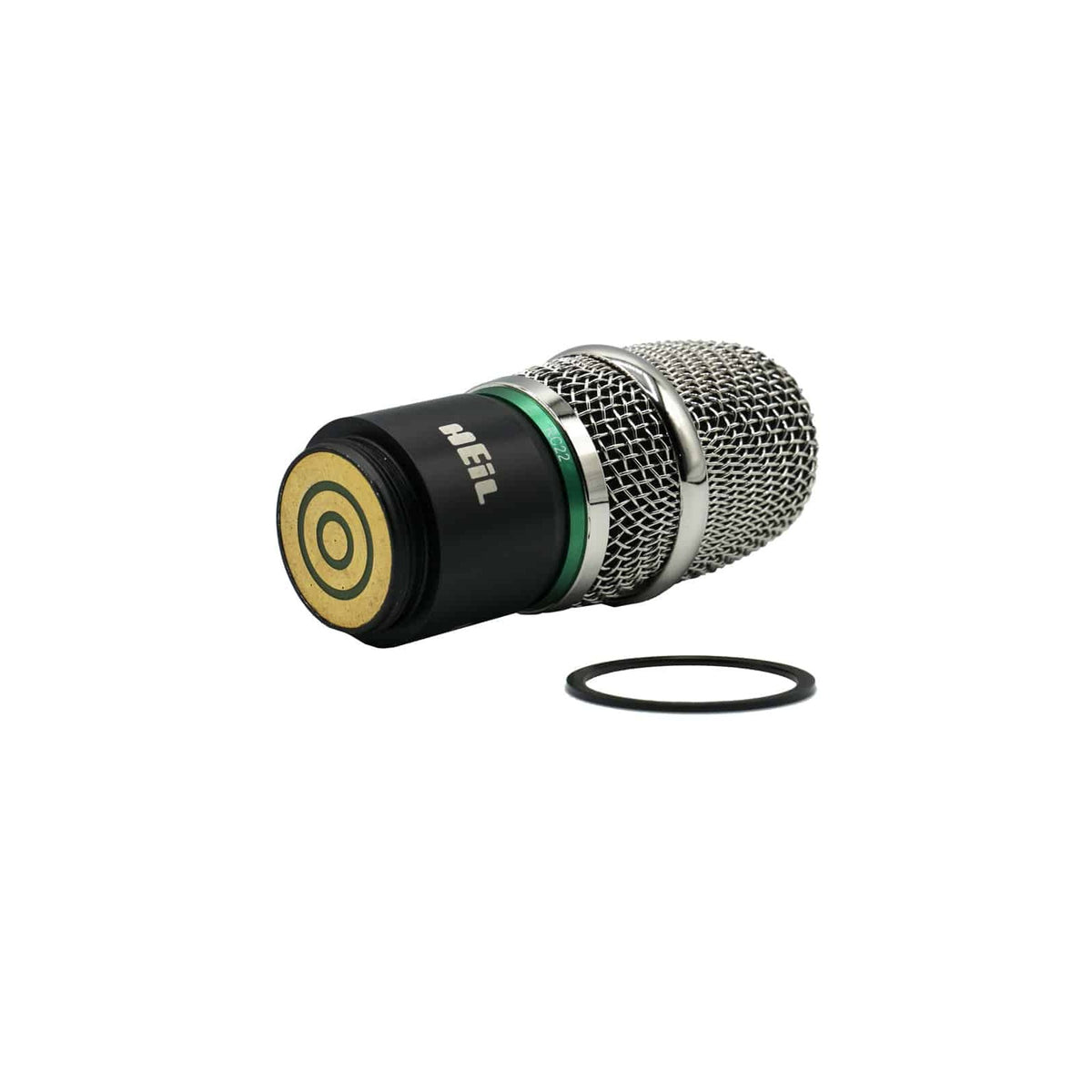

- Heil Sound spacer ring (for Audix H60)
WARRANTY - Heil Sound 1-Year Limited Warranty
Common questions
Which wireless systems does the Heil Sound RC 22 fit?
The Heil Sound RC 22 fits Lectrosonics and Line 6 transmitters with removable capsules and most Shure wireless with removable capsules, but not Shure ULX.
Does the Heil Sound RC 22 work with Sennheiser wireless?
Heil Sound says the RC 22 works with some Sennheiser systems when used with the proper third-party adapter.
Does the Heil Sound RC 22 fit the Audix H60?
Yes. The Heil Sound RC 22 fits the Audix H60 using the included spacer ring.
What does the Heil Sound RC 22 sound like?
The Heil Sound RC 22 uses the same element as the wired Heil Sound PR 22, so it has the same cardioid pattern and 50 Hz to 18 kHz response.
How do I install the Heil Sound RC 22?
Unscrew the existing capsule from the handheld transmitter and screw on the Heil Sound RC 22.
