Description

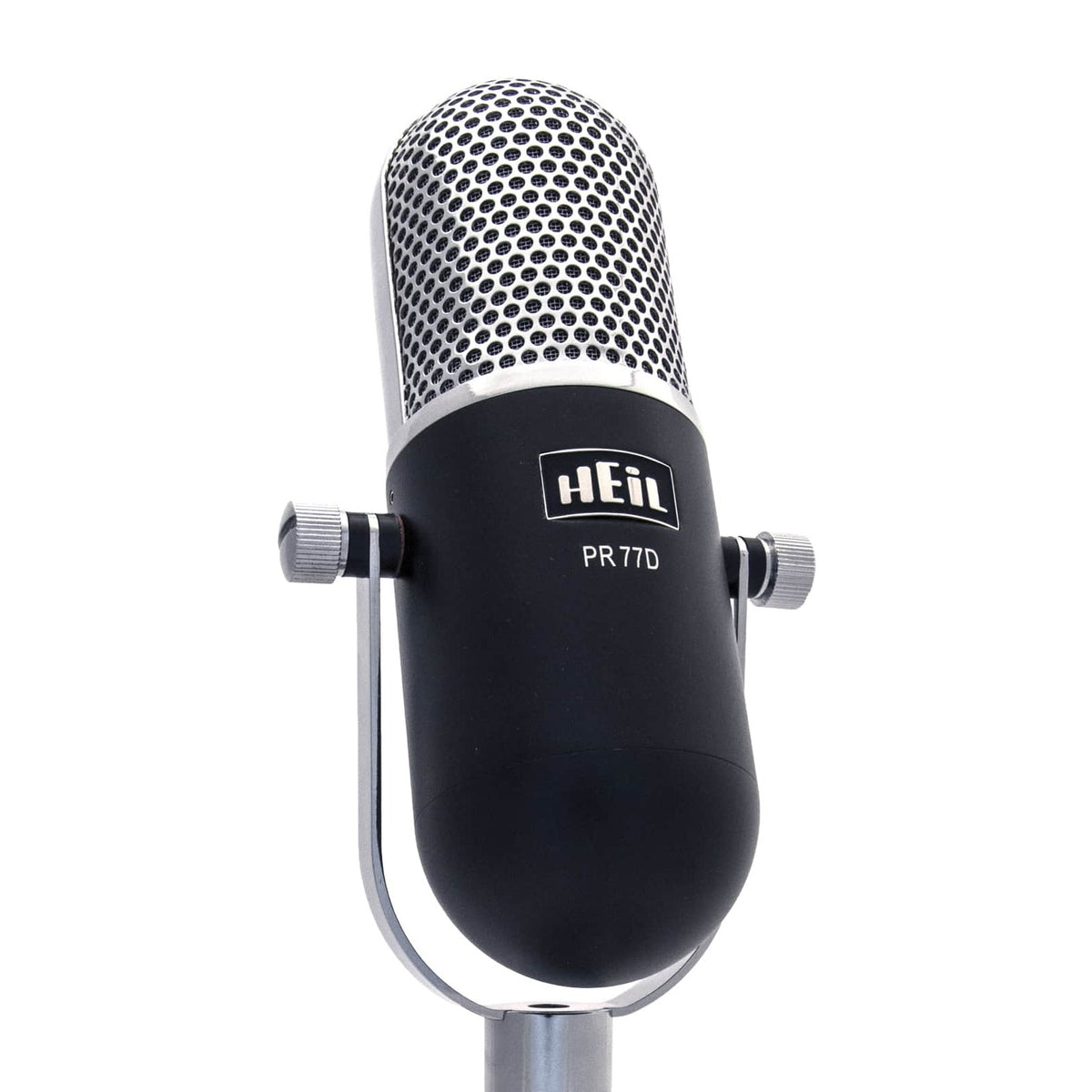

Heil Sound PR 77D Dynamic Broadcast Microphone is a vintage-style side-address dynamic microphone for broadcast, podcasting, voiceover and studio recording. A two-position Voice/Music switch on the body selects a 120 Hz roll-off for speech or the full 40 Hz to 18 kHz range for music. It mounts on standard 5/8″-27 stands and boom arms and comes in Black or Purple.
Specifications
| SKU | Black: HL00365006, Purple: HL00365007 |
|---|---|
| Manufacturer Part Number | Black: PR77DBK, Purple: PR77DPR |
| Element Type | Dynamic |

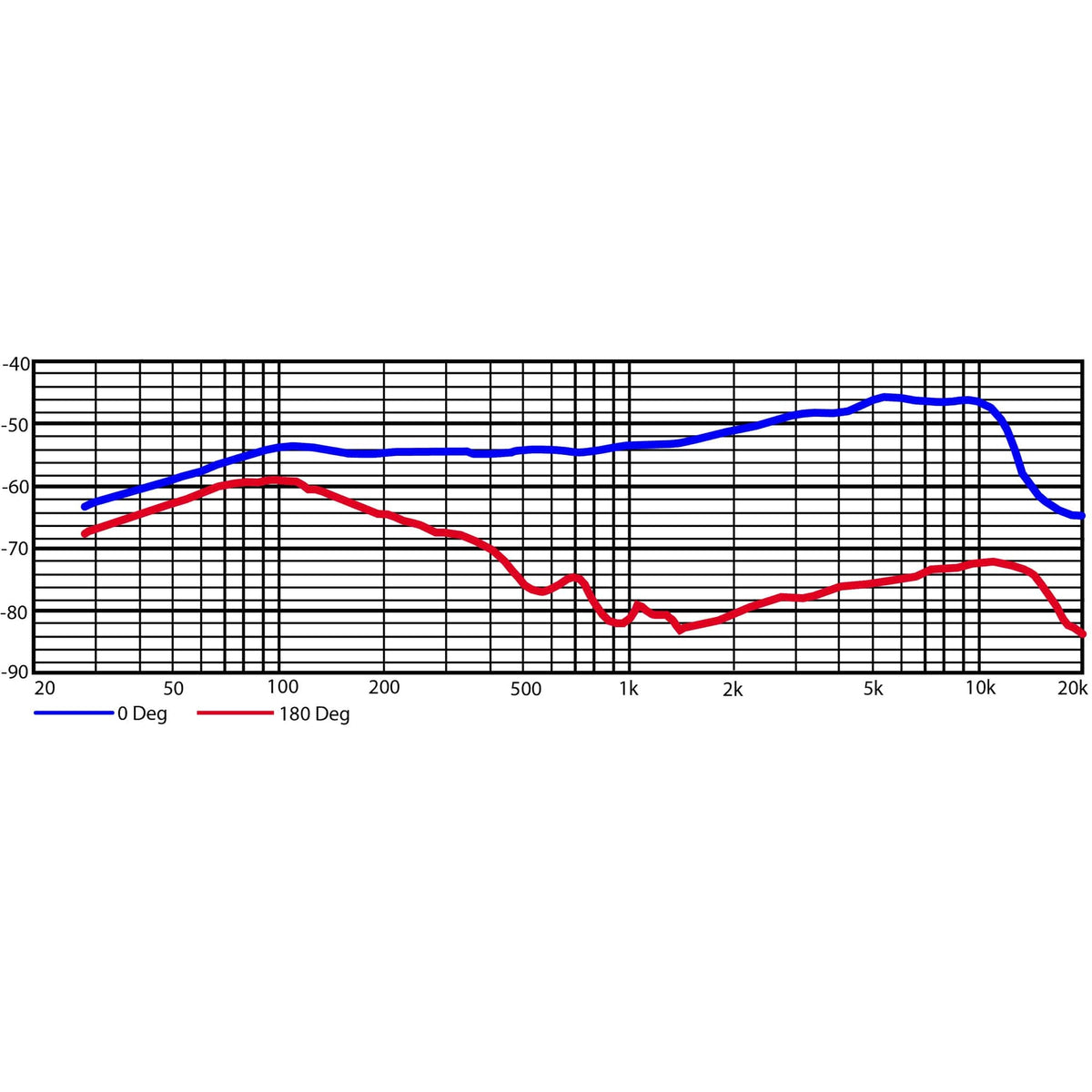

| Frequency Response (Music) | 40 Hz – 18 kHz |
| Frequency Response (Voice) | 120 Hz – 18 kHz |
| Polar Pattern | Cardioid |
| Rear Rejection (180° off axis) | -40 dB |
| Impedance | 370 ohms balanced |
| Output Level (@ 1 kHz) | -53.9 dB |
| Max SPL | 148 dB |
| Output Connection | 3-pin XLR |
| Mount | Built-in yoke with 5/8″-27 stand thread |
| Phantom Power | Not required |
| Colors | Black, Purple |
Measurements
| Weight | 28 oz (793.7 g) |
|---|
WARRANTY - Heil Sound 3-Year Limited Warranty
Common questions

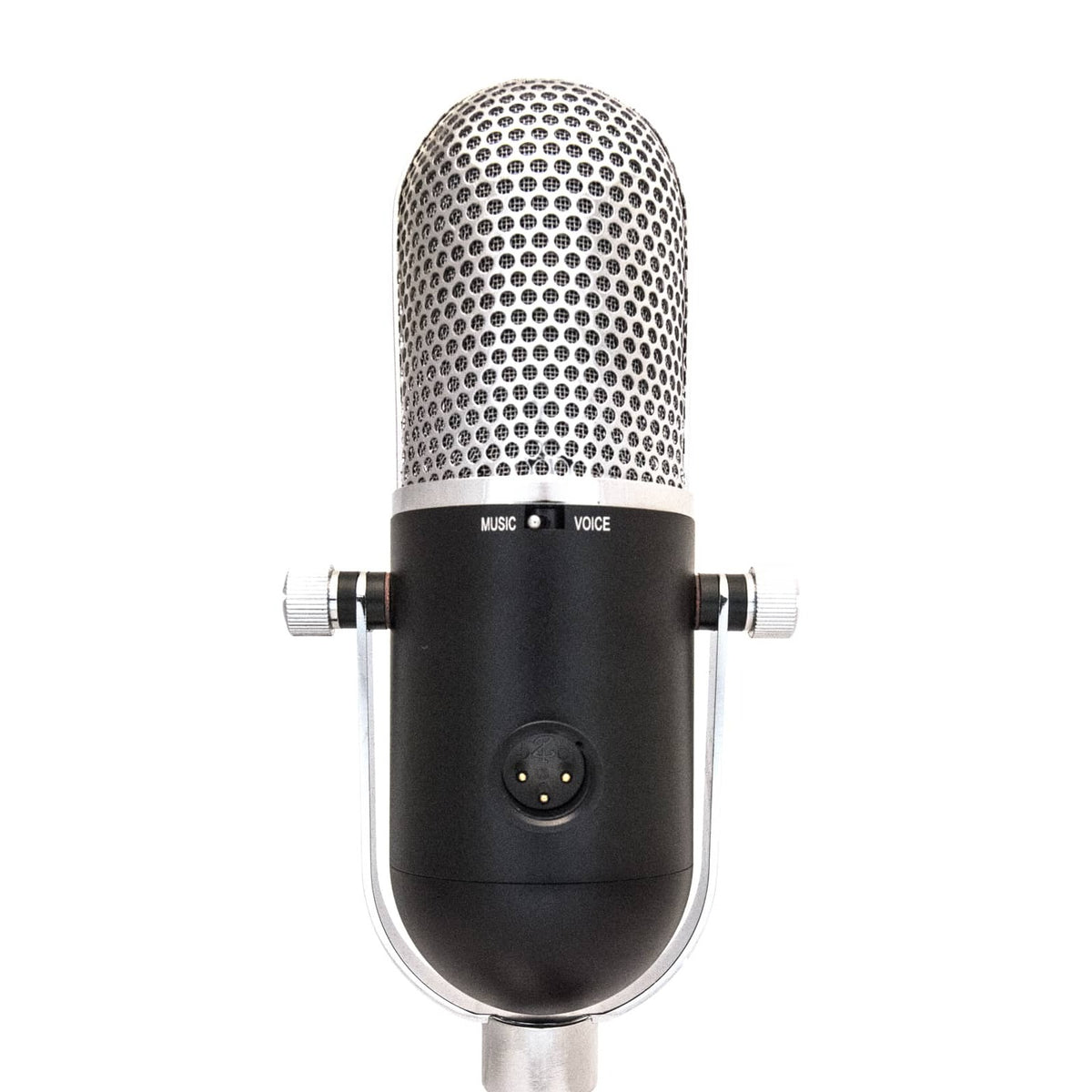

What does the Voice/Music switch on the Heil Sound PR 77D do?
The Voice setting on the Heil Sound PR 77D rolls off low frequencies from 120 Hz for speech, and the Music setting opens the full 40 Hz to 18 kHz range.
Can the Heil Sound PR 77D be held in the hand?
No. Heil Sound designed the PR 77D for use on booms or stands, using its built-in yoke with standard 5/8″-27 threads.
Does the Heil Sound PR 77D need phantom power?
No. The Heil Sound PR 77D is a passive dynamic microphone with a 3-pin XLR output.
Is the Heil Sound PR 77D good for podcasting?
Yes. Heil Sound lists podcasting, broadcast, voiceover and studio recording as the main uses for the PR 77D.
How heavy is the Heil Sound PR 77D?
The Heil Sound PR 77D weighs 28 oz (793.7 g), so a sturdy boom arm such as the Heil Sound PL2T is a good match.
