Description
Blaze PowerZone Connect 504 Amplifier is a half-rack amplifier with 500 watts total power that drives four low-impedance channels or two constant-voltage (70V/100V) channels. It has a browser-based control app and Euroblock, RCA, S/PDIF and Ethernet connections.
Specifications
| SKU | POWERZONE CONN 504 |
|---|---|
| Model | PowerZone Connect 504 |
| Format | Half rack |
| Total power | 500 watts |
| Power sharing | Up to 250 watts dynamically shareable across each pair of channels |
| Low-impedance output | 125 watts x 4 (4- to 16-ohm loudspeakers) |
| Constant-voltage output | 250 watts x 2 (70V/100V transformer-coupled loudspeakers) |
| Frequency response | 20-20,000 Hz (+0/-0.25dB 8-ohm load, 3dB below rated power) |
| Signal-to-noise ratio | 106dB (A-weighted, 20Hz-20kHz, 8-ohm load) |
| Control app | Web-based user interface, compatible with Windows®, Mac®, Android™ and iOS® |
| App functions | Multi-zone setup, input mixing, priority and ducking, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, and more |
| Speaker presets | Large catalog of downloadable speaker presets for commonly used speaker brands |
| Remote control | Most configuration options through multiple Blaze Wall-S1 wall-mounted controllers |
| GPIO | General purpose input/output connection for direct control from peripheral devices |
| Digital I/O | Coaxial S/PDIF input/output |
| Mic/line inputs | Four balanced Euroblock |
| Line inputs | Four unbalanced RCA |
| Network | RJ-45 Ethernet port |
| Amplifier outputs | Four male Euroblock: 4 x Lo-Z/2 x Hi-Z |
Common questions
How much power does the Blaze PowerZone Connect 504 have?
The Blaze PowerZone Connect 504 has 500 watts total: 125 watts x 4 into 4- to 16-ohm speakers or 250 watts x 2 into 70V/100V speakers.
What inputs does the Blaze PowerZone Connect 504 have?

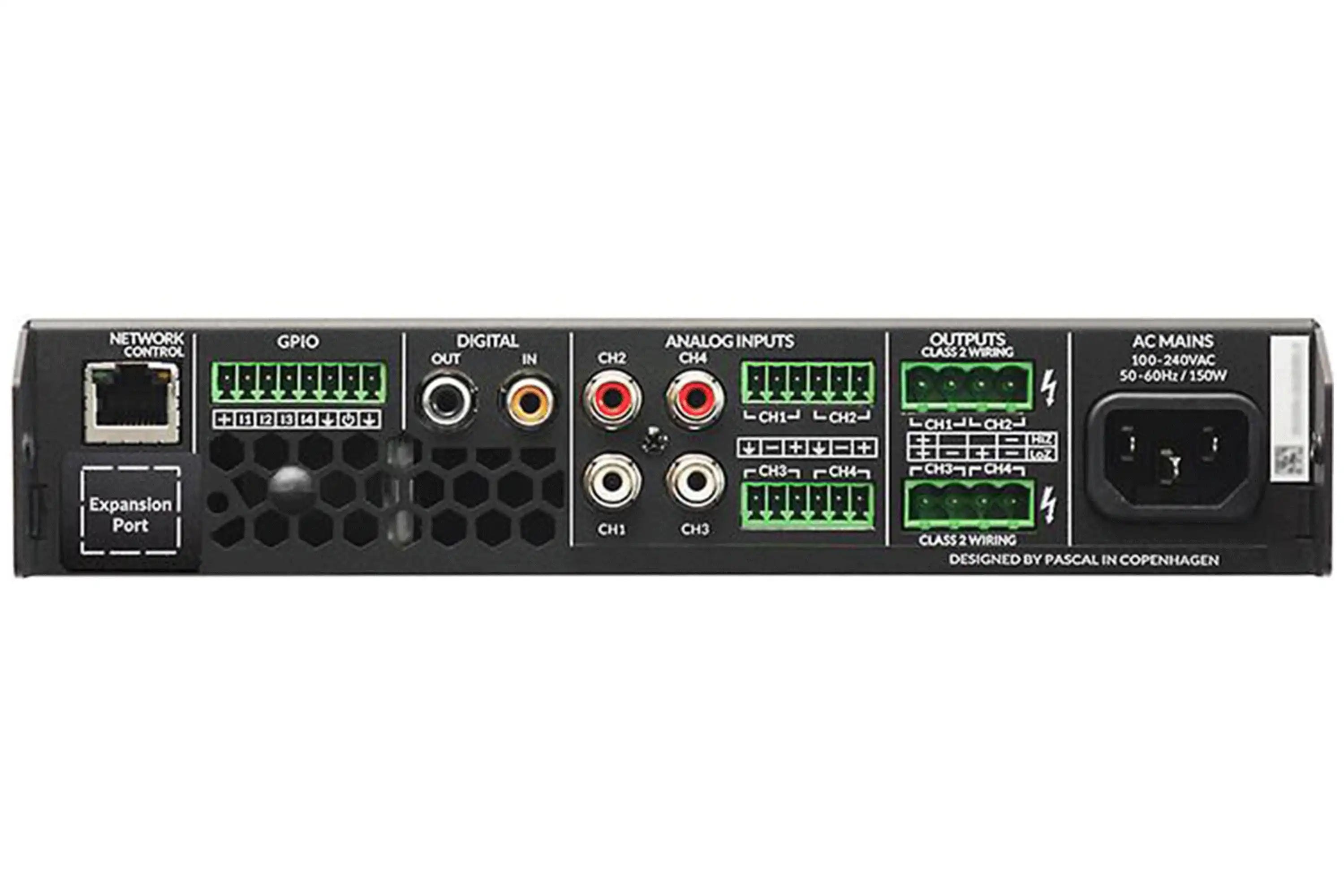

The Blaze PowerZone Connect 504 has four balanced Euroblock mic/line inputs, four unbalanced RCA inputs and a coaxial S/PDIF input/output.
How do I control the Blaze PowerZone Connect 504?
The Blaze PowerZone Connect 504 uses a web-based interface that works on Windows, Mac, Android and iOS, and it connects to a network by RJ-45 Ethernet.
Can the Blaze PowerZone Connect 504 use wall controllers?
Yes. Most configuration options on the Blaze PowerZone Connect 504 can be reached through multiple Blaze Wall-S1 wall-mounted controllers.
What is the frequency response of the Blaze PowerZone Connect 504?
The Blaze PowerZone Connect 504 has a frequency response of 20-20,000 Hz and a 106dB signal-to-noise ratio.
