Description

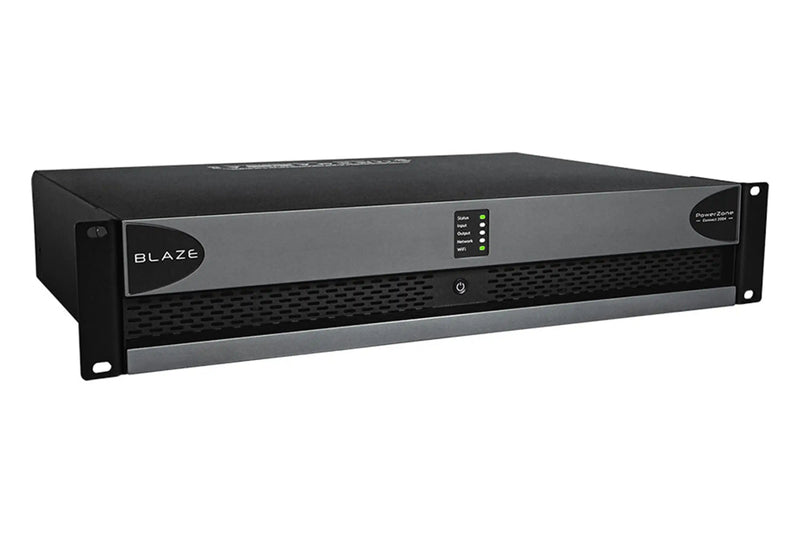

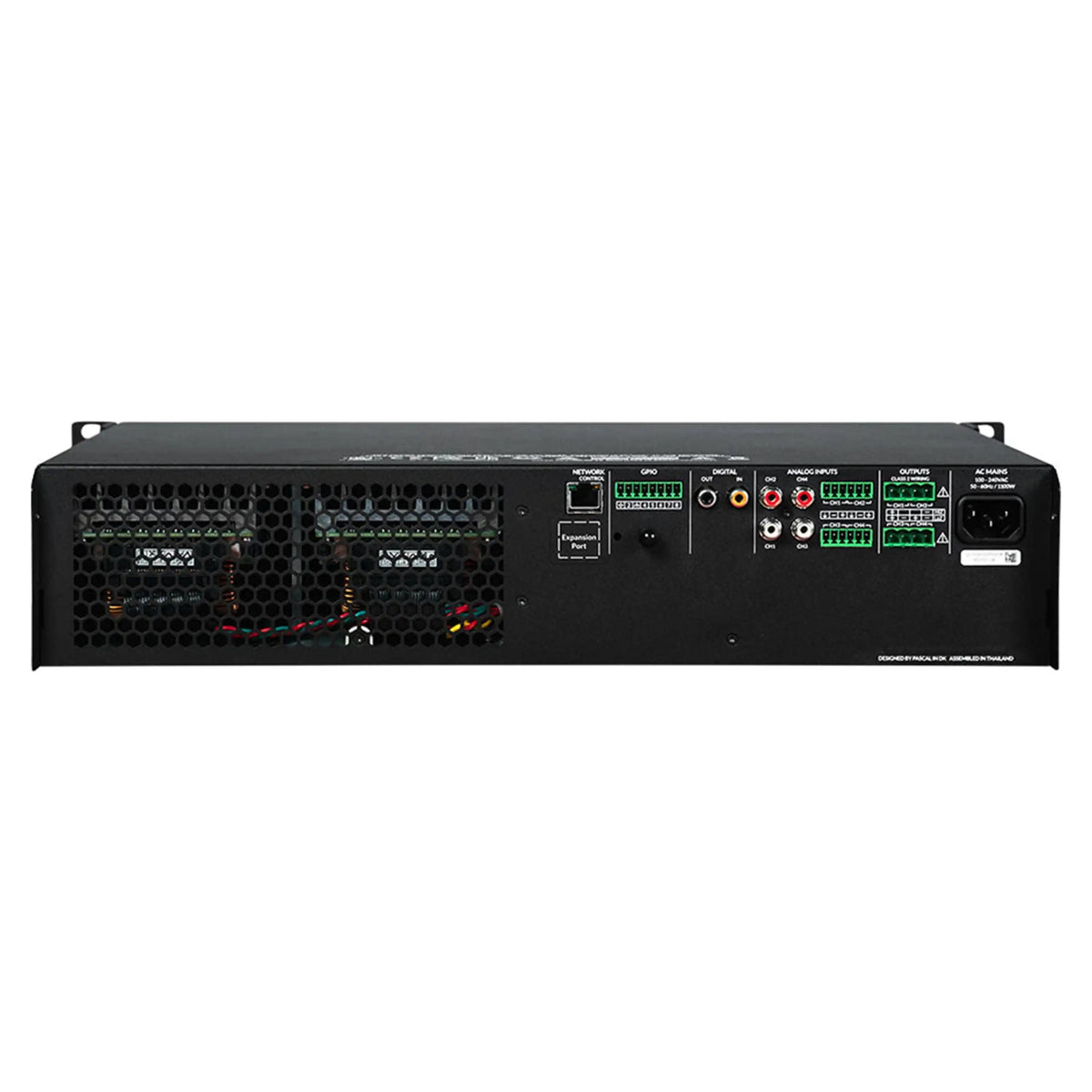

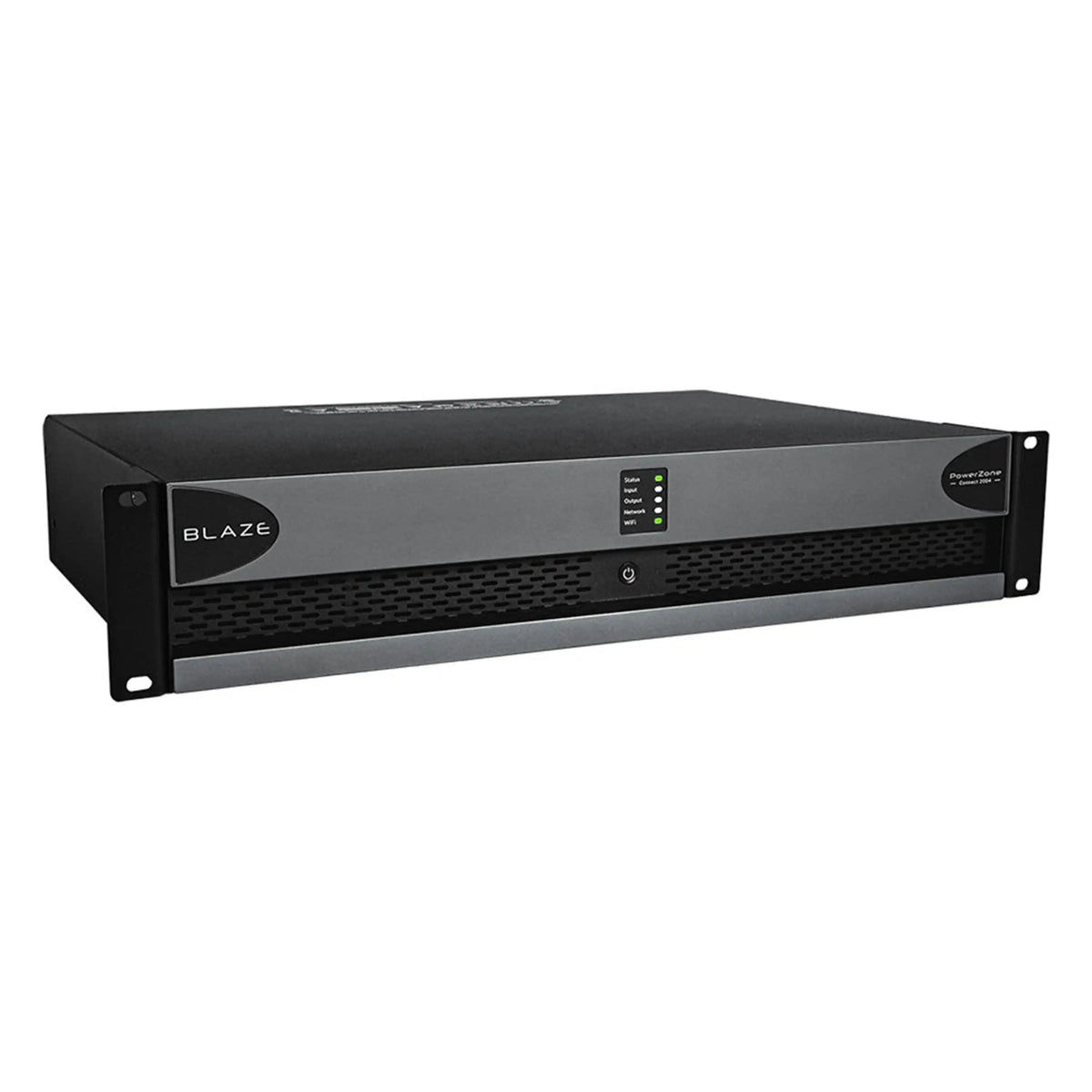

Blaze PowerZone Connect 2004 Networkable 4-Channel Install Power Amplifier is a full rack, networkable 4-channel installation power amplifier with embedded full matrix DSP and 2000 W total system power. It is set up over a wired or wireless network with the PowerZone Control web app.
Specifications
| SKU | POWERZONE CONN 2004 |
|---|---|
| Model | PowerZone Connect 2004 |
| Format | Full rack |
| Control | PowerZone Control web app, wired or wireless network |
| DSP | Full matrix DSP embedded and controlled via TCP/IP |
| Targeted Constant Voltage | Optimal hybrid of Lo-Z and Hi-Z performance |
| Master / Slave | S/PDIF link to multiple amps |
| Power supply | UREC™ universal power supply with PFC |
| Reliability | Based on Pascal’s proven technologies |
| Channels | 4 x Lo-Z / 2 x Hi-Z |
| Output Power @ 2Ω | 4 x 500 W (SE) |
| Output Power @ 4Ω | 4 x 500 W (SE), 2 x 1000 W (BTL) |
| Output Power @ 8Ω | 4 x 250 W (SE), 2 x 1000 W (BTL) |
| Output Power @ 70V | 2 x 1000 W (BTL) |
| Output Power @ 100V | 2 x 1000 W (BTL) |
| Total System Power | 2000 W |
| Power Consumption | 700 W |
| Output Voltage | 65 Vp / 130 Vpp (SE unloaded), 130 Vp / 260 Vpp (BTL unloaded) |
| Output Circuitry | UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion |
| Signal To Noise-Ratio | Over 108 dB (A-weighted, 20 Hz-20 kHz, 8 Ω load) |
| THD+N (typical) | 0.05 % (20 Hz-20 kHz, 8 Ω load, 3 dB below rated power) |
| Frequency Response | 20 Hz-20 kHz (+0/-0.5 dB, 8 Ω load, 3 dB below rated power) |
| Protection Circuits | Short circuit, DC, Undervoltage, Temperature, and Overload protection |
| Power Supply | UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter |
| Operating Temperature | 0-40° C |
| Operating Voltage/Frequency | Universal Mains, 100 V-240 V, 50 Hz-60 Hz |
| Standby Consumption | 0.5 W |
| Power Ratings | 1 % THD @ 120 Vac and 230 Vac |
Measurements
| Dimensions | 88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in) |
|---|---|
| Weight | 7.4 kg |
What is included
- Blaze PowerZone Connect 2004 amplifier
- 2 x rack ears
- 4 x adhesive feet
Common questions
How much power does the Blaze PowerZone Connect 2004 have?
The Blaze PowerZone Connect 2004 has 2000 W total system power: 4 x 500 W at 2Ω or 4Ω, 4 x 250 W at 8Ω, or 2 x 1000 W bridged.
Can the Blaze PowerZone Connect 2004 drive 70V or 100V speakers?
Yes. The Blaze PowerZone Connect 2004 puts out 2 x 1000 W at both 70V and 100V in BTL mode.
How do I control the Blaze PowerZone Connect 2004?
The Blaze PowerZone Connect 2004 is set up over a wired or wireless network with the PowerZone Control web app, with full matrix DSP controlled via TCP/IP.
What comes with the Blaze PowerZone Connect 2004?
The Blaze PowerZone Connect 2004 comes with 2 rack ears and 4 adhesive feet.
How big is the Blaze PowerZone Connect 2004?
The Blaze PowerZone Connect 2004 measures 88 x 440 x 332 mm (3.5 x 17.3 x 13.1 in) and weighs 7.4 kg.
