Description

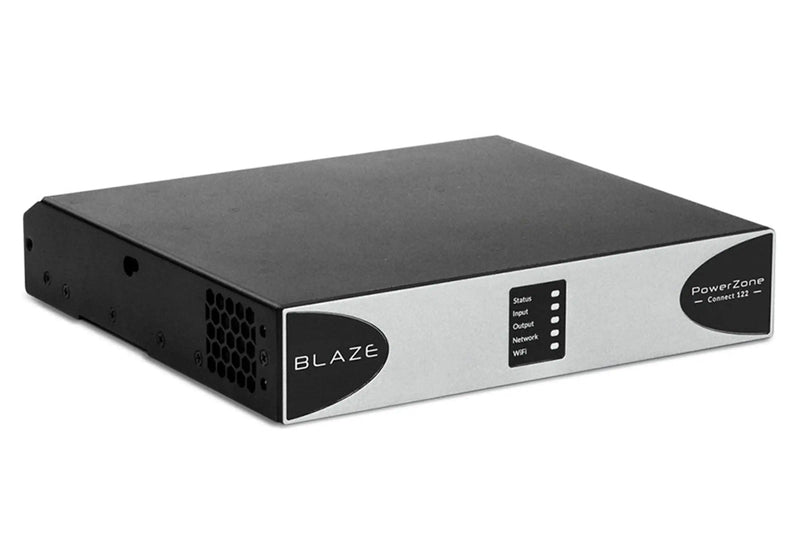

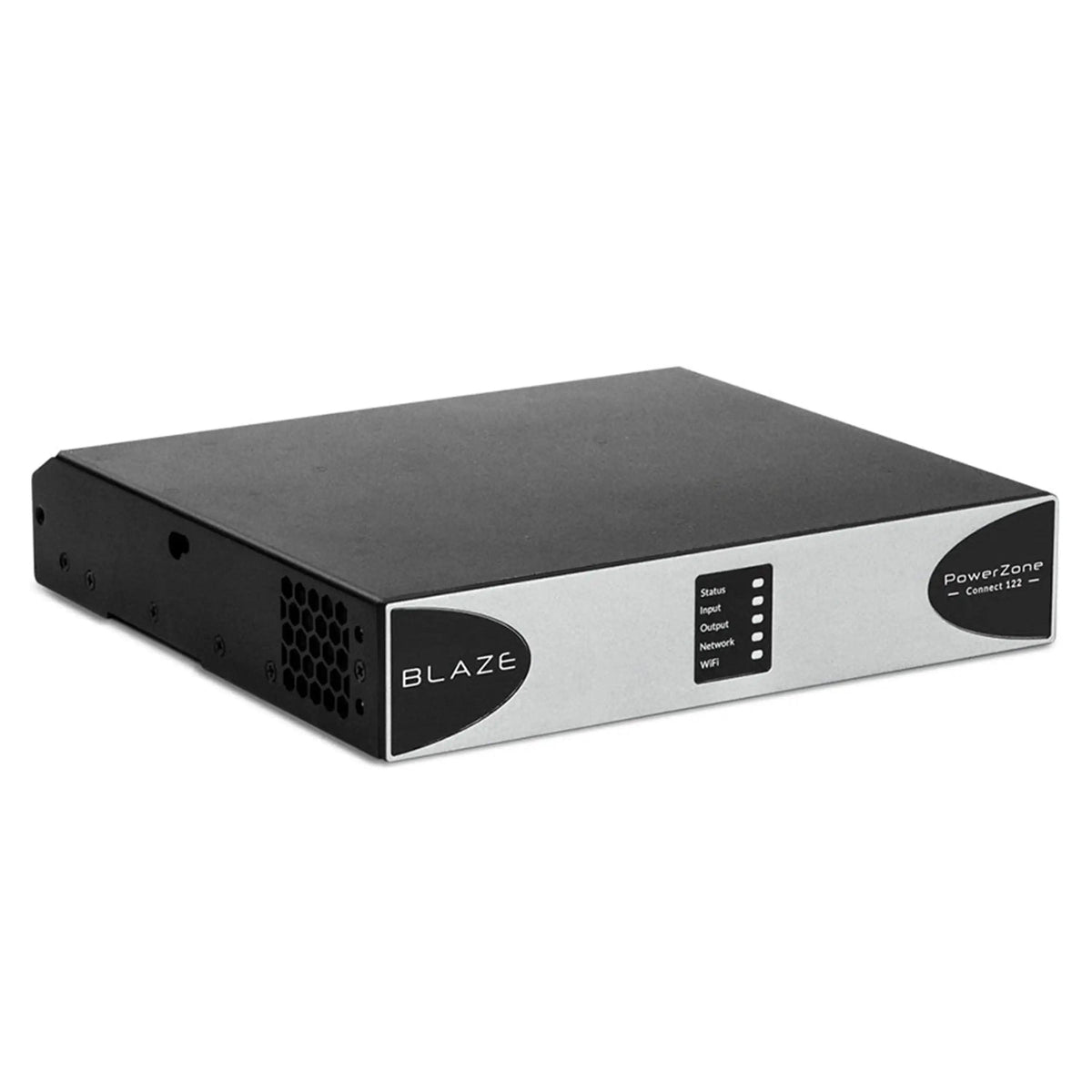

Blaze PowerZone Connect 122 Installation Power Amplifier is a half-rack, 1U network-connected installation amplifier with full matrix DSP, controlled through the PowerZone Control web app. It drives low impedance and constant voltage loudspeakers and has four analog inputs plus a stereo digital input.
Specifications
| SKU | POWERZONE CONN 122 |
|---|---|
| Model | PowerZone Connect 122 |
| Format | Half-rack, 1U |
| Control | PowerZone Control web app, network connected |

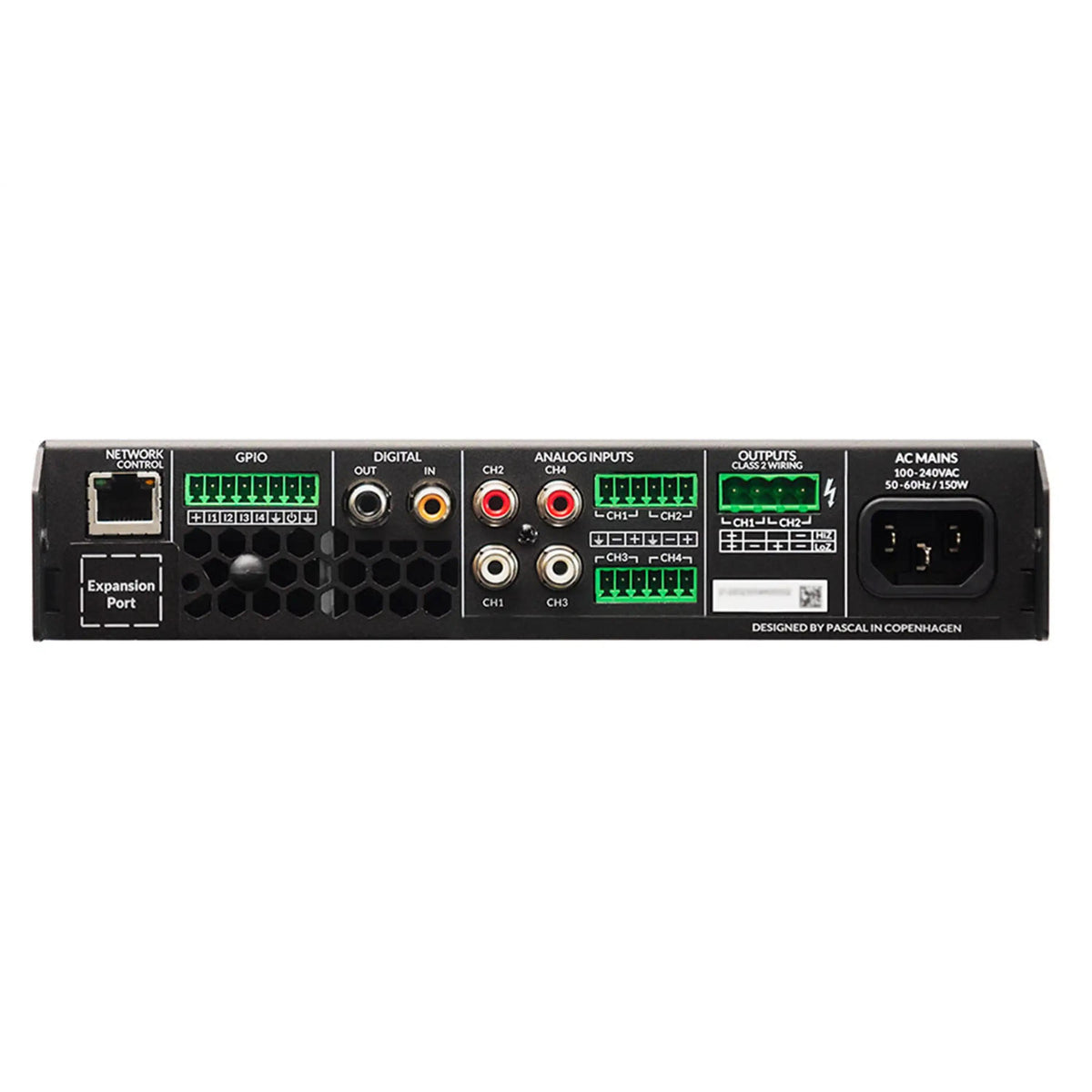

| Inputs | Four analog and stereo digital |
| DSP | Full matrix DSP embedded and controlled via TCP/IP |
| Targeted Constant Voltage | Optimal hybrid of Lo-Z and Hi-Z performance |
| Master / Slave | S/PDIF link to multiple amps |
| Power share | Support power sharing up to 1 x 125 W |
| Power supply | UREC™ universal power supply with PFC |
| Reliability | Based on Pascal’s proven technologies |
| Total System Power | 125 W |
| Output Power @ 4/8Ω | 2 x 60 W |
| Output Power @ 70/100V | 1 x 125 W |
| Powershare (up to) across all channels | 1 x 125 W |
| Power Consumption | 75W |
| Output Circuitry | UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion |
| Output Voltage | 70Vp / 140Vpp (unloaded) // Bridged 140Vp / 280 Vpp (unloaded) |
| Signal To Noise-Ratio | Over 106dB (A-weighted, 20Hz-20kHz, 8Ω load) |
| THD+N (typical) | Under 0.05% (20Hz-20kHz, 8Ω load, 3dB below rated power) |
| Frequency Response | 20Hz-20kHz (+0/-0.25dB, 8Ω load, 3dB below rated power) |
| Protection Circuits | Short circuit, DC, Undervoltage, Temperature, and Overload protection |
| Power Supply | UREC™ universal mains switch mode power supply with Power Factor Correction (PFC) and standby converter |
| Operating temperature | 0-40°C |
| Operating Voltage/Frequency | Universal Mains, 100V-240V, 50Hz-60Hz |
| Standby Consumption | 0.5W |
| Optional Accessories | 2x Rack ears; 1x ½ rack plate extension; 2x ½ rack mounting; 2x Rear supports |
| Power Ratings | 1% THD @ 120Vac and 230Vac |
Measurements
| Dimensions | 44 x 220 x 213 mm (1.7 x 8.7 x 8.4 in) |
|---|---|
| Weight | 2kg (4.4 lbs) |
Common questions
How much power does the Blaze PowerZone Connect 122 have?
The Blaze PowerZone Connect 122 has 125 W total system power: 2 x 60 W at 4/8Ω or 1 x 125 W at 70/100V.
How do I control the Blaze PowerZone Connect 122?
The Blaze PowerZone Connect 122 is network connected and controlled through the PowerZone Control web app, with full matrix DSP controlled via TCP/IP.
What inputs does the Blaze PowerZone Connect 122 have?
The Blaze PowerZone Connect 122 has four analog inputs and a stereo digital input.
Can I link more than one Blaze PowerZone Connect 122?
Yes. The Blaze PowerZone Connect 122 has Master / Slave functionality over an S/PDIF link to multiple amps.
How big is the Blaze PowerZone Connect 122?
The Blaze PowerZone Connect 122 is a half-rack 1U unit measuring 44 x 220 x 213 mm (1.7 x 8.7 x 8.4 in) and weighs 2kg (4.4 lbs).
What voltage does the Blaze PowerZone Connect 122 run on?
The Blaze PowerZone Connect 122 has a universal mains supply for 100V-240V, 50Hz-60Hz.
