Description

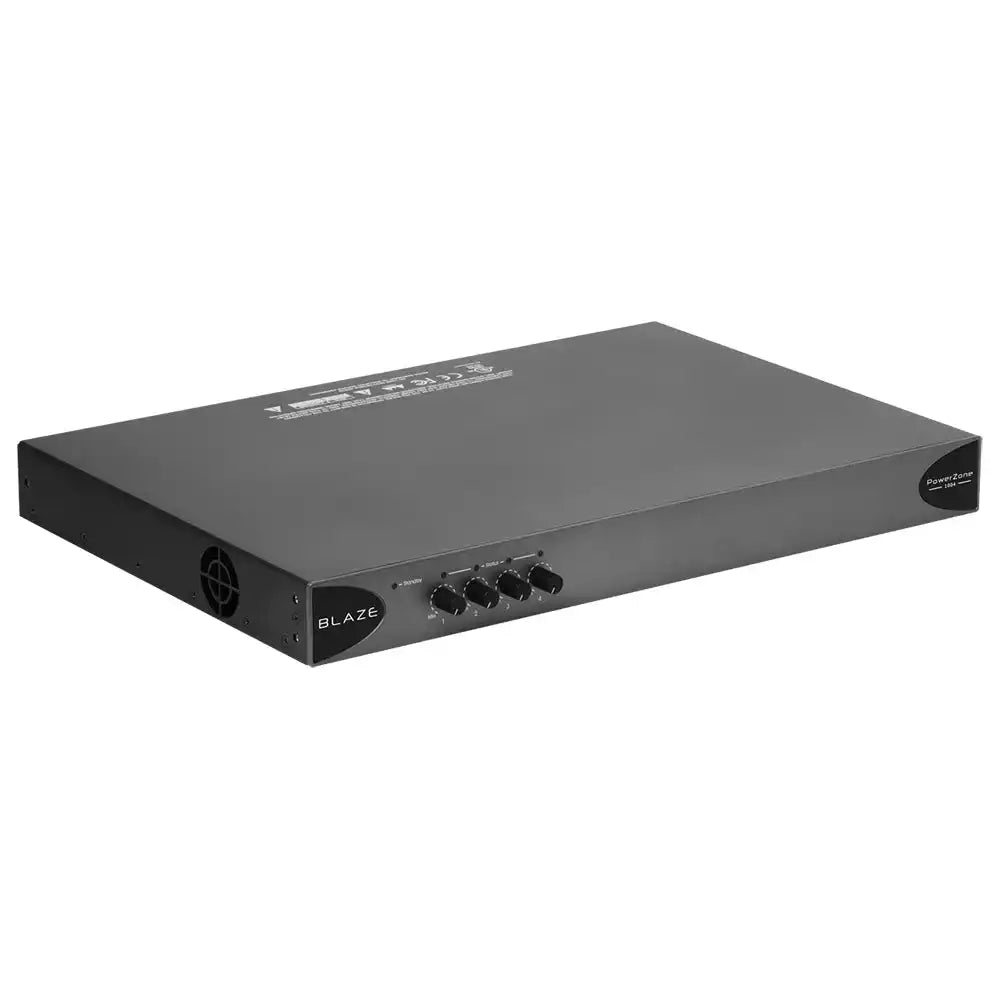

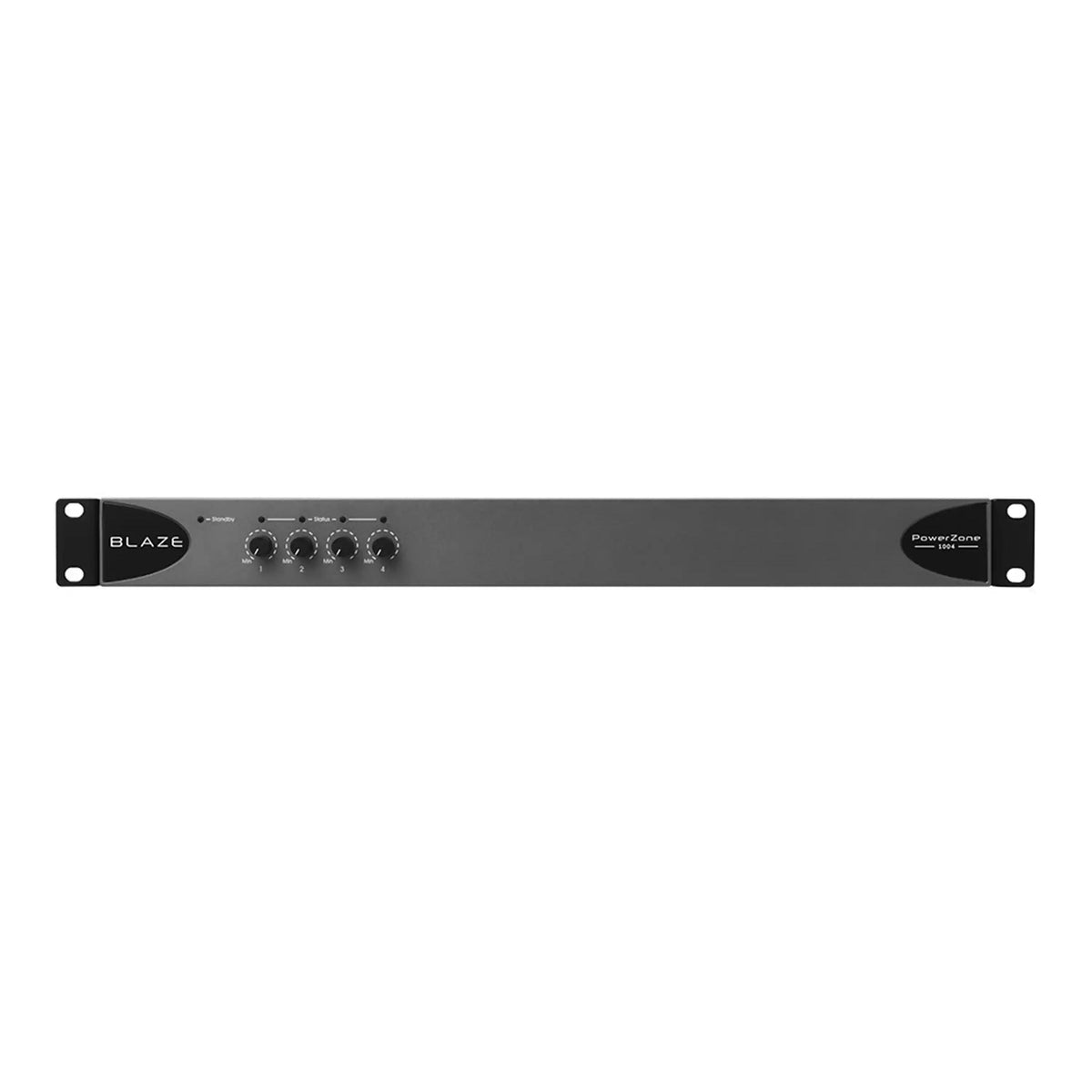

Blaze PowerZone 1004 Installation Power Amplifier is a 1U rack installation power amplifier with 4 x 250 W channels, each set independently to drive low impedance (4Ω to 16Ω) or constant voltage (70V/100V) speakers. It runs on Pascal UMAC™ Class-D technology.
Specifications
| SKU | POWERZONE 1004 |
|---|---|
| Model | PowerZone 1004 |
| Format | 1U rack |
| Total System Power | 1000 W |
| Output Power @ 4/8Ω | 4 x 250 W |
| Output Power @ 70/100V | 4 x 250 W |
| Powershare (up to) | N/A |
| Power Consumption | 300W |
| Output Circuitry | UMAC™ Class D - full bandwidth PWM modulator with ultra-low distortion |
| Output Voltage | 70 Vp / 140 Vpp (unloaded) / Bridged 140 Vp / 280 Vpp (unloaded) |
| Signal To Noise-Ratio | Over 100 dB (A-weighted, 20 Hz - 20 kHz, 8 Ω load) |
| THD+N (typical) | Under 0.05 % (20 Hz - 20 kHz, 8 Ω load, 3 dB below rated power) |
| Frequency Response | 20 Hz - 20 kHz (+0/-0.25 dB (8 Ω load, 3 dB below rated power)) |
| Output configuration | Any output channel in Low or High impedance (Lo-Z 4Ω to 16Ω or 70V/100V) |

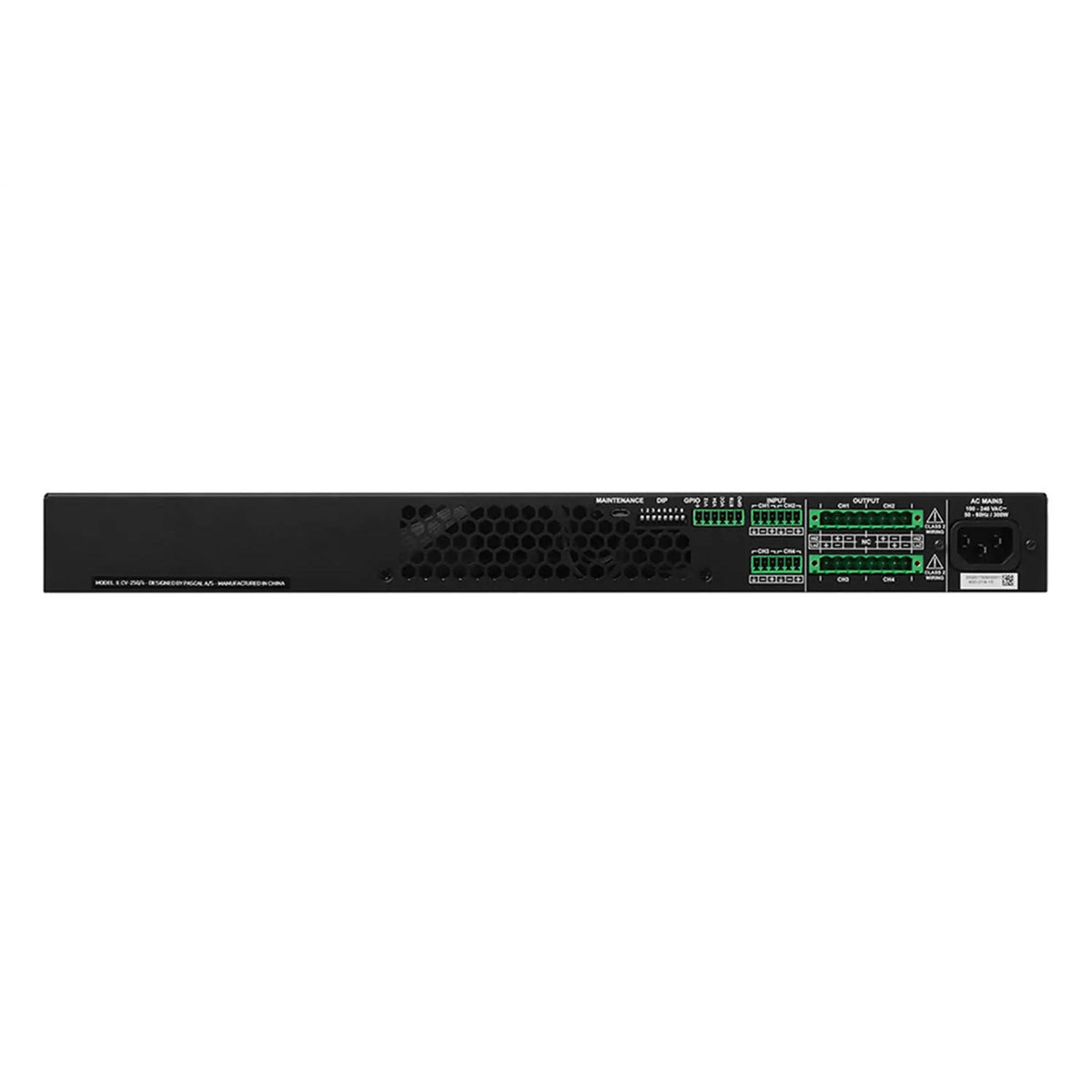

| Setup | DIP switches for on-site configuration, GPIO connectors for external controllers |
| Efficiency | Class leading energy efficiency and long-term low running cost |
| Amplifier technology | Pascal UMAC™ Class-D |
Measurements
| Dimensions | 44.5 x 440 x 292 mm (1.75 x 17.32 x 11.50 in) |
|---|---|
| Weight | 3.6 kg (7.9 lbs) |
Common questions
How many channels does the Blaze PowerZone 1004 have?
The Blaze PowerZone 1004 has four channels of 250 W each, for 1000 W total system power.
Can the Blaze PowerZone 1004 drive 70V or 100V speakers?
Yes. Each output channel of the Blaze PowerZone 1004 can be set to drive low impedance (4Ω to 16Ω) or constant voltage (70V/100V) speakers.
How is the Blaze PowerZone 1004 configured?
The Blaze PowerZone 1004 is set up on site with DIP switches and has GPIO connectors for external controllers.
How big is the Blaze PowerZone 1004?
The Blaze PowerZone 1004 is a 1U rack unit measuring 44.5 x 440 x 292 mm (1.75 x 17.32 x 11.50 in) and weighs 3.6 kg (7.9 lbs).
How much power does the Blaze PowerZone 1004 draw?
The Blaze PowerZone 1004 has a power consumption of 300W.
