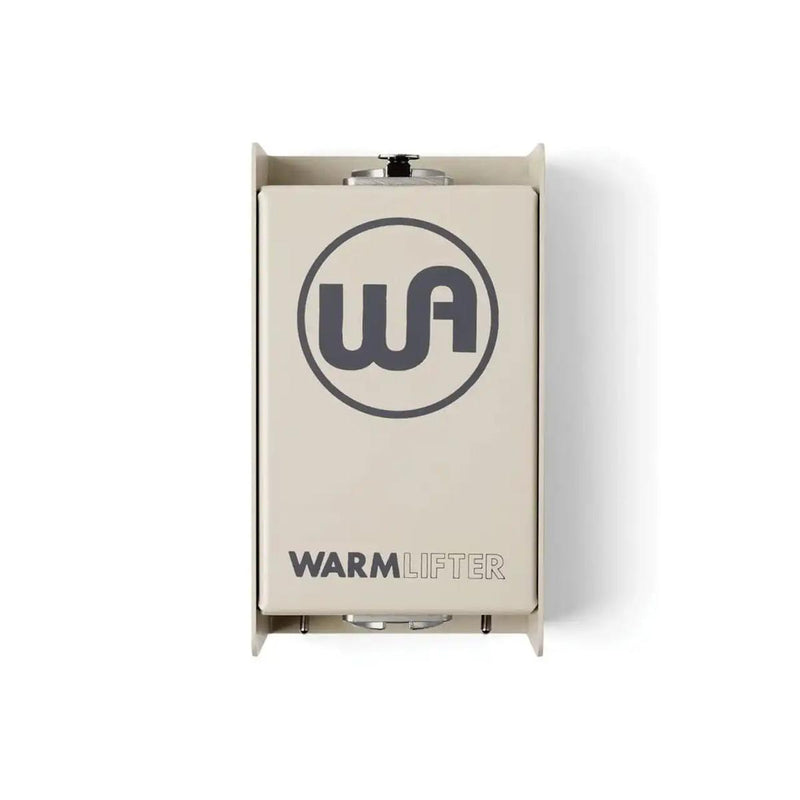

Discover the Warm Audio WA-WL Active Microphone Preamp
At Terry Carter Music Store, we take pride in offering the Warm Audio WA-WL Active Microphone Preamp. This inline active microphone preamp stands out for its ultra-low noise JFET input, ensuring pristine audio quality. Because of its balanced in/out signal path, your recordings will achieve a clarity that is hard to match.
Unmatched Features for Every Recording
The Warm Audio WA-WL provides 26 dB of true analog gain, making it a versatile choice for various applications. Additionally, it includes selectable high-pass filters and high-shelf boosts that enhance your sound. For example, the 100 Hz high-pass filter can cut unwanted low-end noise, while the 3 kHz boost adds brightness to vocals.
Exceptional Performance and Reliability
With an input impedance of 2.4k Ohm and an output impedance of 150 Ohm, this preamp offers remarkable versatility. In fact, it handles a max input of -11 dBu and a max output of 15 dBu effortlessly.
Given that it features a frequency response of 10-100 kHz, your recordings will capture the entire spectrum.Furthermore, it operates with 48v phantom power and a low current draw, making it an excellent choice for professionals and enthusiasts alike.
Specifications:
- Inline Active Microphone Preamp
- Ultra Low Noise JFET Input
- Balanced (In/Out) Signal Path
- 26 dB of True Analog Gain
- Selectable 100 Hz (12 dB) High-Pass Filter ¦ Selectable 3 kHz (2.5 dB) High-Shelf Boost
- Input Impedance: 2.4k Ohm ¦ Output Impedance: 150 Ohm
- Max-Input: -11 dBu (218mV rms) ¦ Max-Output: 15 dBu (4.36V rms)
- THD+N @ 15dBu: -100dB (0.001%)
- Output Noise: 7.75 uV (A-weighted) with 150 Ohm Input
- Frequency Response: 10-100kHz +/-0.2 dB
- 48v Phantom Powered with 4.7mA Current Draw
