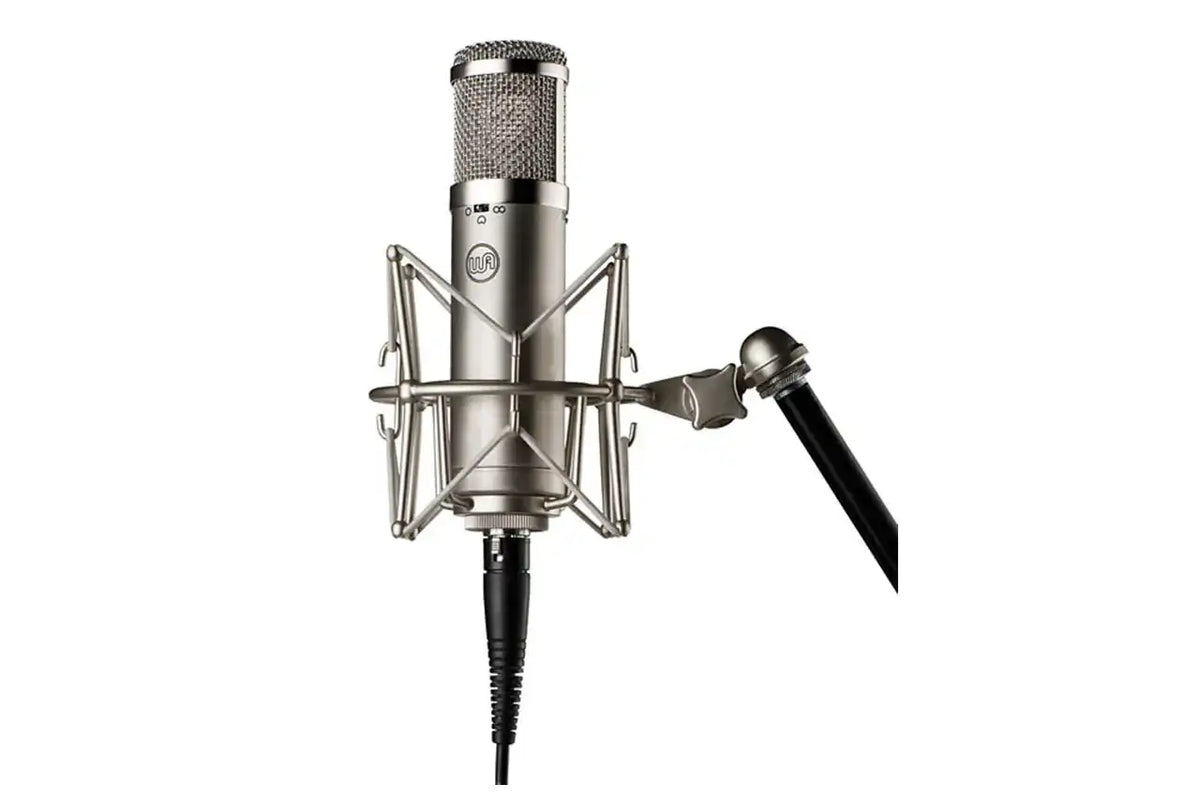

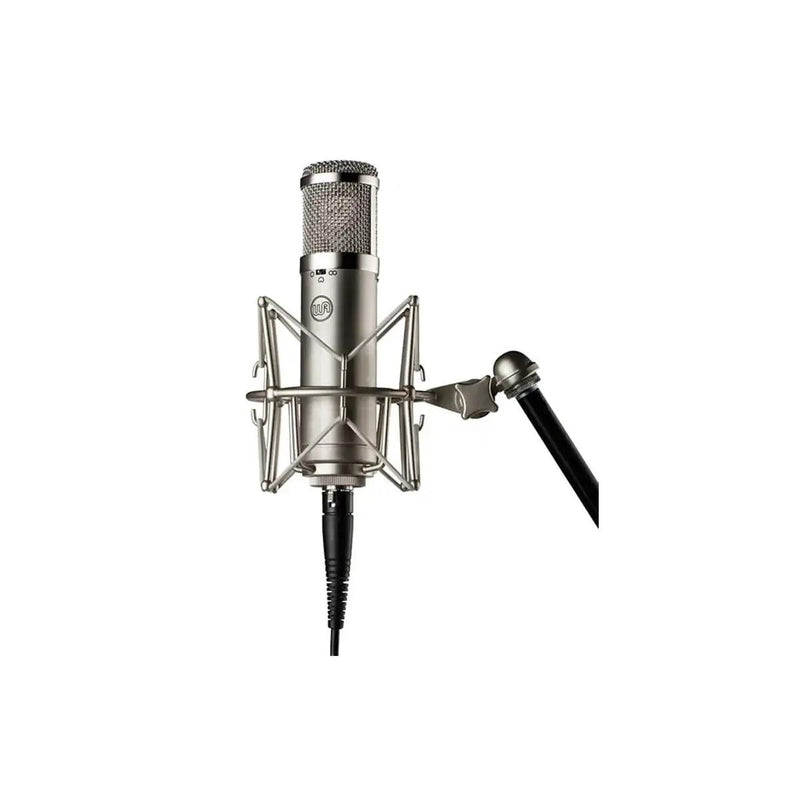

Experience the Warm Audio WA-47Jr Condenser Microphone
Firstly, at Terry Carter Music Store, we proudly offer the Warm Audio WA-47Jr Condenser Microphone. Moreover, this exceptional instrument features a fully discrete, transformerless signal path, ensuring pristine audio quality.
Unmatched Craftsmanship and Features
Secondly, the WA-47Jr is equipped with a custom ’47-style K47 capsule, boasting a gold-sputtered, dual-diaphragm design. This microphone also incorporates Toshiba FETs and Wima film capacitors, delivering remarkable clarity. Additionally, it offers versatile polar patterns, including cardioid, figure-8, and omnidirectional, accommodating a range of recording needs.
Versatile and Reliable Performance
Furthermore, with a self-noise level of only 9dBA and a dynamic range of 138dBA, the WA-47Jr performs well in any recording setting. Its 10dB pad and 70Hz highpass filter improve its flexibility. Finally, included accessories like the shock mount, hard mount, and zipper storage pouch make sure you are well-prepared.
Specifications:
- Fully discrete, transformerless signal path
- Custom ’47-style k47 34mm gold-sputtered, dual-diaphragm, single–back plate, 6 micron Mylar capsule
- Toshiba FETs, Wima film capacitors, Panasonic electrolytic capacitors
- Cardioid, figure-8, and omnidirectional polar patterns
- 10dB pad; 70Hz highpass filter
- Self-noise: 9dBA
- Dynamic range: 138dBA
- Maximum SPL: 147/157dB (at 1kHz, 1 Kohm, 0.5% THD, 0/-10dB)
- Frequency range: 20Hz–20kHz
- Sensitivity: 10mV/Pa or -40dB
- Output impedance: 100 ohms
- Rated load impedance: ≥1 Kohm
- Maximum Output: 16dBu at 1kHz, 1 Kohm, 0.5% THD
- S/N ratio: 85dBA (IEC651)
- Equivalent noise: 9dBA (IEC651)
- Dynamic range: 138dBA (IEC651)
- 48-volt phantom powered
- 3-pin gold-plated XLR connector
