Description
Stagg SUW 50 HH EG US UHF True Diversity 2-Channel Wireless System with 2 Headset Microphones is a UHF true diversity 2-channel wireless system that pairs one receiver with two headset microphones with belt-pack transmitters, operating on fixed frequencies in the 907.7-921.2 MHz range with a working distance of 60 m (200').
Specifications
| SKU | 28641 |
|---|---|
| Model | SUW 50 HH EG US |
| Type | UHF true diversity 2-channel wireless microphone system |
| Frequency range | 907.7-921.2 MHz (US) |
| Receiver | Fixed frequencies; Audio output unbalanced, maximum 5 dBu; Power supply 12-18 V DC; Power consumption 150 mA (at 13.5 V DC); Sensitivity -90 dBm |
| Microphones and belt-pack transmitters | Fixed frequencies; RF emitting power 10 mW; Battery type 2 x AA battery; Frequency response 50 - 20,000 Hz; Input sensitivity 2.1 mV / Pa; Power consumption 100 mA at 3 V |
| System | Total harmonic distortion 0.1 %; Signal-to-noise ratio 96 dB; Fixed frequencies; Operational bandwidth 300 kHz; Dynamic range 90 dB; Audio sampling 24 bits / 48 kHz; Oscillation mode PLL synthesized; Audio delay 3 ms; Audio encoder PT live; Frequency response 20 - 20,000 Hz; Working distance 60 m (200') |

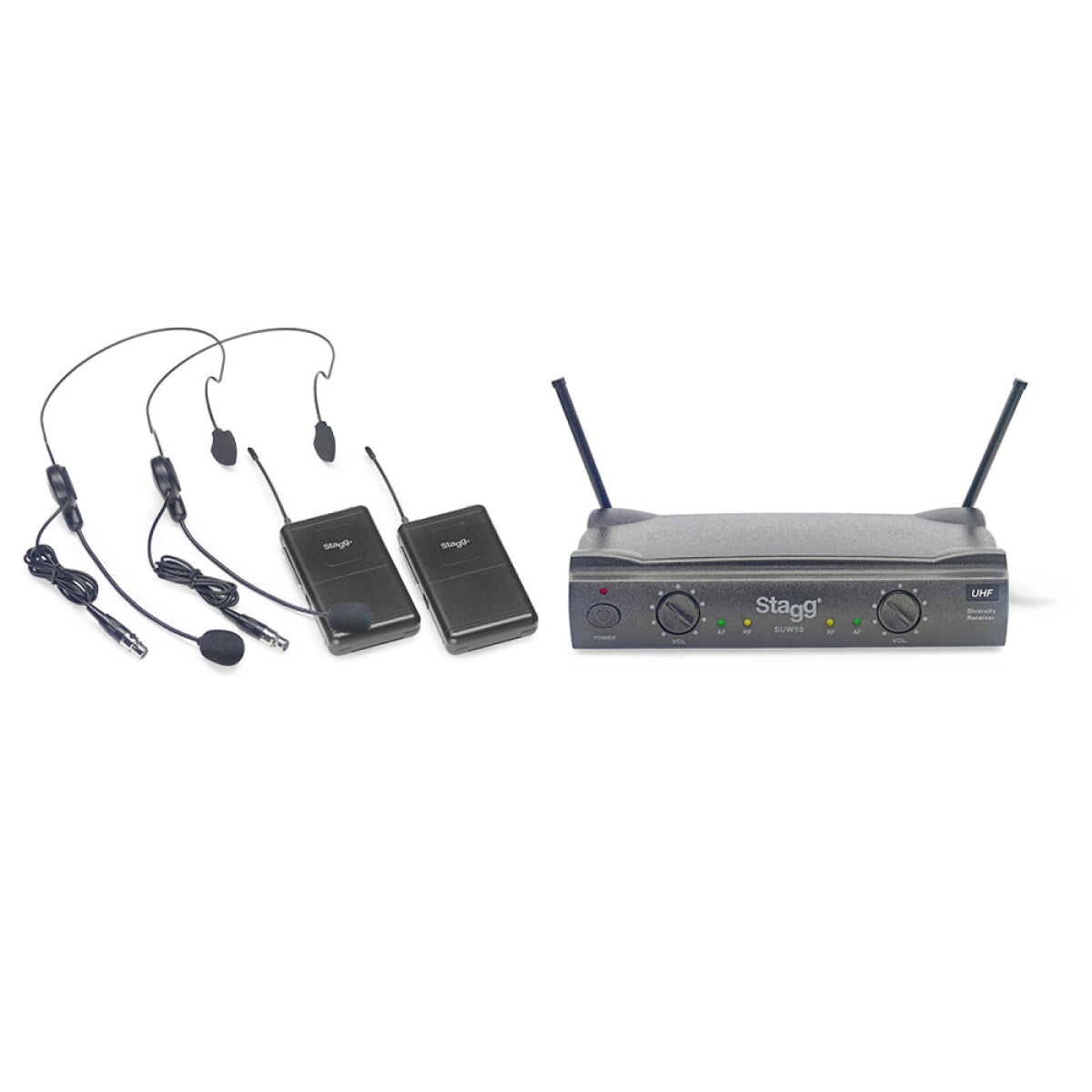

What is included

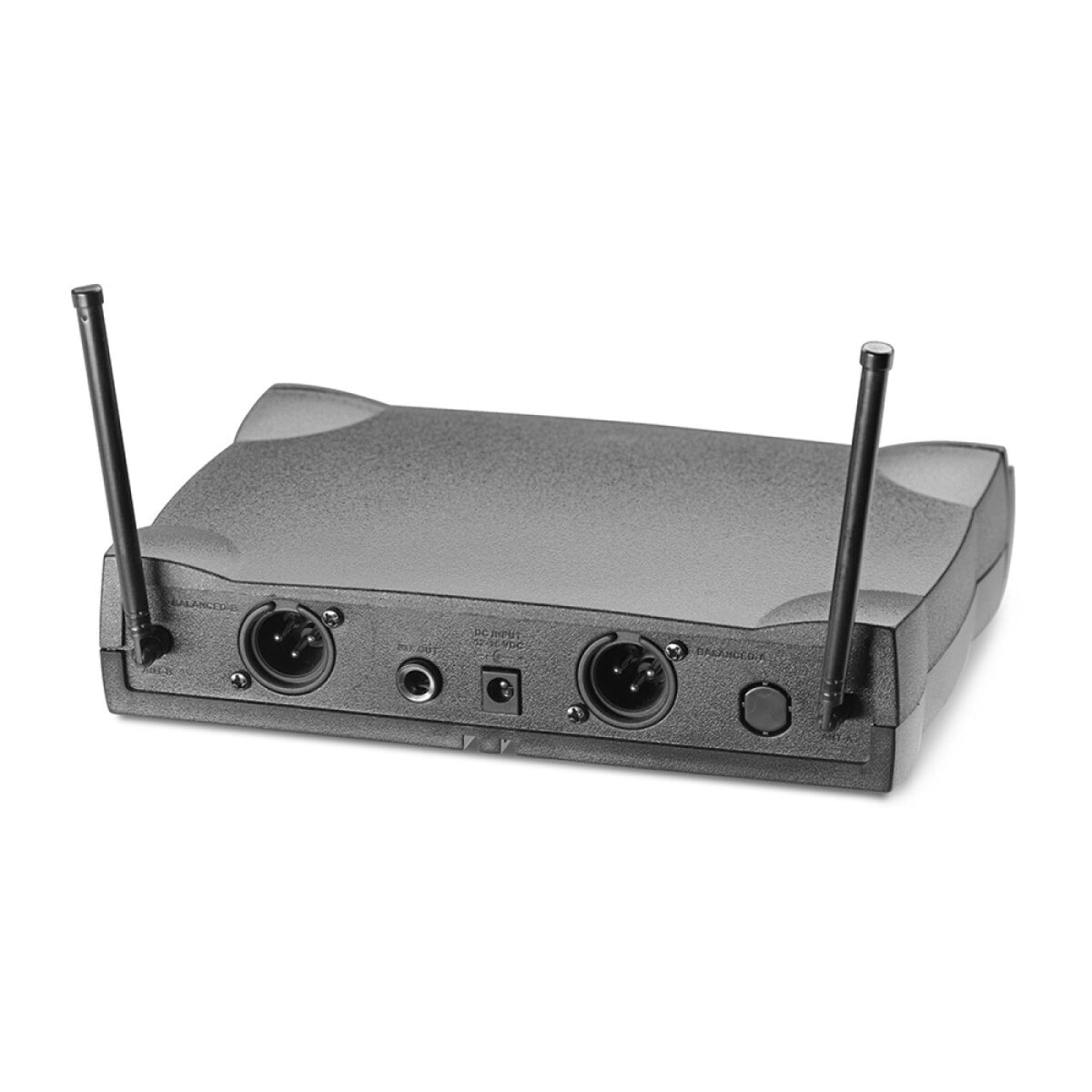

- Stagg SUW 50 HH EG US 2-channel UHF receiver
- 2 headset microphones with belt-pack transmitters
Common questions
How many microphones does the Stagg SUW 50 HH EG US wireless system support?
The Stagg SUW 50 HH EG US is a 2-channel UHF true diversity system, so one receiver works with two headset microphones with belt-pack transmitters at the same time.
What frequency and range does the Stagg SUW 50 HH EG US use?
The Stagg SUW 50 HH EG US uses fixed UHF frequencies in the 907.7-921.2 MHz range, is PLL synthesized and has a working distance of 60 m (200').
What power does the Stagg SUW 50 HH EG US use?
The Stagg SUW 50 HH EG US receiver runs on a 12-18 V DC power supply, and the microphones and belt-pack transmitters run on 2 x AA batteries.
What kind of microphones come with the Stagg SUW 50 HH EG US?
The Stagg SUW 50 HH EG US is supplied as two headset microphones with belt-pack transmitters.
What type of batteries does the Stagg SUW 50 HH EG US transmitter use?
The microphones and belt-pack transmitters of the Stagg SUW 50 HH EG US use 2 x AA batteries.
What is the frequency response of the Stagg SUW 50 HH EG US?
The Stagg SUW 50 HH EG US microphones and transmitters have a frequency response of 50 - 20,000 Hz.
