Description

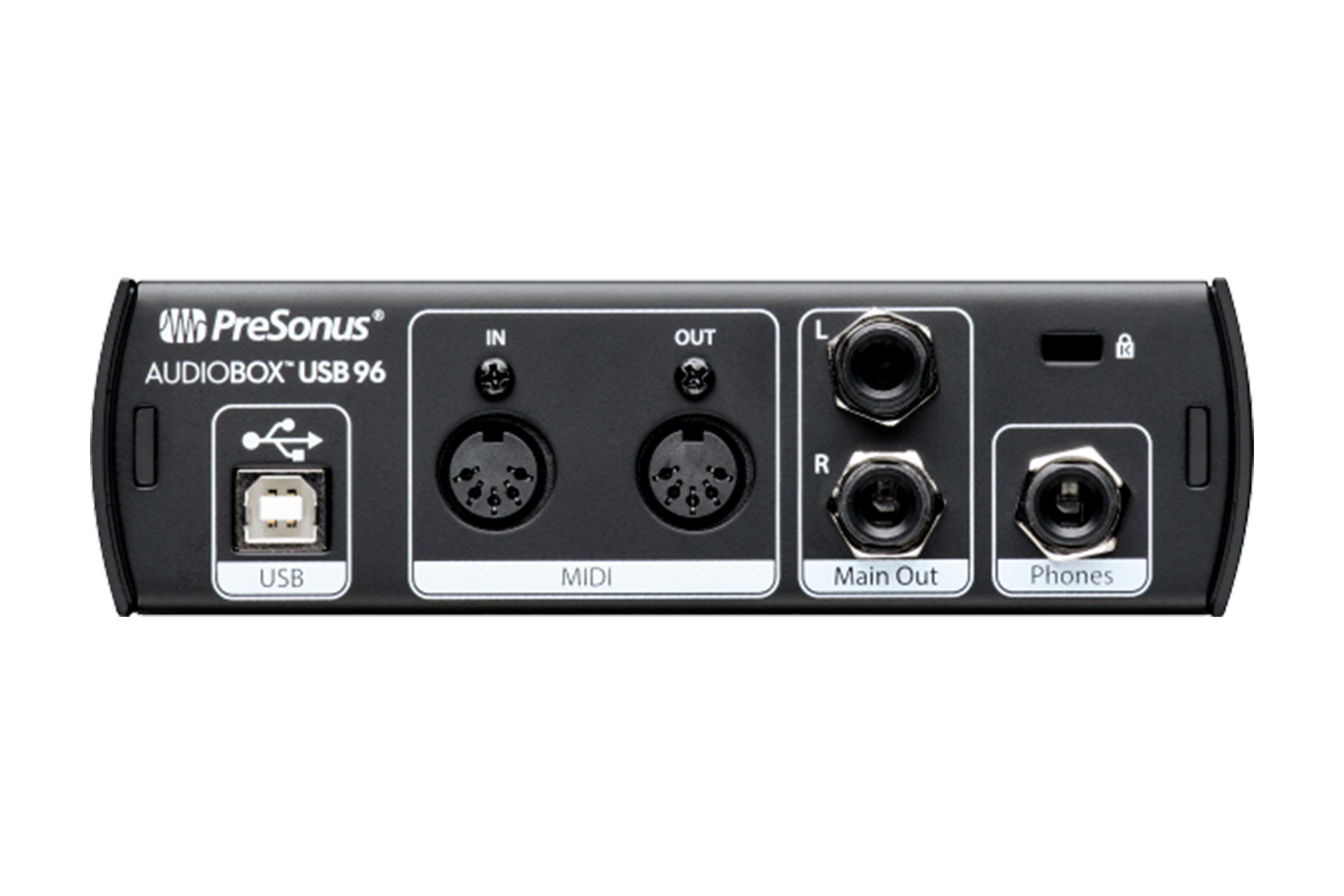

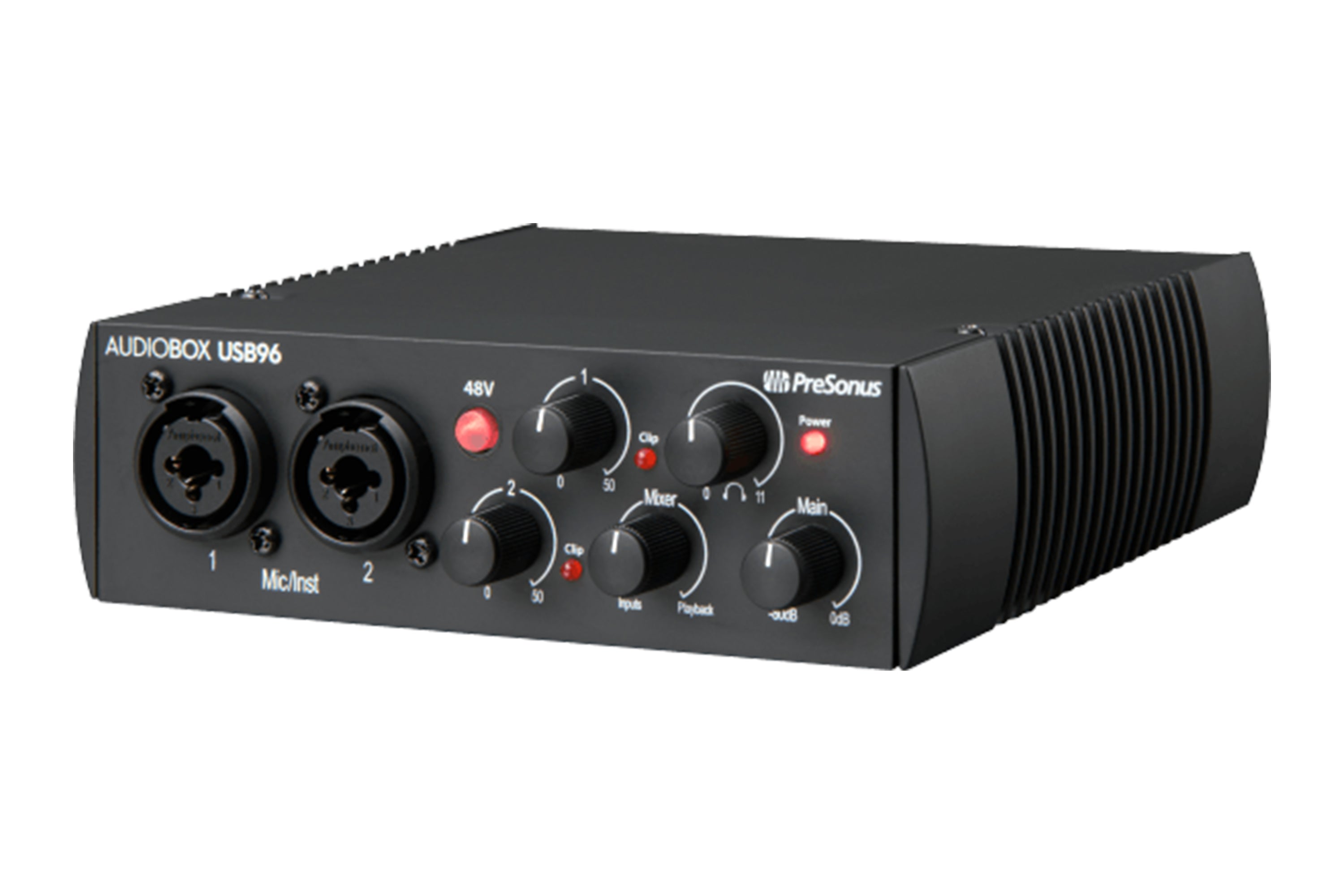

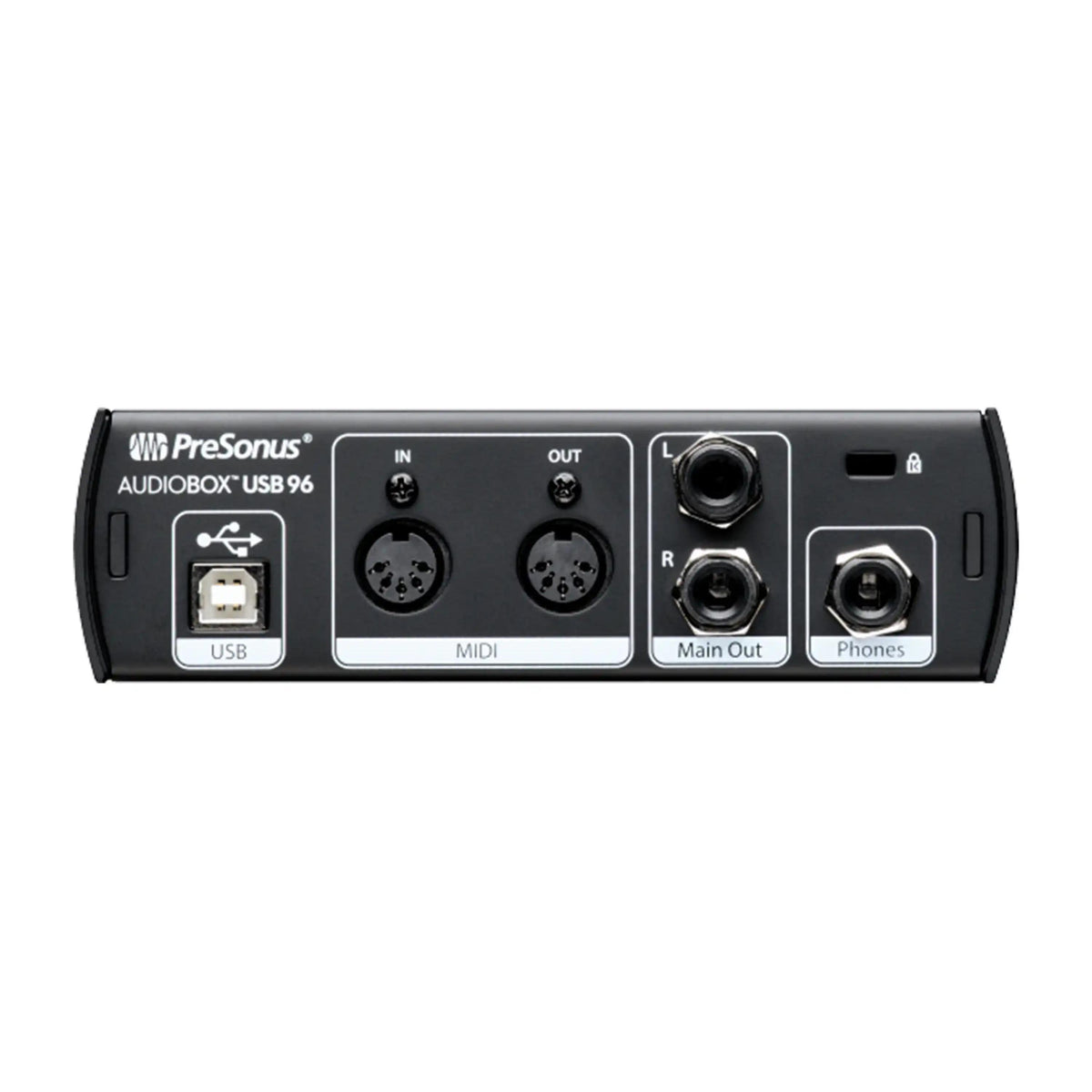

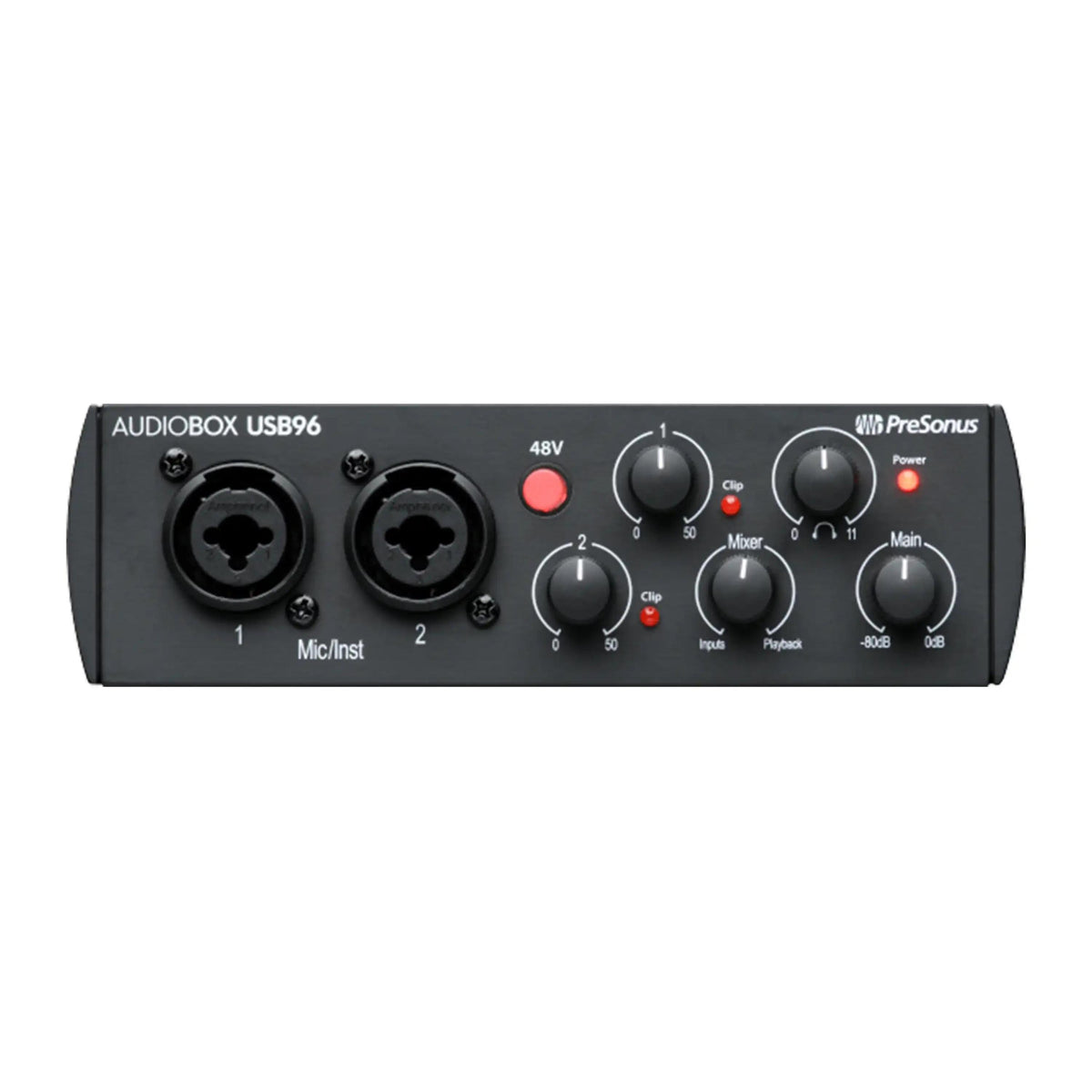

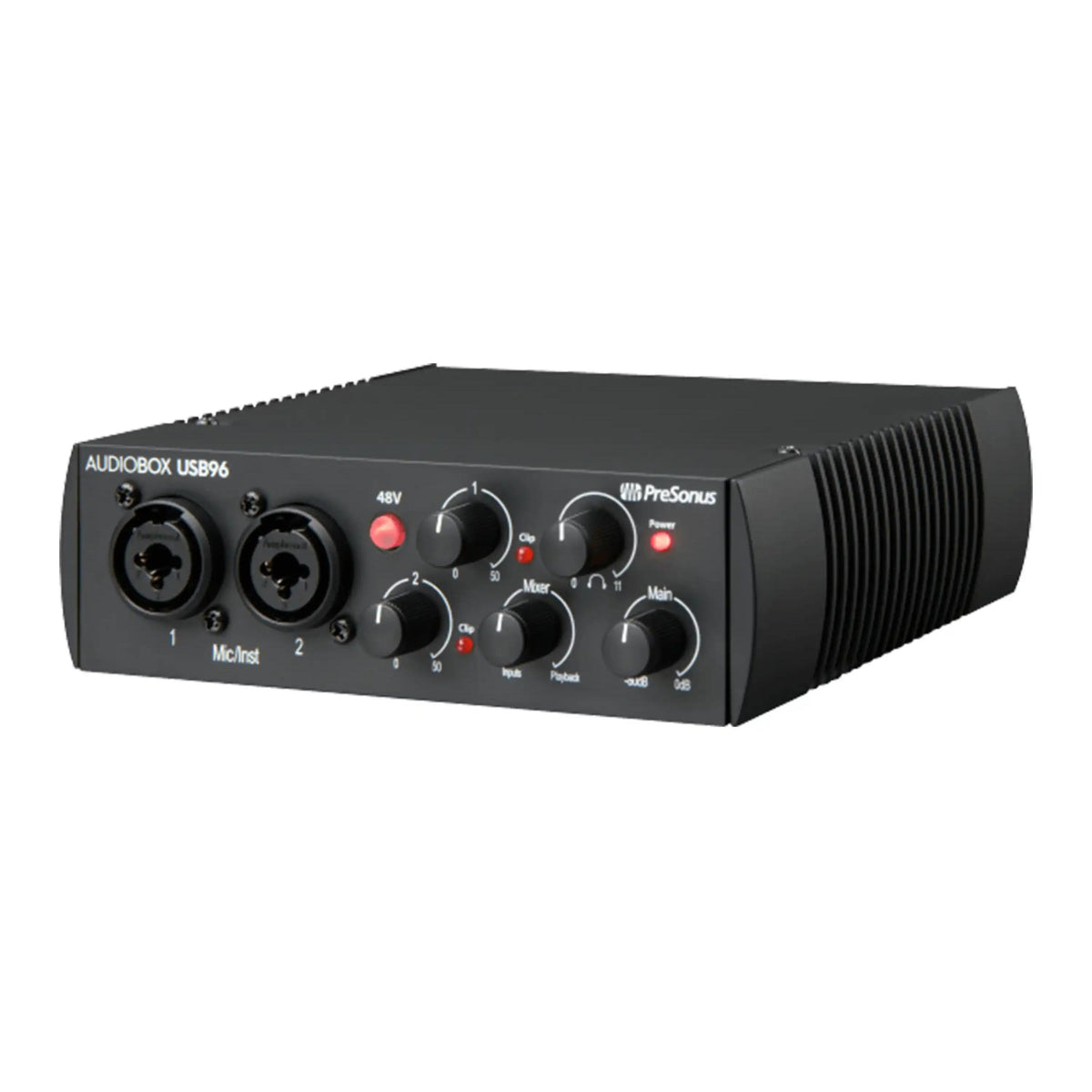

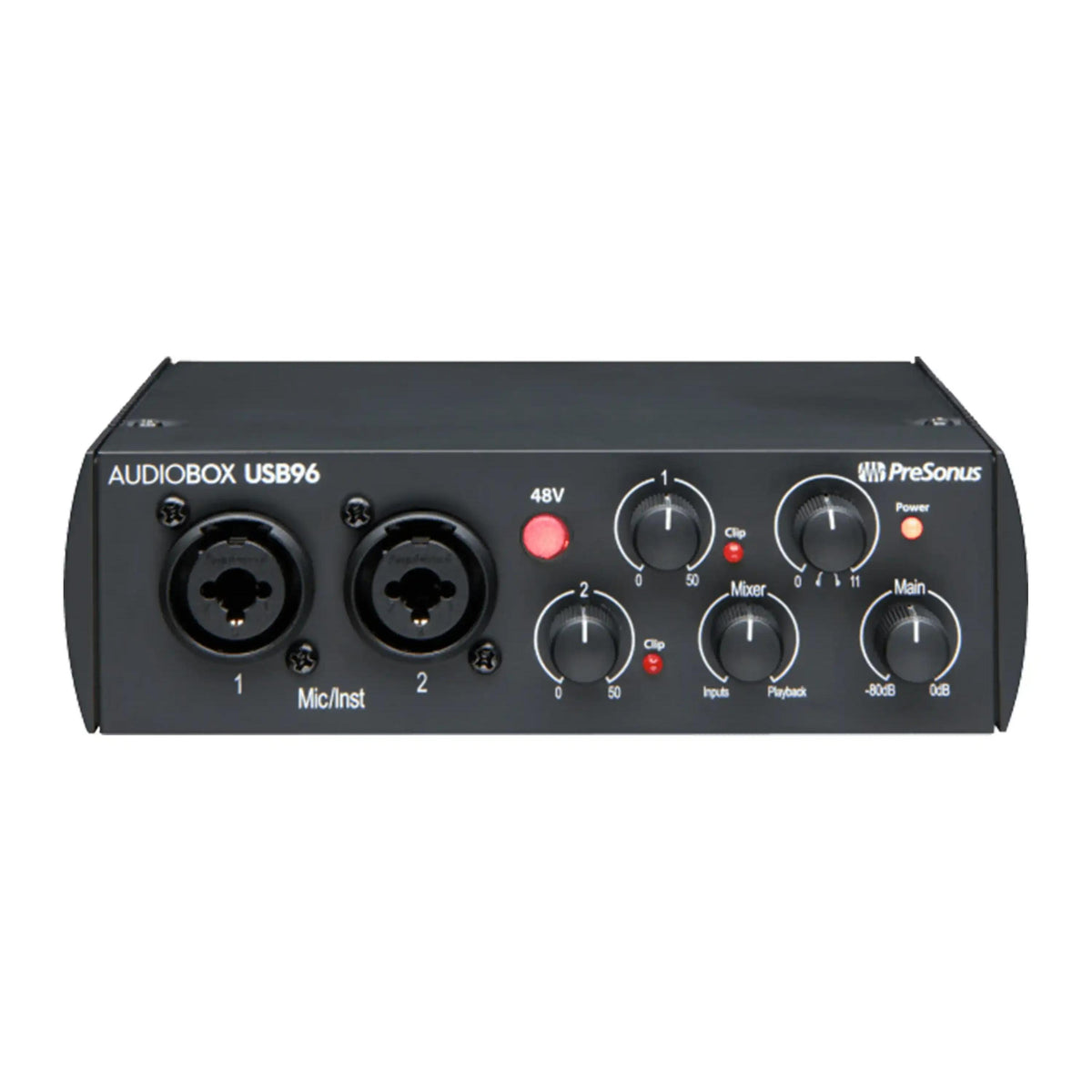

PreSonus AudioBox 25th Anniversary: Essential Features for Instant Recording
Introducing the PreSonus AudioBox 25th Anniversary Edition, now available at Terry Carter Music Store. Crafted for simplicity, the AudioBox USB® 96 offers essential features for immediate recording. With two combo mic/instrument inputs and balanced line-level outputs, it's perfect for singer/songwriters, podcasters, and collaborations.
Portable Powerhouse: Robust Design and Seamless Compatibility on the Go
Designed for portability, the AudioBox USB 96 boasts a robust steel chassis, ideal for mobile recording. No need for special drivers; it's USB class-compliant and compatible with Apple Silicon-based Macs, iOS, and iPadOS devices. Plus, its ultra-loud headphone output ensures clarity even in noisy environments.
Complete Recording Solution: Studio One® Artist Bundle Included – Ready to Record Anywhere
Included is PreSonus®' Studio One® Artist and Studio Magic Suite bundle for a comprehensive recording solution. Compatible with macOS, Windows, iOS, and iPadOS software, it's the go-to interface for beginners and seasoned producers alike. Ready to record? The AudioBox USB 96 is your versatile companion, wherever your music takes you.
Electronics:
- Voltage: USB Bus Powered
- Inputs: Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TF Female Unbalanced)
- Headphone Jack: 1/4" TRS Active Stereo
- Line Out: Two - 1/4" Balanced (Left and Right)
Misc:
- Connection Type: USB 2.0 Bus-Powered
- MIDI I/O: Dual 5-Pin Female DIN
Microphone Preamp:
- Total Harmonic Distortion: THD+N (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
- Signal to Noise Ratio: (Unity Gain, Ref. = +4 dBu, 20 Hz to 22kHz) > 95 dB
- Common Mode Rejection Ratio: ( 1 kHz, 55 dB Gain) > 45 dB
- Gain Control Range: (±1 dB) 0 dB to 35 dB
- Microphone Preamp Maximum Input Level: (Unity Gain, 1 kHz @0.5% THD+N) -3 dB
- Phantom Power: +48 VDC (±2 VDC)
- Frequency Response: (±3.0 dB) 20 Hz to 20 kHz
- Microphone Preamp Input Impedance: (Balanced) 1200Ω
Main and Line Outputs:
- Main and Line Outputs Output Impedance: 51Ω
Headphone Outputs:
- Headphone Outputs Maximum Output: 60 mW/Channel @ 60Ω Load
- Frequency Response: (±1.0 dB) 20 Hz to 30 kHz
Digital Audio:
- Digital Audio Dynamic Range: ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
- Digital Audio Bit Depth: 24
- Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
