Description

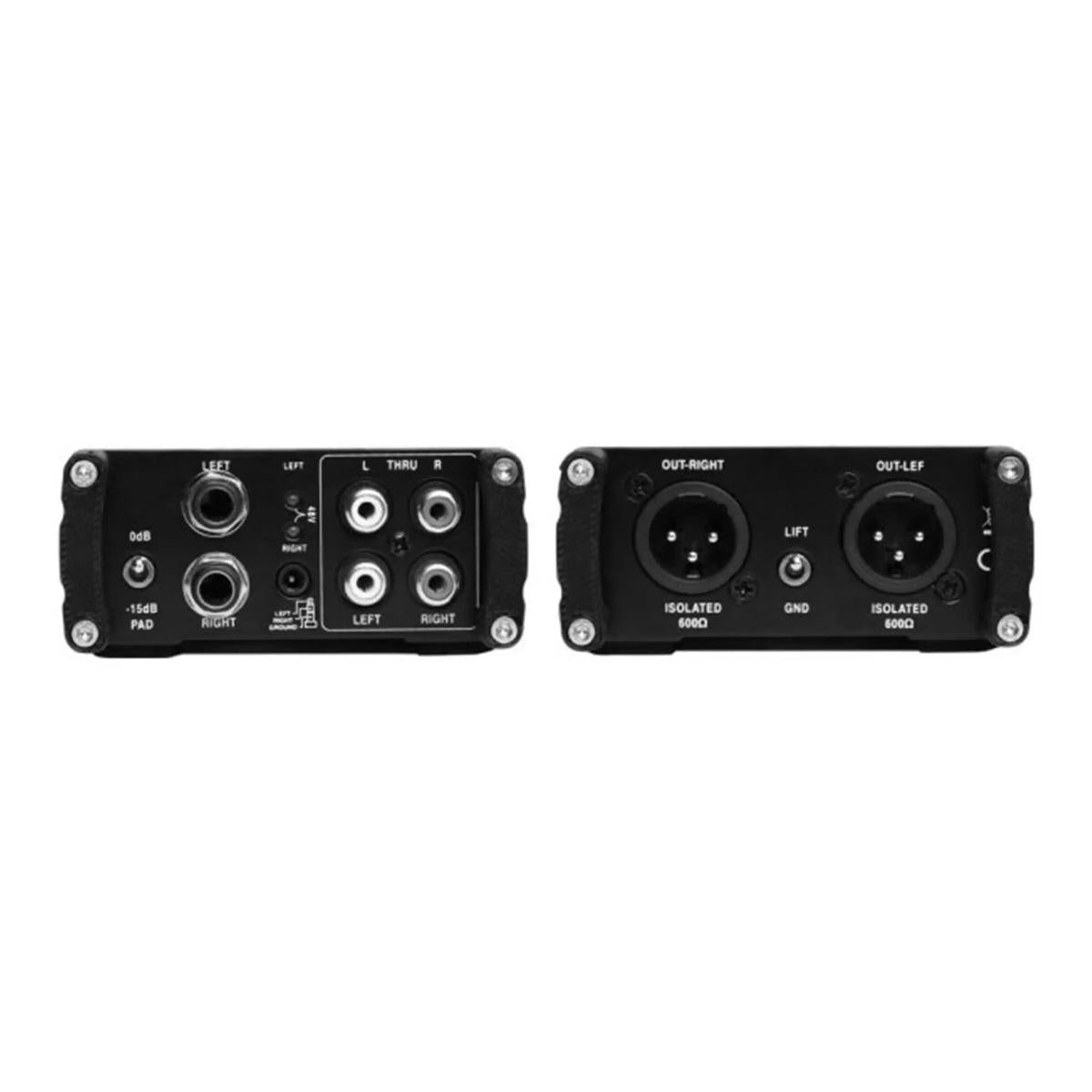

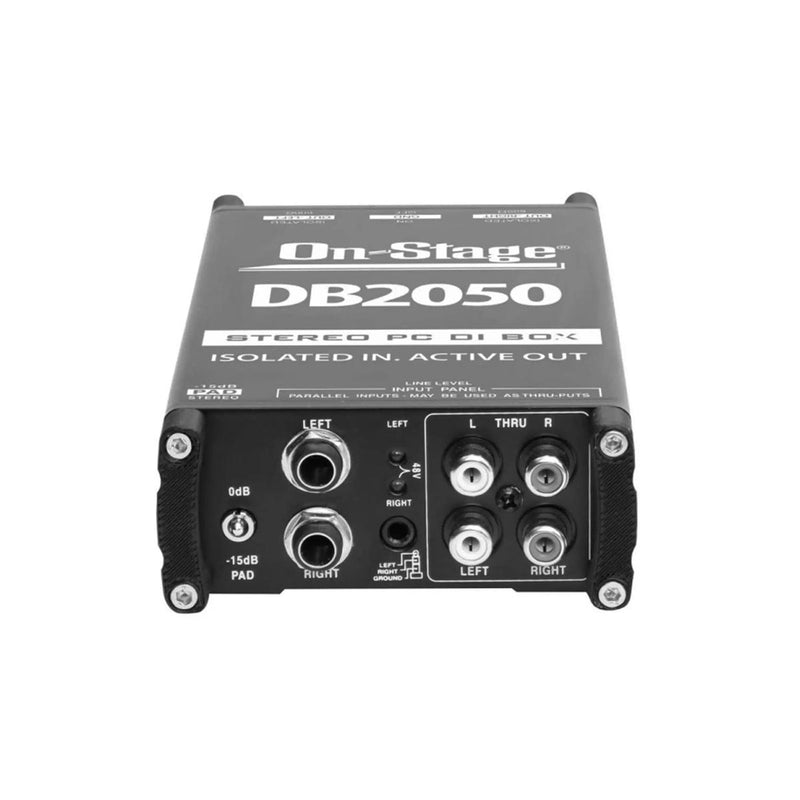

On-Stage DB2050 Active Stereo Multimedia DI Box is an active stereo DI box that converts a line-level stereo source to a balanced, low-impedance stereo XLR output. It takes stereo 1/4”, 3.5 mm or RCA inputs and has a -15 dB pad, ground lift and a throughput connector.
Specifications
| SKU | DB2050 |
|---|---|
| Model | DB2050 |
| Type | Active stereo multimedia DI box |
| Application | Computers, mp3 players, keyboards, projectors, and DJ equipment |
| Inputs | Stereo 1/4” / 3.5mm / RCA |
| Outputs | Isolated stereo XLR |
| Throughput | Throughput connector passes the unaltered signal to a stage amp |
| Input resistance | 50K Ohms |
| Pad | 15dB (-15 dB pad switch prevents clipping) |
| Ground lift | Yes |
| Polarity | Yes |
| Power | Phantom |
| Construction | Metal with nylon bumpers |
| Features | Active circuit with a high-quality transformer for low distortion and an isolated signal path; converts a line-level stereo input to a balanced, low-impedance stereo (XLR) output; output signal can be sent via a long cable to a mixer or PA system without frequency loss |
Measurements
| Dimensions | 6” x 3.5” x 1.5” |
|---|---|
| Weight | 0.70 lbs. |
Common questions
What inputs does the On-Stage DB2050 have?
The On-Stage DB2050 has stereo 1/4”, 3.5 mm and RCA inputs, with isolated stereo XLR outputs.
Does the On-Stage DB2050 need phantom power?
Yes. The On-Stage DB2050 is an active DI box powered by phantom power.
What can I connect to the On-Stage DB2050?
The On-Stage DB2050 is made for computers, mp3 players, keyboards, projectors and DJ equipment.
Does the On-Stage DB2050 have a pad and ground lift?
Yes. The On-Stage DB2050 has a -15 dB pad switch, a ground-lift switch and a polarity switch.
How big is the On-Stage DB2050?
The On-Stage DB2050 measures 6” x 3.5” x 1.5” and weighs 0.70 lbs.
