Description
Nady DW-11 LT-HM Digital Wireless Lapel and Headset Microphone System is a single-channel digital wireless system with a receiver and a Digital LT bodypack transmitter, supplied with lapel and headset microphones. It operates on selected frequencies between 902 and 951 MHz.
What is the Nady DW-11 LT-HM best for?
The Nady DW-11 LT-HM is for users who want a digital wireless lapel or headset microphone. The bodypack accepts microphones through a 1/8-inch (3.5 mm) locking mini-jack, and the receiver has a balanced XLR mic-level output and an adjustable 1/4-inch line-level output.
What is the range and battery life of the Nady DW-11 LT-HM?
The Nady DW-11 LT-HM has a working distance of up to 300 feet line-of-sight. The bodypack transmitter runs on 2 x AA batteries for up to 11 hours.
How fast is the Nady DW-11 LT-HM?
The Nady DW-11 LT-HM has a latency of 3 msec at a 48 kHz sample rate, with digital QPSK modulation.
Specifications
- Model/SKU: DW-11 LT-HM (24625)
- Brand: Nady
- Type: Digital wireless lapel and headset microphone system
- RF carrier frequency range: Selected frequencies between 902 and 951 MHz
- Frequency response: 20 Hz - 20 kHz +/- 3 dB
- Dynamic range: 120 dB (A-weighted)
- Total harmonic distortion: <0.1%
- Latency: 3 msec (48 kHz sample rate)
- Frequency stability: +/- 20 PPM, PLL controlled
- Modulation: Digital QPSK

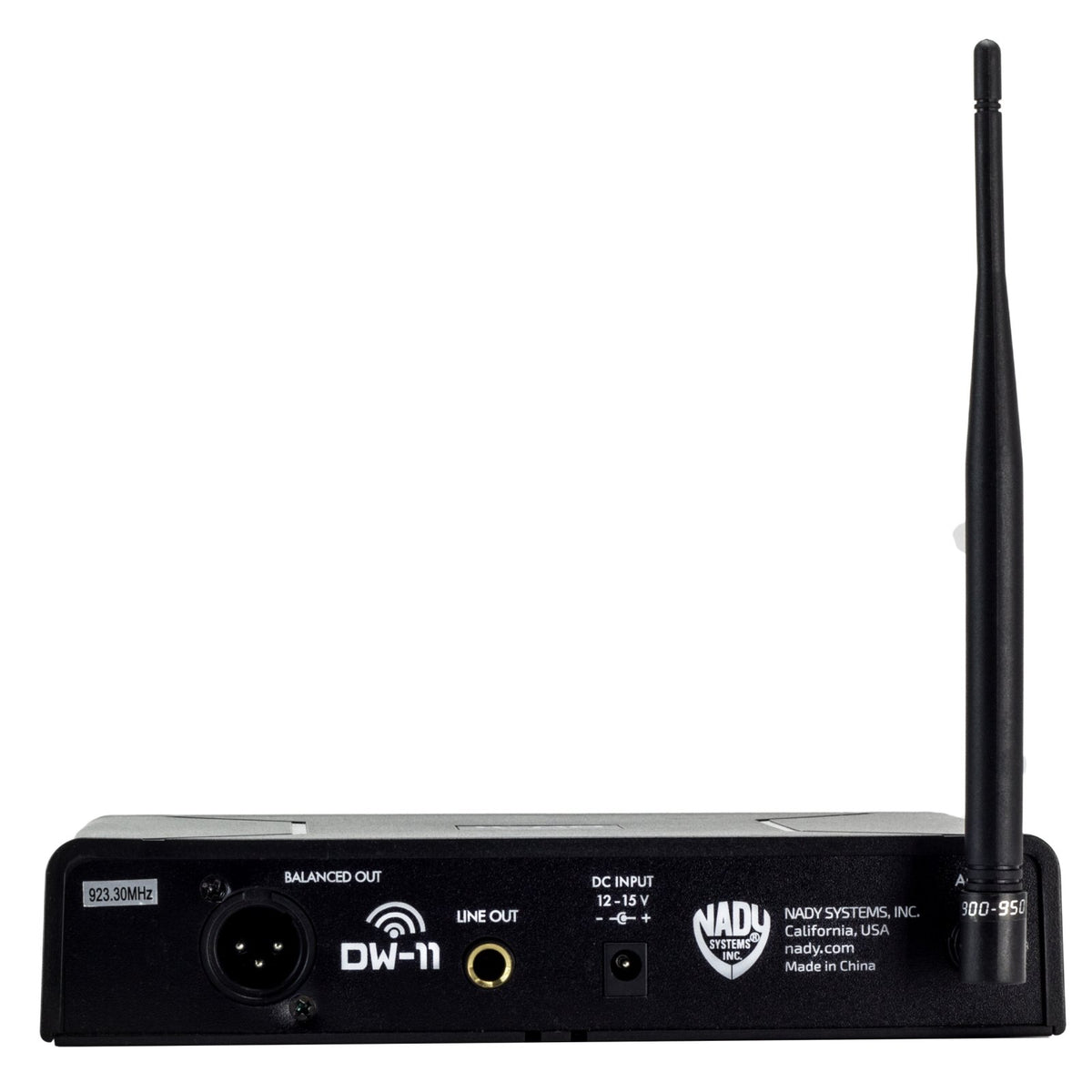

- Receiver audio output: Balanced XLR mic level and adjustable 1/4-inch line level
- Receiver reception: External 7.25-inch (18.5 cm) attached antenna
- Receiver sensitivity: -94 dBm
- Unwanted signal rejection: 60 dB image and spurious
- Receiver weight: 340 g (0.75 lbs)
- Receiver dimensions: 203 x 152 x 44 mm (8 x 6 x 1.75 in)
- Transmitter: Digital LT bodypack
- Transmitter RF power out: +13 dBm (50 mW maximum allowed by FCC)
- Transmitter RF spurious emissions: < -50 dB
- Transmitter battery: 2 x AA, up to 11 hours
- Transmitter input sensitivity: 2.1 mV / Pa
- Transmitter power consumption: 100 mA at 3 V
- Working distance: Up to 300 feet line-of-sight
- Transmitter audio input: 1/8-inch (3.5 mm) locking mini-jack
- Transmitter controls: Power switch, audio mute
- Transmitter LED indicator: Unit on (single flash), low battery alert (red)
- Transmitter weight: 68 g (0.15 lbs)
- Transmitter dimensions: 64 x 108 x 13 mm (2.5 x 4.25 x 0.5 in)
- Optional accessory: RMT-1KUD rack tray for mounting one or two receivers

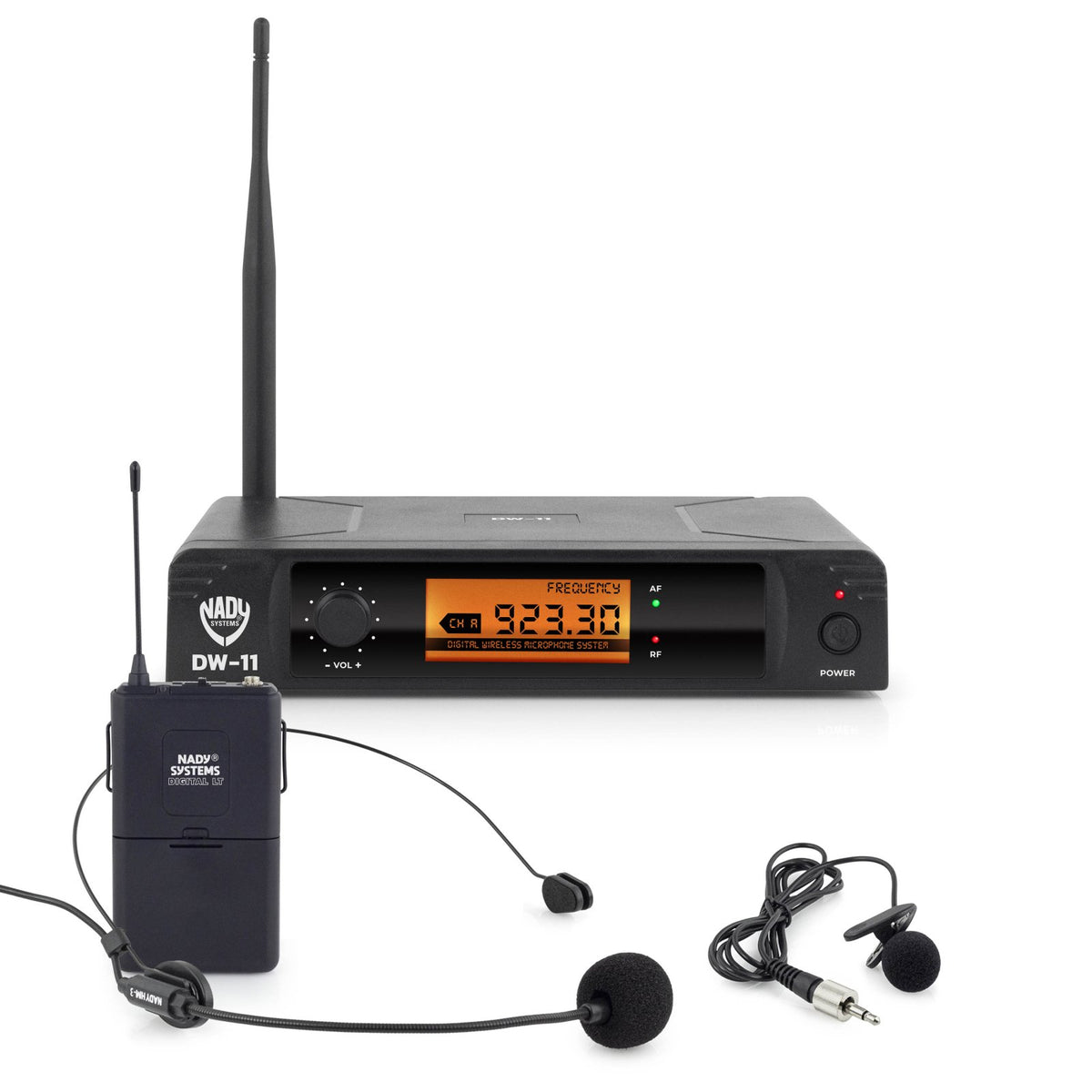

What is included

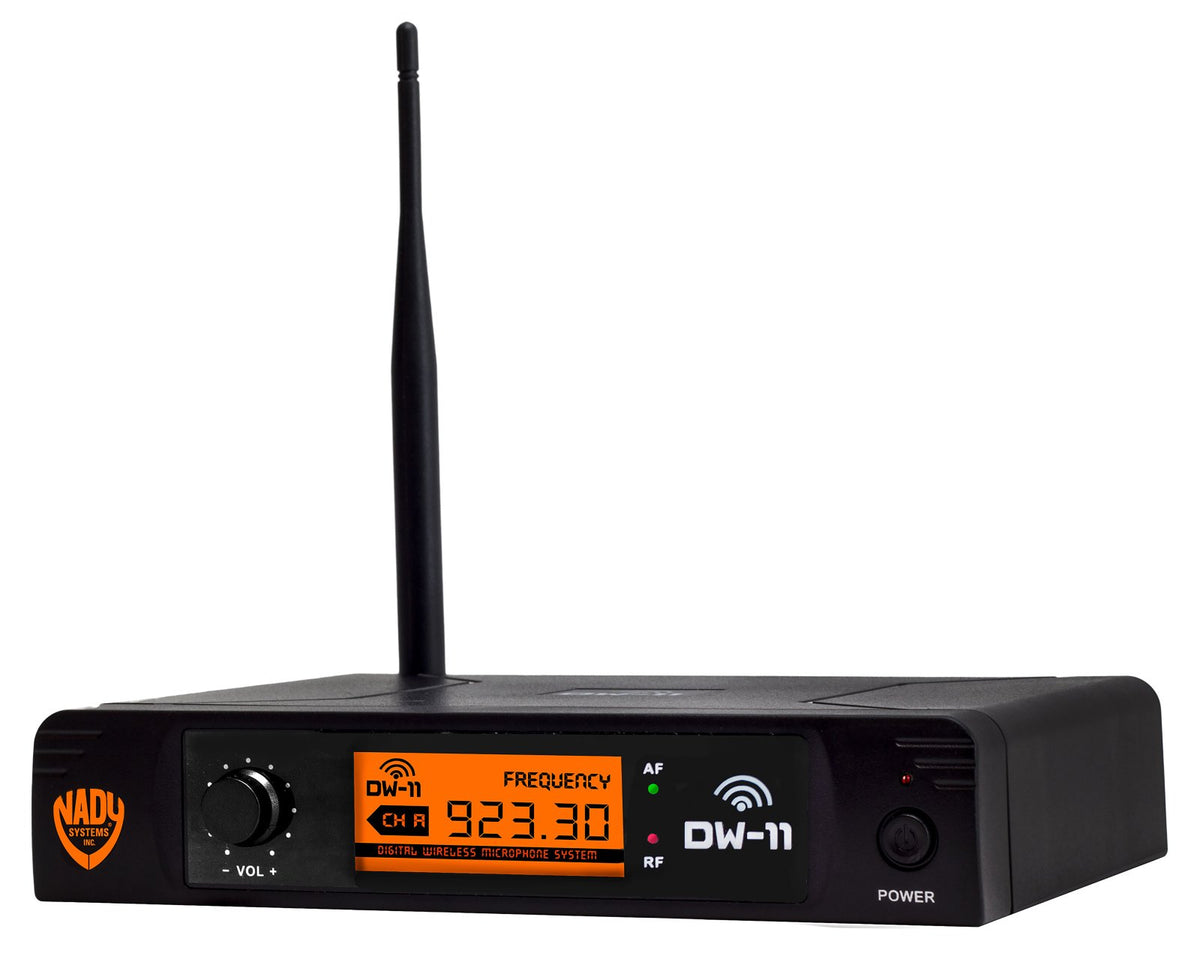

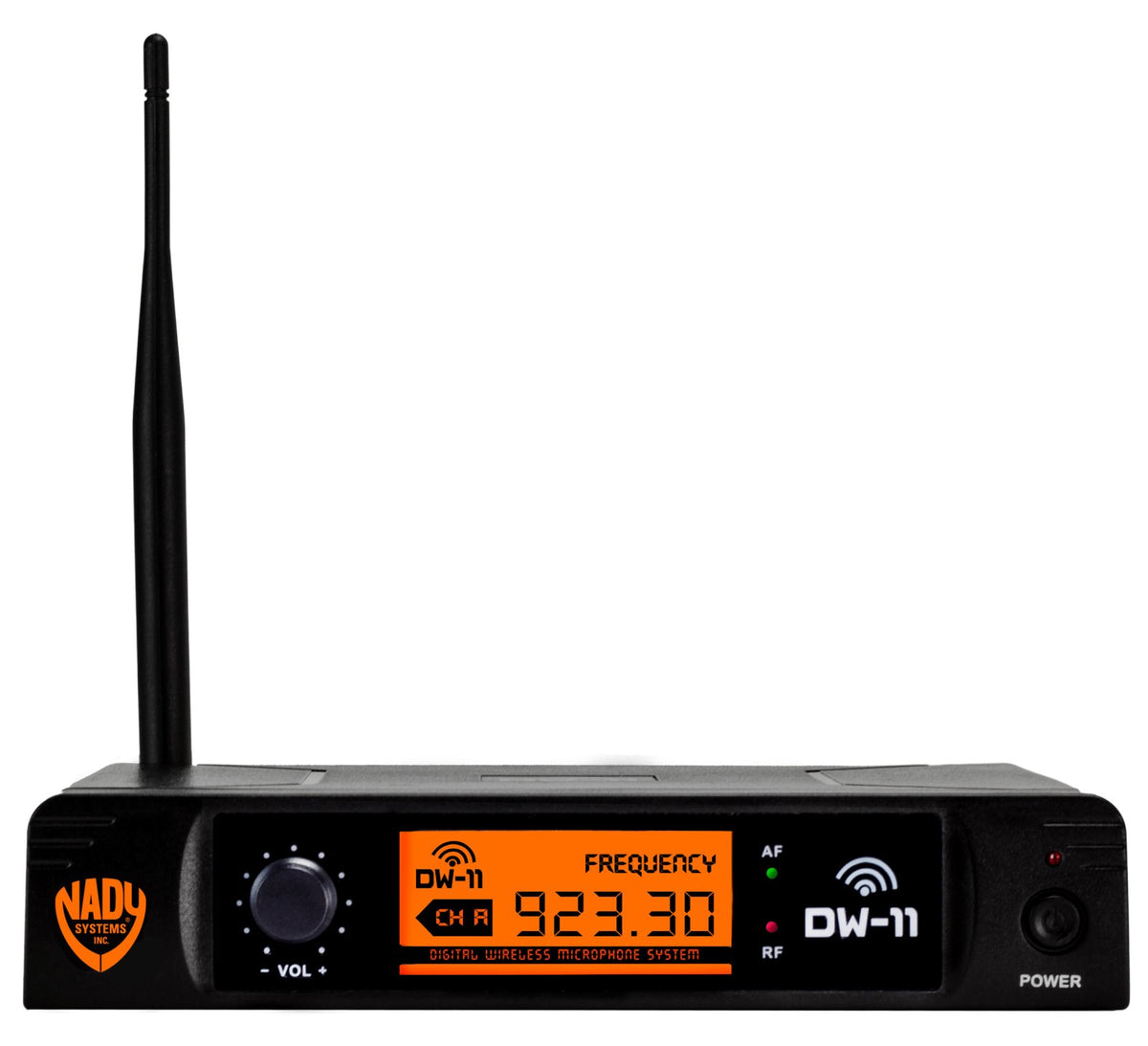

- Nady DW-11 digital receiver

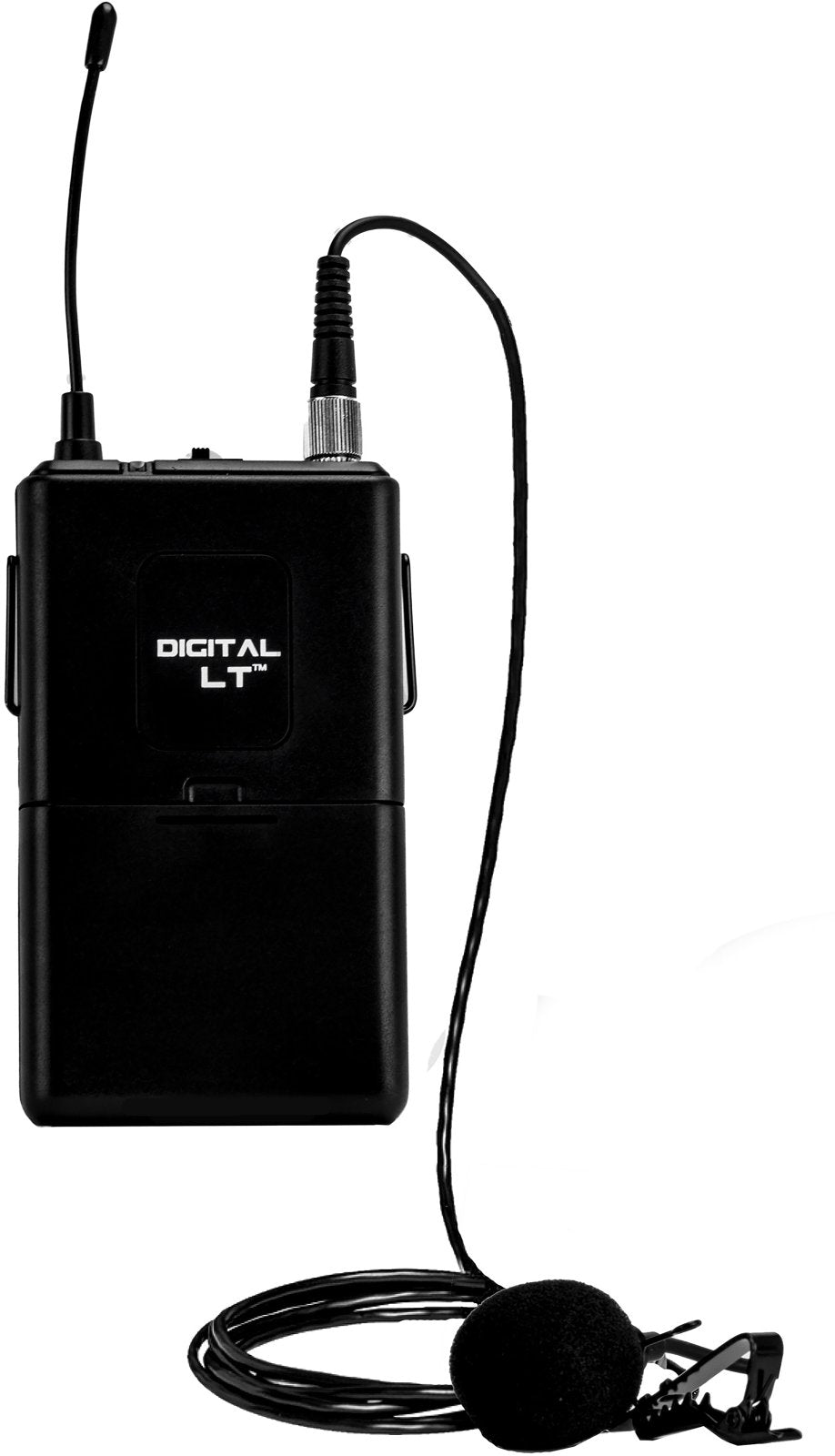

- Digital LT bodypack transmitter
- Lapel microphone

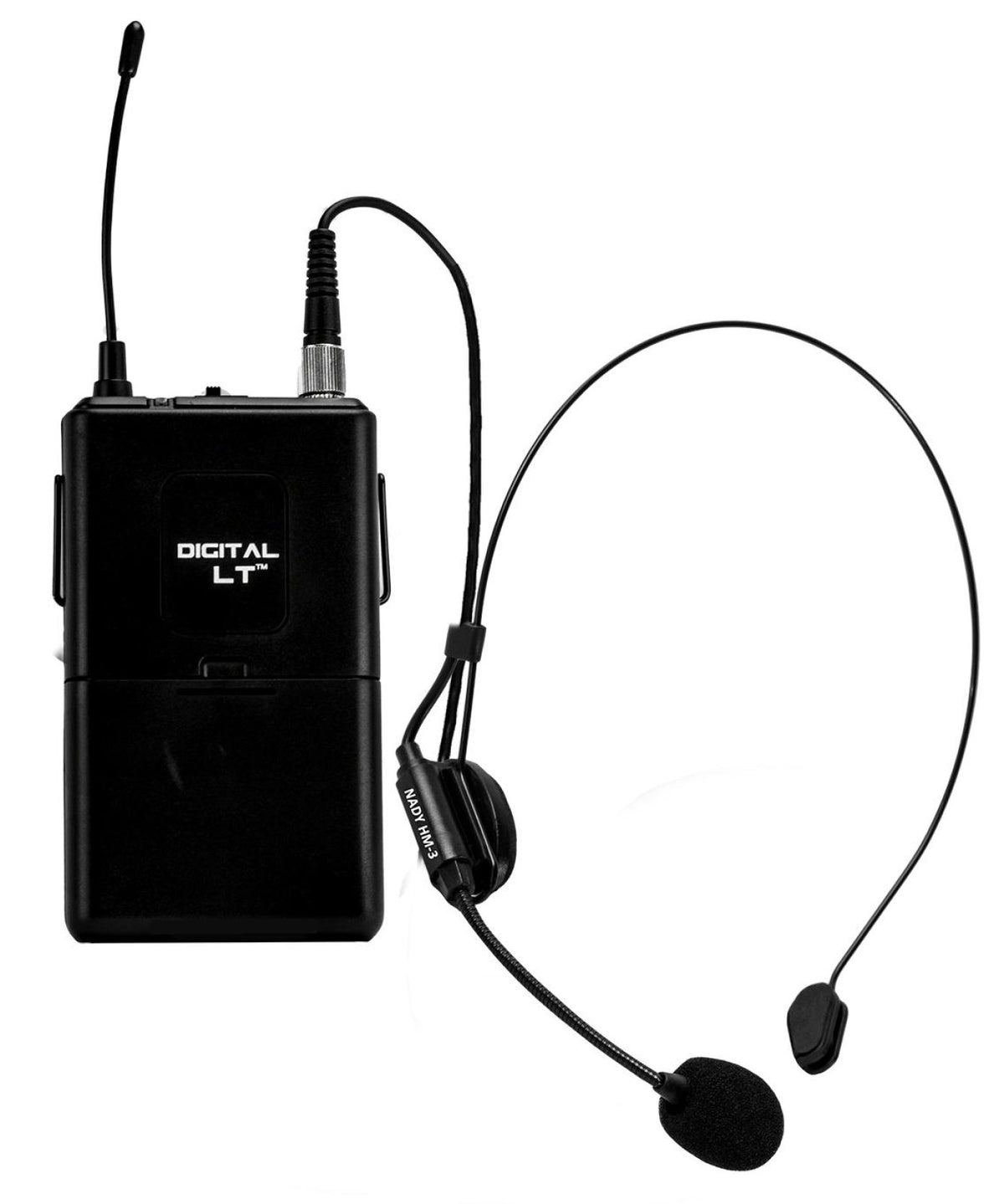

- Headset microphone
Common questions
What frequency does the Nady DW-11 LT-HM use?
The Nady DW-11 LT-HM uses selected frequencies between 902 and 951 MHz.
How far does the Nady DW-11 LT-HM reach?
The Nady DW-11 LT-HM has a working distance of up to 300 feet line-of-sight.
What batteries does the Nady DW-11 LT-HM bodypack use?
The Nady DW-11 LT-HM bodypack transmitter uses 2 x AA batteries and runs up to 11 hours.
What outputs does the Nady DW-11 LT-HM receiver have?
The Nady DW-11 LT-HM receiver has a balanced XLR mic-level output and an adjustable 1/4-inch line-level output.
Can the Nady DW-11 LT-HM be rack mounted?
Nady lists the optional RMT-1KUD rack tray for mounting one or two DW-11 receivers.
