Description

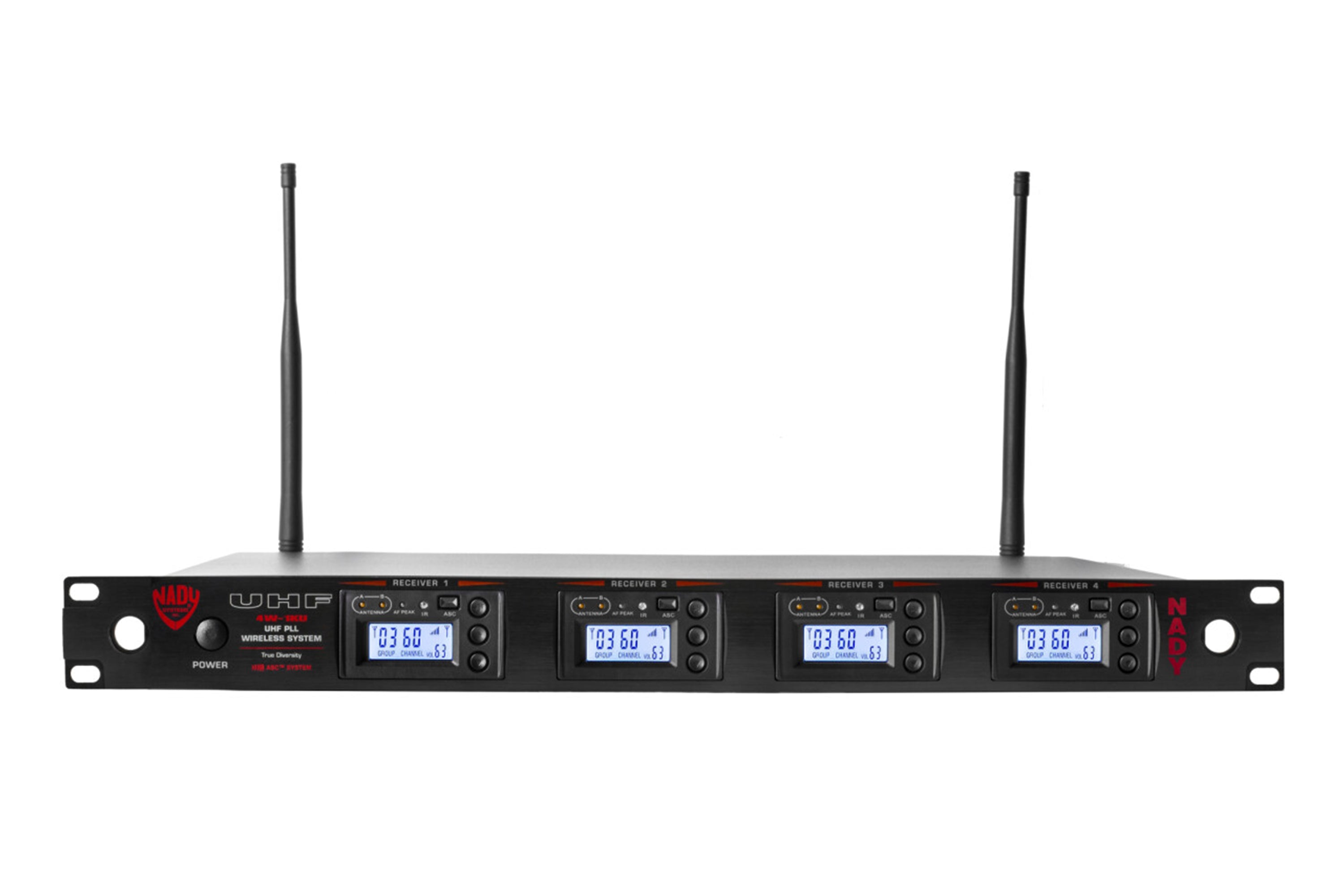

Nady 4W-1KU HM-10 Quad True Diversity 1000-Channel Professional UHF Wireless System is a quad true diversity UHF wireless system with 1000 user-selectable UHF frequencies per band, a 120dB dynamic range and operation up to 500 ft. line-of-sight. The receiver has 4 individual balanced XLR mic level outputs plus 1 unbalanced SUM 1/4” line level output.
Specifications
| SKU | 24644 |
|---|---|
| Model | 4W-1KU HM-10 |
| System | Quad true diversity 1000-channel professional UHF wireless system |
| Performance | State-of-the-art PLL UHF performance with 120dB dynamic range and operation up to 500 ft. line-of-sight |
| Frequencies | 1000 user-selectable UHF frequencies per band |
| Channel selection | AUTO-SCAN |
| Diversity | True Diversity circuitry with two complete front ends for maximum range and dropout protection |
| Frequency sync | ASC (Auto-Sync Channels) IR download feature sends selected Group/Channel information to transmitters via IR senders on receivers for easy frequency synchronization |
| Controls | Front-panel touch control buttons and user-friendly LCD configuration menus |
| Filtering | Sophisticated IF filtering for simultaneous operation of multiple W-1KU systems in the same location |
| Mute | Mute control (RF squelch) |
| Receiver display | Front panel backlit LCD display indicates selected audio output volume level, Group/Channel, RF signal strength meter, A/B diversity status |
| Audio LED | Separate audio LED provides instantaneous audio presence status from a distance |

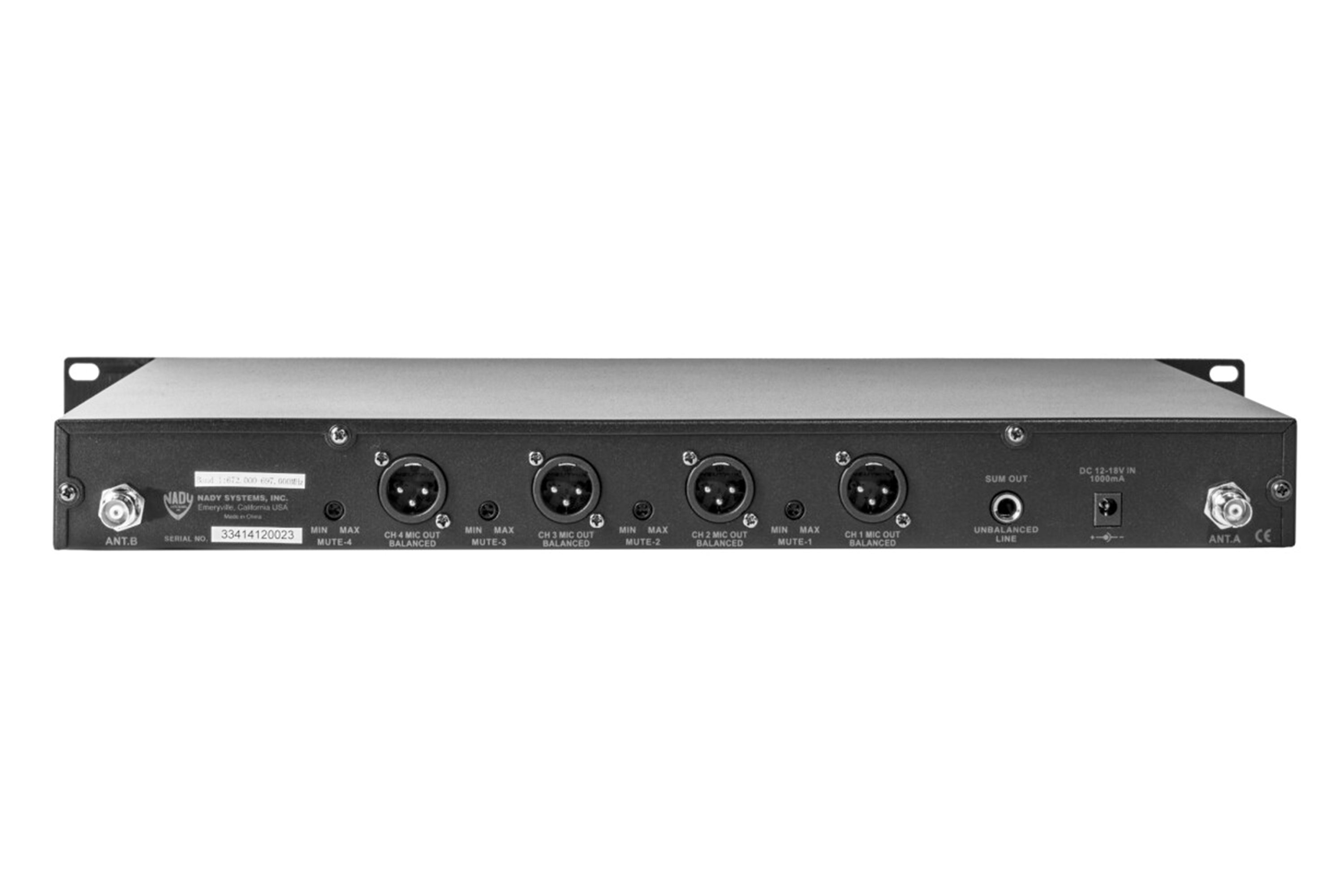

| Receiver outputs | 4 individual balanced XLR Mic Level and 1 unbalanced SUM 1/4” line level audio output jacks |
| Antenna connectors | RF BNC connectors for dual removable 1/2 wave antennas |
| Receiver power | DC power input jack; externally powered (adapter included) |
| Transmitter housing | Sleek, durable, all-metal housing |
| Transmitter display | LCD display indicating selected Group, Channel, Audio Input Levels, and Battery level status |
| Transmitter RF power | High/Low RF power switch for optimizing distance operation depending on application |
| Transmitter batteries | Two AA batteries (alkaline or rechargeable NiMH) |

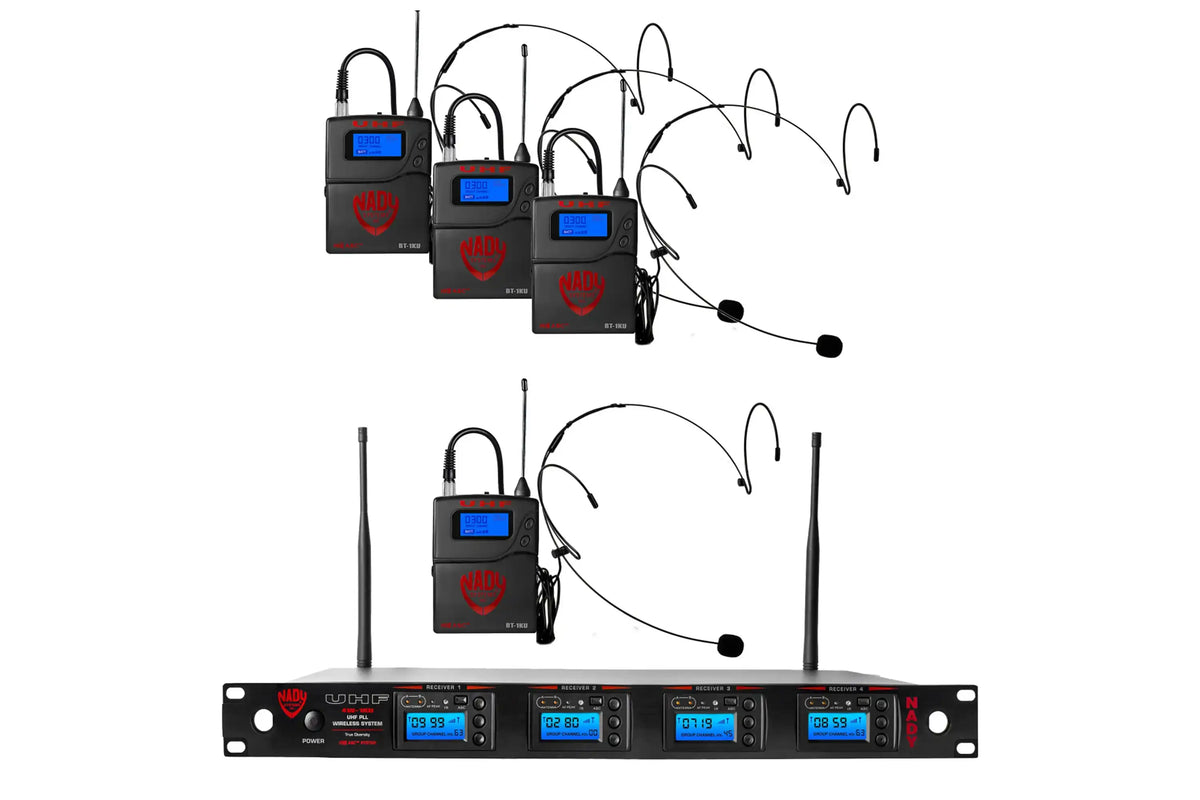

What is included
- Nady 4W-1KU receiver

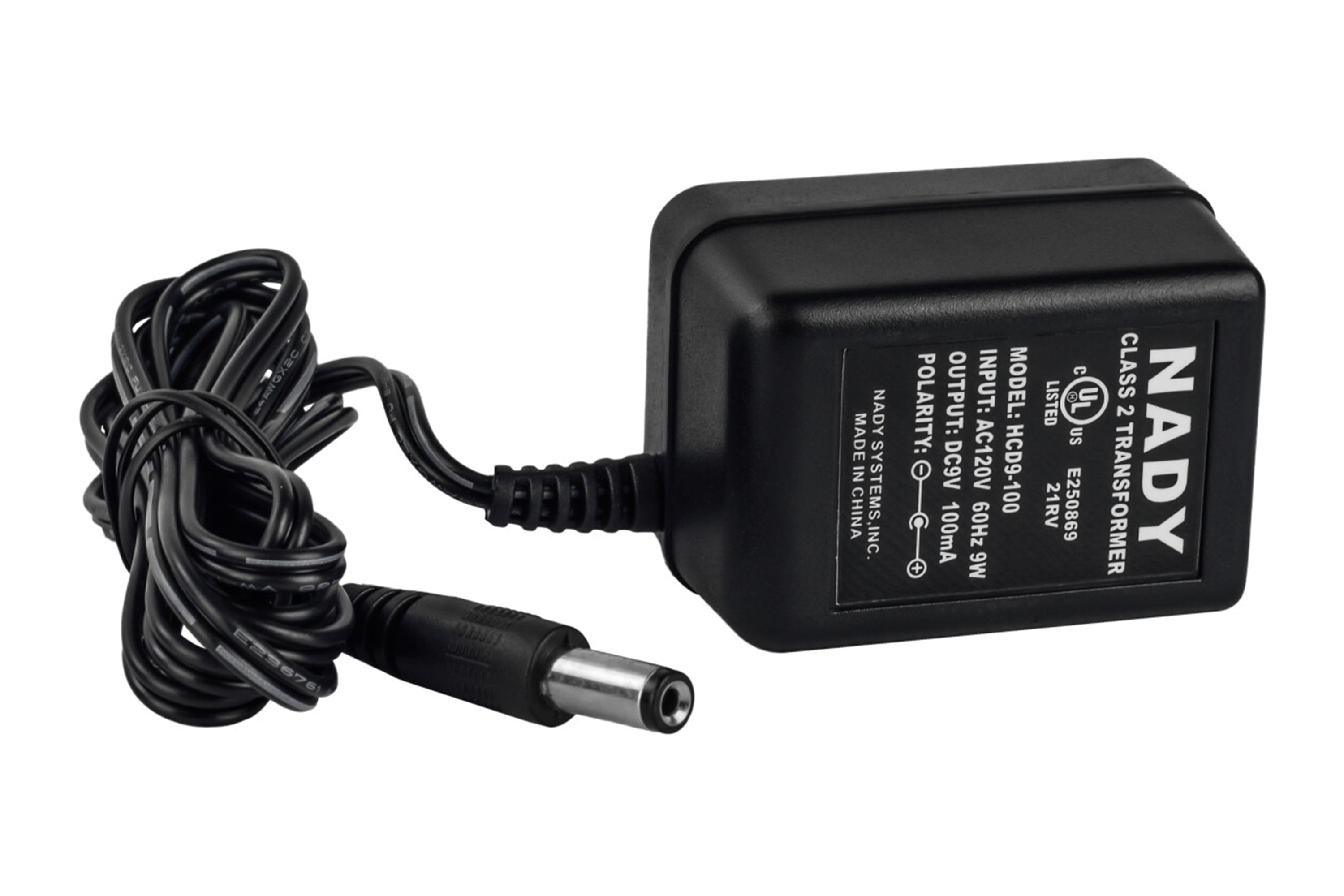

- Power adapter
- 4 BT-1KU LT bodypack transmitters

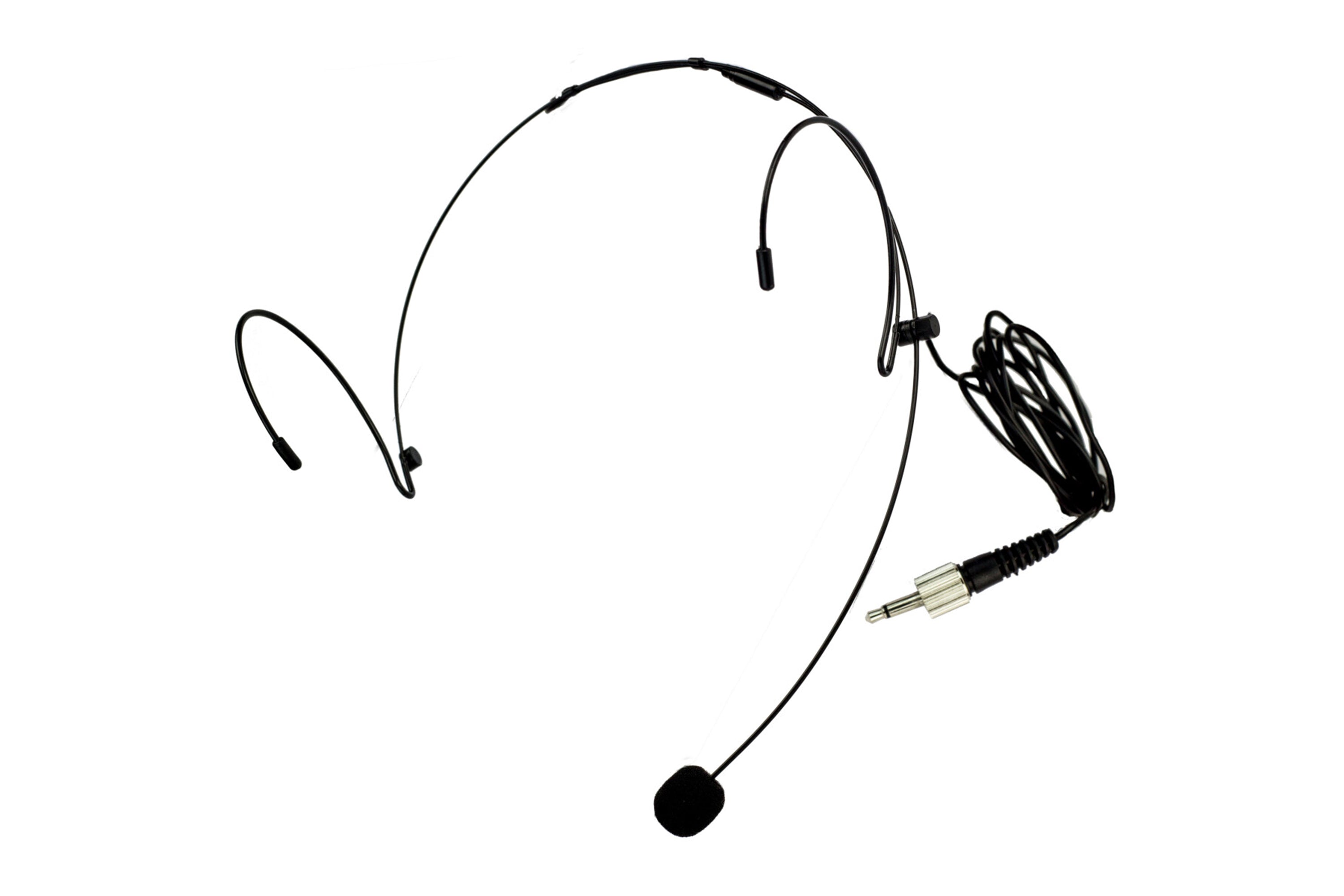

- 4 HM-10 headworn microphones
Common questions
How far can the Nady 4W-1KU HM-10 transmit?
The Nady 4W-1KU HM-10 operates up to 500 ft. line-of-sight.
How many channels does the Nady 4W-1KU HM-10 have?
The Nady 4W-1KU HM-10 has 1000 user-selectable UHF frequencies per band, with AUTO-SCAN and ASC (Auto-Sync Channels) IR frequency synchronization.
What outputs does the Nady 4W-1KU HM-10 receiver have?
The Nady 4W-1KU HM-10 receiver has 4 individual balanced XLR mic level outputs and 1 unbalanced SUM 1/4” line level output.
What batteries do the Nady 4W-1KU HM-10 transmitters use?
The Nady 4W-1KU HM-10 transmitters run on two AA batteries, alkaline or rechargeable NiMH.
How is the Nady 4W-1KU HM-10 receiver powered?
The Nady 4W-1KU HM-10 receiver is externally powered through a DC power input jack, and the adapter is included.
Can I run more than one Nady 4W-1KU HM-10 in the same room?
Yes. The Nady 4W-1KU HM-10 has IF filtering for simultaneous operation of multiple W-1KU systems in the same location.
