Description
Morley Gold Series ABC Selector Combiner Pedal is a passive, true bypass switcher that routes one input to three outputs or three inputs to one output. Each channel has its own bypass footswitch and LED, so you can select or combine amps, or switch between three instruments. It suits multi-instrumentalists, loopers and players running more than one amp.
Specifications
| SKU | HL00369706 |
|---|---|
| Manufacturer Part Number | ABC-G |
| Routing | One input to three outputs, or three inputs to one output |
| Footswitches | Bypass switch for each channel (A, B, C) |
| Bypass | True bypass |
| Circuit | Passive; works without power (power is needed only for the LEDs) |
| Power | Standard 9V supply or 9V battery |
| Current Draw | 2 mA |
| Indicators | LEDs show which channels are active |
| Housing | Cold-rolled steel |
| Note | Not intended for use on powered speaker lines |
Measurements
| Length | 6.63″ |
|---|---|
| Width | 4.38″ |
| Height | 2″ |
WARRANTY - Morley One-Year Warranty (please keep your purchase receipt)
Common questions
Does the Morley Gold Series ABC need power?
No. The Morley Gold Series ABC is passive and works without power. A 9V supply or 9V battery is needed only to light its LEDs, and it draws 2 mA.
Can the Morley Gold Series ABC run three amps at once?

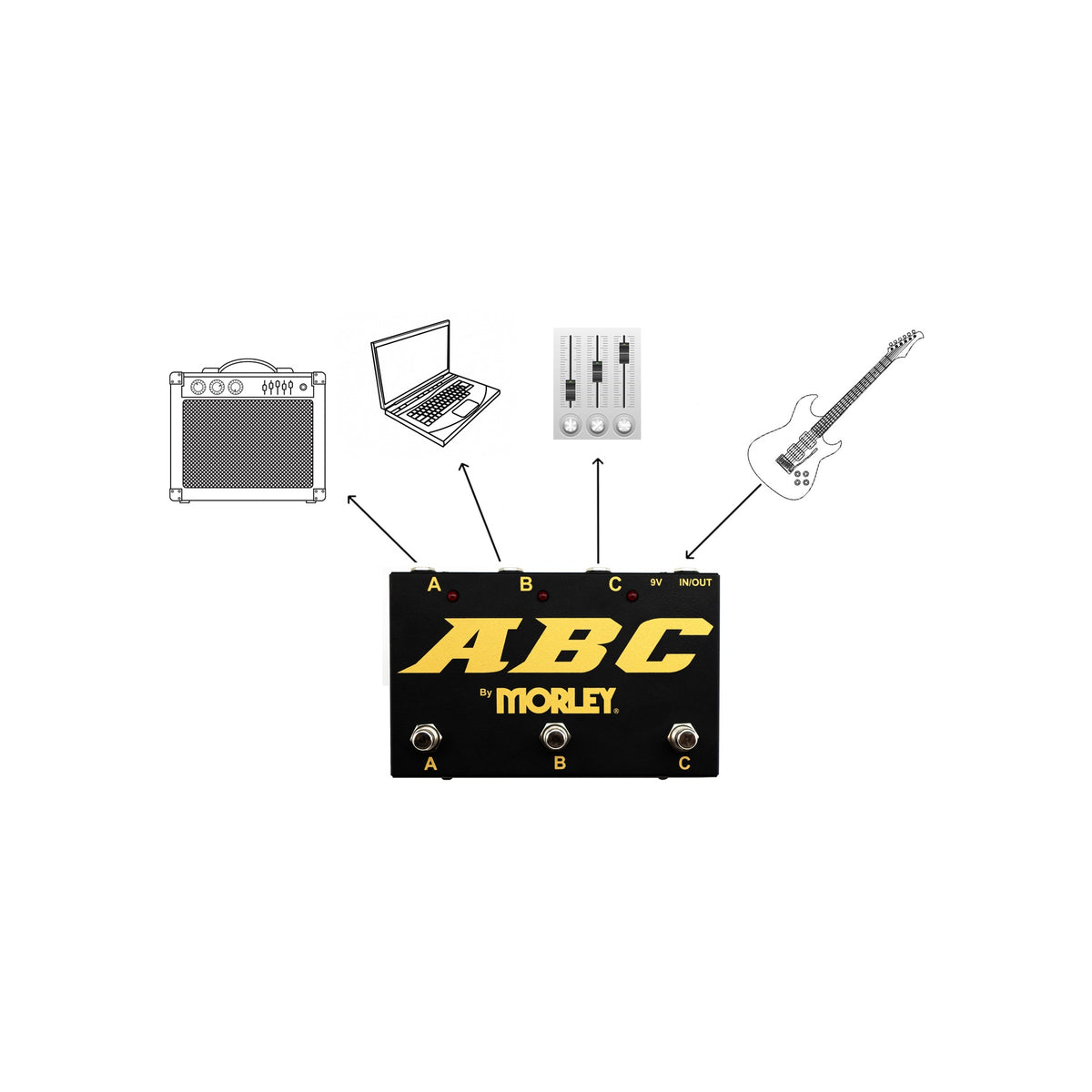

Yes. The Morley Gold Series ABC routes one input to three outputs, and each channel has its own bypass switch, so you can use one, two or all three amps together.
Can I switch between three guitars with the Morley Gold Series ABC?

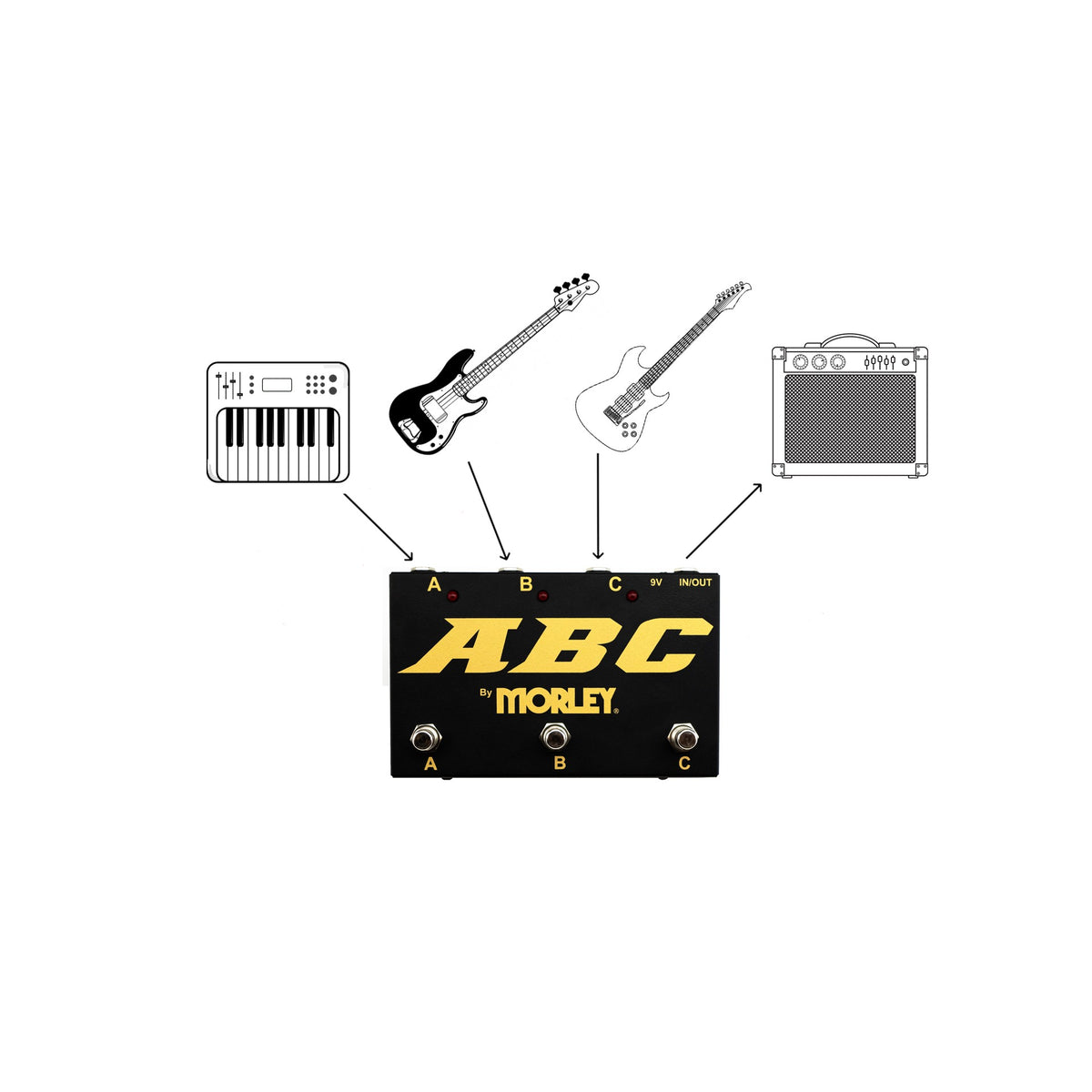

Yes. Reverse the Morley Gold Series ABC to route three instruments into one amp and pick each one with its footswitch.
Is the Morley Gold Series ABC true bypass?
Yes. The Morley Gold Series ABC is a true bypass, passive design.
What is the difference between the Morley Gold Series ABC and the Morley Gold Series ABY?
The Morley Gold Series ABC adds a third channel to the Morley ABY design, so it handles three outputs or three inputs instead of two.
