Description

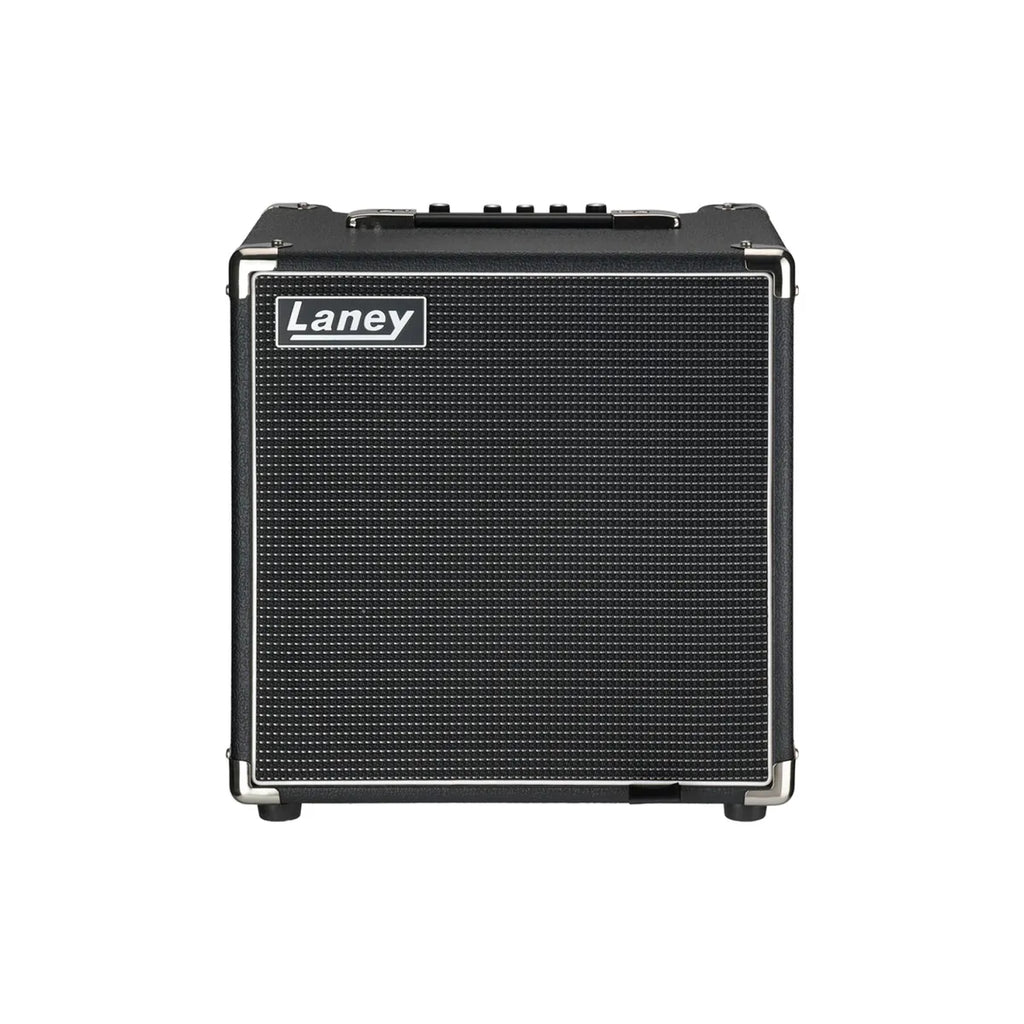

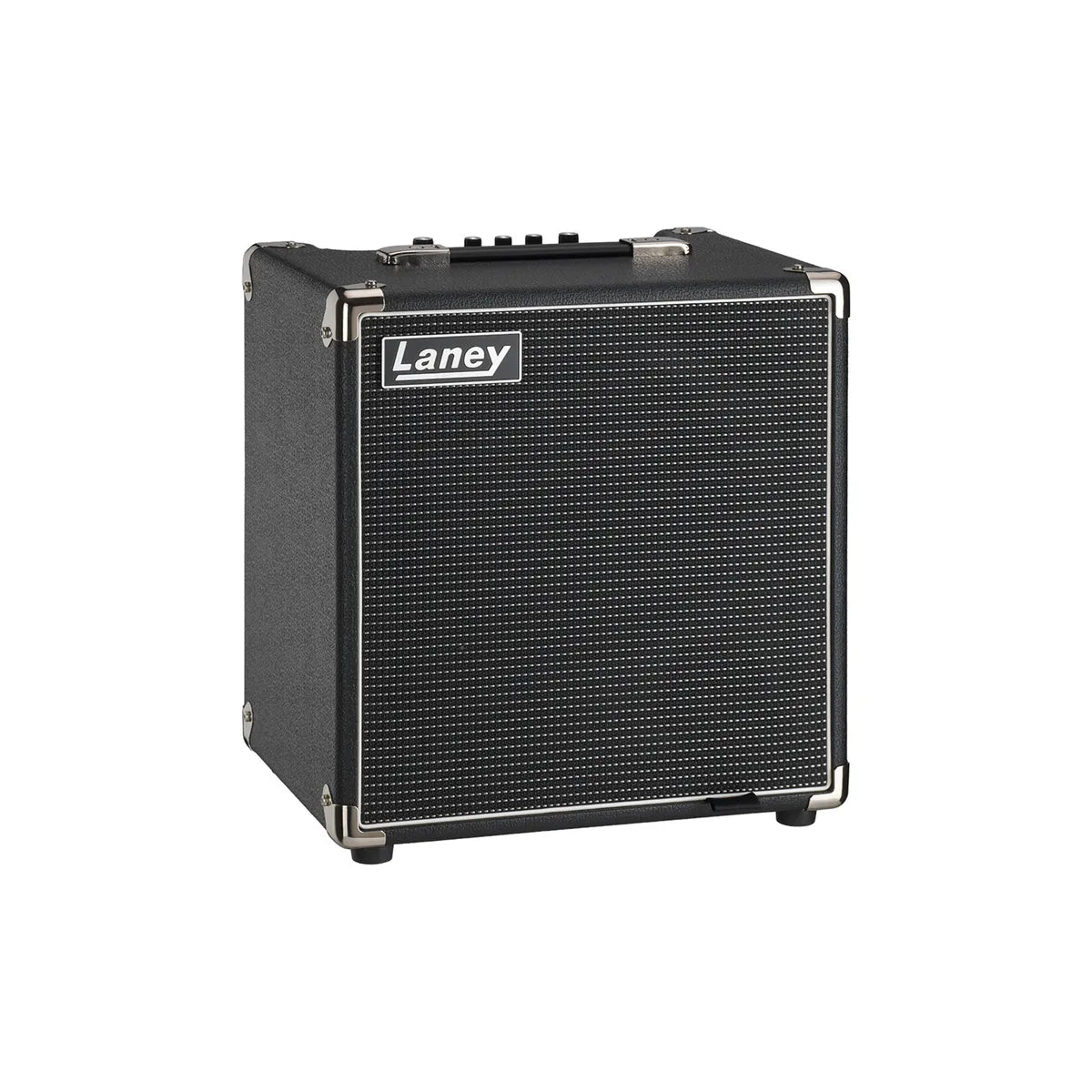

Laney DBF30 Digbeth Series Bass Combo Amplifier - 30W RMS 8" is a 30 watt RMS (60 W continuous) Class D bass combo with an 8” HH Blue professional woofer and fully passive convection cooling for silent operation. It has one channel with an overdrive function, a Tilt control, a 3.5 mm stereo aux in and a headphone jack for private practice.
Specifications
| SKU | 28470 |
|---|---|
| Model | DBF30 |
| Series | Digbeth |
| Power rating | 30 watts RMS, 60 W continuous |
| Speaker | 1 x 8” HH Blue professional woofer |
| Frequency response (-10) | 65 Hz > 18 kHz |
| Max SPL (1M) | 112 dB SPL (Continuous), 115 dB SPL (Peak) |
| Amplifier type | Class D, with fully passive convection cooling for silent operation |
| Channels | One, with overdrive function |
| Inputs | 6.3 mm (1/4”) jack instrument, 3.5 mm stereo aux in |
| Input impedance | 1MΩ |
| Outputs | 3.5 mm (1/8”) stereo headphones jack |

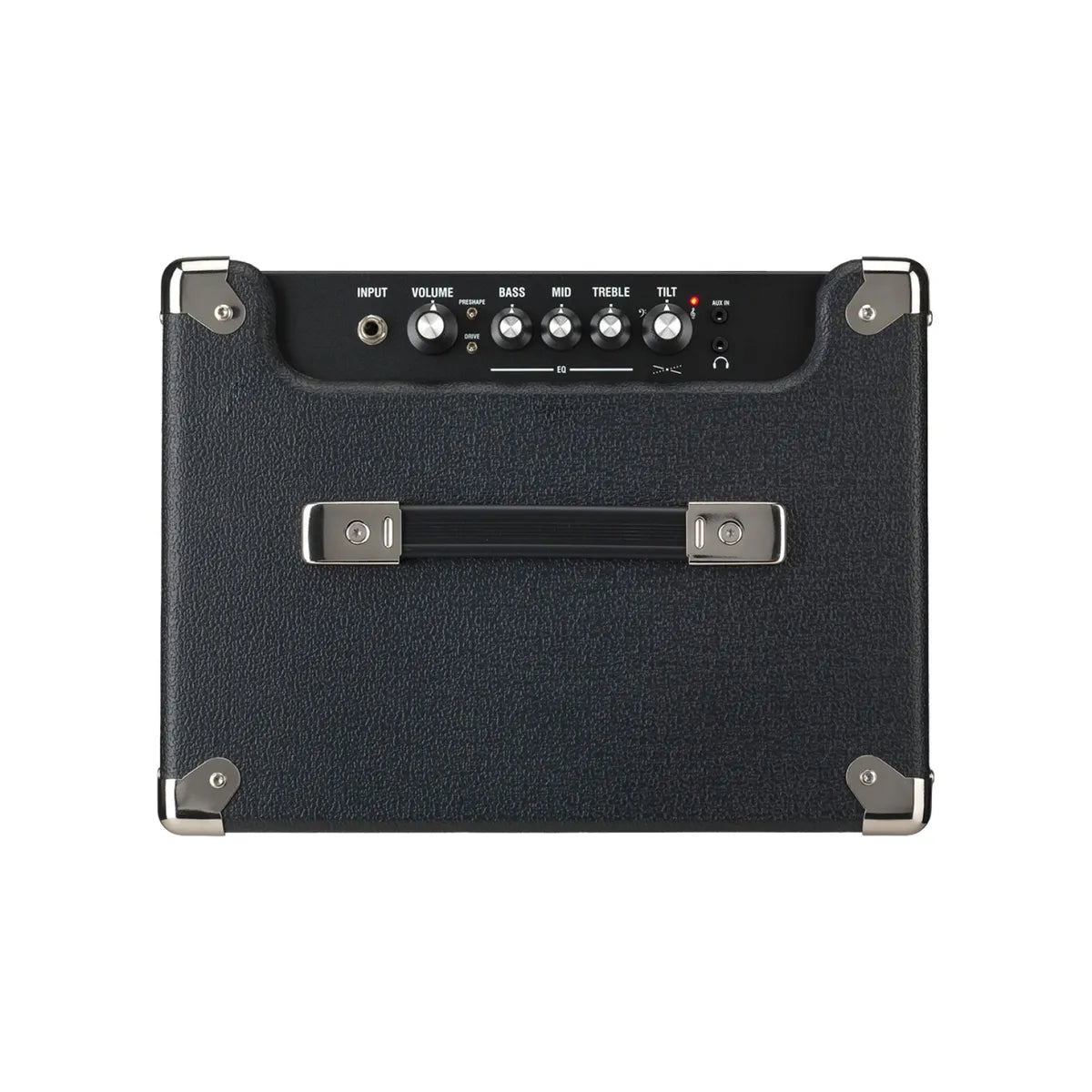

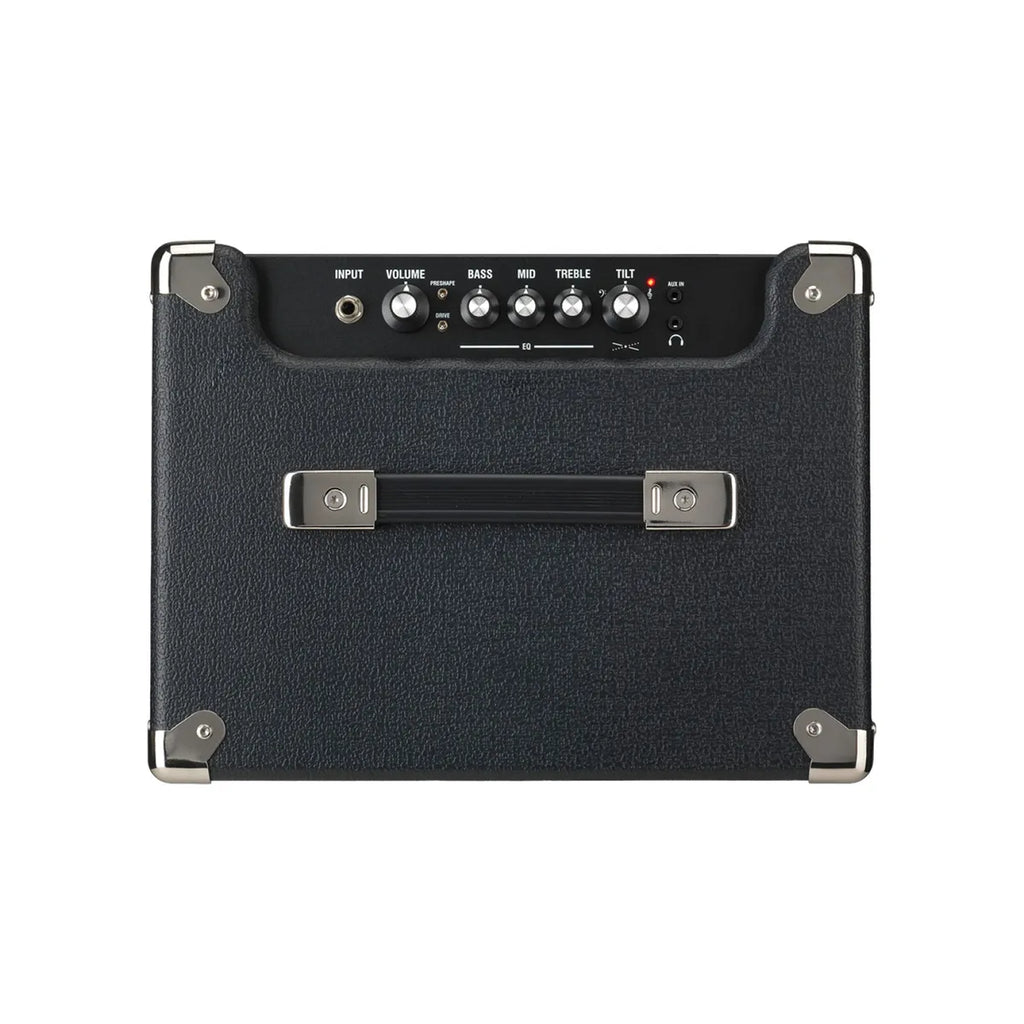

| Controls | Volume, preshape switch, drive switch, bass, middle, treble, tilt control |
| EQ | Preshape, bass +/- 12dB, middle +/- 12dB, treble +/- 12dB, tilt control |
| Indicator | Power LED |
| Enclosure | MDF 12mm cabinet |
| Handle | Top mounted steel reinforced strap handle |
| Finish | Hard wearing black vinyl, steel corners |
| Power supply | Internal universal 100-200 V - 50/60Hz, switched mode power supply |
| Power consumption | Typical power consumption 25W nominal, max power consumption 85 Watts |
Measurements
| Dimensions (H x W x D) | 384 x 355 x 265 mm (15.1” x 14” x 10.4”) |
|---|---|
| Weight | 8.3 kg (18.3 lbs) |
| Packed weight | 10.3 kg (22.7 lbs) |
Common questions
How many watts is the Laney DBF30?
The Laney DBF30 Digbeth bass combo is rated at 30 watts RMS and 60 W continuous from a Class D amplifier.
What size speaker does the Laney DBF30 have?
The Laney DBF30 spec list gives one 8” HH Blue professional woofer, with a frequency response of 65 Hz to 18 kHz.
Does the Laney DBF30 have a headphone output?
Yes. The Laney DBF30 has a 3.5 mm (1/8”) stereo headphones jack for private practice.
Does the Laney DBF30 have overdrive?
Yes. The Laney DBF30 has one channel with an overdrive function, switched with the drive switch.
Can I play along with music on the Laney DBF30?
Yes. The Laney DBF30 has a 3.5 mm stereo aux in for backing tracks.
How much does the Laney DBF30 weigh?
The Laney DBF30 weighs 8.3 kg (18.3 lbs) and measures 384 x 355 x 265 mm (15.1” x 14” x 10.4”).
