Description

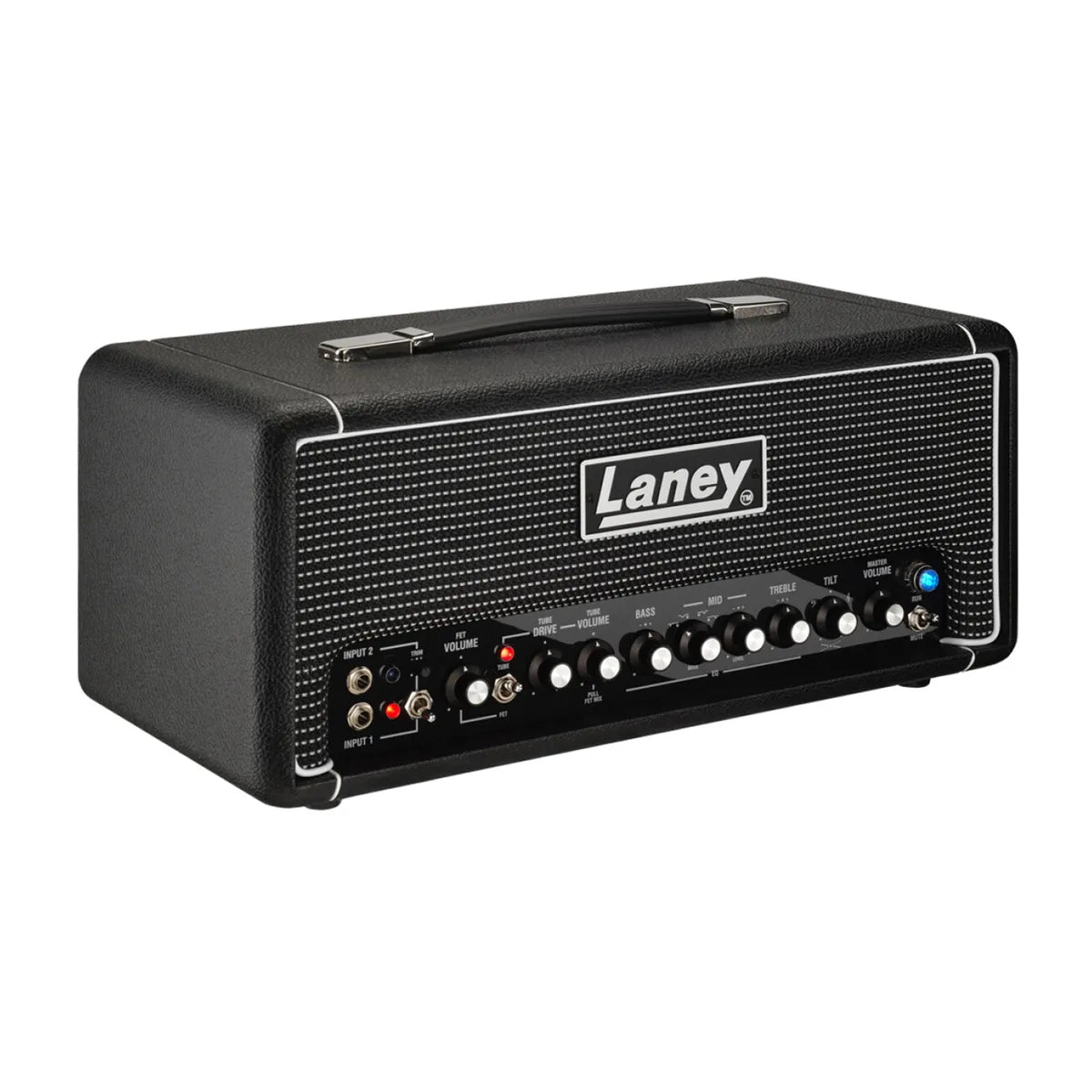

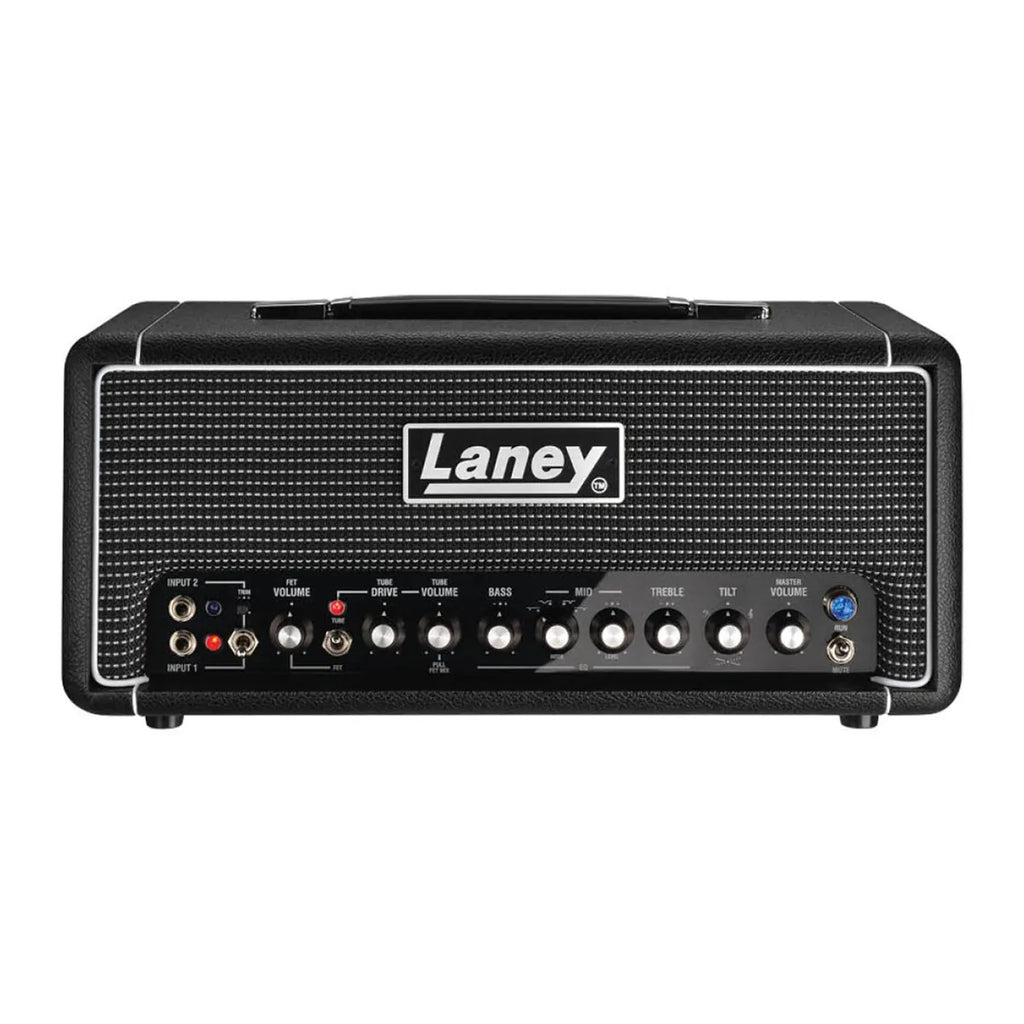

Laney BCC-DB-EAST Digbeth Series Nathan East Signature Amplifier Head - 1,000W is a 2 x 500 W RMS bass amplifier head with two channels, FET and Tube, that can be blended with a mix control and switched by remote. It has two LA.IR equipped XLR DI outputs that follow each input, a USB-C port and a headphone jack with its own volume, and it is built from 15 mm MDF.
Specifications
| SKU | 28412 |
|---|---|
| Model | BCC-DB-EAST |
| Series | Digbeth, Nathan East Signature |
| Power rating | 2 x 500 W RMS (minimum 4 ohms each output) |
| Channels | 2: FET and Tube with mix control (remote switchable) |
| EQ | Bass, Middle (with reshape voice select), Treble (passive tone stack) & Tilt control, all with +/- level |

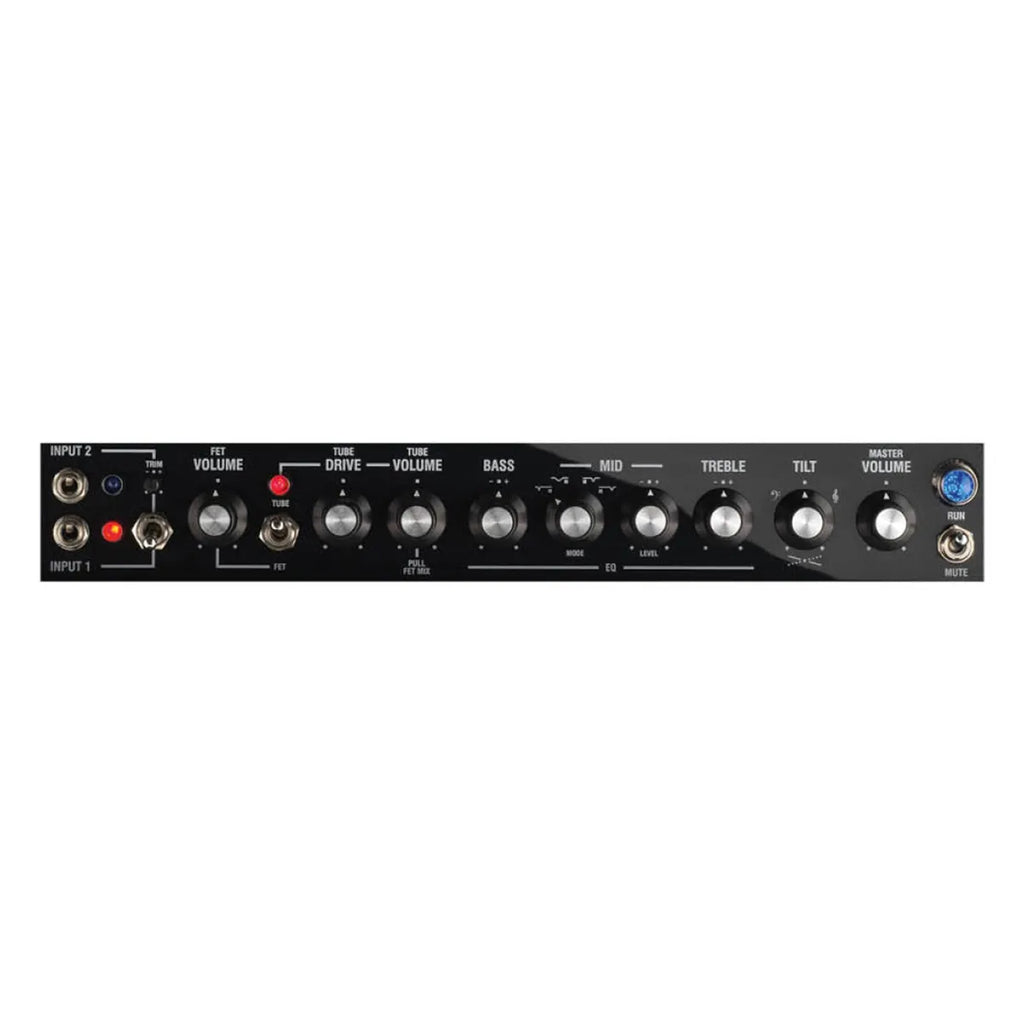

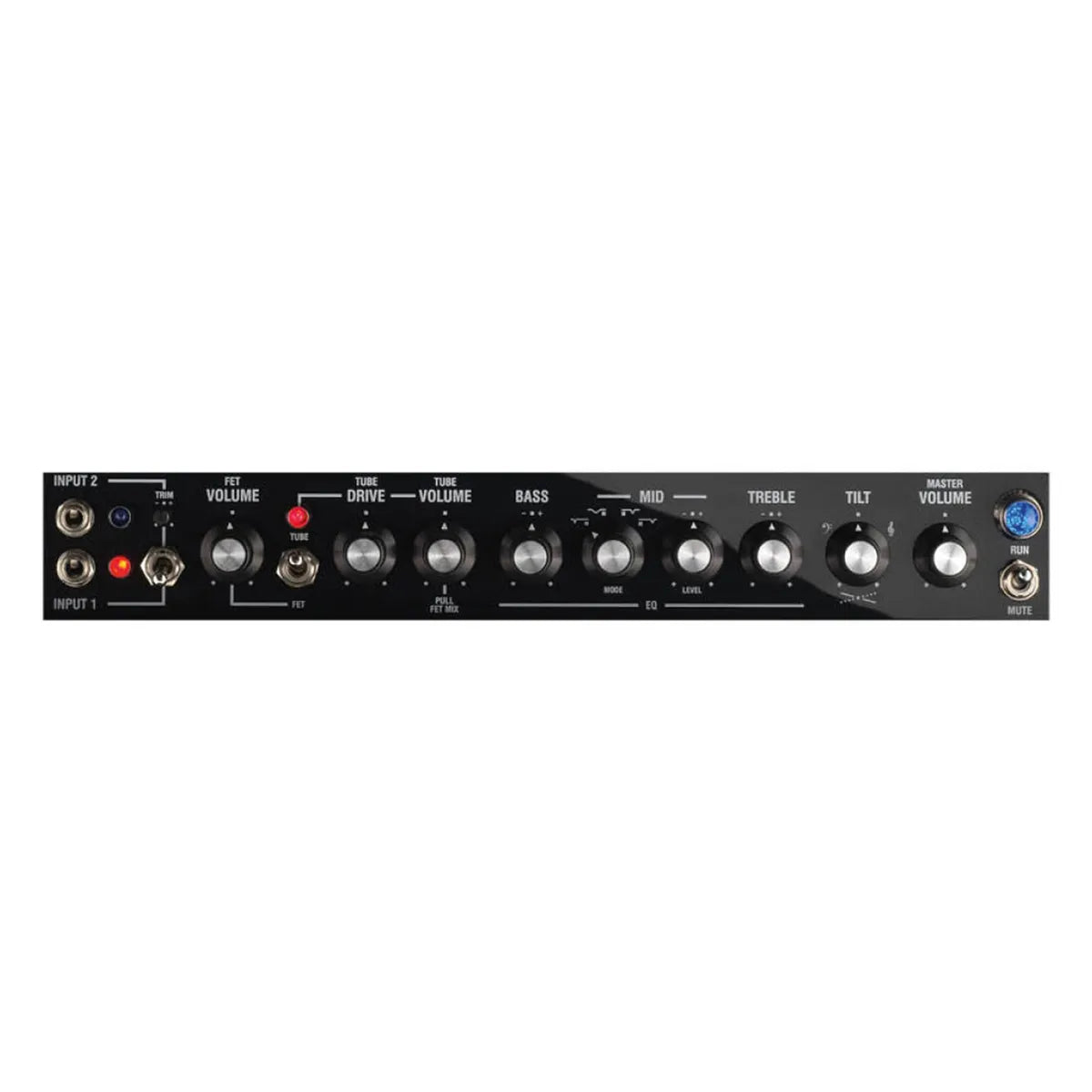

| Controls | Input selector, trim control, FET volume, FET/Tube selector, Tube drive, Tube volume, pull FET mix, DI out Pre/Post/LA.IR switch, phones level, Aux level, Master Volume |
| Inputs | 2 x instruments 1/4” jack, with remote switching ability; Input 2 with additional gain trim matching control |
| Input impedance | 10 MΩ |

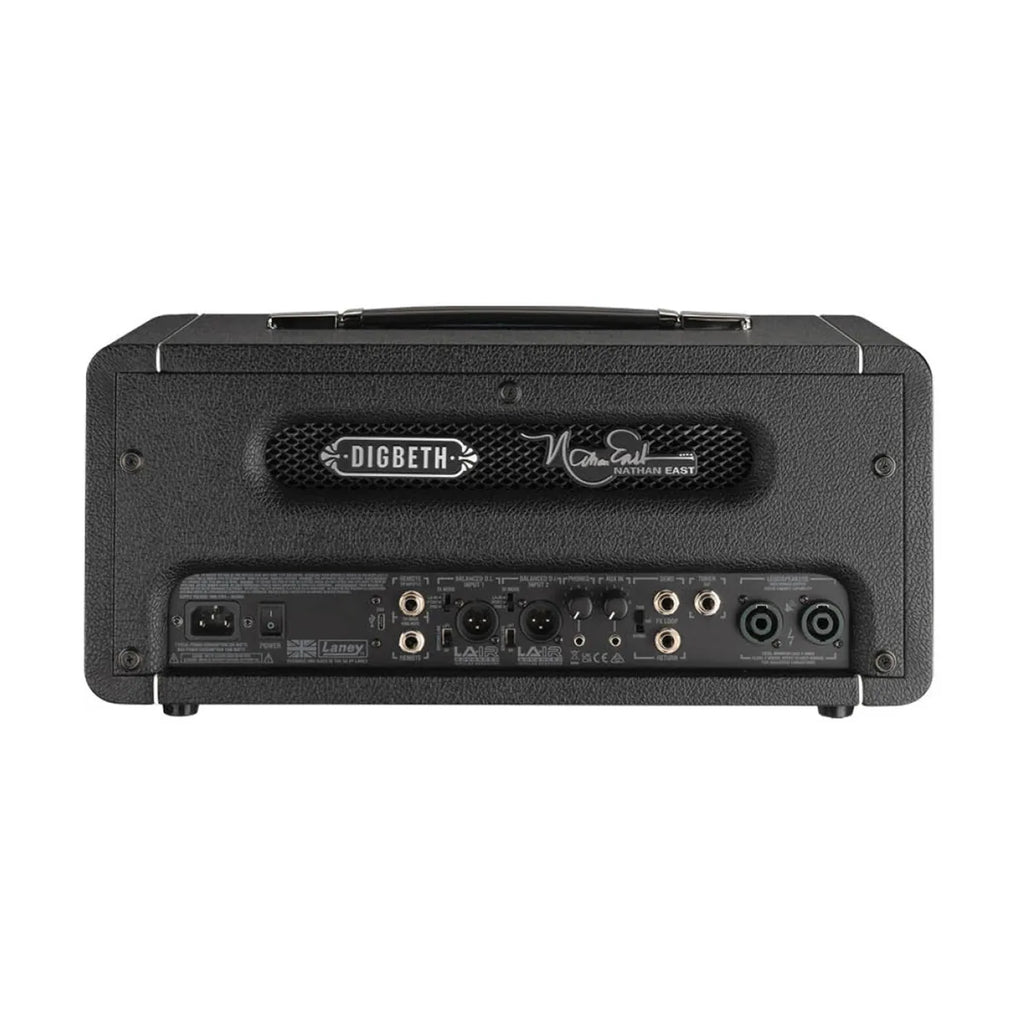

| Outputs | 2 x Speakon compatible outputs (6.3 mm jack compatible); 6.3 mm FX send; 6.3 mm Tuner out; 3.5 mm stereo headphone jack with volume; 2 x XLR DI outs; 2 x 6.3 mm remote sockets & USB-C |
| DI outputs | 2 x LA.IR equipped DI outs following each input, with ground lift |
| Indicators | LEDs for channel 1, channel 2, Pull mix, run/mute lamp |
| Power supply | Internal Universal 100-200V - 50/60 Hz |
| Power consumption | 250W, max power consumption 1500W |
| Construction material | 15 mm MDF |
Measurements
| Unit dimensions (H x W x D) | 219 x 470 x 225 mm (8.6” x 18.5” x 11.8”) |
|---|---|
| Unit weight | 8.5 kg (18.7 lbs) |
Common questions
How many watts is the Laney BCC-DB-EAST?
The Laney BCC-DB-EAST Nathan East Signature head is rated at 2 x 500 W RMS, with a minimum of 4 ohms on each output.
What channels does the Laney BCC-DB-EAST have?
The Laney BCC-DB-EAST has two channels, FET and Tube, with a mix control to blend them, and the channels are remote switchable.
Can I record with the Laney BCC-DB-EAST?
Yes. The Laney BCC-DB-EAST has two LA.IR equipped XLR DI outputs with ground lift, one following each input, plus a USB-C port.
Does the Laney BCC-DB-EAST have a headphone output?
Yes. The Laney BCC-DB-EAST has a 3.5 mm stereo headphone jack with its own volume control.
What speaker outputs does the Laney BCC-DB-EAST have?
The Laney BCC-DB-EAST has two Speakon compatible outputs that also accept a 6.3 mm jack, with a minimum load of 4 ohms on each output.
How much does the Laney BCC-DB-EAST weigh?
The Laney BCC-DB-EAST weighs 8.5 kg (18.7 lbs) and measures 219 x 470 x 225 mm (8.6” x 18.5” x 11.8”).
