Description

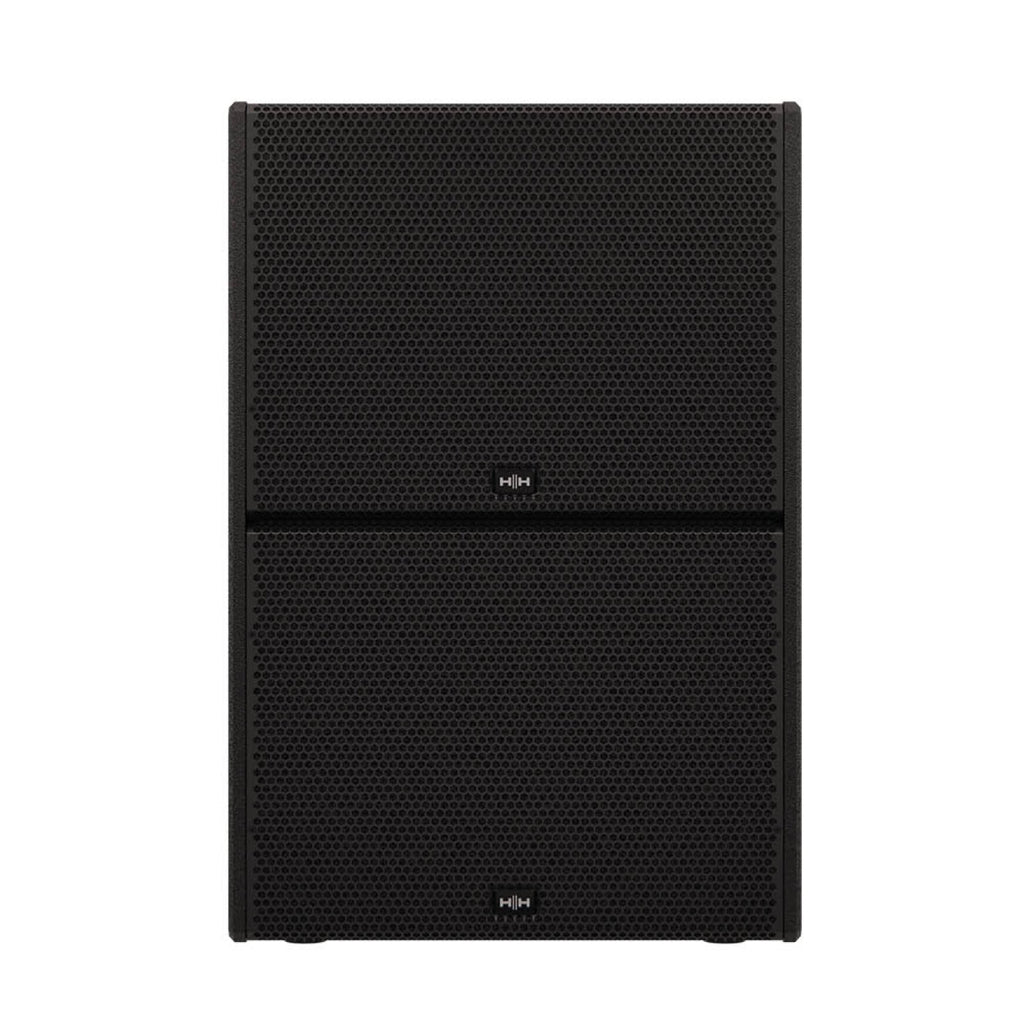

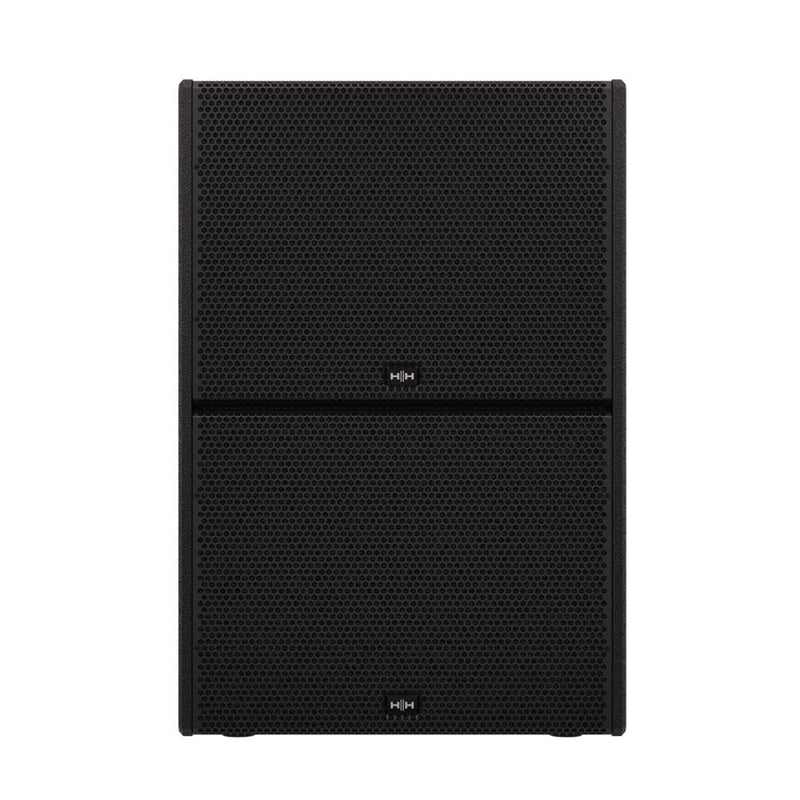

HH Audio TNA-2120SA-G3 2x12" Active Line Array Subwoofer, 1200W RMS, 4800W Peak is a 2 x 12-inch active line array subwoofer rated at 1200W RMS and 4800W peak, with a 56-bit DSP and outputs for external TNA-2051 cabinets.
What is the HH Audio TNA-2120SA-G3 subwoofer?
The HH Audio TNA-2120SA-G3 2x12" Active Line Array Subwoofer, 1200W RMS, 4800W Peak is a bass reflex active subwoofer with two 12-inch HH-designed drivers and a three channel internal amp, whose two additional channels power external satellite cabinets.
How much power does the HH Audio TNA-2120SA-G3 have?
The HH Audio TNA-2120SA-G3 has a system amp rating of 4800W peak, 2400W continuous and 1200W RMS, with 104 dB SPL sensitivity and a maximum output of 134 dB SPL continuous and 137 dB SPL peak.
What does the DSP in the HH Audio TNA-2120SA-G3 do?
The HH Audio TNA-2120SA-G3 has a 56-bit DSP that controls crossover, EQ, phase and time optimisation for array cabinets, with six built-in DSP presets for typical use cases and a 2-way/3-way mode switch on the sub output.
Specifications
- Model/SKU: TNA-2120SA-G3 (28782)
- Brand: HH Audio
- Type: 2 x 12" active subwoofer, bass reflex, with three channel internal amp (two HF amp channels for external satellites)
- Frequency response (-10dB): 52Hz - 200Hz
- LF driver: 2 x 12-inch HH-designed high performance driver
- Sensitivity (1W/1M): 104 dB SPL
- Max SPL: 134 dB SPL continuous, 137 dB SPL peak
- System amp power rating: 4800W peak, 2400W continuous, 1200W RMS
- Subwoofer amp power rating: 2400W peak, 1200W continuous, 600W RMS
- Satellite amp power rating: two channels, each 1200W peak, 600W continuous, 300W RMS
- Input connector: balanced XLR

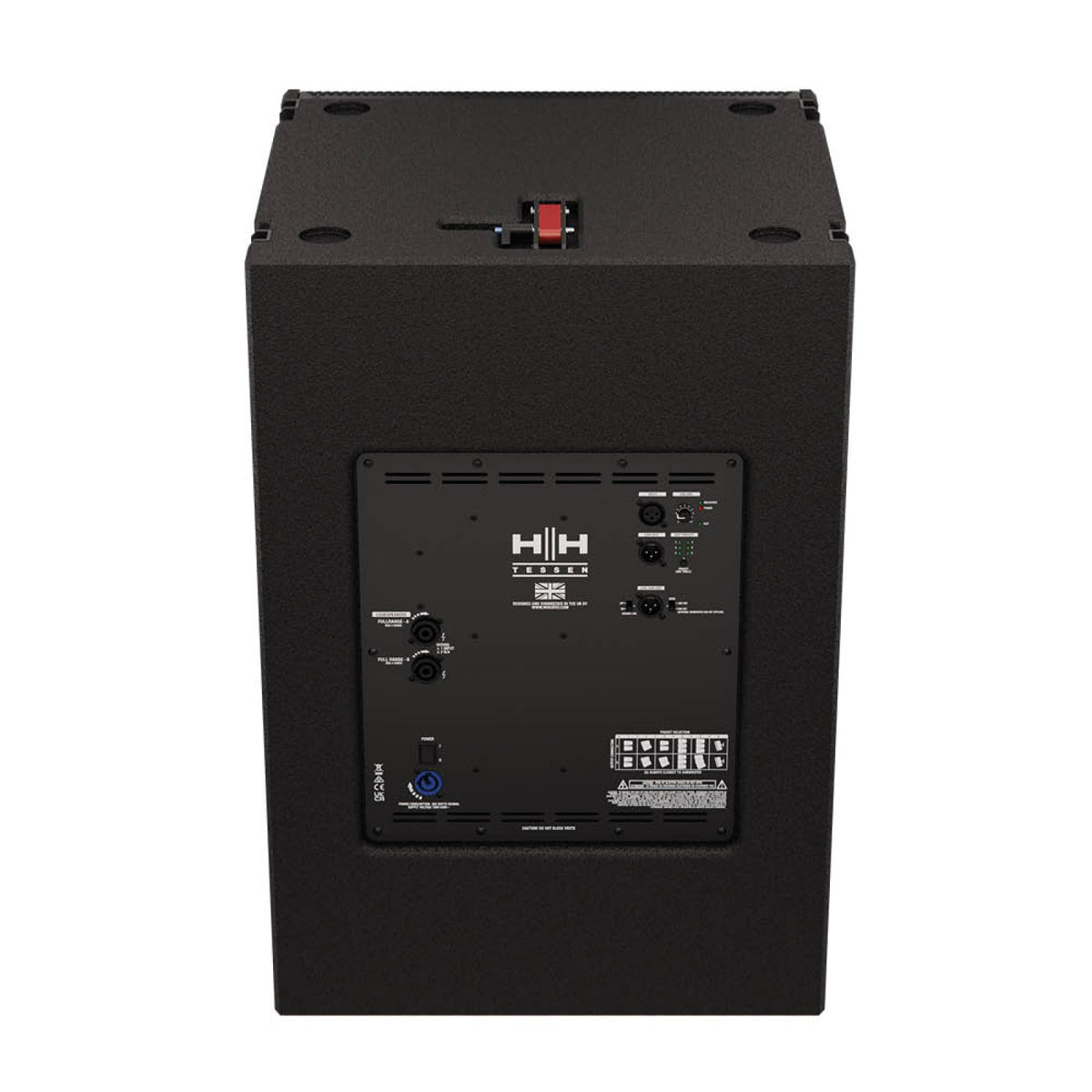

- Output connector: 1 x balanced XLR out, 1 x balanced XLR sub out with 2-way/3-way mode switch and ground lift switch, 2 x locking speakon connectors for external TNA-2051 cabinets
- Indicators: power, mute/protect, clip indicator, preset mode
- DSP: 56-bit DSP controlling crossover, EQ, phase and time optimisation for array cabinets, with six built-in DSP presets
- Protection: comprehensive protection and clip-free limiting with clip indicator
- Controls: master volume, DSP presets
- Input impedance: 22K balanced, 10K unbalanced
- AC power: ~100V-240V 50/60Hz (locking powercon)
- Power consumption: 250W (1/8th power), 1200W max
- Cabinet: 15mm plywood
- Finish: painted black
- Mounting bracket: TNA-BRK1-G3
- Mounting points: 20 x M8 mounting points for rigging system (2 top, 2 bottom, 8 left, 8 right)

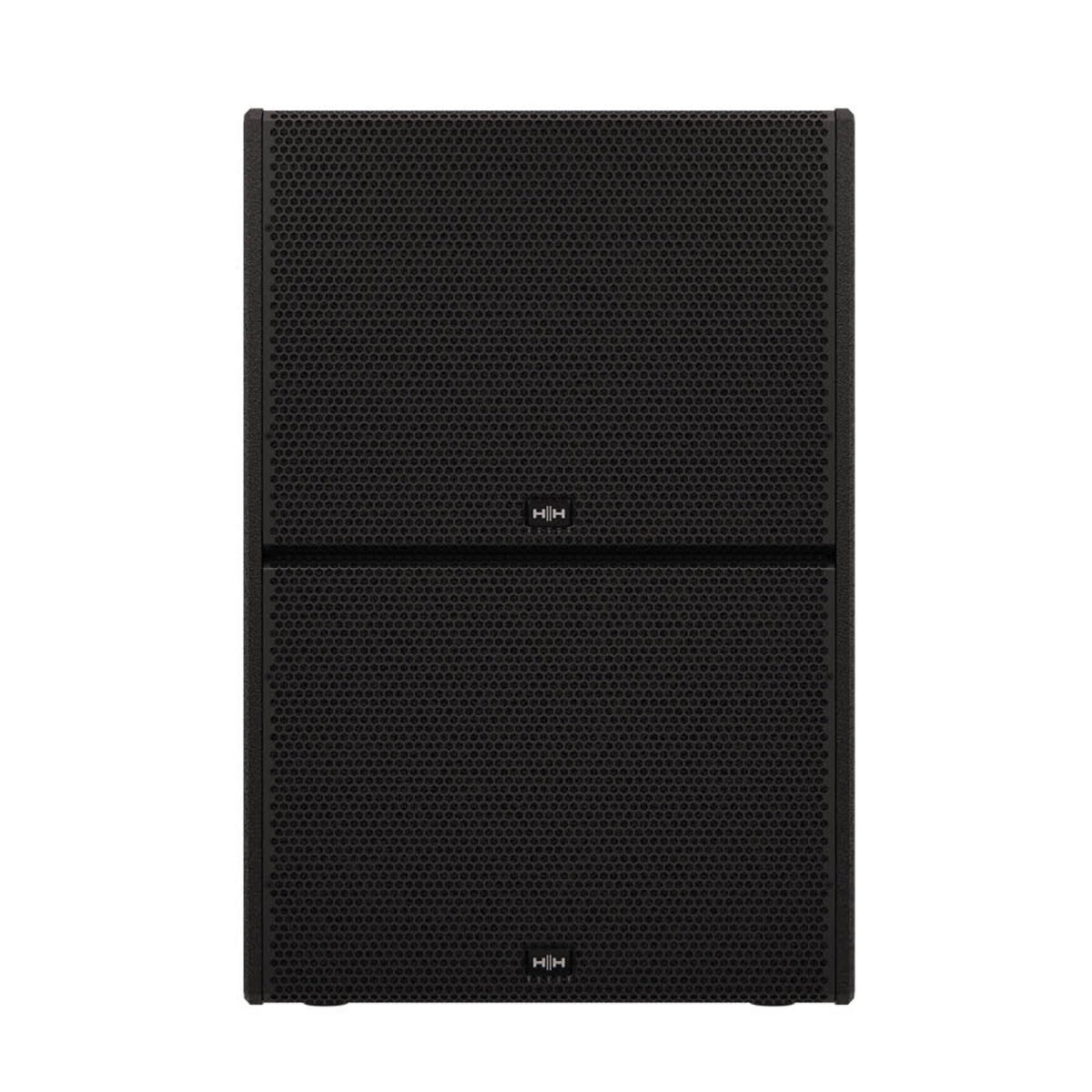

- Grille: 1.5mm, hexagonal mesh
- Dimensions (H x W x D): 727 x 496 x 455mm (28.62" x 19.53" x 17.91")
- Weight: 41.6 kg (91.7 lb)
What is included
- HH Audio TNA-2120SA-G3 Active Line Array Subwoofer (1)
Common questions
What is the frequency response of the HH Audio TNA-2120SA-G3?
The HH Audio TNA-2120SA-G3 has a frequency response of 52Hz - 200Hz (-10dB).
Can the HH Audio TNA-2120SA-G3 power TNA-2051 line array cabinets?

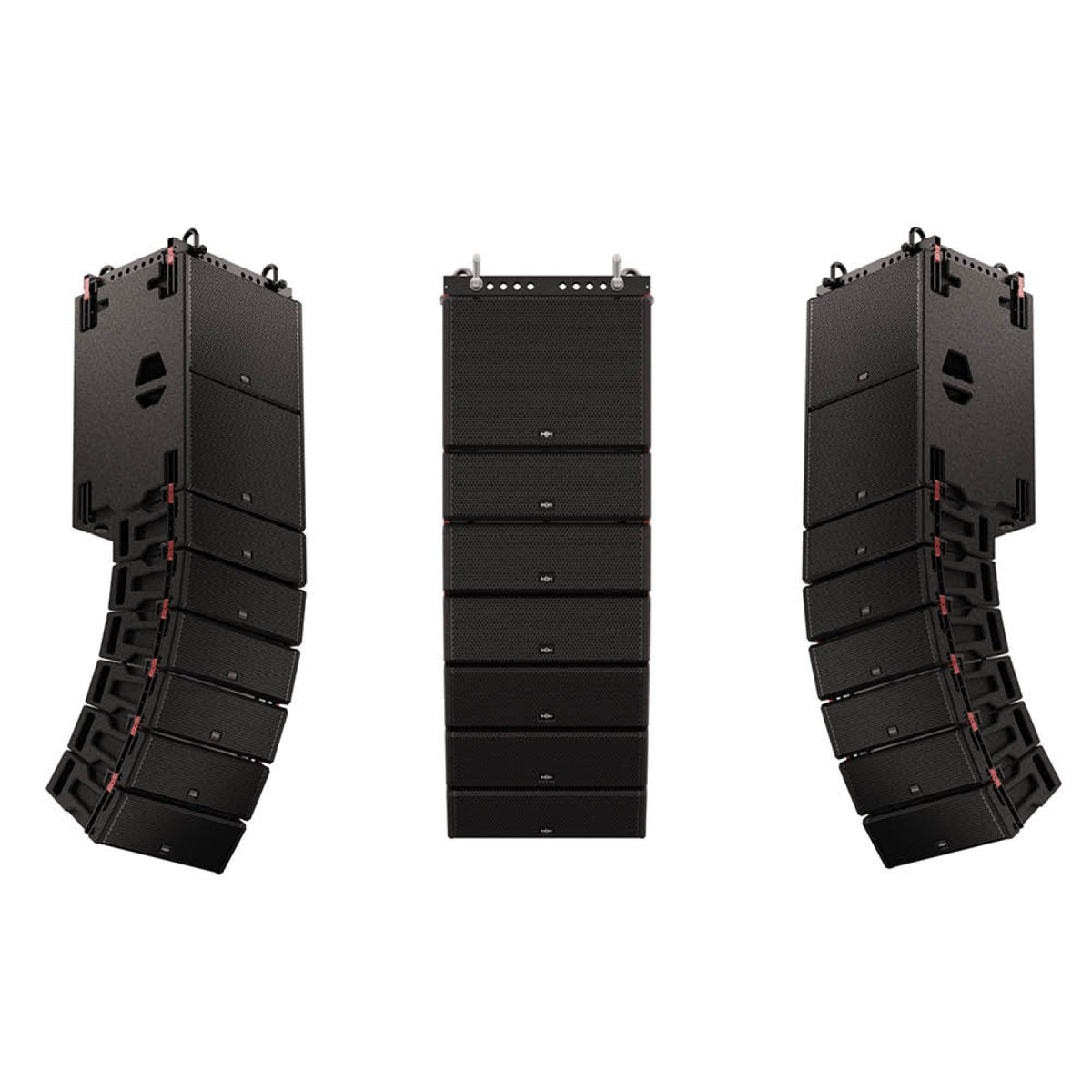

Yes. The HH Audio TNA-2120SA-G3 has two locking speakon outputs for external TNA-2051 cabinets, driven by two satellite amp channels rated at 1200W peak, 600W continuous and 300W RMS each.
What inputs and outputs does the HH Audio TNA-2120SA-G3 have?
The HH Audio TNA-2120SA-G3 has a balanced XLR input, a balanced XLR out, a balanced XLR sub out with a 2-way/3-way mode switch and ground lift switch, and 2 locking speakon connectors.
What power does the HH Audio TNA-2120SA-G3 need?
The HH Audio TNA-2120SA-G3 runs on ~100V-240V 50/60Hz AC through a locking powercon connector.
How heavy is the HH Audio TNA-2120SA-G3?
The HH Audio TNA-2120SA-G3 weighs 41.6 kg (91.7 lb) and measures 727 x 496 x 455mm (28.62" x 19.53" x 17.91").
Does the HH Audio TNA-2120SA-G3 ship free?
Yes. Orders over $149 ship free with insured shipping in the continental US, and the HH Audio TNA-2120SA-G3 is priced over $149.
