Description

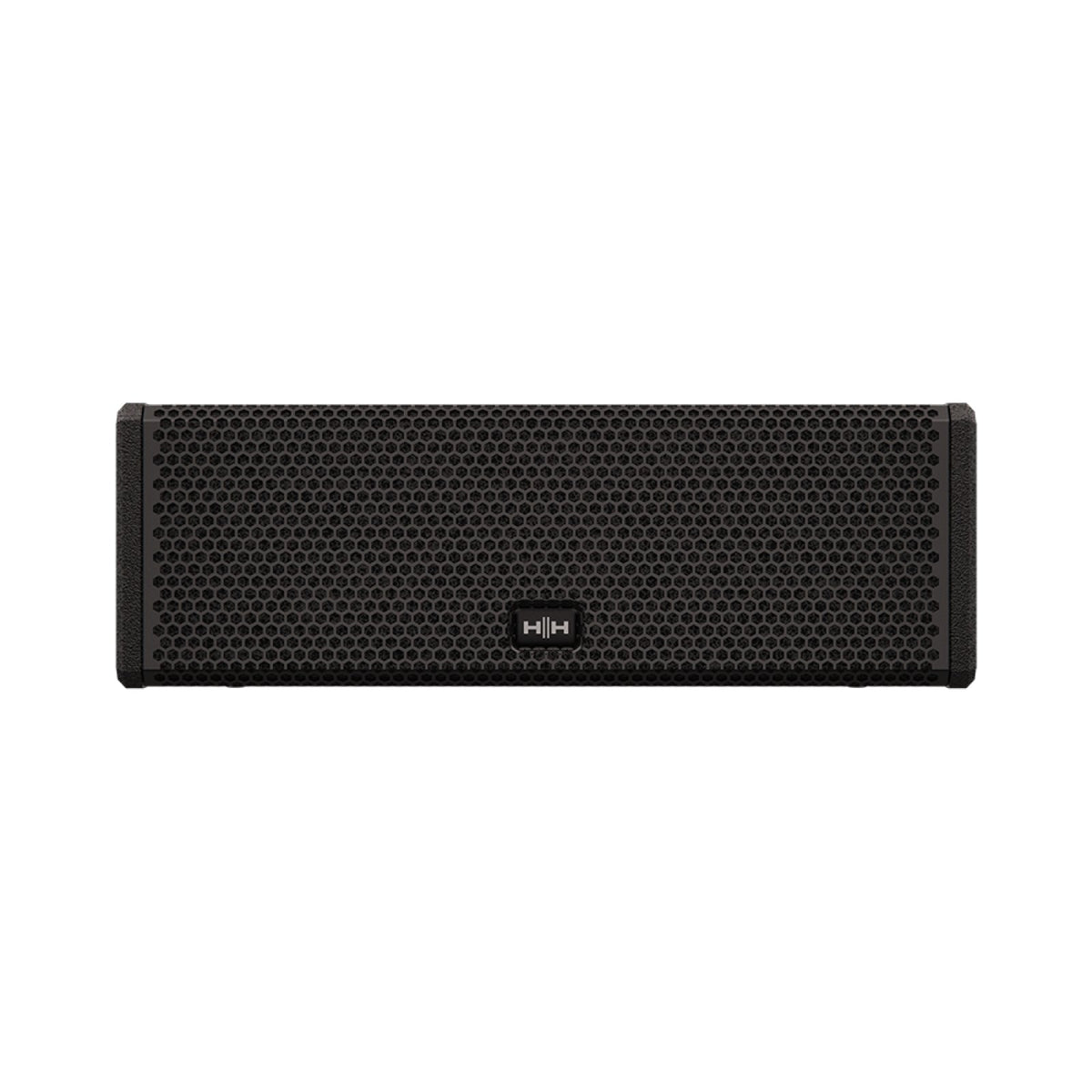

HH Audio TNA-2051-G3 2x5" Passive Line Array Speaker with 1.33" Celestion Compression Driver is a 2-way passive line array loudspeaker rated at 200W AES and 800W peak, with two 5-inch HH-designed drivers and a 1.33-inch Celestion compression driver.
What is the HH Audio TNA-2051-G3 line array speaker?
The HH Audio TNA-2051-G3 2x5" Passive Line Array Speaker with 1.33" Celestion Compression Driver is a 2-way passive line array loudspeaker with two 5-inch HH-designed LF drivers and a 1.33-inch Celestion compression driver on a Celestion-designed waveguide and horn, with a 2000Hz crossover frequency.
How loud and how powerful is the HH Audio TNA-2051-G3?
The HH Audio TNA-2051-G3 is rated at 200W AES and 800W peak, with 94 dB SPL sensitivity (1W/1M), 123 dB SPL maximum output and a 16 ohm nominal impedance.
How is the HH Audio TNA-2051-G3 rigged and linked?

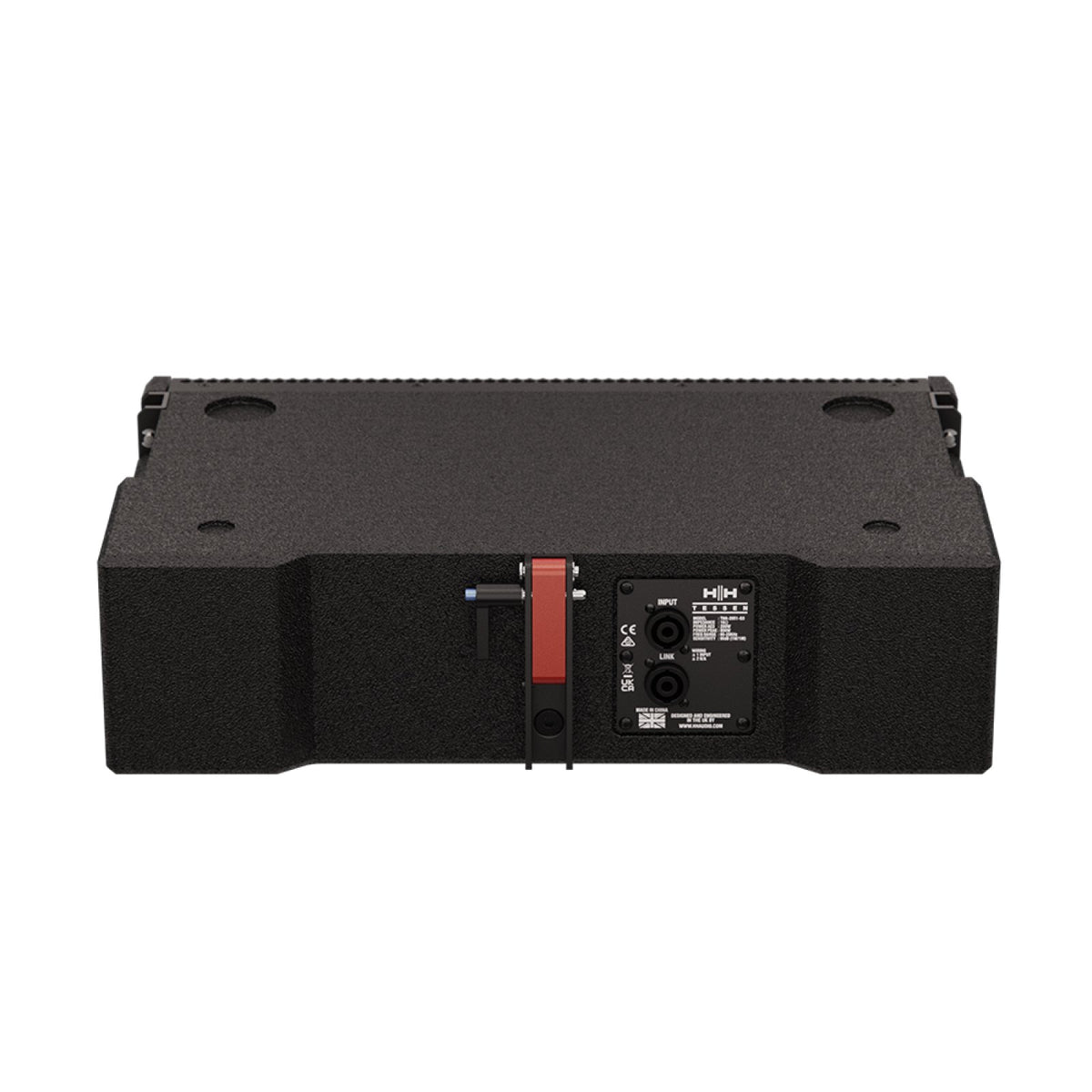

The HH Audio TNA-2051-G3 has 6 x M8 mounting points for its integrated rigging system and a 3-point linking bracket with a removable locking pin. Splay angles of 0°, 4° and 8° can be set between enclosures, and the TNA-BRK1-G3 bracket is listed for suspended mounting.
Specifications
- Model/SKU: TNA-2051-G3 (28781)
- Brand: HH Audio
- System type: 2-way line array loudspeaker
- Frequency response (-10dB): 65Hz - 20kHz
- Frequency response (-3dB): 100Hz - 18kHz
- Power: 200W AES, 800W peak
- Sensitivity (1W/1M): 94 dB SPL
- Max SPL: 123 dB SPL
- Nominal system impedance: 16 ohms
- Input connector: NL4 twist lock connector
- Link connector: NL4 twist lock connector
- HF driver: 1 x 1.33-inch Celestion compression driver, mounted to a Celestion-designed waveguide and horn
- LF driver: 2 x 5-inch HH-designed driver
- Crossover frequency: 2000Hz
- Nominal dispersion: 120° x 8° single box
- Recommended HPF frequency: 100Hz
- Cabinet: 15mm plywood
- Finish: painted black
- Mounting bracket: TNA-BRK1-G3 for suspended mounting
- Mounting points: 6 x M8 mounting points for integrated rigging system
- Linking bracket: 3-point rigging system with removable locking pin for linking and adjusting splay angle
- Splay angle settings: 0°, 4° and 8° (between enclosures)
- Grille: 1.5mm thickness steel, hexagonal mesh, acoustic foam lined
- Dimensions (H x W x D): 163 x 496 x 288mm (6.42" x 19.53" x 11.34")
- Weight: 10.6 kg (23.4 lb)
What is included
- HH Audio TNA-2051-G3 Passive Line Array Speaker (1)
Common questions
What connectors does the HH Audio TNA-2051-G3 use?
The HH Audio TNA-2051-G3 has an NL4 twist lock input connector and an NL4 twist lock link connector.
What is the dispersion of the HH Audio TNA-2051-G3?
The HH Audio TNA-2051-G3 has a nominal dispersion of 120° x 8° for a single box.
Can the HH Audio TNA-2051-G3 be powered by the TNA-2120SA-G3 subwoofer?
The HH Audio TNA-2120SA-G3 active subwoofer lists 2 locking speakon outputs for external TNA-2051 cabinets, and the HH Audio TNA-2051-G3 is a passive cabinet that needs an external amplifier.
What high-pass filter frequency is recommended for the HH Audio TNA-2051-G3?
HH Audio recommends a 100Hz high-pass filter frequency for the HH Audio TNA-2051-G3.
What size is the HH Audio TNA-2051-G3 cabinet?
The HH Audio TNA-2051-G3 measures 163 x 496 x 288mm (6.42" x 19.53" x 11.34") and is a 15mm plywood cabinet with a painted black finish.
Does the HH Audio TNA-2051-G3 ship free?
Yes. Orders over $149 ship free with insured shipping in the continental US, and the HH Audio TNA-2051-G3 is priced over $149.
