Description
Unleash the Power of Versatility

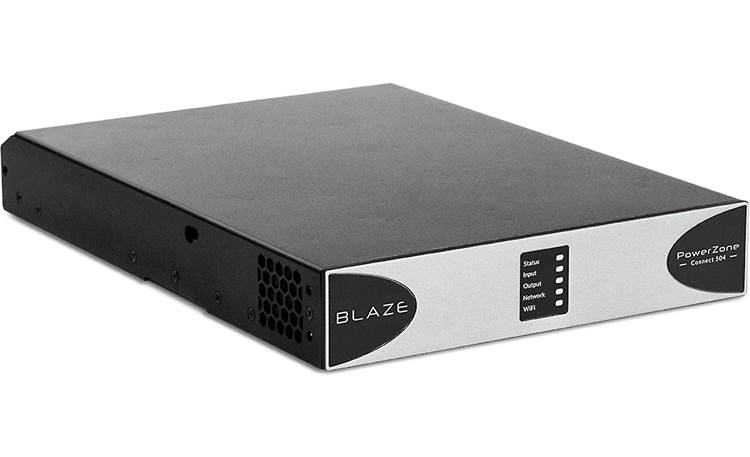

The Blaze PowerZone Connect 504 Amplifier is an amplifier for those who crave power and versatility without compromise. Compact yet mighty, it delivers 500 watts of dynamic power with seamless control options.
It fits snugly in half a rack space but commands any commercial audio system, offering pristine sound across multiple zones and impeccable flexibility with both low-impedance and high-voltage speakers. It's everything one needs to craft an immersive audio experience.
Control Right From Your Fingertips
Whether managing the soundscape of a sprawling commercial space or adjusting volumes for intimate moments, this amp’s PowerZone Control app makes it effortless. With browser-based control on Windows, Mac, Android, or iOS, users are empowered to tweak zones, adjust EQ, and mix inputs — all from a phone or tablet. The ease of movement, paired with wall-mounted controllers, means adjusting the sound from anywhere, creating perfect harmony for each unique environment.
Maximum Flexibility, Minimum Fuss
The Blaze PowerZone Connect 504 Amplifier boasts two channels that drive multiple speakers or split into four to cater to different audio needs. Its compatibility with various inputs and network connections offers the perfect balance of high-tech versatility and user-friendly simplicity.
In the quest for unparalleled audio solutions, it’s not just an amplifier — it’s the heartbeat of a transformative sonic journey, providing the precision and strength to bring your vision to life.
Product highlights:
- 500 watts total power
- up to 250 watts dynamically shareable across each pair of channels
- 125 watts x 4 when driving low-impedance (4- to 16-ohms) loudspeakers
- 250 watts x 2 with constant-voltage (70V/100V) transformer-coupled loudspeakers
- frequency response: 20-20,000 Hz (+0/-0.25dB 8-ohm load, 3dB below rated power)
- signal-to-noise ratio: 106dB (A-weighted, 20Hz-20kHz, 8-ohm load)
Web-based user interface:
- compatible with Windows®, Mac®, Android™, and iOS®
- adjust multi-zone setup, input mixing, priority and ducking, input and output EQ, S/PDIF output routing, high-pass filter, speaker presets, delay, and more
- large catalog of downloadable speaker presets lets you easily dial in the sound with an array of commonly used speaker brands
- access most configuration options remotely through multiple Blaze Wall-S1 wall-mounted controllers
Connections:
- general purpose input/output connection (GPIO) for direct control from peripheral devices
- coaxial S/PDIF input/output
- four balanced Euroblock mic/line inputs
- four unbalanced RCA inputs
- RJ-45 Ethernet port for connecting to a network
- four male Euroblock amplifier outputs: 4 x Lo-Z/2 x Hi-Z
