Description

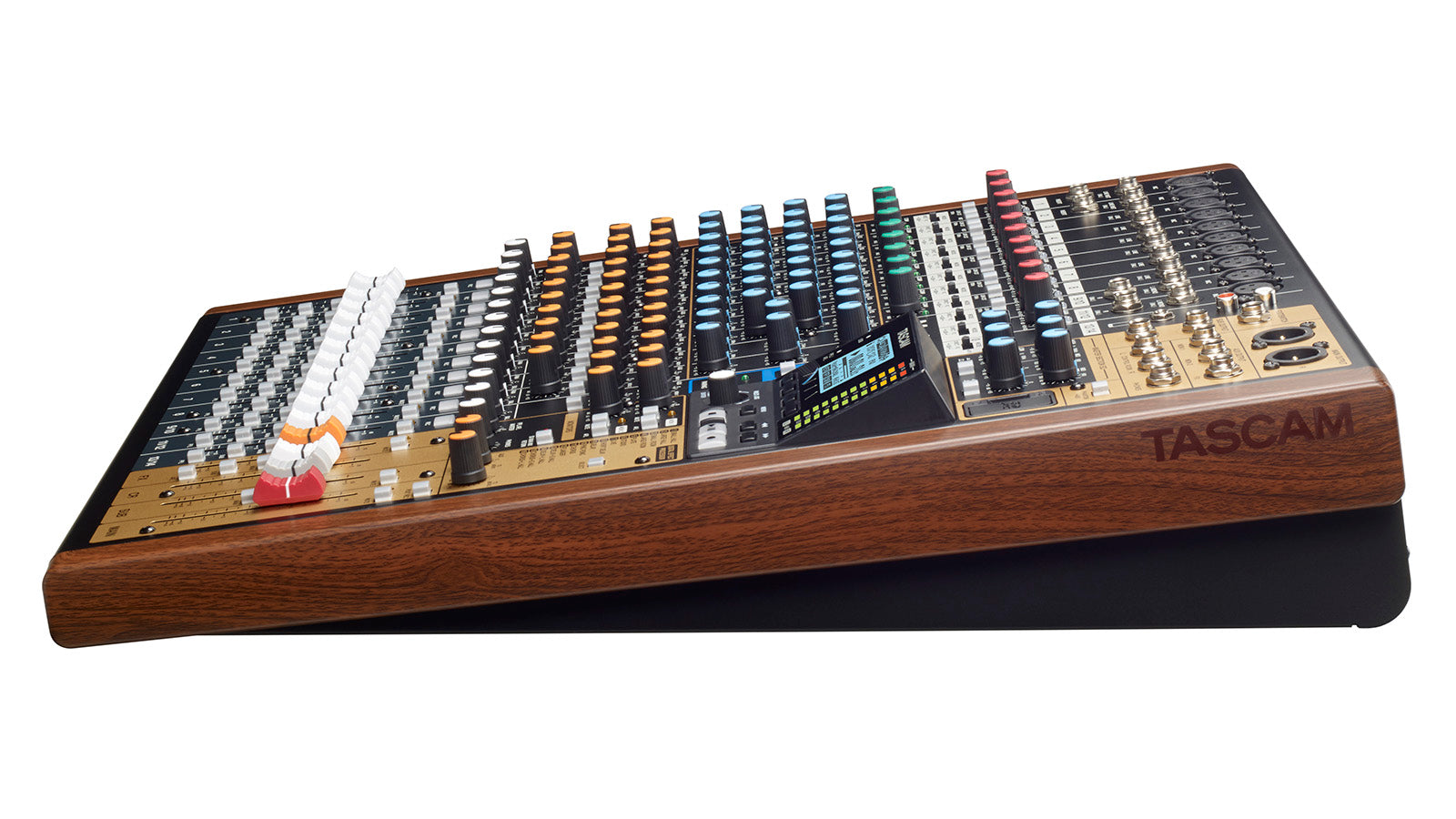

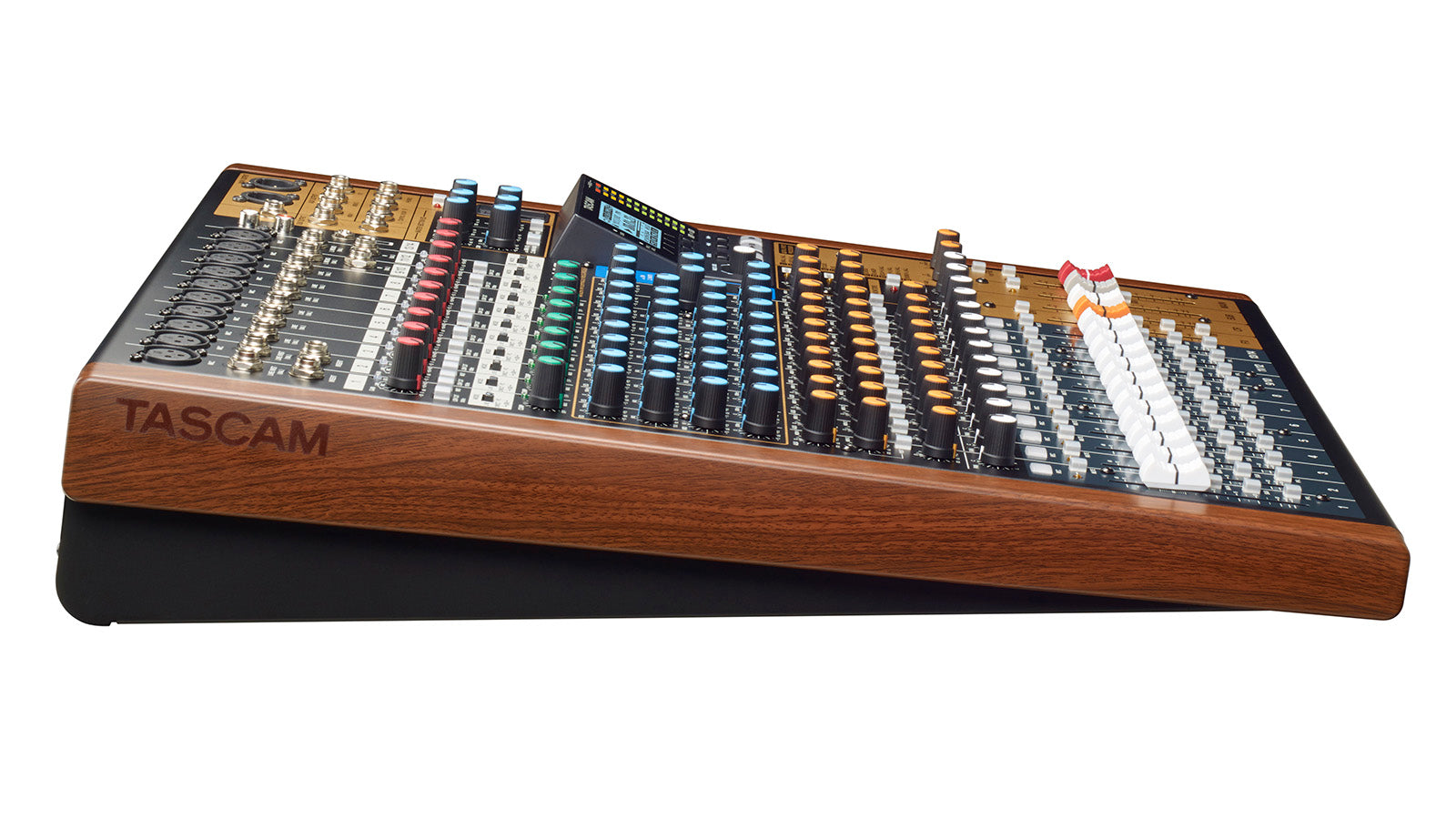

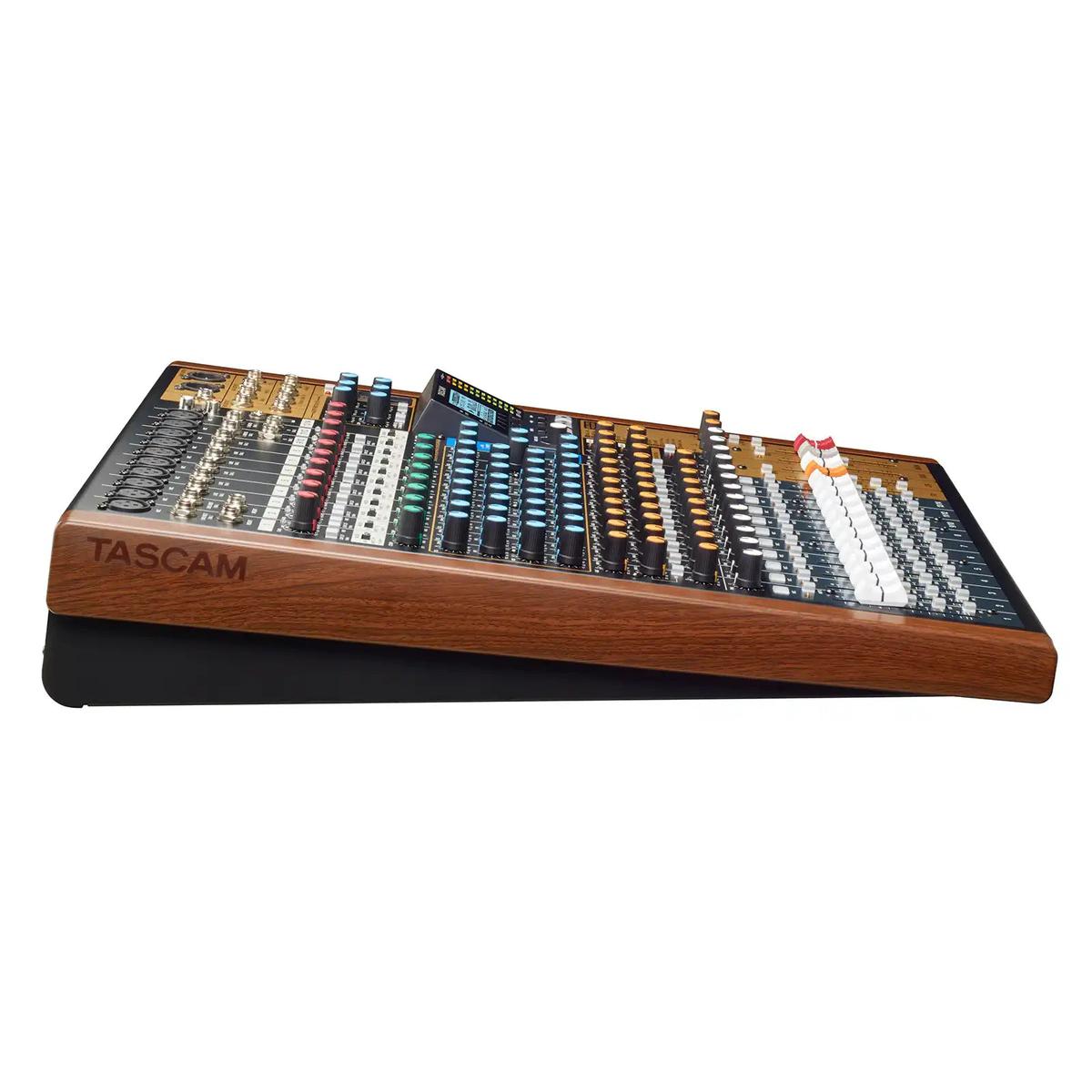

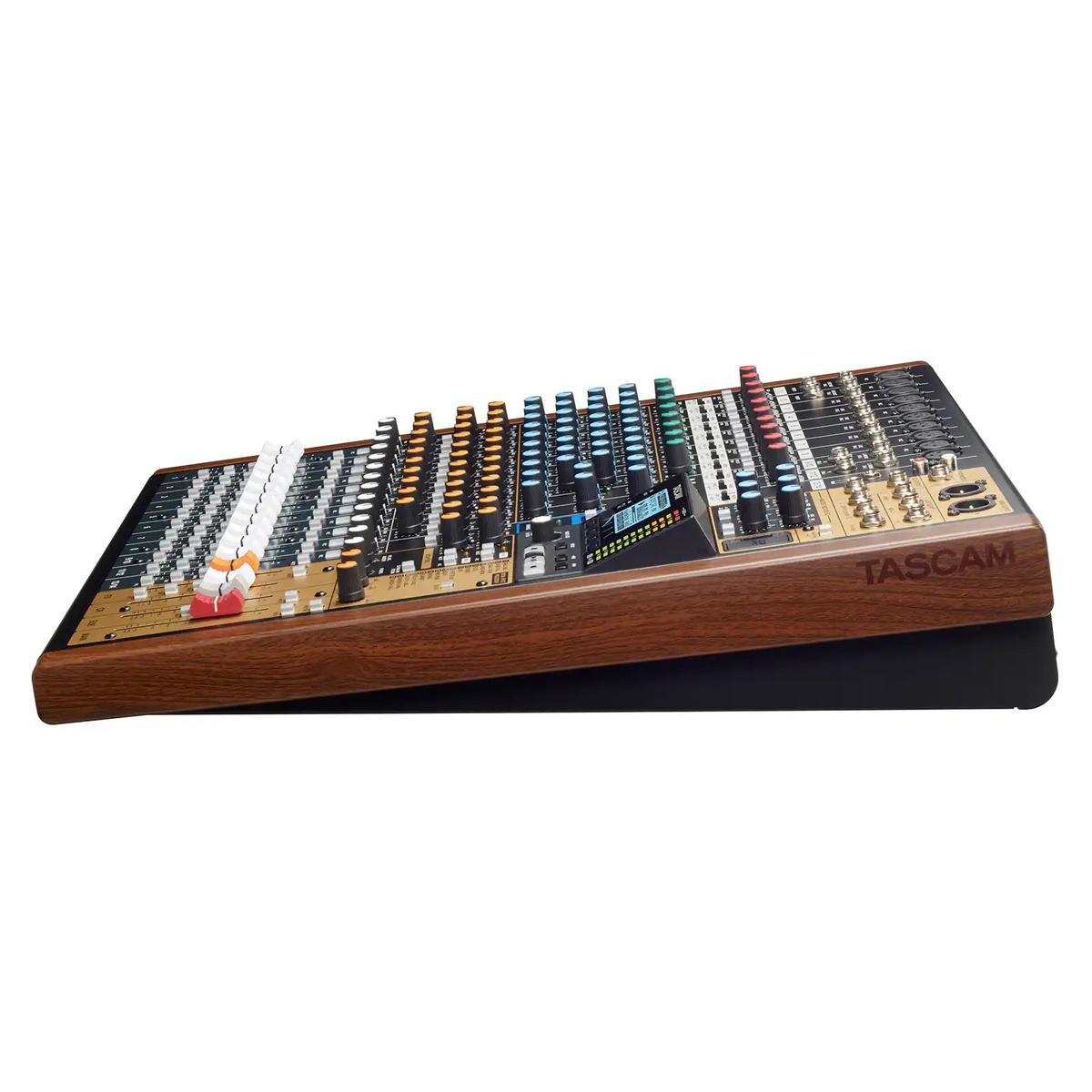

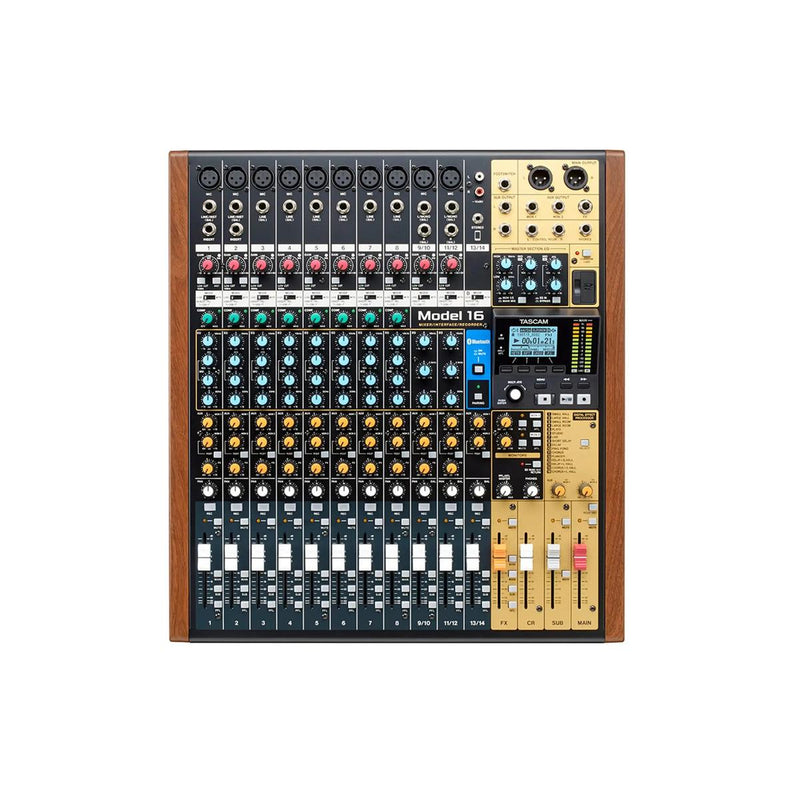

TASCAM Model 16 All-in-One Mixing Studio: Mixer/Interface/Recorder is an all-in-one analog mixer, 16-track recorder and 16-in/14-out USB audio interface, with 14 inputs, TASCAM Ultra HDDA mic preamps, a 1-knob compressor and 3-band EQ with sweepable mid on the mic channels, and 16 built-in effects.
Specifications
| SKU | HL00334319 |
|---|---|
| Model | Model 16 |
| Multi-track recorder | 16 tracks, WAV up to 48kHz/24-bit to SD, SDHC and SDXC cards (Class 10 or higher required) |
| Punch in/out | Up to 8 tracks simultaneously |
| USB audio interface | 16-in/14-out to/from DAW |
| Inputs | 14 (10 monaural XLR/TRS balanced and 2 stereo-paired TRS balanced) |
| Mic preamps | 10 with TASCAM Ultra HDDA Mic Pre-amp technology (CH 1 thru 8) |
| Preamp gain control | With signal/overload indicator (CH 1 thru 12) |
| Input mode switch | LIVE/USB/MTR per input channel |
| Compressor | 1-knob (CH 1 thru 8) |
| EQ | 3-band with sweepable mid-range frequency (CH 1 thru 8) |
| Low-cut filter | 100Hz (CH 1 thru 12) |
| Bluetooth | Bluetooth 5.0 input supporting AAC and SBC codecs |
| Output EQ | Hi/Lo shelf, wide and narrow-Q semi-parametric EQs for MAIN and SUB outputs |
| Effects | 16 TASCAM effects, including reverb, delay, chorus and flange |
| Outputs | MAIN via XLR balanced and SUB via TRS balanced connectors; 1 stereo output for control room |
| Remote | REMOTE connector for a foot switch (TASCAM RC-1F) |
Common questions
How many tracks does the TASCAM Model 16 record?
The TASCAM Model 16 records 16 tracks of WAV audio at up to 48kHz/24-bit to SD, SDHC or SDXC cards (Class 10 or higher).
How many inputs does the TASCAM Model 16 have?
The TASCAM Model 16 has 14 inputs: 10 monaural XLR/TRS balanced and 2 stereo-paired TRS balanced.
Does the TASCAM Model 16 work as a USB audio interface?
Yes. The TASCAM Model 16 has a built-in 16-in/14-out USB audio interface for sending audio to and from a DAW.
Does the TASCAM Model 16 have Bluetooth?
Yes. The TASCAM Model 16 has a Bluetooth 5.0 input that supports both AAC and SBC codecs.
What effects are built into the TASCAM Model 16?
The TASCAM Model 16 has 16 TASCAM effects, including reverb, delay, chorus and flange.
