Description

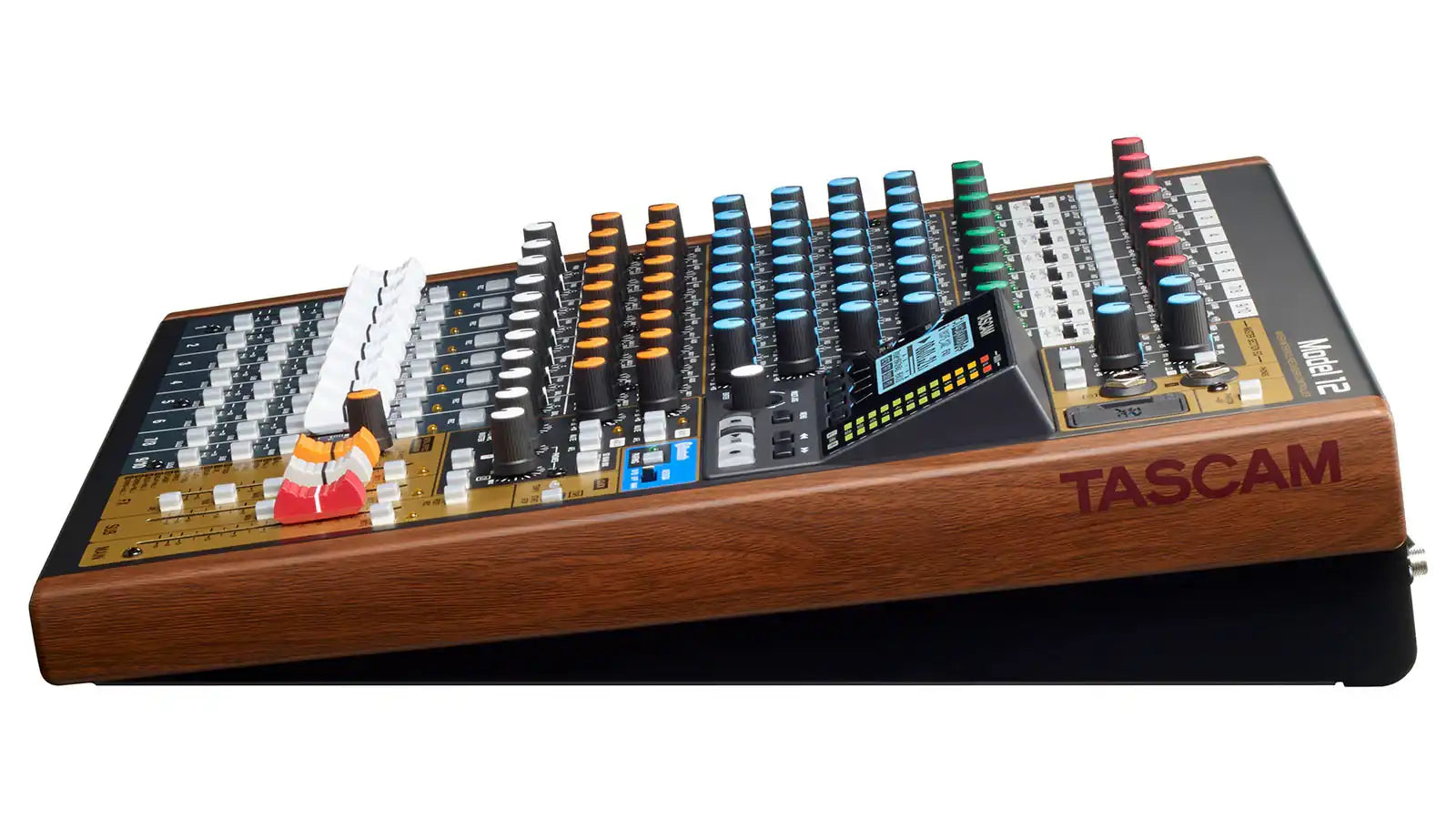

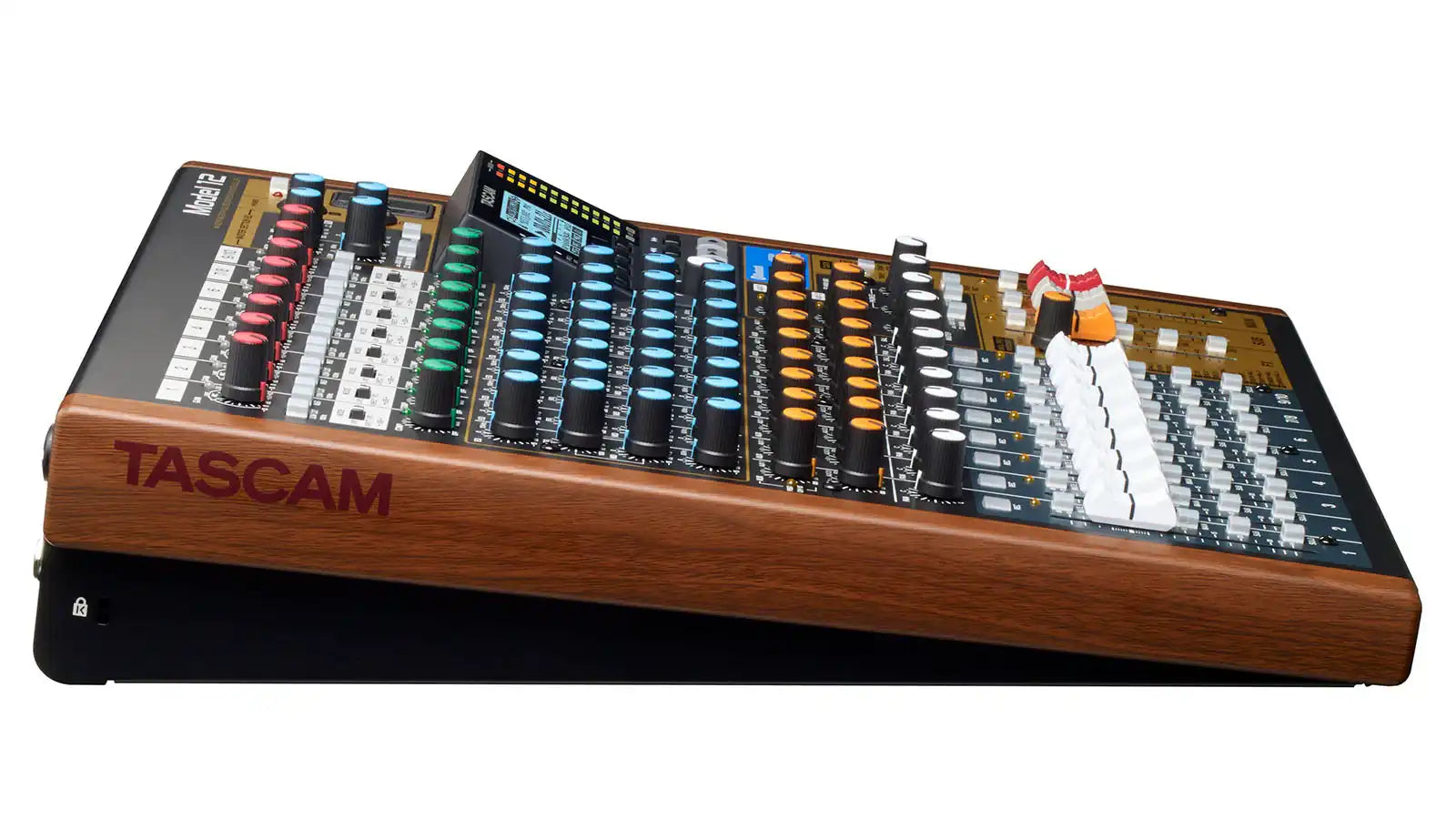

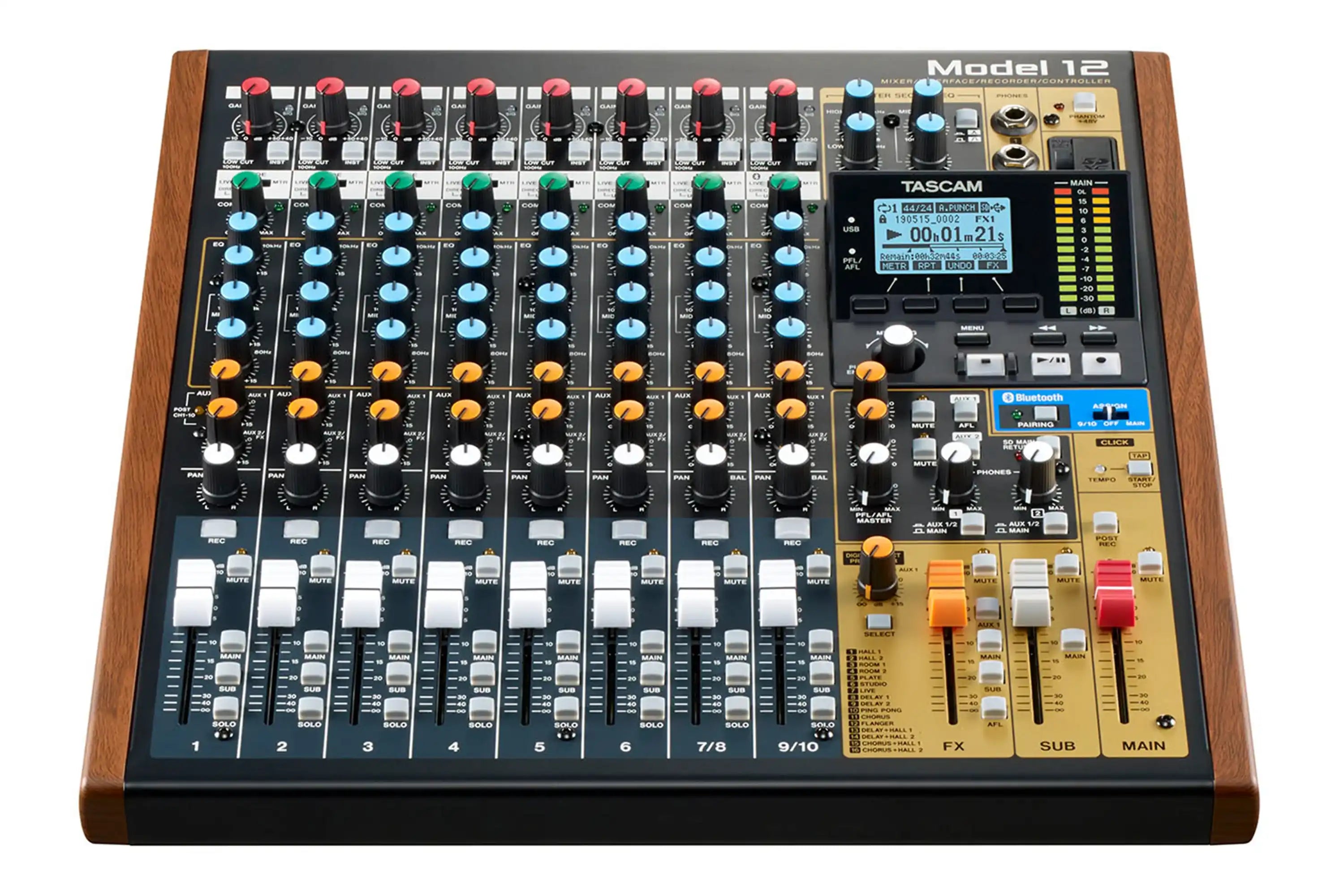

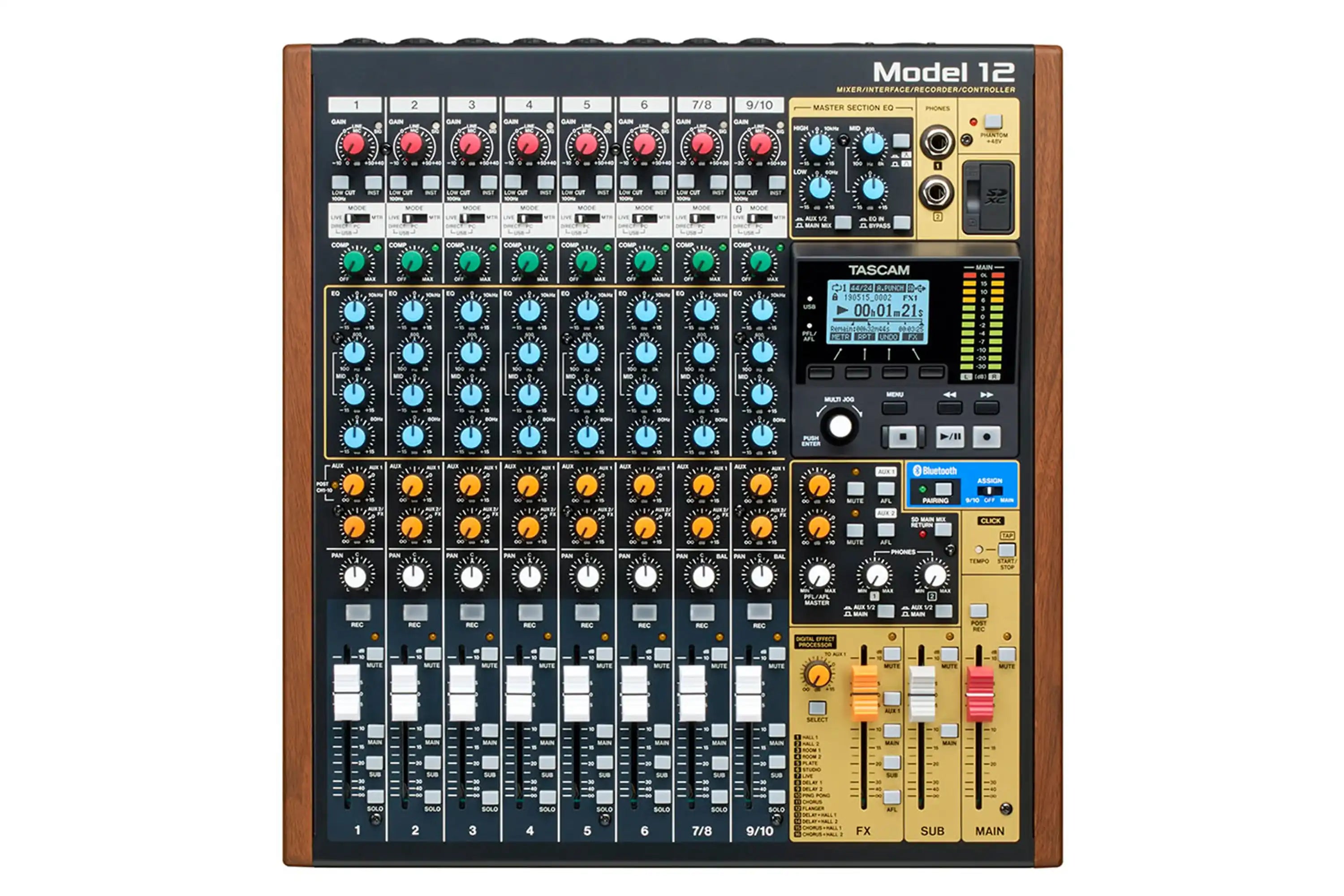

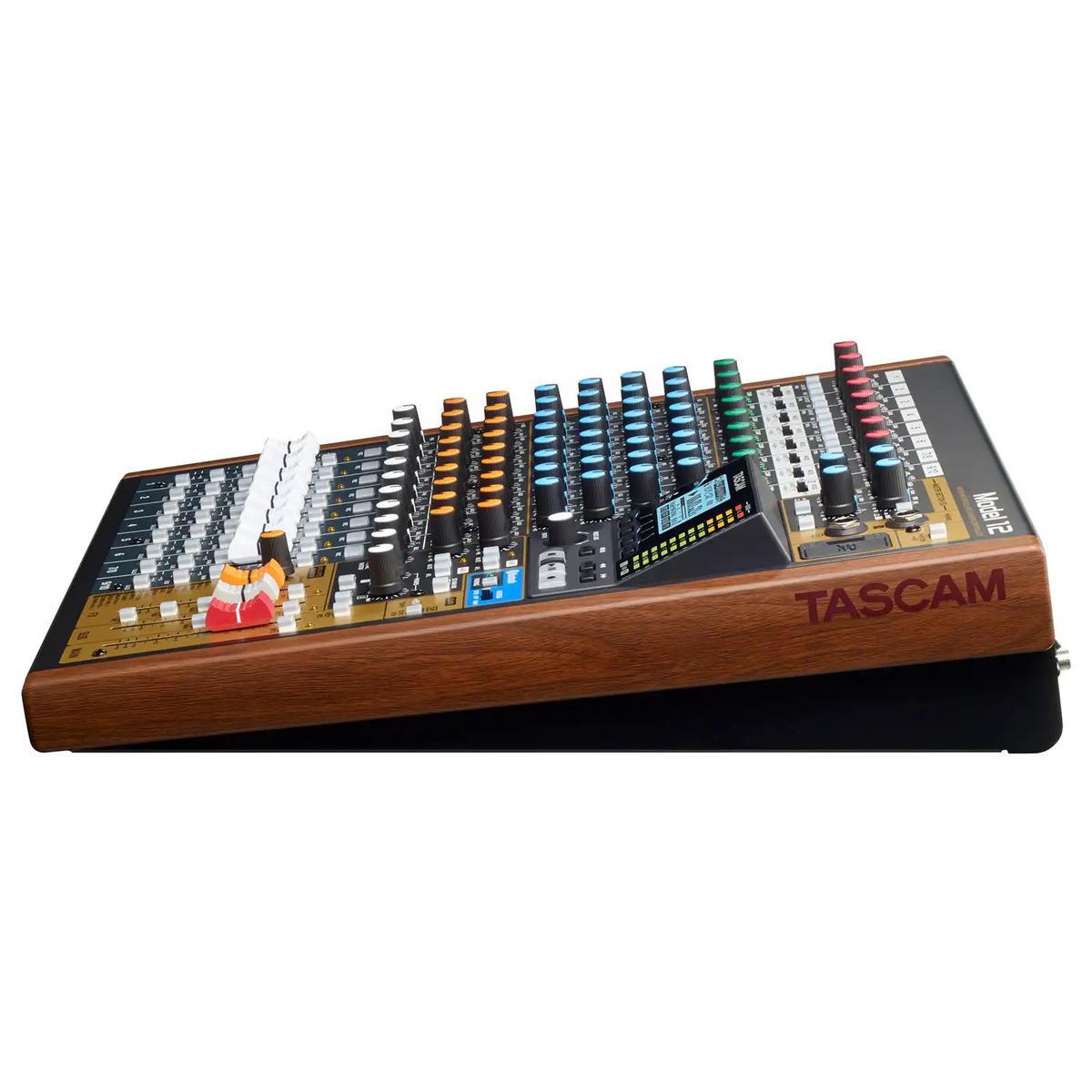

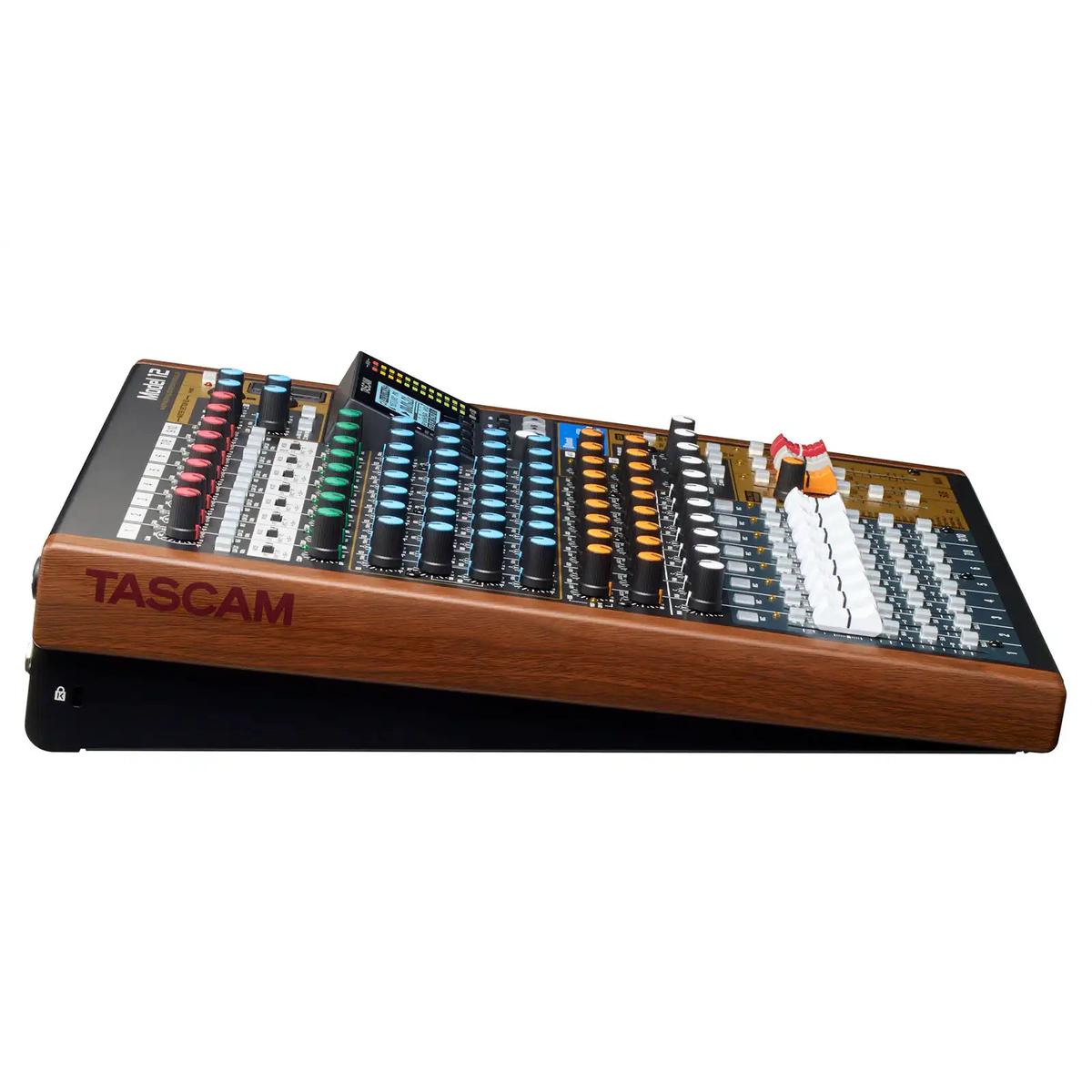

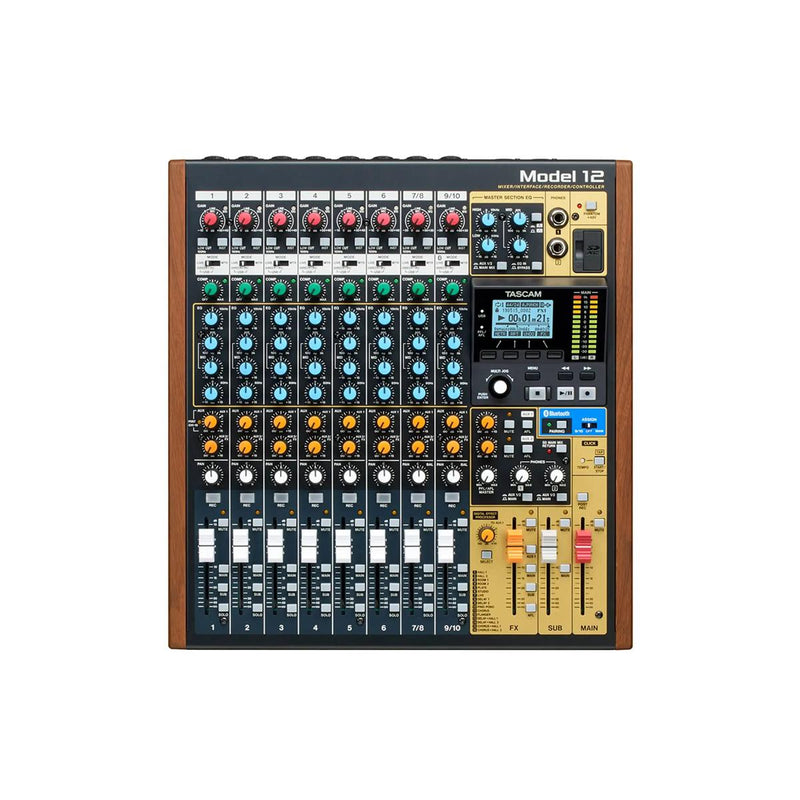

TASCAM Model 12 Analog Mixer/Recorder is a compact analog mixer, 12-track SD card recorder, 12-in/10-out USB audio interface and DAW control surface in one, with Ultra HDDA mic preamps and a 1-knob compressor and 3-band EQ on every input channel. It suits music producers, live performers, content creators and podcasters.
Specifications
| SKU | HL00346073 |
|---|---|
| Model | Model 12 |
| Inputs | 8 XLR mic inputs with phantom power, 8 Hi-Z instrument inputs, 10 line inputs, Bluetooth 5.0, 3.5mm TRRS smartphone input |
| Recording | Up to 12 tracks simultaneously to SD card; up to 10-track playback |
| Audio interface | 12-in/10-out via USB Type-C connector |
| Mic preamps | Ultra HDDA, ultra-low noise floor |
| DAW control | HUI/MCU protocol emulation |
| Effects | Built-in reverb, delay, chorus and other effects |
| MIDI | 5-pin MIDI In/Out ports for drum machines, sequencers and effects modules |
| Headphone outputs | Dual, with two discrete mixes |
| Channel processing | 1-knob compressor and 3-band EQ on all input channels |
| Routing | MAIN L-R and SUB L-R mix buses and dual Aux sends |
| Video sync | Adjustable output delay (0-2,000ms) |
| Fader modes | Selectable pre/post-fader modes and solo-in-place |
| Footswitch | Dual footswitch support for control of transport, effects and other functions (TRS connector) |
| Metronome | Built-in, with dedicated click output and Tap Tempo support |
Common questions
How many tracks can the TASCAM Model 12 record?
The TASCAM Model 12 records up to 12 tracks at once to an SD card and plays back up to 10 tracks.
Can the TASCAM Model 12 be used as an audio interface?
Yes. The TASCAM Model 12 works as a 12-in/10-out USB audio interface over a USB Type-C connector, with HUI/MCU DAW control.
How many mic inputs does the TASCAM Model 12 have?
The TASCAM Model 12 has 8 XLR mic inputs with phantom power, plus 8 Hi-Z instrument inputs, 10 line inputs, Bluetooth 5.0 and a 3.5mm TRRS smartphone input.
Does the TASCAM Model 12 have MIDI?
Yes. The TASCAM Model 12 has 5-pin MIDI In/Out ports to sync with drum machines, sequencers and effects modules.
Does the TASCAM Model 12 have a metronome?
Yes. The TASCAM Model 12 has a built-in metronome with a dedicated click output and Tap Tempo.
