Description
KNA UP-1 Acoustic Guitar Pickup is KNA’s lightest and smallest stick-on guitar pickup, a passive surface-mounted piezo that installs on the soundboard with no modification and needs no battery. It also works on harp, drums and percussion.
Specifications
| SKU | KNA-UP-1 |
|---|---|
| Model | UP-1 |
| Type | Compact, portable passive surface-mounted piezo pickup |
| Uses | Acoustic guitar, harp, drums and percussion |
| Installation | No modification; stick the pickup on your instrument’s soundboard |
| Housing | Piezo element encased in laminated birch with a mahogany top |
| Wood | Laminate birch and mahogany top |
| Battery | None needed (passive) |
| Compatibility | Any size instrument |
| Maximum impedance | 800 Ω |
Measurements
| Weight | 2.95 g / 0.104 oz |
|---|---|
| Cable | 3 meter / 9 ft |

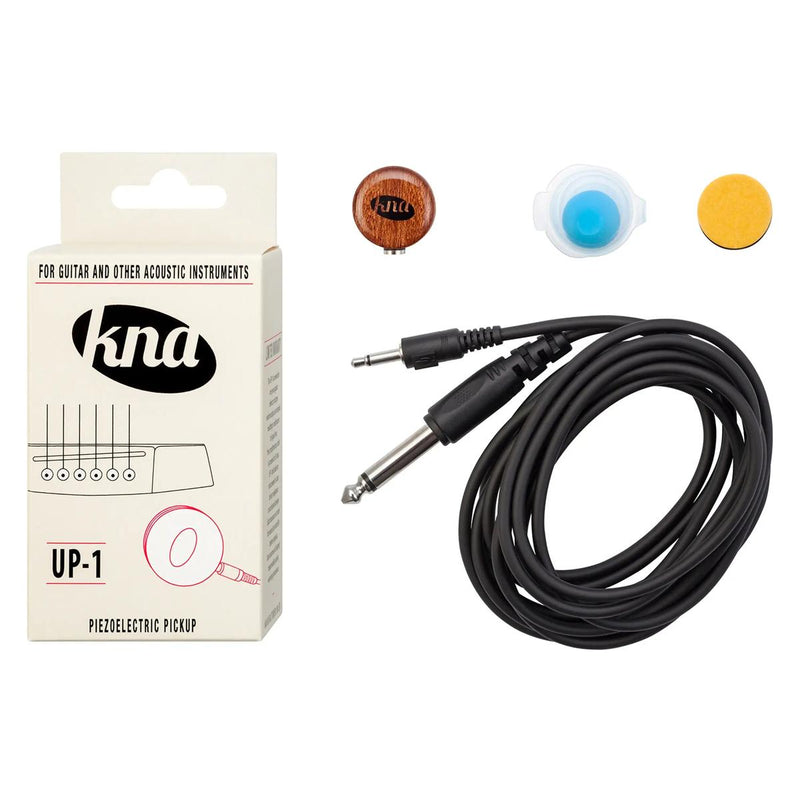

What is included
- KNA UP-1 pickup
- Double-sided adhesive disc
- PowerTack adhesive for multiple applications
- Detachable 1/8” to 1/4” cable (lets the pickup stay in place during storage)
Common questions
How do you install the KNA UP-1 pickup?
The KNA UP-1 installs with no modification: stick the pickup on your instrument’s soundboard with the included adhesive disc or PowerTack adhesive.
Does the KNA UP-1 need a battery?
No. The KNA UP-1 is a passive piezo pickup and needs no battery.
What instruments does the KNA UP-1 work on?
The KNA UP-1 works on acoustic guitar, harp, drums and percussion, on any size instrument.
How much does the KNA UP-1 weigh?
The KNA UP-1 weighs 2.95 g (0.104 oz) and is KNA’s lightest and smallest stick-on guitar pickup.
What cable comes with the KNA UP-1?
The KNA UP-1 comes with a detachable 3 meter (9 ft) 1/8 inch to 1/4 inch cable.
